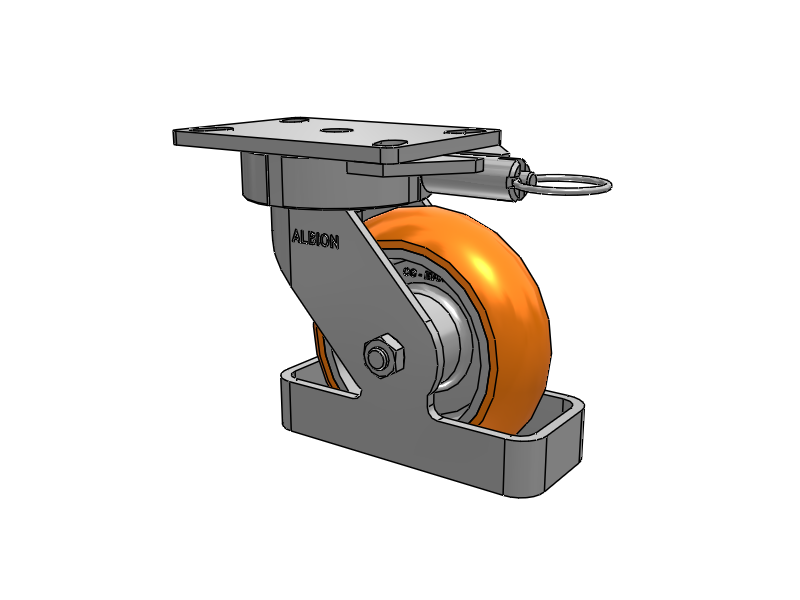

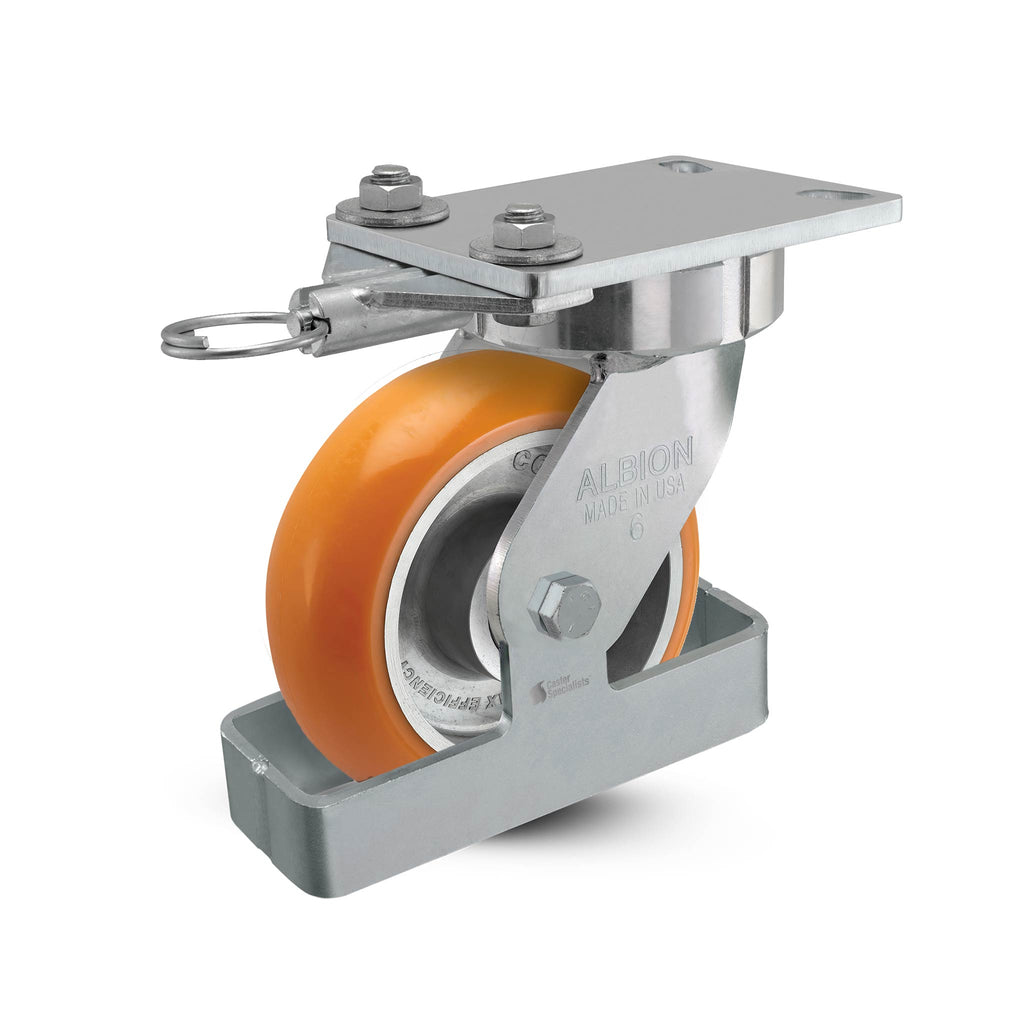

Albion 38AN06228SLTO – 6"x2" Swivel Caster with Swivel Lock, Toe Guard & Orange MAX-Efficiency Polyurethane-on-Aluminum Wheel – 1,250 lb Capacity
Best-in-Class Ergonomics, Safety & Precision Control
The Albion 38AN06228SLTO swivel plate caster is engineered for operators who need maximum mobility and directional control in demanding industrial environments. Featuring the Orange MAX-Efficiency polyurethane-on-aluminum wheel, it delivers up to 26% easier movement and lasts up to 2x longer than the leading competitor in independent testing. The USA-made ergonomic extended-lead swivel rig ensures smoother tracking, reduced push/pull forces, and quiet operation—while the 4-position swivel lock provides the ability to quickly convert from swivel to rigid for precise handling.
Key Safety & Ergonomic Advantages
-
USA-Made Maintenance-Free Rig – Sealed precision ball bearings in both swivel section and wheel require no lubrication for life.
-
4-Position Swivel Lock – Locks the caster into one of four fixed positions for controlled, straight-line travel.
-
Effortless Mobility – Extended-lead design improves steering, reduces fatigue, and minimizes chatter in towed/high-speed use.
-
Integrated Toe Guard – Protects operator feet from accidental impact and keeps debris out of the wheel path.
-
ANSI ICWM Tested – Proven strength and reliability in demanding conditions.
Premium Orange MAX-Efficiency Wheel
-
Material – High-performance polyurethane tread (85 Shore A hardness) bonded to precision-machined aluminum core.
-
Ergonomic Gains – Up to 26% less push/pull effort compared to competitive wheels.
-
Durability – Outlasts competitor wheels by up to 2x in independent lab testing.
-
Environmental Benefit – Self-retaining top-hat spacers eliminate disposable zip ties, reducing waste.
-
Tread Profile – Slight crown for easy rolling and smooth directional changes.
-
Chemical & Moisture Resistance – Handles water, oils, greases, and most chemicals.
-
Temperature Range – Performs from -40°F to 180°F.
Specifications
-
Wheel Size – 6" diameter x 2" wide polyurethane-on-aluminum
-
Capacity – 1,250 lbs dynamic load per caster
-
Top Plate Size – 6-1/4" x 4-1/2"
-
Swivel Lock – 4-position for rigid or free-swiveling operation
-
Toe Guard – Integrated for operator safety
-
Rig Type – Albion ergonomic extended-lead swivel rig
-
Finish – Zinc plated for corrosion resistance
-
Bearings – Sealed precision ball bearings (wheel & swivel)
-
Warranty – 3 years
-
Testing – ANSI ICWM certified
Ideal Applications
-
Heavy-duty warehouse carts and dollies
-
Towed bulk material handling trucks
-
Manufacturing and assembly equipment
-
Waste and transport carts
-
Any operation requiring ergonomic mobility with controlled steering
Need a rigid, brake-equipped, or alternative wheel version?
The Albion 38 Series offers multiple wheel types, brakes, and rig styles—contact us for the best match to your application.
