Ergonomic Performance with Heavy-Duty Durability

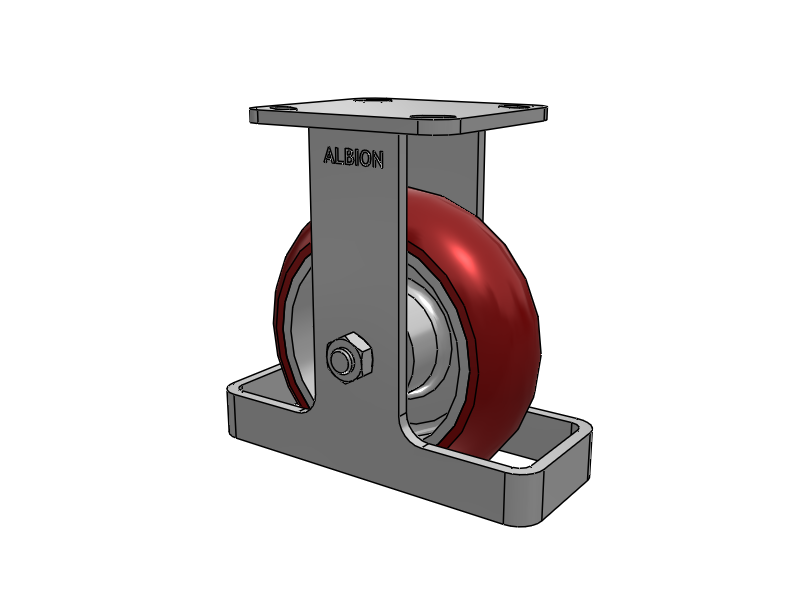

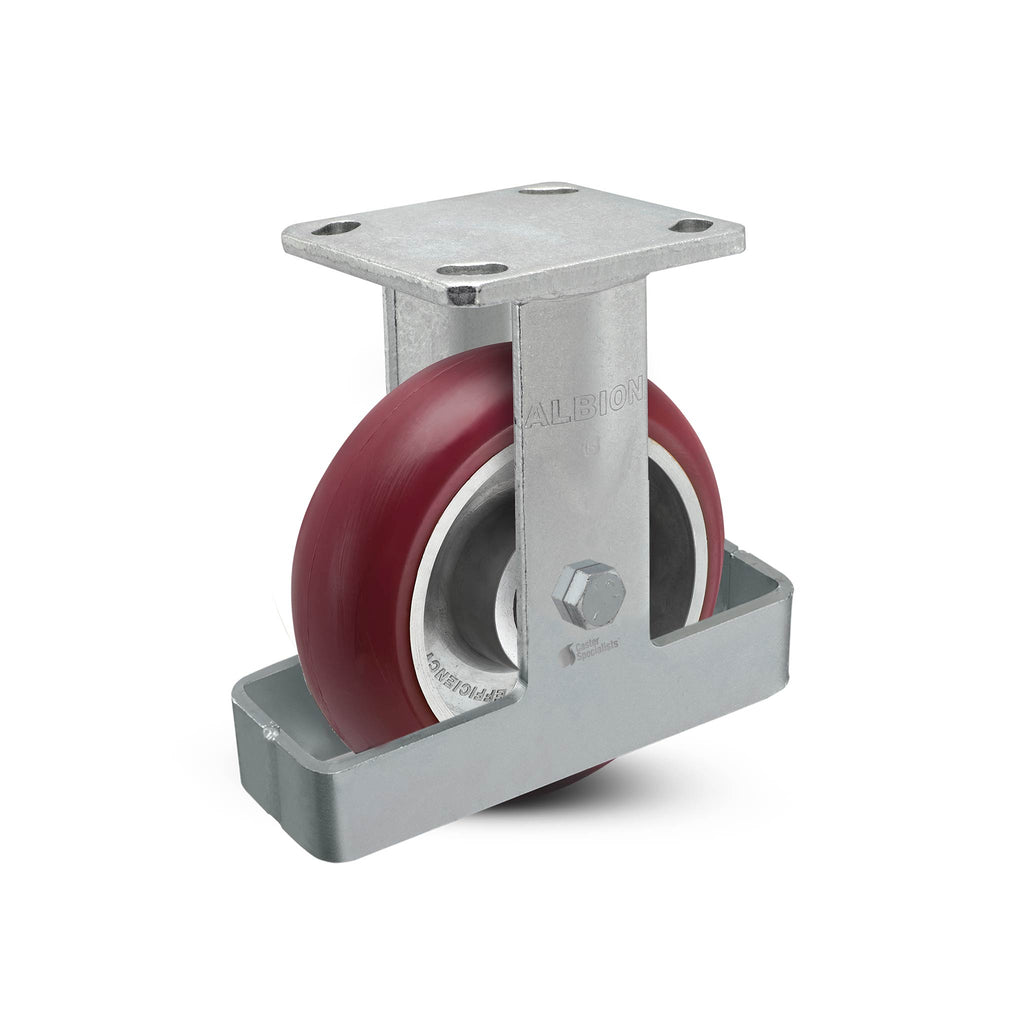

The Albion 28AX06228RTO rigid plate caster is built for operations that demand reliable mobility, ergonomic efficiency, and operator safety. Featuring a USA-made rigid rig with integrated toe guard, it helps protect workers’ feet while keeping debris clear of the rolling path. Constructed from fully welded 1/4" steel with a corrosion-resistant zinc finish, this caster delivers dependable service under heavy loads and frequent use.
Key Safety & Performance Advantages
-
USA-Made Rigid Rig – Precision-formed and double-welded for maximum strength.
-
Toe Guard Protection – Integrated guard shields operator feet and prevents debris interference.
-
Heavy-Duty Build – Robust top plate and welded legs ensure long-term structural integrity.
Premium Maroon Polyurethane-on-Aluminum Wheel
-
Ergonomic Efficiency – Reduces push/pull force requirements, lowering strain on operators.
-
Durability – High-performance tread bonded to lightweight aluminum core for long service life.
-
Material – Polyurethane tread with optimal balance of load capacity and floor protection.
-
Smooth & Quiet Rolling – Sealed precision ball bearings provide consistent, low-resistance movement.
-
Chemical & Moisture Resistance – Resists water, oils, greases, and most common industrial chemicals.
-
Temperature Range – Reliable operation from -40°F to 180°F.
Specifications
-
Wheel Size: 6" diameter x 2" wide polyurethane-on-aluminum
-
Capacity: 1,250 lbs dynamic load per caster
-
Top Plate Size: 4" x 4-1/2" (standard for 2" wide wheels)
-
Rig Type: Rigid with integrated toe guard
-
Finish: Zinc plated for corrosion resistance
-
Bearings: Sealed precision ball bearings in wheel
-
Warranty: 3 years
-
Testing: ANSI ICWM tested for safety and performance
Ideal Applications
-
Warehouse carts and dollies
-
Towed or manually pushed material handling equipment
-
Assembly and production line support carts
-
Any application needing durability, floor protection, and ergonomic ease of movement
Need a swivel, brake, or alternative wheel type?
The Albion 28 Series is available in multiple configurations—contact us for options and volume pricing.
