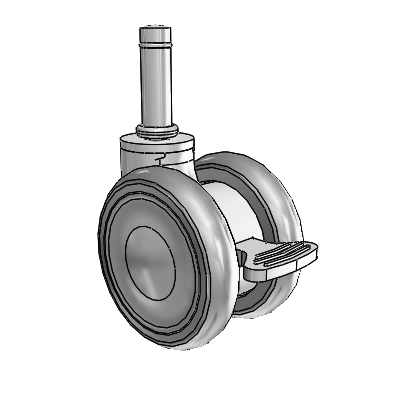

The Shepherd TGE65211GR-MNTB swivel caster with Top Wheel Lock brake features a 2.559" x 0.55" MonoTech wheel and a 7/16" x 1-7/16" Grip Ring, capable of a 110 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. 65mm Genesis Twin Wheels casters provide a clean, quiet, and effortless solution for many medical, store fixture, and furniture needs. Soft, non-marking MonoTech wheels reject debris and are excellent on hardwood and carpeted floors. A riveted axle provides positive wheel retention, covered by nylon wheel caps to prevent dust intrusion. The caster body is constructed to fully protect the axle, acting as an integrated thread guard that prevents debris entanglement.
• Soft non-marking MonoTech wheels (65 A durometer)
• MonoTech wheels reject debris and offer smooth, quiet mobility
• Excellent on both carpet and hard floors
• Riveted axle for positive wheel retention
• The caster body acts as an integrated thread guard to prevent entangling debris from binding wheels
SKU
|
TGE65211GR-MNTB
|
Caster Type
|
Swivel
|
Raceway Type
|
Pintel
|
Brake
|
Top Wheel Lock
|
Load Capacity
|
110 lb
|
Wheel Tread Width
|
0.55 in
|
Wheel Description
|
MonoTech
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Plain
|
Wheel Thread Guards
|
Full
|
Fastening
|
7/16" x 1-7/16" Grip Ring
|
Mounting Height
|
3 in
|
Swivel Radius
|
2.63 in
|
Warranty
|
1 year
|
Manufacturing Number
|
TGE65211GR-MNTB
|
Conformity
|
RoHS compliant and tested to ANSI ICWM:2012 standards for capacity and durability
|
