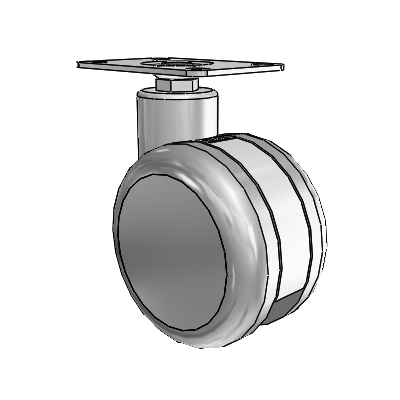

The MedCaster TG-04TPP-281-SW-TP01 swivel caster features a 4" x 2.6" wide wheel and a 2-1/2" x 3-5/8" Top Plate, capable of a 220 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The Twin-Med Grey (TG) twin wheel casters are a performance-driven twin wheel perfect for medical carts, mobile diagnostic equipment, patient aids and lifts, nursing home beds, and electronic equipment. The unique bottom shield protects the wheels and body from unwanted debris and dirt from building up. The precision ball bearing wheels and raceway (in 5” models) provide ultra-quiet and effortless mobility, keeping both users and patients happy. Antistatic models are also available by special order (minimums apply), please consult Caster Specialists for details.
• Standard undercover shield on the bottom of casters to protect from dirt and debris from entering/entangling wheels
• Sleek rounded brake pedal design is easy to activate and deactivate
• Wheels feature precision ball bearings for ultra-quiet and smooth operation
• 5” models are standard with a sealed precision bearing in the swivel raceway
• Double ball bearing swivel raceway for 4” models
• Soft and quiet TPR wheel treads are easy to roll
• Designed to protect axle and bearing areas from hair/water
• Total Lock models lock both the wheel and swivel
SKU
|
TG-04TPP-281-SW-TP01
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing raceways
|
Brake
|
None
|
Load Capacity
|
220 lb
|
Wheel Tread Width
|
2.6 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Sealed Precision Ball
|
Wheel Thread Guards
|
Standard (Plastic)
|
Fastening
|
2-1/2" x 3-5/8" Top Plate
|
Bolt Hole Pattern
|
1-3/4" x 2-13/16" to 3-1/16"
|
Bolt Size Recommended
|
5/16"
|
Mounting Height
|
5.38 in
|
Swivel Radius
|
3.13 in
|
Warranty
|
1 year
|
Manufacturing Number
|
TG-04TPP-281-SW-TP01
|
