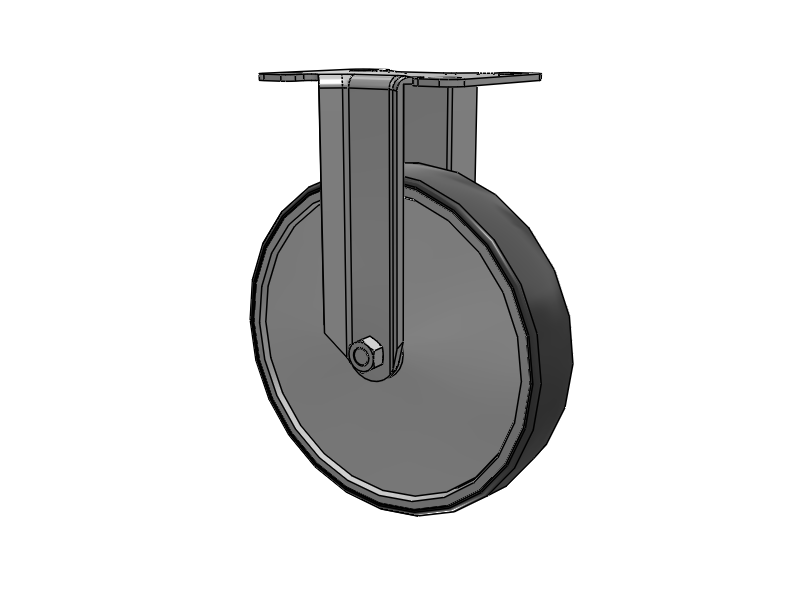

The MedCaster SX-06TPX-125-RG-TP13 rigid caster features a 6" x 1.25" wide wheel and a 95mm x 70mm Top Plate, capable of a 300 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The SX Series polished 304 stainless steel casters feature easy-to-activate and deactivate dual brake pedals on total lock and direction lock models, making it ideal for many medical carts and equipment that have an open area around the base for higher pedal access. If you require lower access due to bumpers or frame/base constraints, please see our SS Series models. Available in swivel, total lock (locks both swivel section and wheel), and direction lock (locks swivel only to allow for easier steering) models to solve a variety of mobility requirements for your OEM products or replacement medical caster needs.
• Polished 304 stainless steel
• Double pedal brake design for easy on/off function for both total lock and direction lock casters
• Dual ball heat-treated raceways for added strength
• Total Lock Brake models lock both swivel and wheel
• Directional lock models lock swivel only (helps with steering)
• Stainless steel precision ball bearings in wheels for easier rollability
• Wheels have full thread guards for added protection
• Comes standard with upper raceway seal
