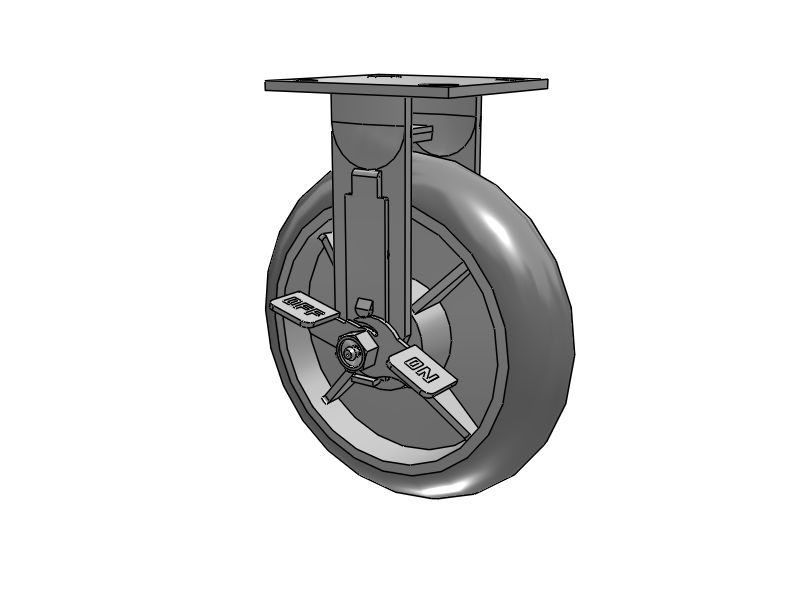

Pemco SSER8X2TPDBTBK stainless steel top plate caster is designed and constructed for trusted mobility at an economical price, a favorite of many OEMs for this reason. Featuring 3/16" thick electropolished 304 stainless steel construction, 5/8" stainless steel kingpin, and dual stainless ball bearing raceways, this series is designed for harsh environments where frequent wash downs, chemicals and other corrosive elements cause zinc plated casters to corrode. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
SSER8X2TPDBTBK
|
Caster Type
|
Rigid
|
Raceway Type
|
Double stainless steel ball bearing
|
Brake
|
Tread Lock Brake
|
Wheel Description
|
Thermo-Rubber (Donut)
|
Wheel Color
|
Grey tread on lighter grey core
|
Wheel Bearing
|
Stainless Precision Ball
|
Wheel Profile
|
Donut
|
Wheel Hardness
|
70 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
4" x 4-1/2" Top Plate
|
Bolt Hole Pattern
|
2-5/8"x3-5/8" slotted to 3"x3"
|
Bolt Size Recommended
|
3/8"
|
Operating Temperature Range
|
-40°F to +180°F
|
Warranty
|
1 year
|
Manufacturing Number
|
SSER8X2TPDBTBK
|
