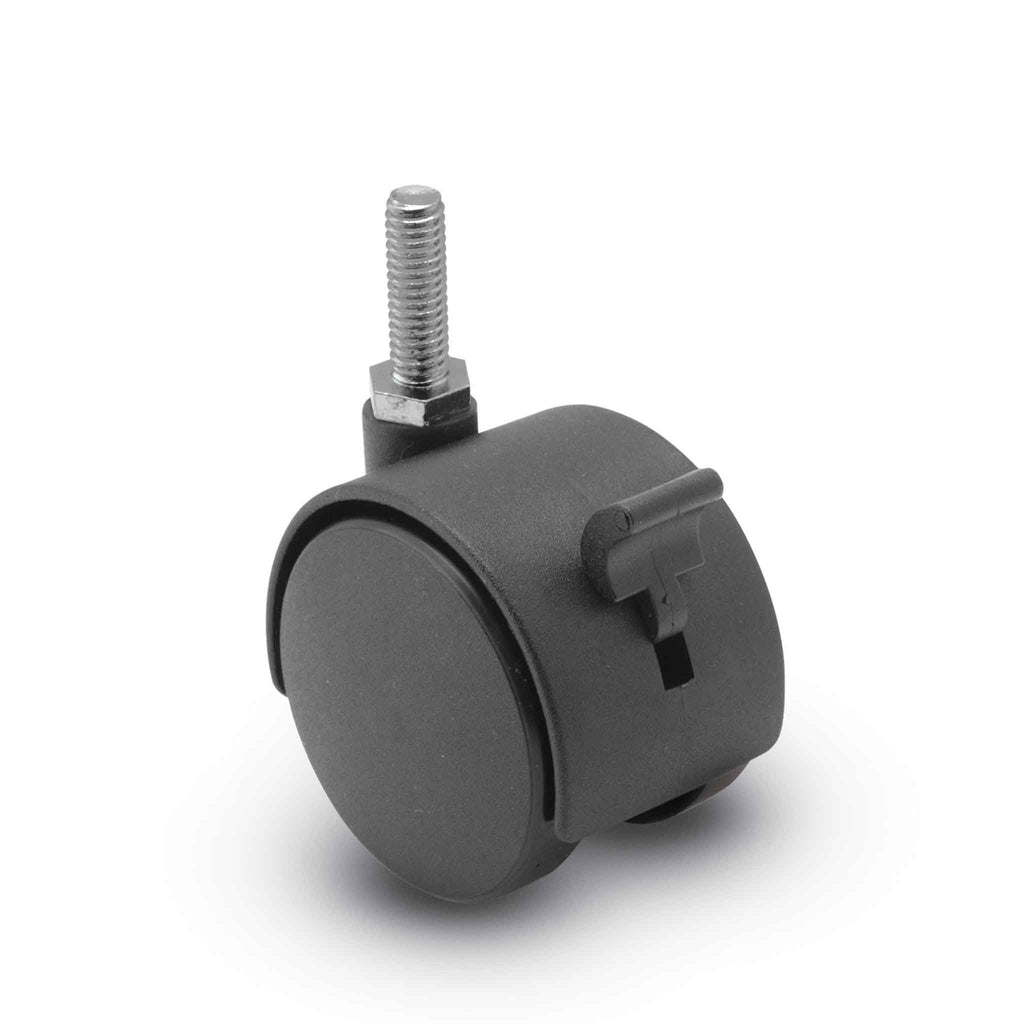

These Nylon Twin Wheel casters with brakes are perfect for light duty furniture. The stem is a 5/16-18 UNC x 1" Thread which allows for attachment to many types of furniture. Used primarily on carts, stands and some chairs. The nylon body construction provides for capacity at 100 lbs each, so these little casters can handle quite a load. The bodies are designed to take common abuse from office and shop enivronments.
SKU
|
PTW60507BK-B
|
Part Number
|
12BH60-B-T516
|
Series
|
12 Series (to 100 lb/ea)
|
Caster Type
|
Swivel
|
Raceway Type
|
Greased Pintel
|
Brake
|
With Brake
|
Load Capacity
|
100 lb
|
Wheel Diameter
|
2.56 in
|
Wheel Description
|
Nylon
|
Wheel Color
|
Black
|
Wheel Bearing
|
Plain
|
Wheel Profile
|
Flat with Slightly Rounded Edges
|
Wheel Hardness
|
80 Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
5/16"-18 x 1" stud
|

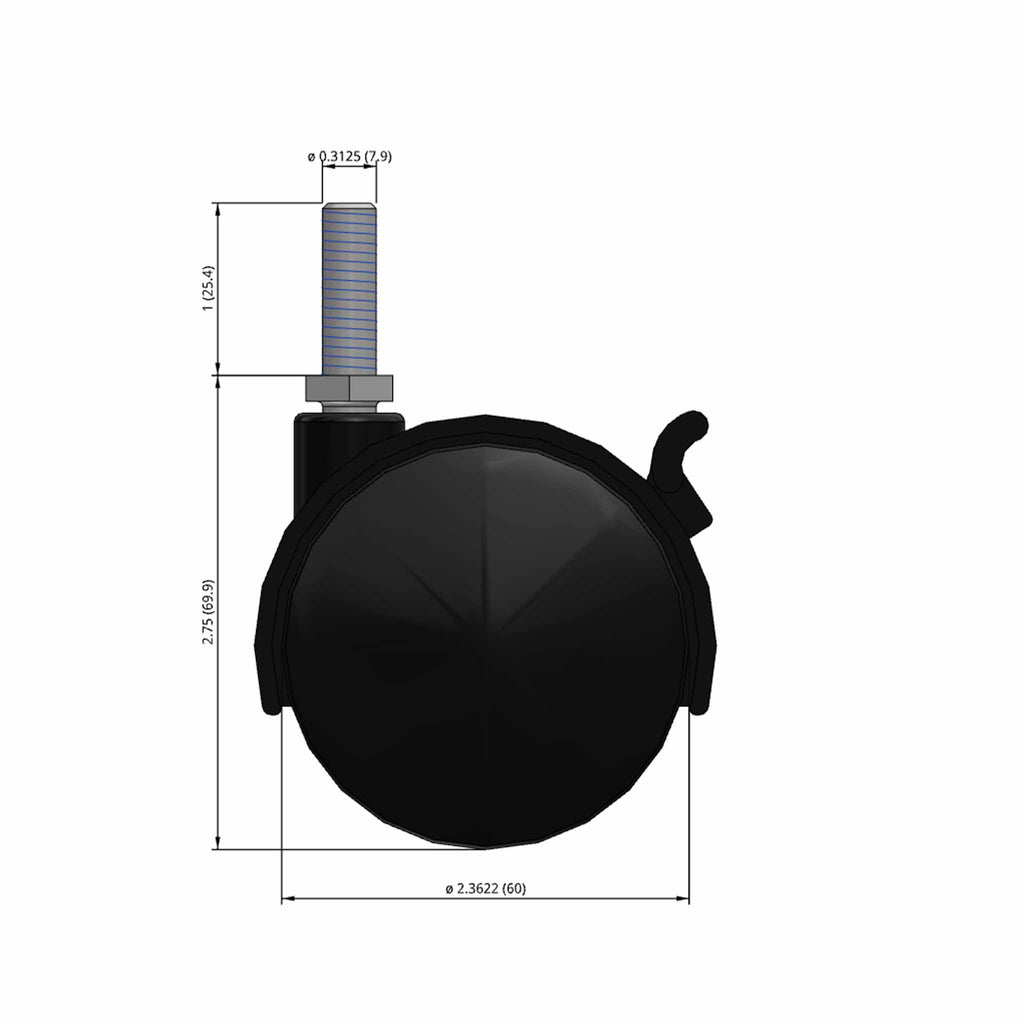

Mounting Height
|
2.75 in
|

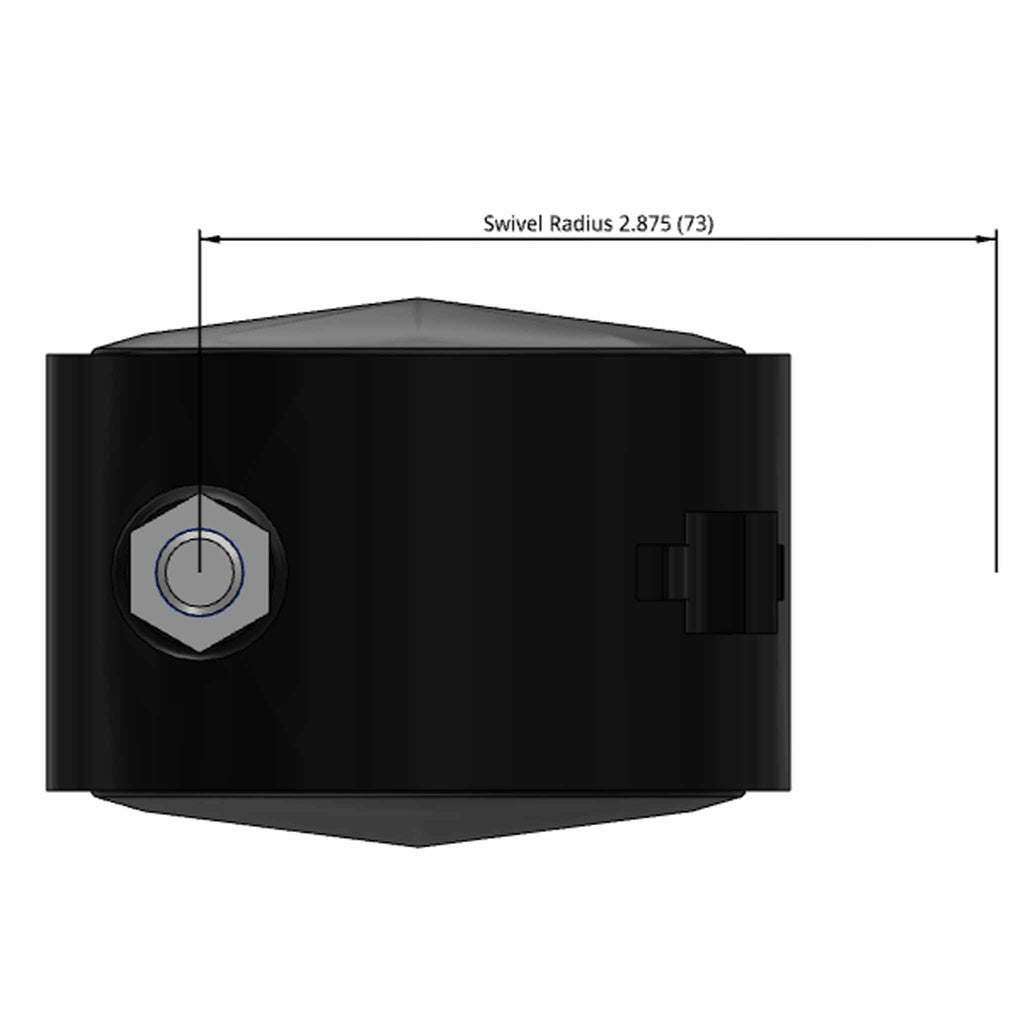

Swivel Radius
|
2.88 in
|
Operating Temperature Range
|
-20F° to +180F°
|
Warranty
|
1 year
|
Manufacturing Number
|
PTW60507BK-B
|
Conformity
|
Tested to ANSI ICWM:2012 standards for capacity and durability
|
