Description

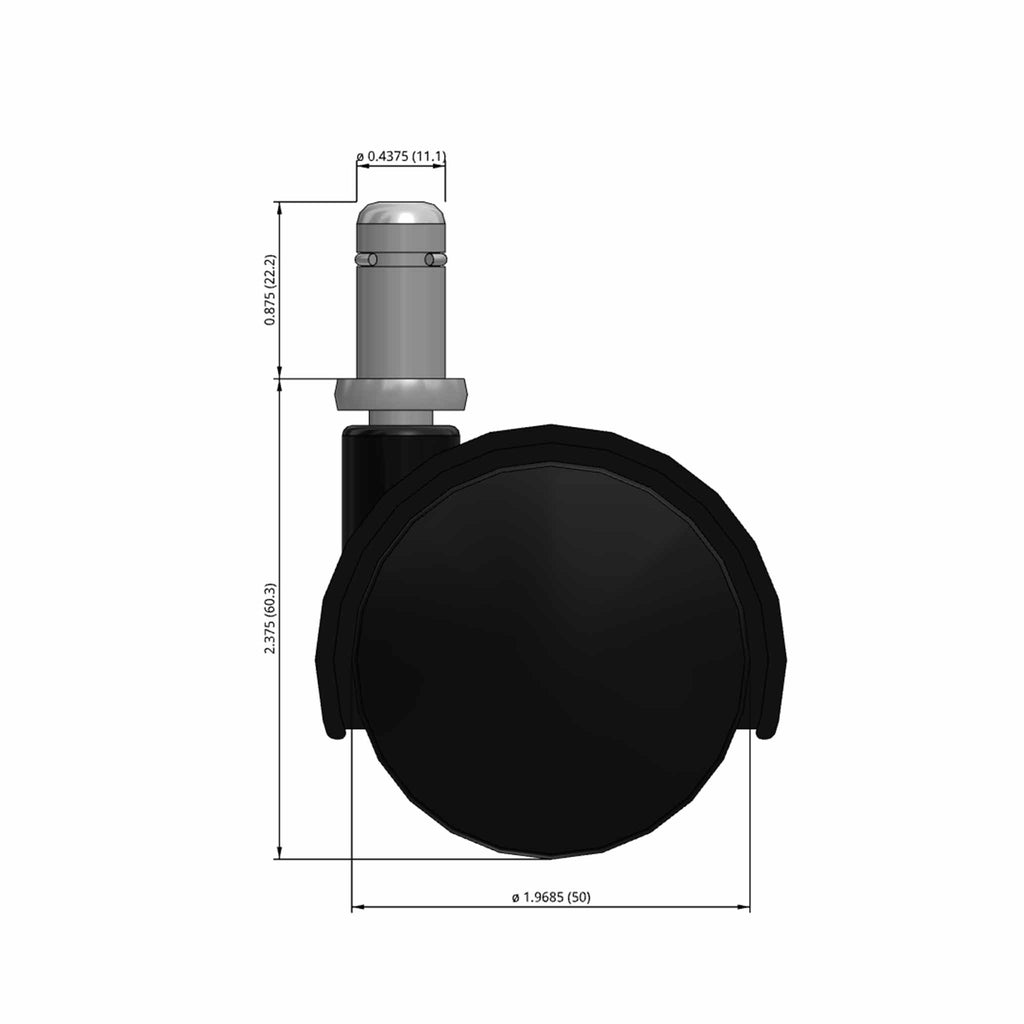

These Nylon Twin Wheel casters are perfect for office chairs. The 3/8" diameter stem (see the second image for detailed drawing) is the most common size on the market, 7/16" is available as well. These casters are rated for 75lbs each, so on a chair with 5 casters, you have over 300 lbs of load capacity. The bodies are designed to take common abuse from office and shop environments.
Product Details
Part Number:
12BH50-G714
SKU
PTW50223BK
Series:
12 Series (to 100 lb/ea)
Raceway Type:
Greased Pintel
Brake:
None
Load Capacity:
75 lb
Mounting Height:
2.38 in
Wheel Diameter:
1.97 in
Wheel Description:
Nylon
Wheel Color:
Black
Wheel Bearing:
Plain
Wheel Profile:
Flat with Slightly Rounded Edges
Wheel Hardness:
80 Shore D
Wheel Thread Guards:
None
Fastening:
7/16" x 7/8" grip ring

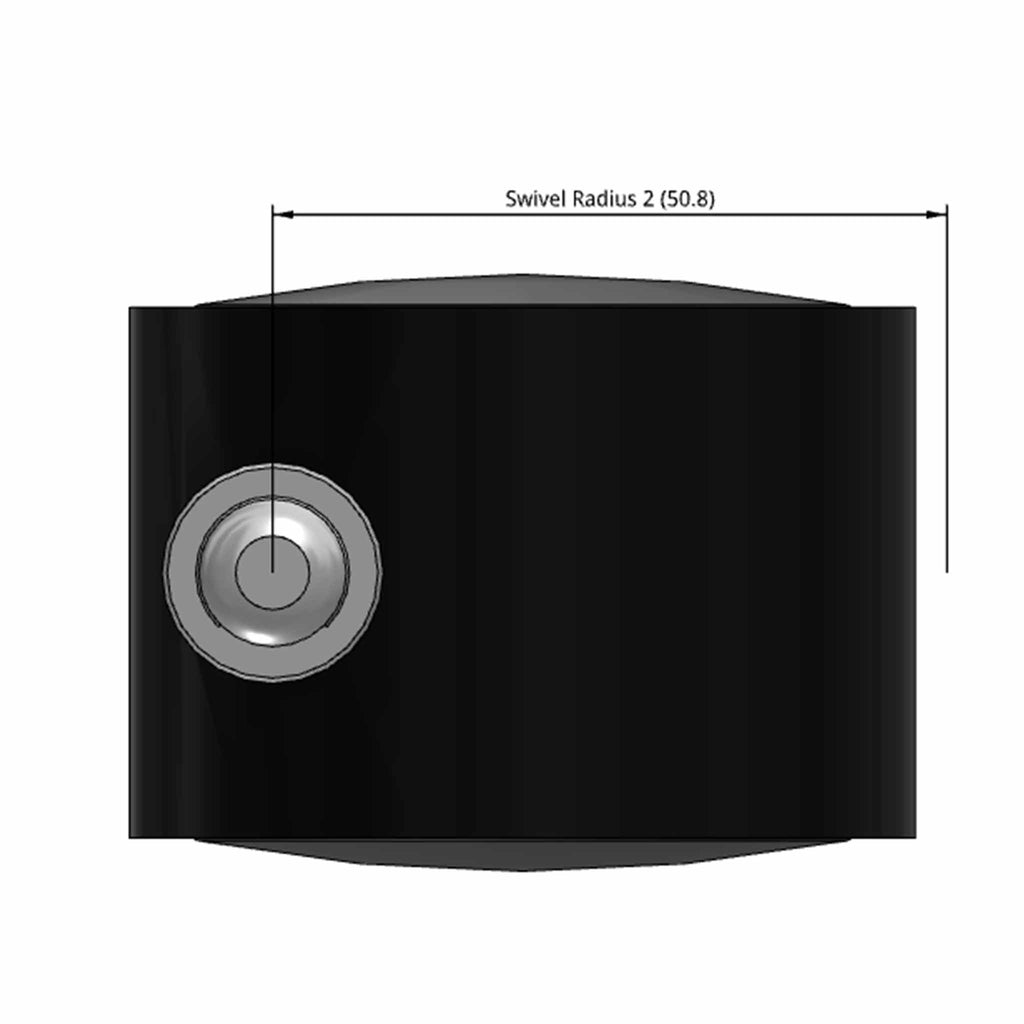

Swivel Radius:
2 in
Finish:
Black
Axle Size:
Steel axle
Operating Temperature Range:
-20F° to +180F°
Mfg:
PTW50223BK
Warranty:
1 year
Conformity:
Tested to ANSI ICWM:2012 standards for capacity and durability
