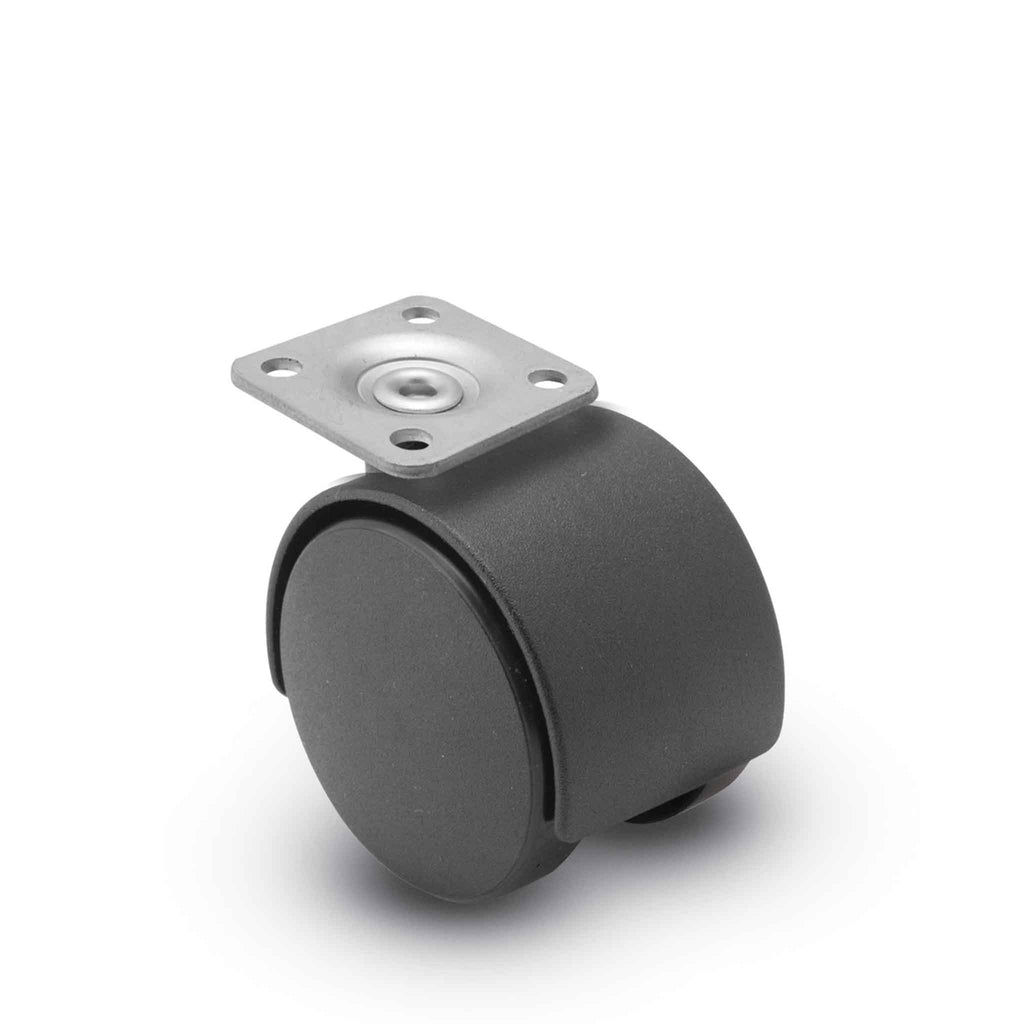

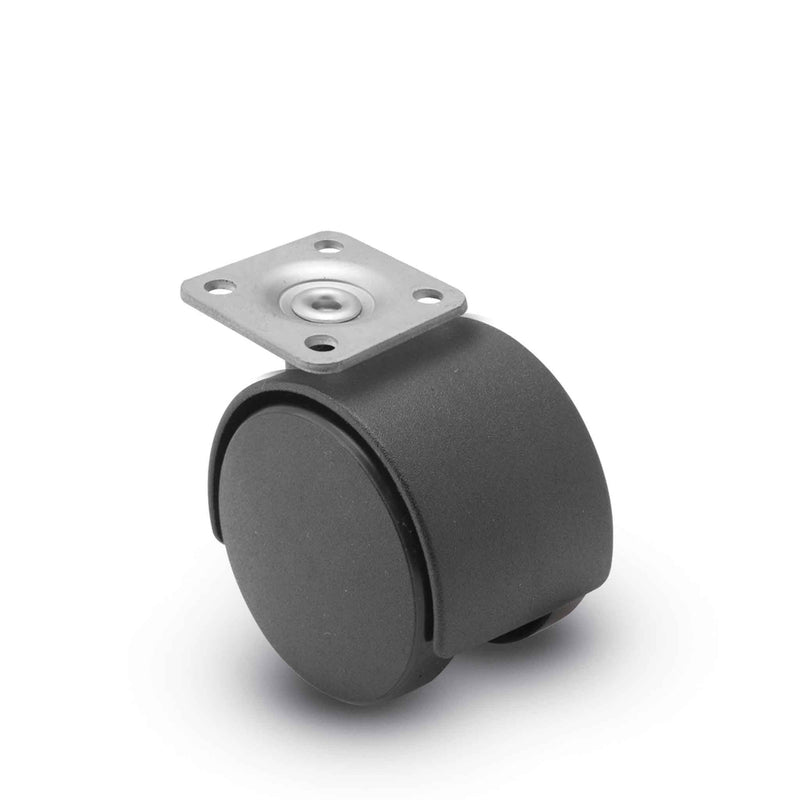

These Nylon Twin Wheel casters are perfect for the hard to caster peice of equipment. Featuring a 1-3/16" x 2" top plate, they can be attached to nearly any piece of equipment. The nylon body construction provides for capacity at 75 lbs each, so these little casters can handle quite a load. The bodies are designed to take common abuse from office and shop enivronments.
SKU
|
PTW50113BK
|
Part Number
|
12BH50-P1932
|
Series
|
12 Series (to 100 lb/ea)
|
Caster Type
|
Swivel
|
Raceway Type
|
Greased Pintel
|
Brake
|
None
|
Load Capacity
|
75 lb
|
Wheel Diameter
|
1.97 in
|
Wheel Description
|
Nylon
|
Wheel Color
|
Black
|
Wheel Bearing
|
Plain
|
Wheel Profile
|
Flat with Slightly Rounded Edges
|
Wheel Hardness
|
80 Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|

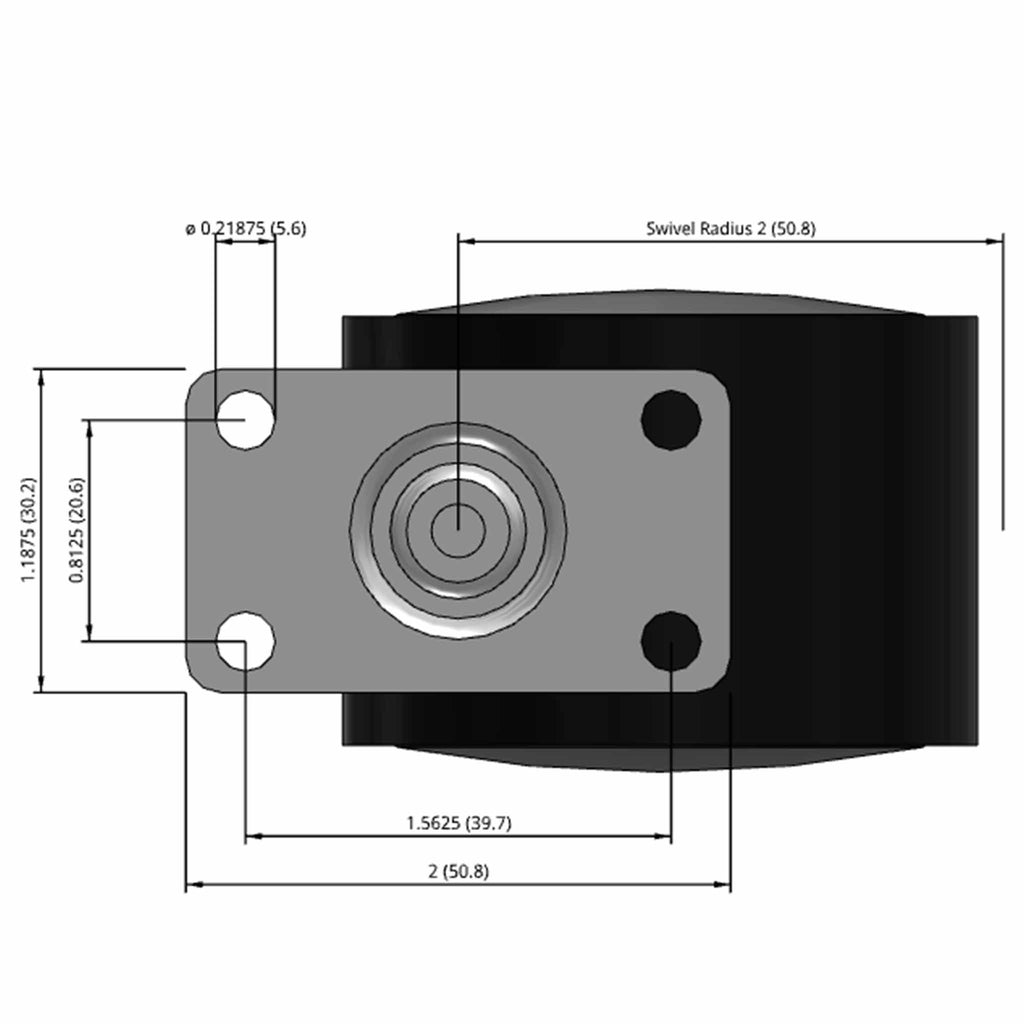

1-3/16" x 2" top plate
|
Bolt Hole Pattern
|
13/16" x 1-9/16"
|
Bolt Size Recommended
|
3/16"
|

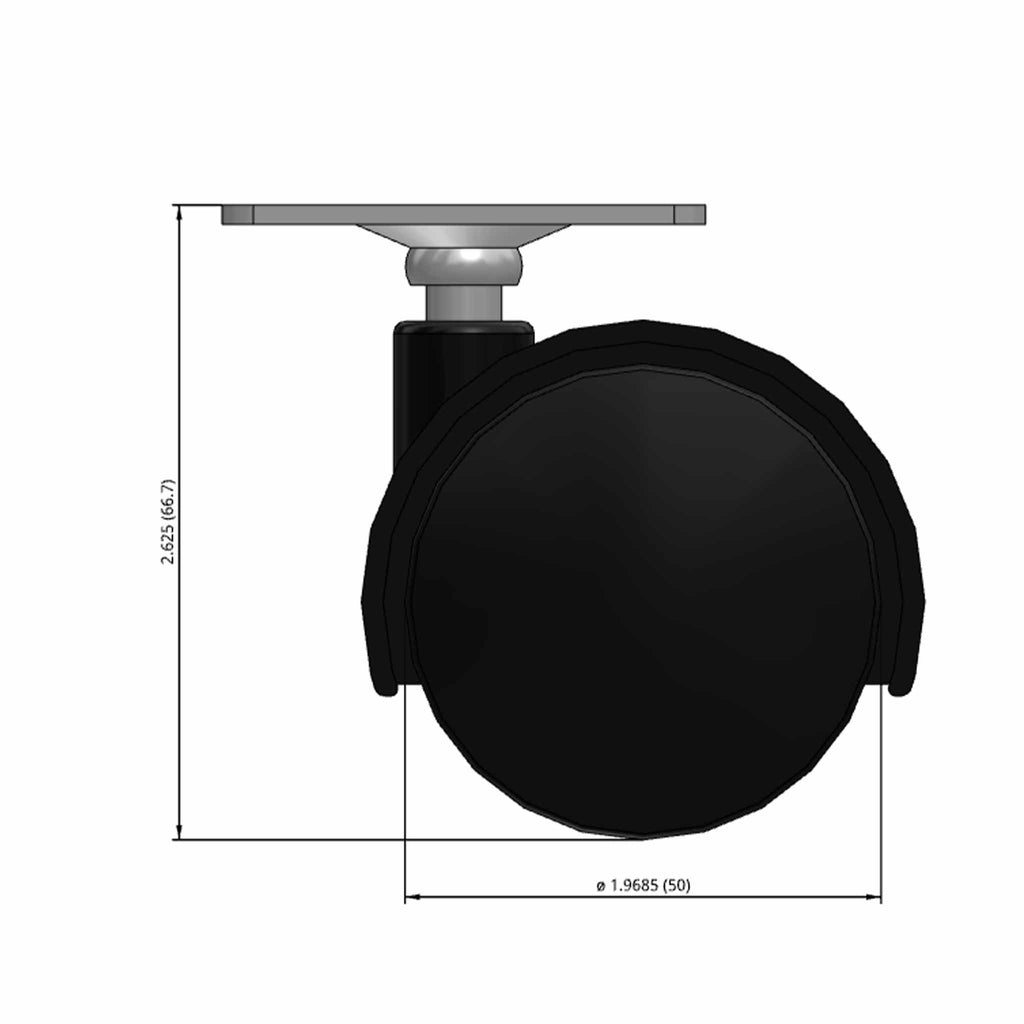

Mounting Height
|
2.63 in
|
Swivel Radius
|
2 in
|
Operating Temperature Range
|
-20F° to +180F°
|
Warranty
|
1 year
|
Manufacturing Number
|
PTW50113BK
|
Conformity
|
Tested to ANSI ICWM:2012 standards for capacity and durability
|
