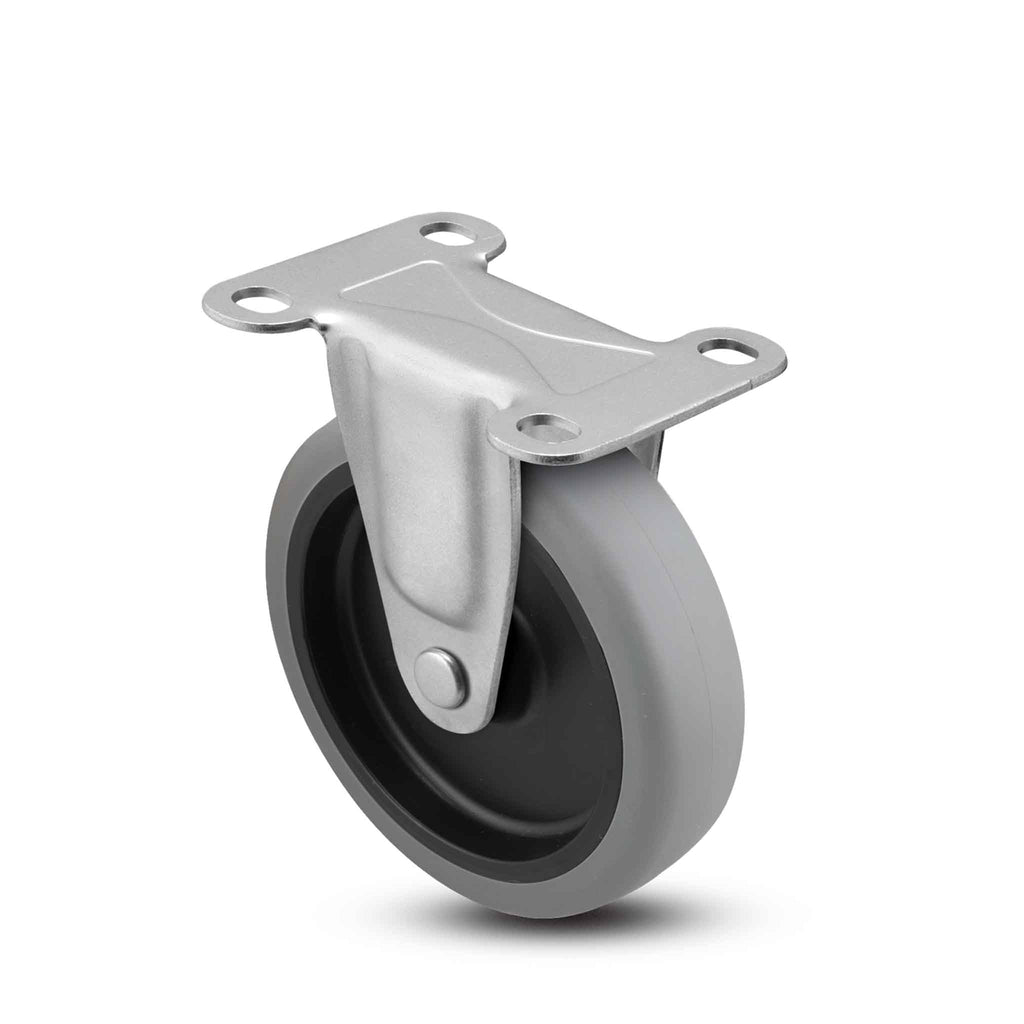

This 3" x 13/16" thermoplastic rubber standard duty single wheel rigid caster is quiet, smooth rolling, easy to start and floor protective. Our 20 Series standard duty single wheel casters are perfect for light duty office and commercial carts and fixtures. These casters feature floor protective wheels with plain bore bearings. Swivel sections are riveted double ball race.
SKU
|
PRI30120ZN-TPR
|
Part Number
|
20TRP30R
|
Series
|
20 Series (to 160 lb/ea)
|
Caster Type
|
Rigid
|
Raceway Type
|
Rigid Construction
|
Brake
|
None
|
Load Capacity
|
110 lb
|

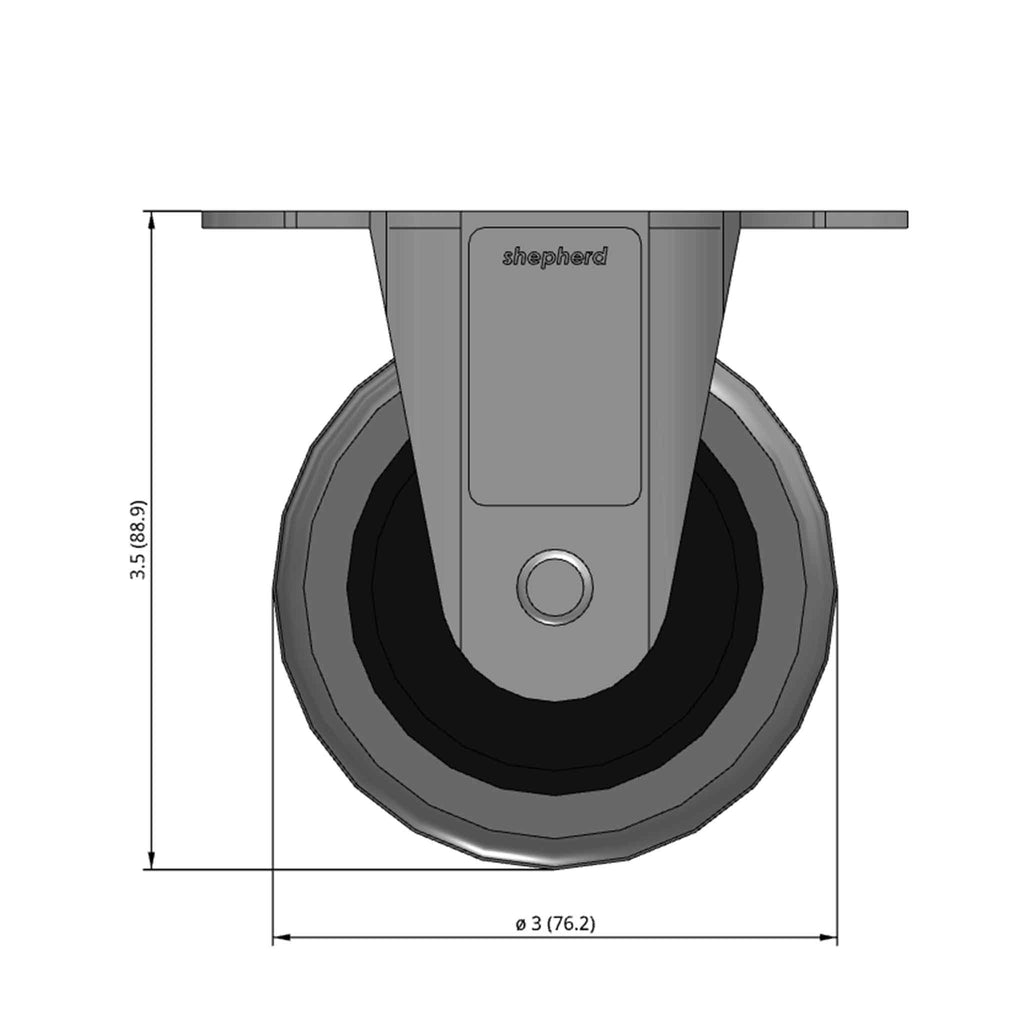

Wheel Diameter
|
3 in
|

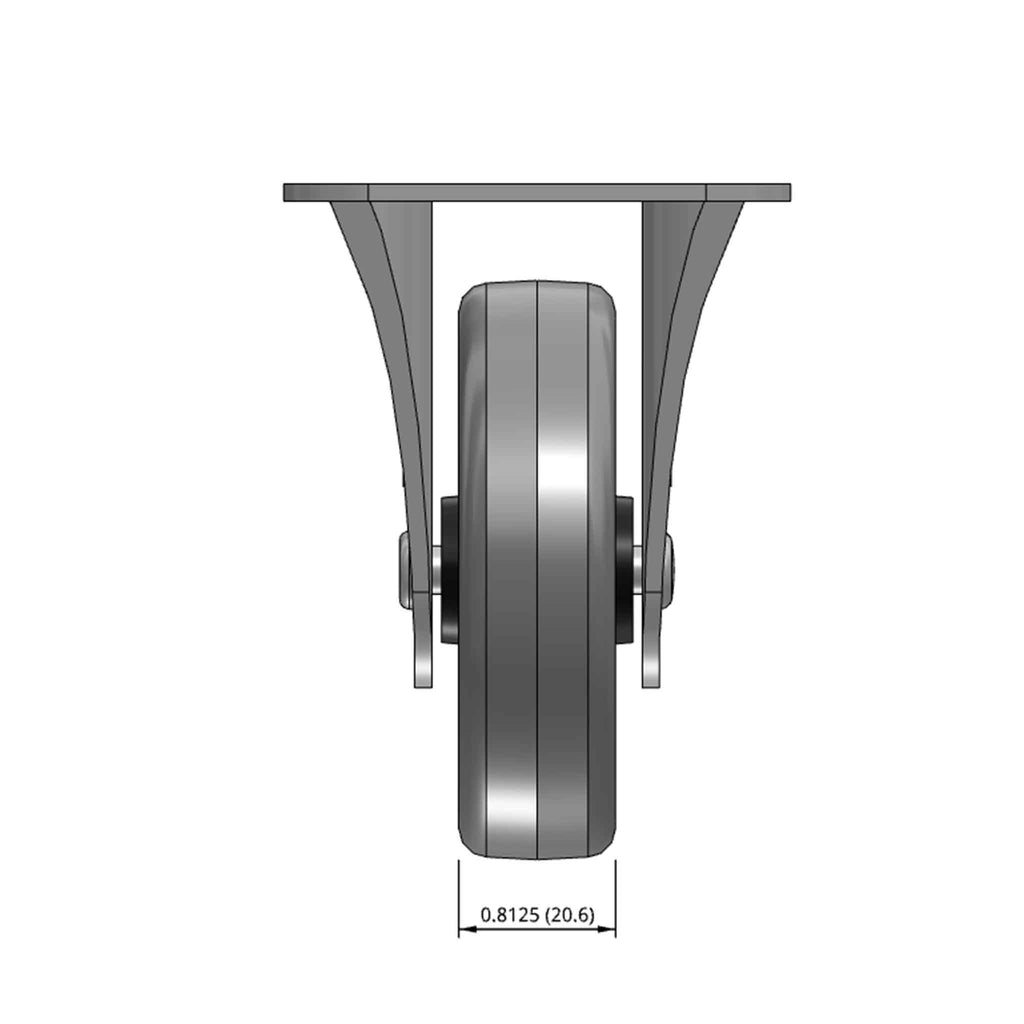

Wheel Tread Width
|
0.81 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Plain
|
Wheel Profile
|
Flat with Rounded Edges
|
Wheel Hardness
|
40(+/-5) Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|

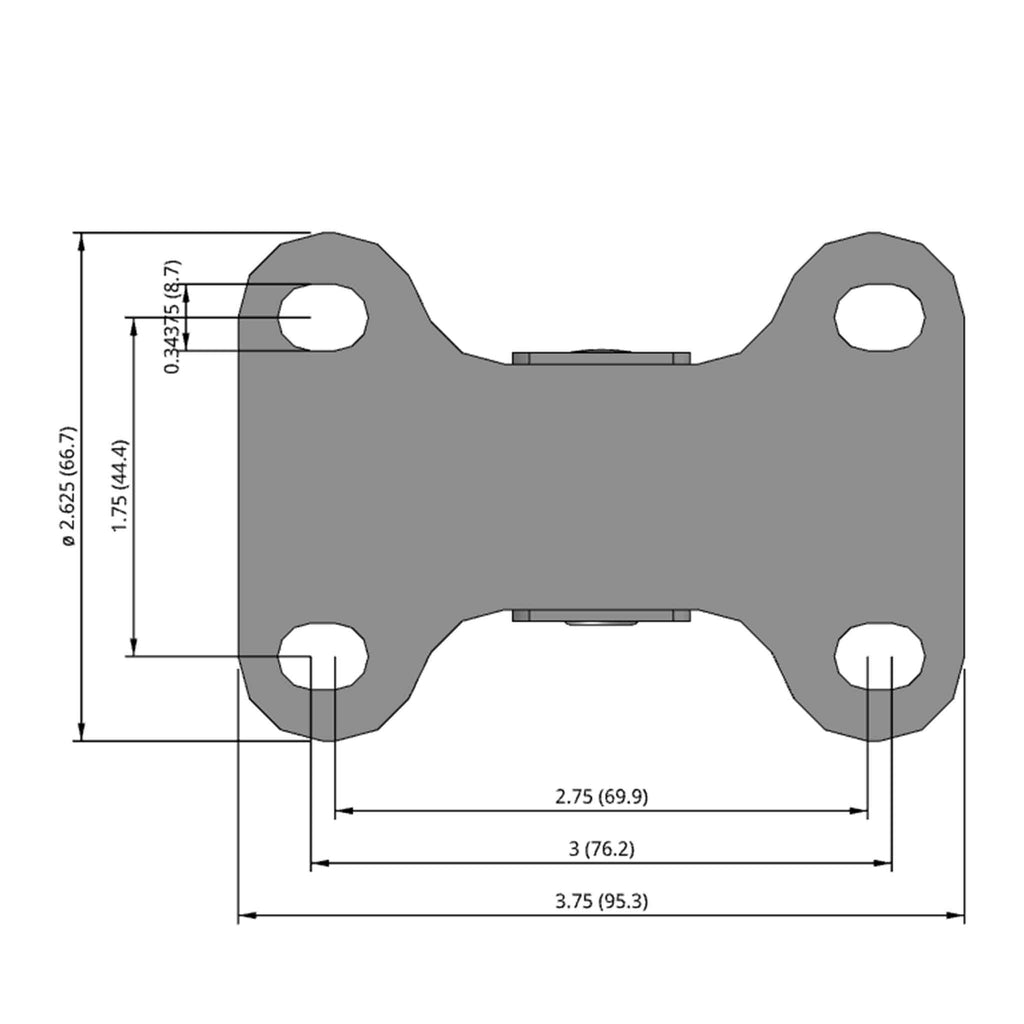

2-5/8" x 3-3/4" top plate
|
Bolt Hole Pattern
|
1-3/4" x 2-3/4" to 3"
|
Bolt Size Recommended
|
5/16"
|
Mounting Height
|
3.5 in
|
Operating Temperature Range
|
-40F° to +180F°
|
Warranty
|
1 year
|
Manufacturing Number
|
PRI30120ZN-TPR
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
|
