Main view of a Shepherd Casters 5" x 0.94" wide wheel Swivel caster with 7/16"-14 x 2-1/4" stud, with a side locking brake, Thermoplastic Rubber wheel and 130 lb. capacity part

5"x1" TPR Wheel Side Locking 7/16"x2.25" Threaded Stem Caster USA-Made

Roll over to zoom; image may be representative for size Click on image to zoom

5"x1" TPR Wheel Side Locking 7/16"x2.25" Threaded Stem Caster USA-Made

Name: 5"x1" TPR Wheel Side Locking 7/16"x2.25" Threaded Stem Caster USA-Made
Brand: Shepherd Casters
SKU: PRE50806ZN-TPRB
Price: 16.97 USD
Availability: InStock

Shepherd Casters SKU: PRE50806ZN-TPRB
Fastening: 7/16"-14 x 2-1/4" stud | Load Capacity: 130 lb
Mount Height: 5.75 in | Swivel Radius: 4.13 in

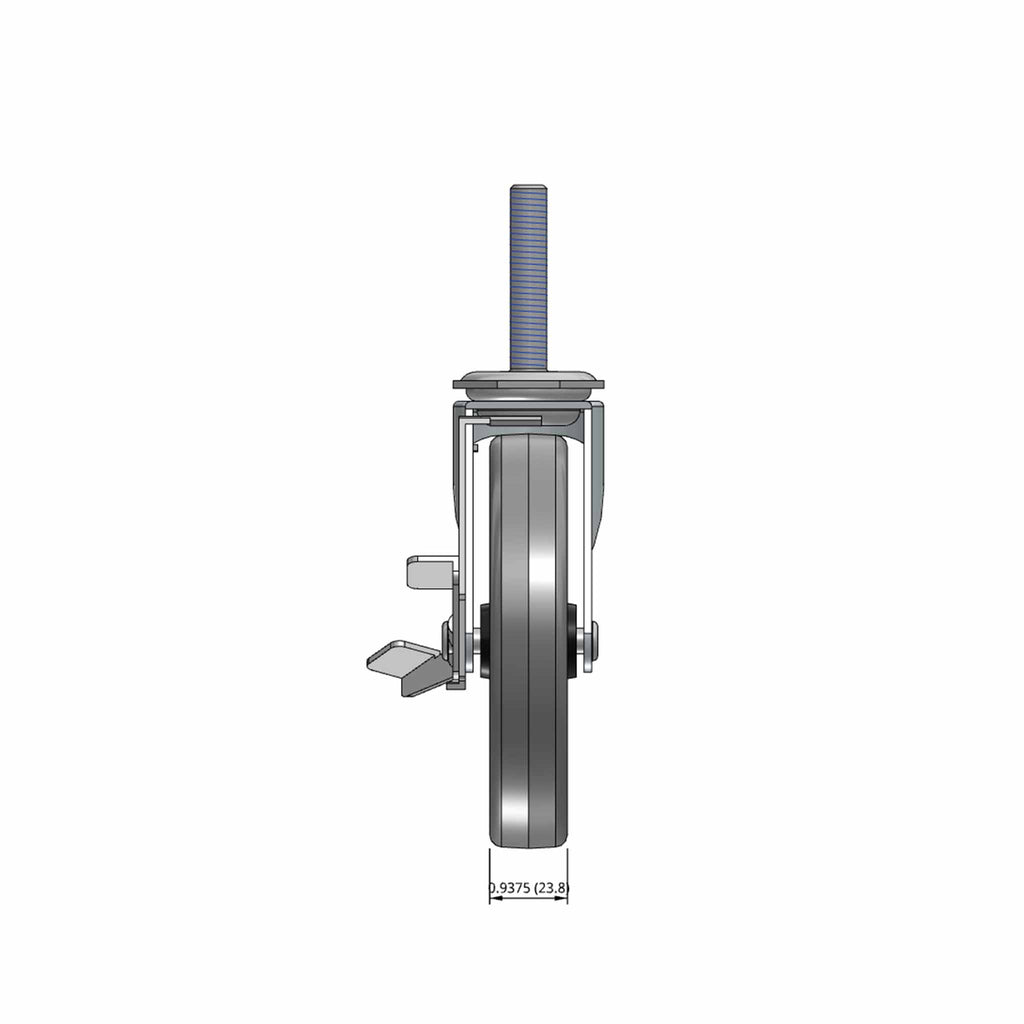

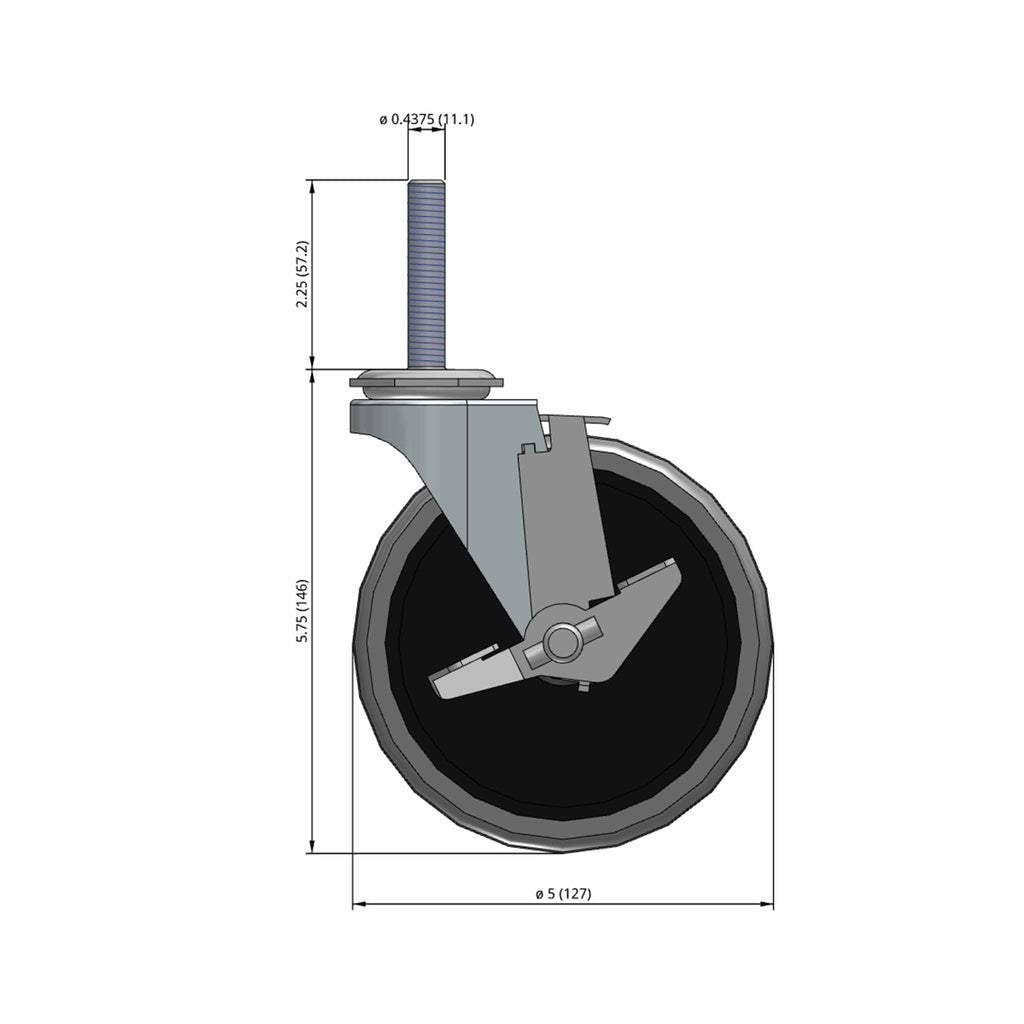

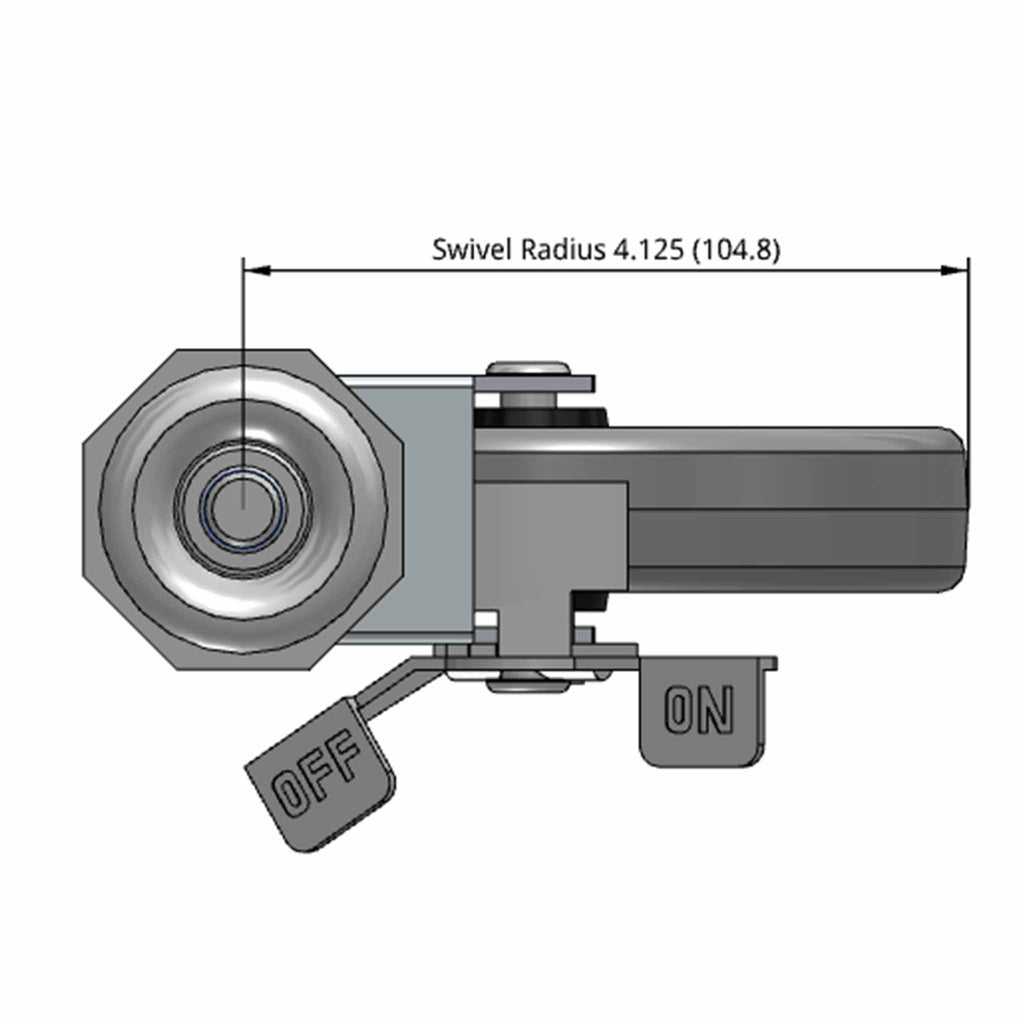

See "Product Details" and below CAD model for full specs.

Ships In: 2-3 days **FREE Shipping on orders over $250**

Price:

$16.97 $18.85

Quantity:

Share this product

This 5" x 15/16" thermoplastic rubber standard duty single wheel swivel caster with threaded stem and tread brake is quiet, smooth rolling, easy to start and floor protective.Our 20 Series standard duty single wheel casters are perfect for light duty office and commercial carts and fixtures. These casters feature floor protective wheels with plain bore bearings. Swivel sections are riveted double ball race.

Part Number:	20TRP50S-T734-TB
SKU	PRE50806ZN-TPRB
Series:	20 Series (to 160 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	Tread Lock
Load Capacity:	130 lb
Mounting Height:	5.75 in
Wheel Diameter:	5 in
Wheel Tread Width:	0.94 in
Wheel Description:	Thermoplastic Rubber
Wheel Color:	Grey
Wheel Bearing:	Plain
Wheel Profile:	Flat with Rounded Edges
Wheel Hardness:	75(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	7/16"-14 x 2-1/4" stud
Swivel Radius:	4.13 in
Finish:	Zinc Plated
Axle Size:	5/16" diameter riveted
Operating Temperature Range:	-40F° to +180F°
Mfg:	PRE50806ZN-TPRB
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

5"x1" TPR Wheel Side Locking 7/16"x2.25" Threaded Stem Caster USA-Made

Description

Product Details

Part Number:

20TRP50S-T734-TB

SKU

PRE50806ZN-TPRB

Series:

20 Series (to 160 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

Tread Lock

Load Capacity:

130 lb

Mounting Height:

5.75 in

Wheel Diameter:

5 in

Wheel Tread Width:

0.94 in

Wheel Description:

Thermoplastic Rubber

Wheel Color:

Grey

Wheel Bearing:

Plain

Wheel Profile:

Flat with Rounded Edges

Wheel Hardness:

75(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

7/16"-14 x 2-1/4" stud

Swivel Radius:

4.13 in

Finish:

Zinc Plated

Axle Size:

5/16" diameter riveted

Operating Temperature Range:

-40F° to +180F°

Mfg:

PRE50806ZN-TPRB

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
