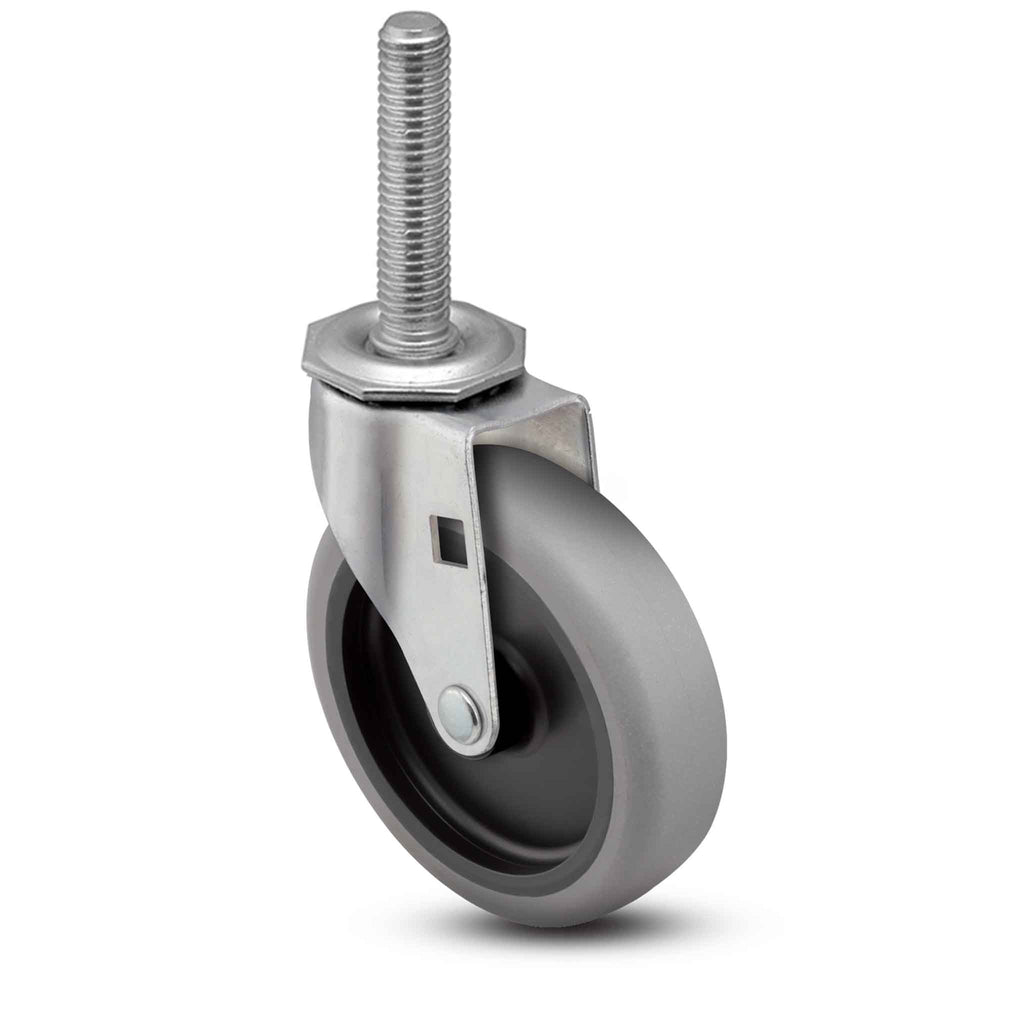

This 5" x 15/16" thermoplastic rubber standard duty single wheel swivel caster with threaded stem is quiet, smooth rolling, easy to start and floor protective.Our 20 Series standard duty single wheel casters are perfect for light duty office and commercial carts and fixtures. These casters feature floor protective wheels with plain bore bearings. Swivel sections are riveted double ball race.
SKU
|
PRE50806ZN-TPR
|
Part Number
|
20TRP50S-T734
|
Series
|
20 Series (to 160 lb/ea)
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual Ball Swivel Raceways For Smooth Swivel and Strength
|
Brake
|
None
|
Load Capacity
|
130 lb
|
Wheel Diameter
|
5 in
|

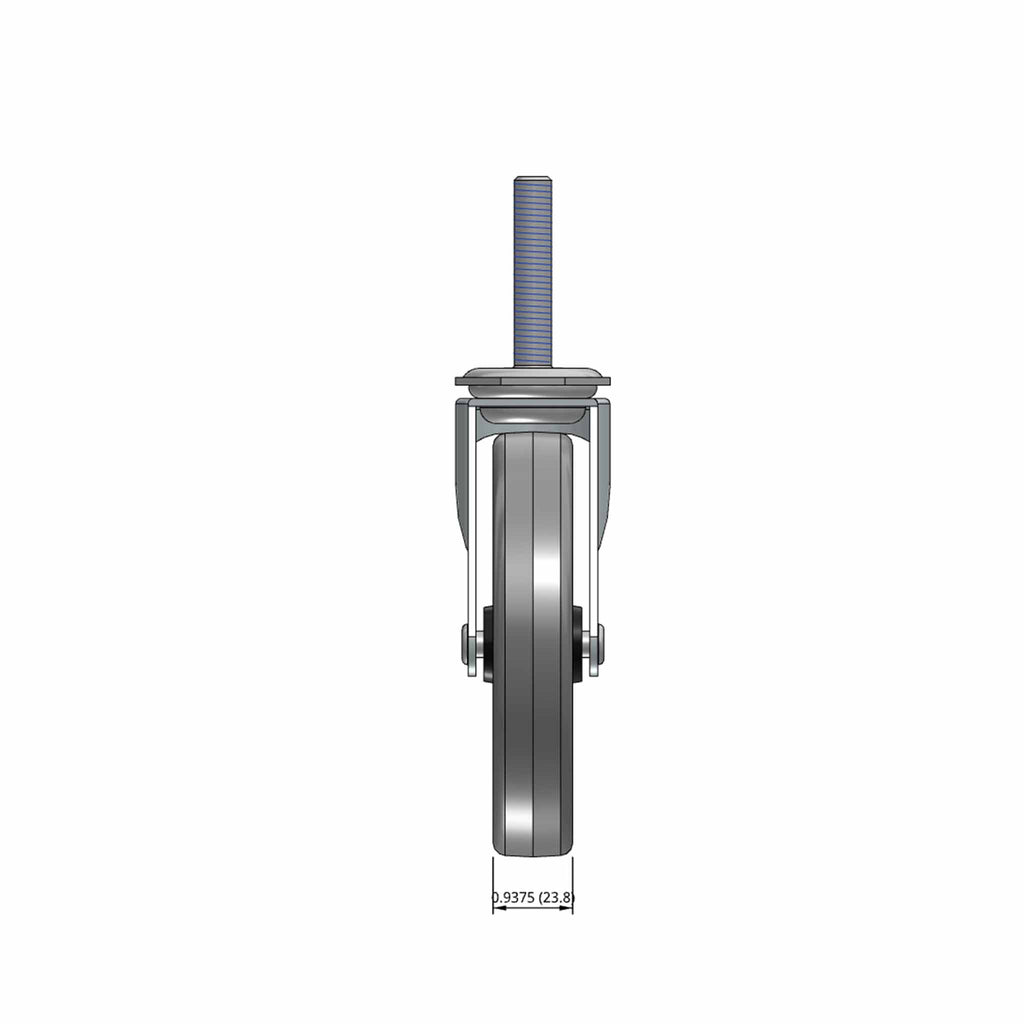

Wheel Tread Width
|
0.94 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Plain
|
Wheel Profile
|
Flat with Rounded Edges
|
Wheel Hardness
|
75(+/-5) Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
7/16"-14 x 2-1/4" stud
|

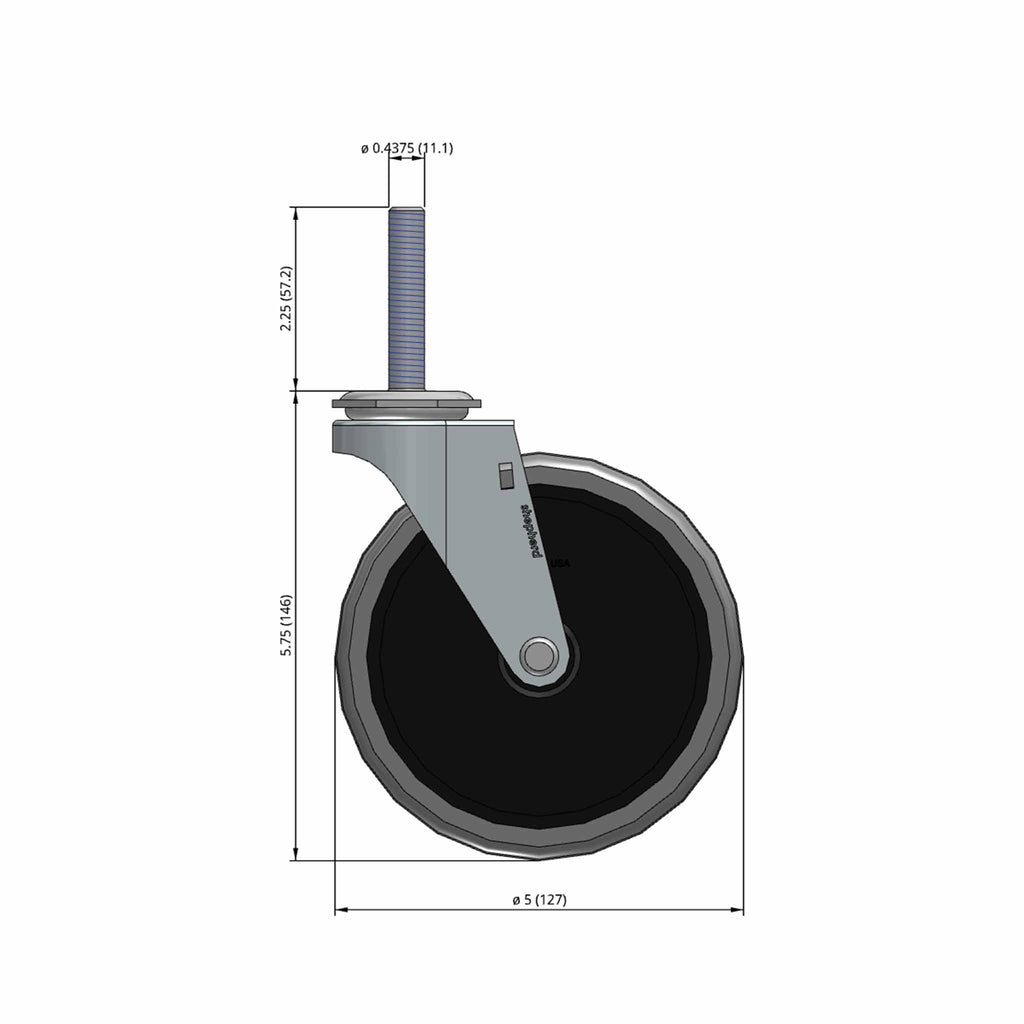

Mounting Height
|
5.75 in
|

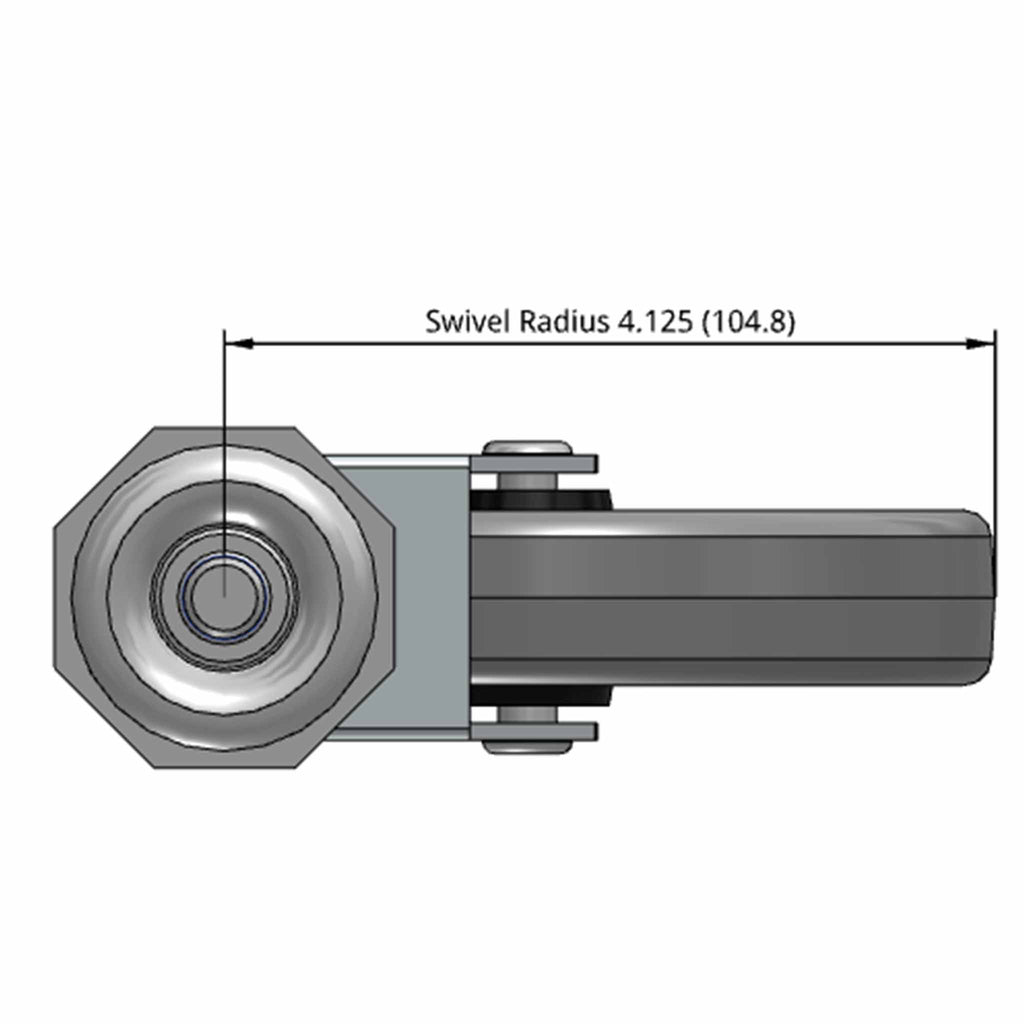

Swivel Radius
|
4.13 in
|
Operating Temperature Range
|
-40F° to +180F°
|
Warranty
|
1 year
|
Manufacturing Number
|
PRE50806ZN-TPR
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
|
