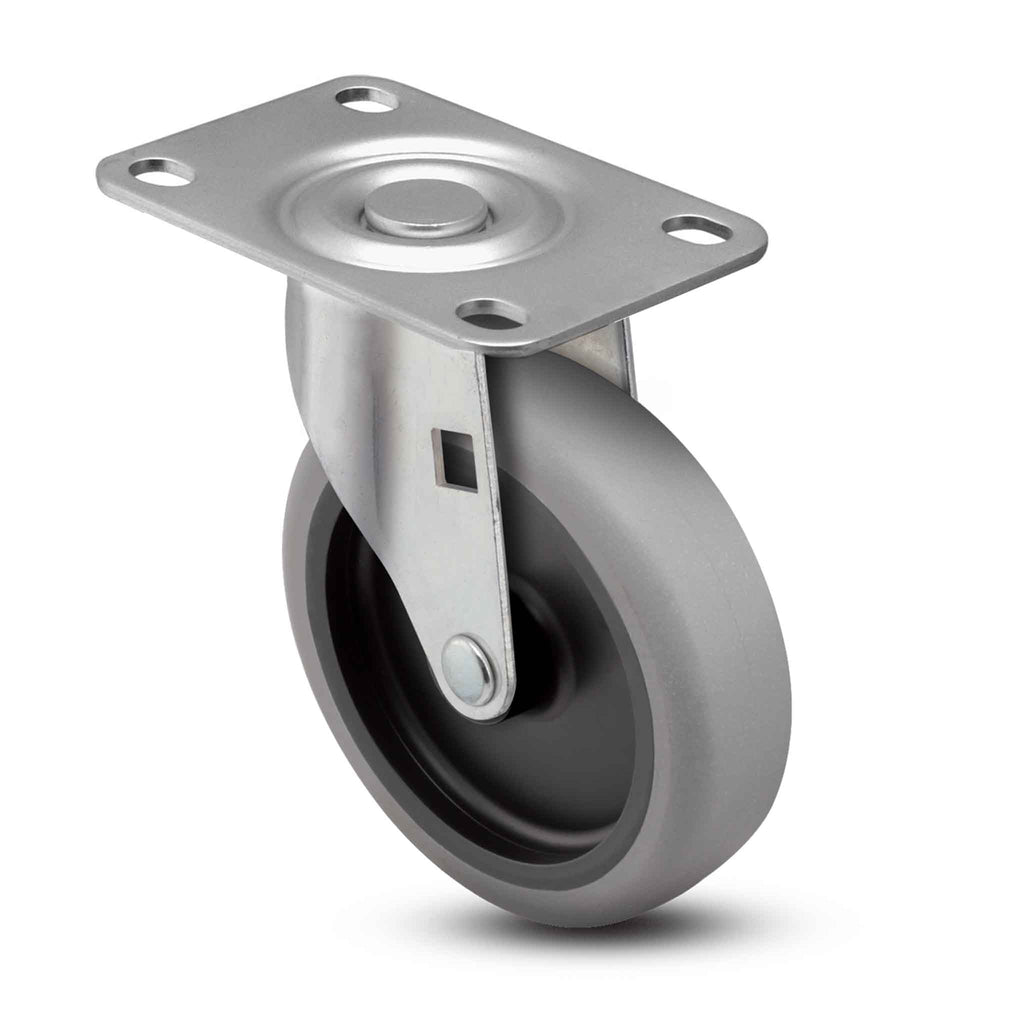

Main view of a Shepherd Casters 4" x 0.94" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermoplastic Rubber wheel and 125 lb. capacity part

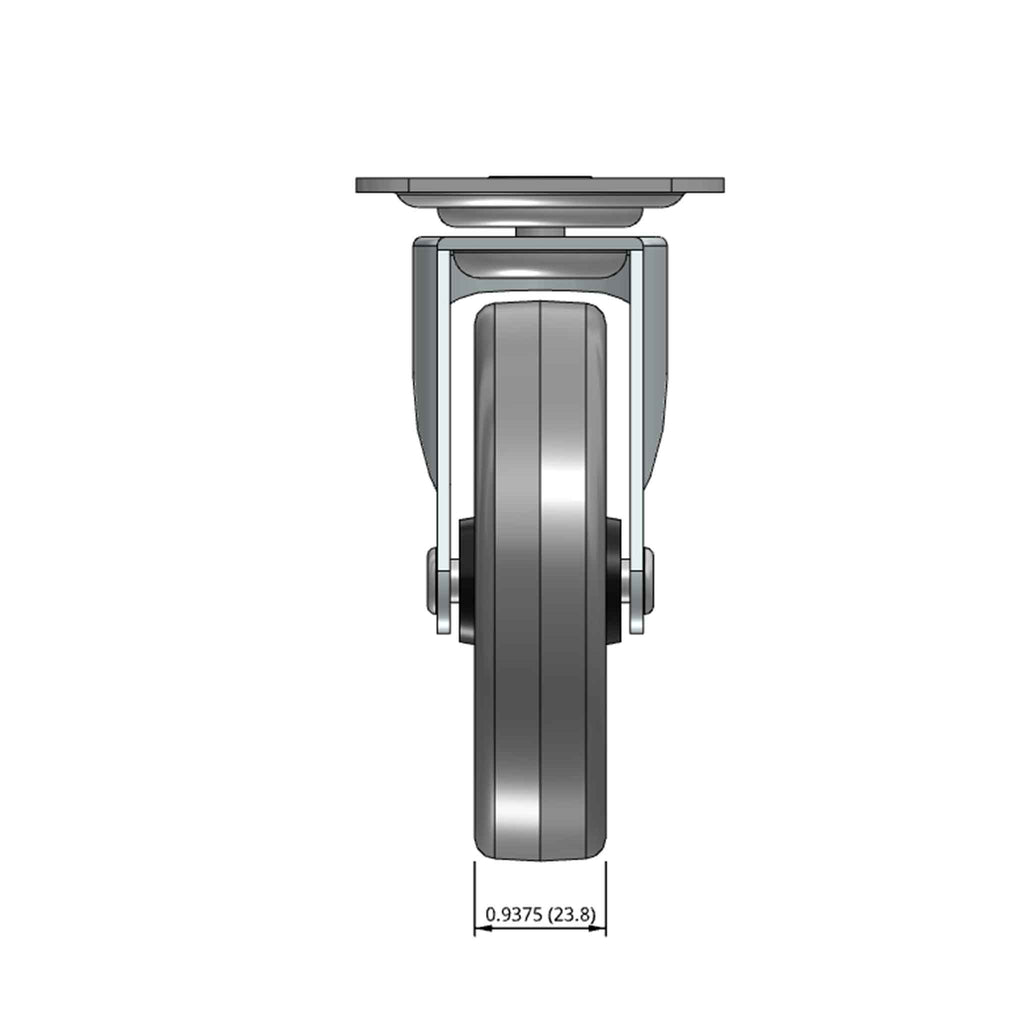

Front dimensioned CAD view of a Shepherd Casters 4" x 0.94" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermoplastic Rubber wheel and 125 lb. capacity part

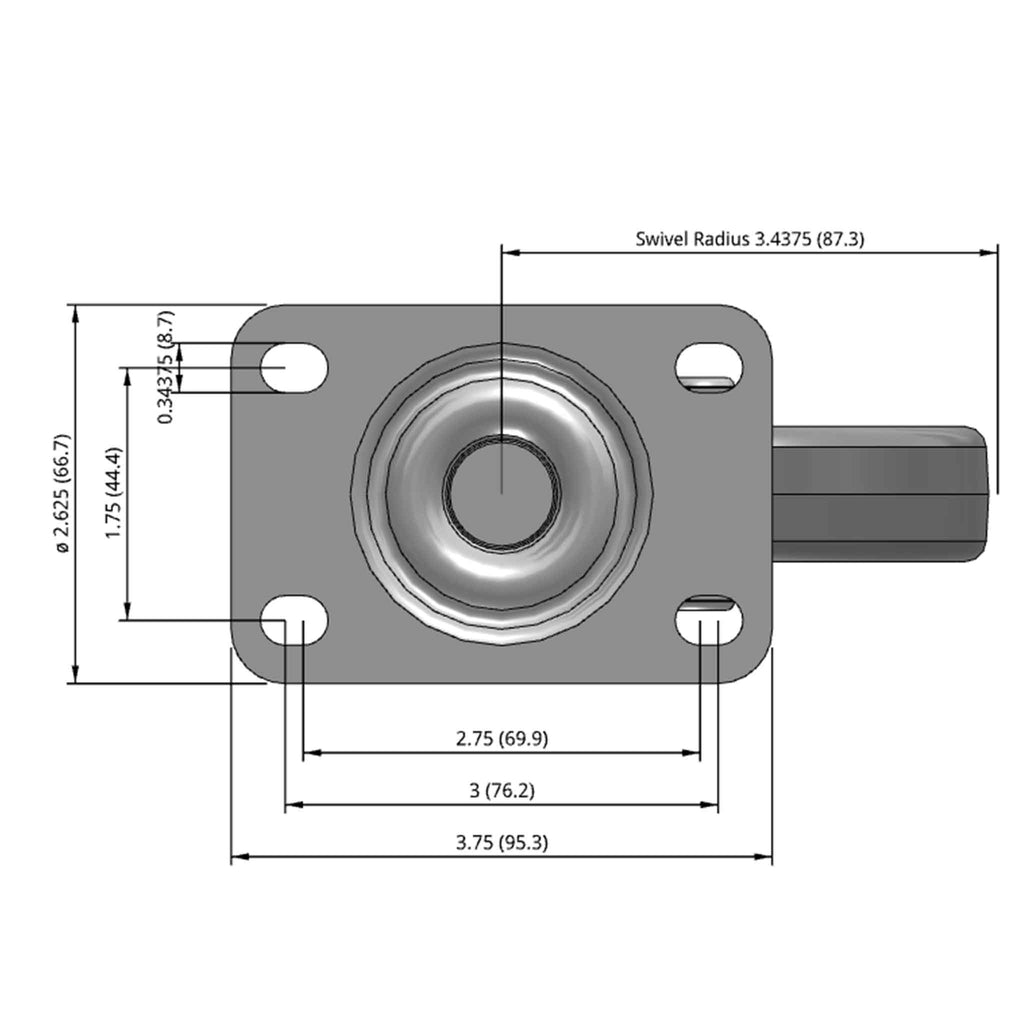

Top dimensioned CAD view of a Shepherd Casters 4" x 0.94" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermoplastic Rubber wheel and 125 lb. capacity part

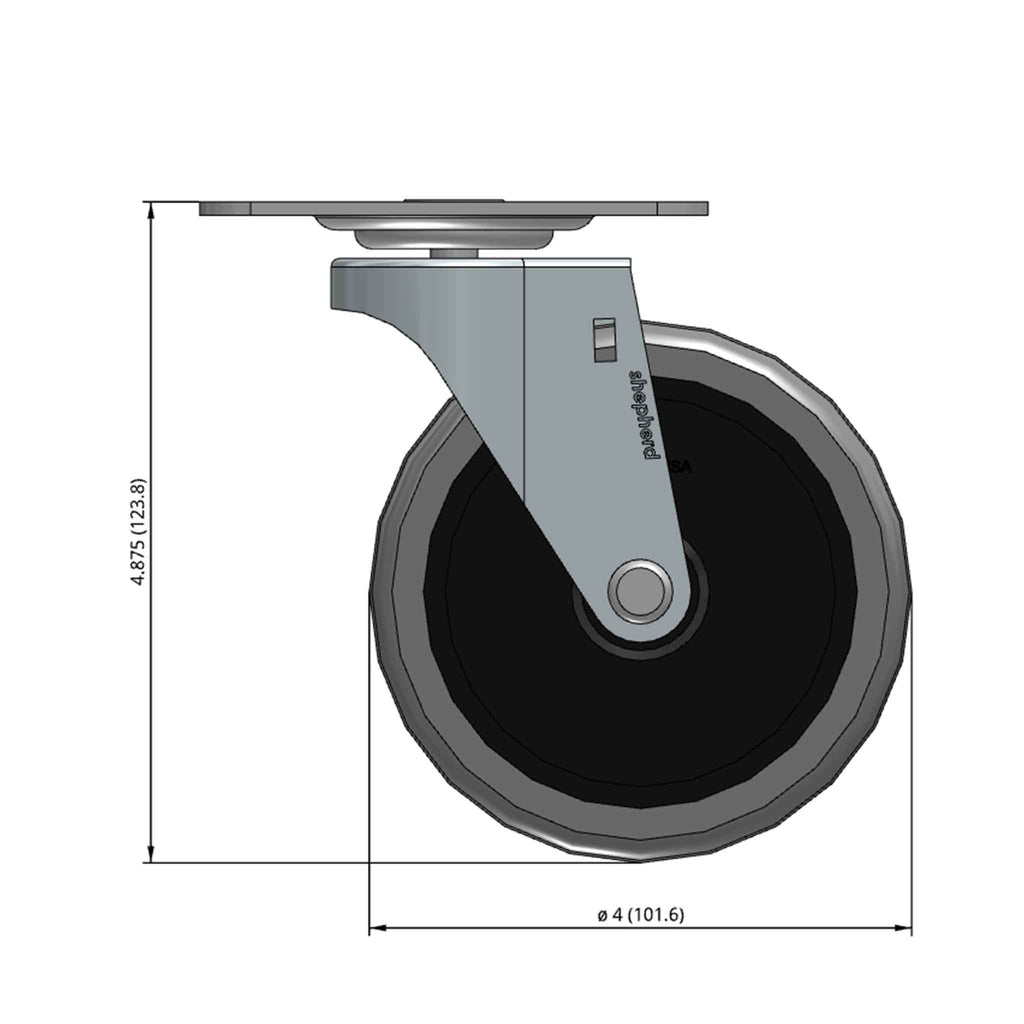

Side dimensioned CAD view of a Shepherd Casters 4" x 0.94" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermoplastic Rubber wheel and 125 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x1" TPR Wheel Swivel Plate Mount Caster USA-Made

Name: 4"x1" TPR Wheel Swivel Plate Mount Caster USA-Made
Brand: Shepherd Casters
SKU: PRE40120ZN-TPR
Price: 11.84 USD
Availability: InStock

Shepherd Casters SKU: PRE40120ZN-TPR
Fastening: 2-5/8" x 3-3/4" top plate | Load Capacity: 125 lb
Mount Height: 4.88 in | Swivel Radius: 3.44 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-3 days **FREE Shipping on orders over $250**

Price:

$11.84 $13.16

Quantity:

Share this product

This 4" x 15/16" thermoplastic rubber standard duty single wheel swivel caster is quiet, smooth rolling, easy to start and floor protective. Our 20 Series standard duty single wheel casters are perfect for light duty office and commercial carts and fixtures. These casters feature floor protective wheels with plain bore bearings. Swivel sections are riveted double ball race.

Part Number:	20TRP40S
SKU	PRE40120ZN-TPR
Series:	20 Series (to 160 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	None
Load Capacity:	125 lb
Mounting Height:	4.88 in
Wheel Diameter:	4 in
Wheel Tread Width:	0.94 in
Wheel Description:	Thermoplastic Rubber
Wheel Color:	Grey
Wheel Bearing:	Plain
Wheel Profile:	Flat with Rounded Edges
Wheel Hardness:	75(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	2-5/8" x 3-3/4" top plate
Bolt Hole Pattern:	1-3/4" x 2-3/4" to 3"
Plate Bolt Size Recommended:	5/16"
Swivel Radius:	3.44 in
Finish:	Zinc Plated
Axle Size:	5/16" diameter riveted
Operating Temperature Range:	-40F° to +180F°
Mfg:	PRE40120ZN-TPR
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

4"x1" TPR Wheel Swivel Plate Mount Caster USA-Made

Description

Product Details

Part Number:

20TRP40S

SKU

PRE40120ZN-TPR

Series:

20 Series (to 160 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

None

Load Capacity:

125 lb

Mounting Height:

4.88 in

Wheel Diameter:

4 in

Wheel Tread Width:

0.94 in

Wheel Description:

Thermoplastic Rubber

Wheel Color:

Grey

Wheel Bearing:

Plain

Wheel Profile:

Flat with Rounded Edges

Wheel Hardness:

75(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

2-5/8" x 3-3/4" top plate

Bolt Hole Pattern:

1-3/4" x 2-3/4" to 3"

Plate Bolt Size Recommended:

5/16"

Swivel Radius:

3.44 in

Finish:

Zinc Plated

Axle Size:

5/16" diameter riveted

Operating Temperature Range:

-40F° to +180F°

Mfg:

PRE40120ZN-TPR

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
