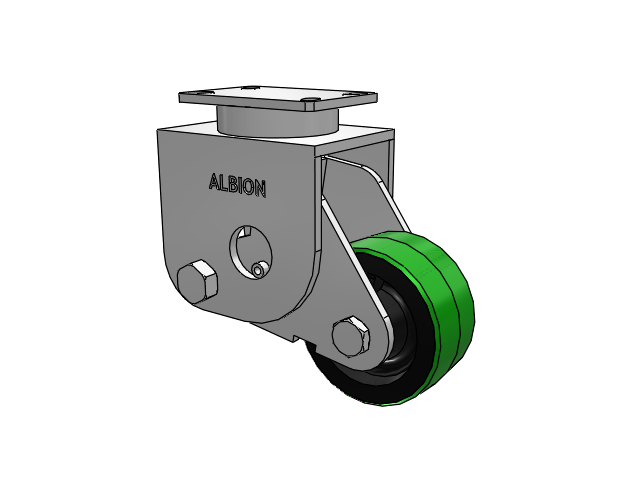

The Albion S310PY06501R rigid caster features a 6" x 3" wide wheel and a 6 1/4" x 4 1/2" top plate, capable of a 2000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The S310 is constructed from high-quality, heat-treated AISI 1045 stamped steel. Zinc plating delivers greater corrosion resistance than paint. Inside and outside welds deliver superior strength. Greater capacity and better shock protection. Noise levels are reduced through the dampening effect of these casters. Capacities are listed at 50% of wheel deflection (21/32"). Total wheel deflection is 1-5/16". Spring-loaded casters provide better floor and equipment
Protection, reduce operating noise, reduce unwanted vibration, and increase product/equipment life expectancy. The S310 Series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• Load Springs: Protect from damaging shocks and reduce noise levels through the dampening effect of the springs
• Top Plate: 5/16" AISI 1045 heat-treated steel welded inside and out for longer life
• Swivel Section: One row of 1/2" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
• Yoke Base: Notched AISI 1045 heat-treated steel
• Legs: welded inside and out
• Axle: 3/4” diameter
• Finish: Zinc plating
• Alternate or custom caster configurations available
