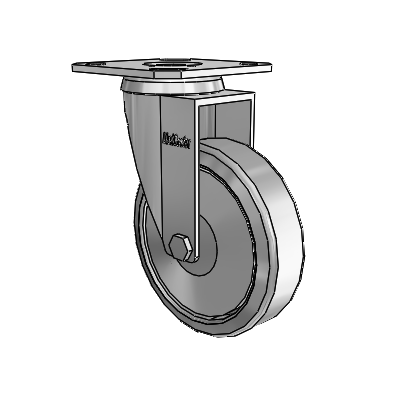

The MedCaster RZ-03TPP-090-SW-TP05 swivel caster features a 3" x 0.875" wide wheel and a 2.36" x 2.36" Top Plate, capable of a 140 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The Razer (RZ) Series provides economical and decorative total lock and swivel caster solutions—making it very popular for laundry hampers, medical furniture, medical carts, bassinets, light-duty recliners and chairs, and light-duty healthcare beds. With a polished chrome finish, this single-wheel series features non-marking ball bearing wheels, polished chrome thread guards to prevent entangling debris from binding wheels, and dual ball bearing raceways for performance and smooth swiveling.
• Economically priced
• Polished chrome finish for aesthetics, corrosion resistance, and sanitation
• Double ball swivel raceways for added strength and performance
• Total Lock Brake models lock both swivel and wheel
• Full thread guards for added protection
SKU
|
RZ-03TPP-090-SW-TP05
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing raceways for performance and easy swiveling
|
Brake
|
None
|
Load Capacity
|
140 lb
|
Wheel Tread Width
|
0.88 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Ball
|
Wheel Thread Guards
|
Full
|
Fastening
|
2.36" x 2.36" Top Plate
|
Bolt Hole Pattern
|
38mm x 38mm slotted to 48mm to 48mm
|
Bolt Size Recommended
|
8mm
|
Mounting Height
|
4.07 in
|
Swivel Radius
|
2.85 in
|
Warranty
|
1 year
|
Manufacturing Number
|
RZ-03TPP-090-SW-TP05
|
