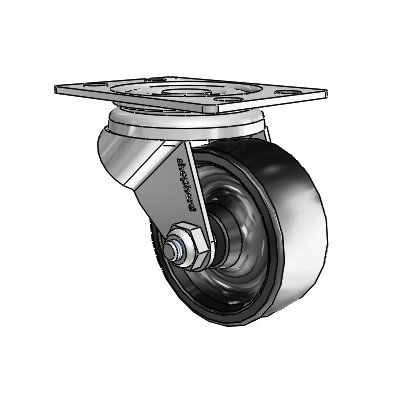

The Shepherd PSQ20112ZN-3E swivel caster features a 2" x 0.8125" polyolefin wheel and a 1-7/8" x 2-9/16" Top Plate, capable of a 125 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The General Duty Series is an economical line of single-race swivel, rigid, and brake casters. The series features several key components that set it apart from our competitors—ultimately giving you the longer caster life you are looking for. Featuring a nickel-plated kingpin, this series will ensure the continuous smooth swiveling your product demands. The General Duty Series is also RoHS compliant, helping meet environmental regulations while protecting against harmful corrosion. Ideal for dollies, store fixtures, and other equipment that does not require high-performance swiveling and mobility.
• Economical, single raceway mobility solution
• Nickel-plated kingpin for lasting smooth swivel (a big differentiator from most competitors)
• Zinc finish for corrosion resistance
• RoHS-compliant and an NSF listed component
• Nut and bolt axle
SKU
|
PSQ20112ZN-3E
|
Part Number
|
30POP20S
|
Caster Type
|
Swivel
|
Raceway Type
|
Single ball bearing raceway
|
Brake
|
None
|
Load Capacity
|
125 lb
|
Wheel Tread Width
|
0.81 in
|
Wheel Description
|
Polyolefin
|
Wheel Color
|
Black
|
Wheel Bearing
|
Plain
|
Wheel Hardness
|
70(+/-5) Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
1-7/8" x 2-9/16" Top Plate
|
Bolt Hole Pattern
|
15/16" x 2-1/8"
|
Bolt Size Recommended
|
1/4"
|
Mounting Height
|
2.5 in
|
Swivel Radius
|
1.81 in
|
Operating Temperature Range
|
-45F to +180F
|
Warranty
|
1 year
|
Manufacturing Number
|
PSQ20112ZN-3E
|
Conformity
|
RoHS compliant zinc plating; NSF listed component; tested to ANSI ICWM:2012 standards for capacity and durability
|
