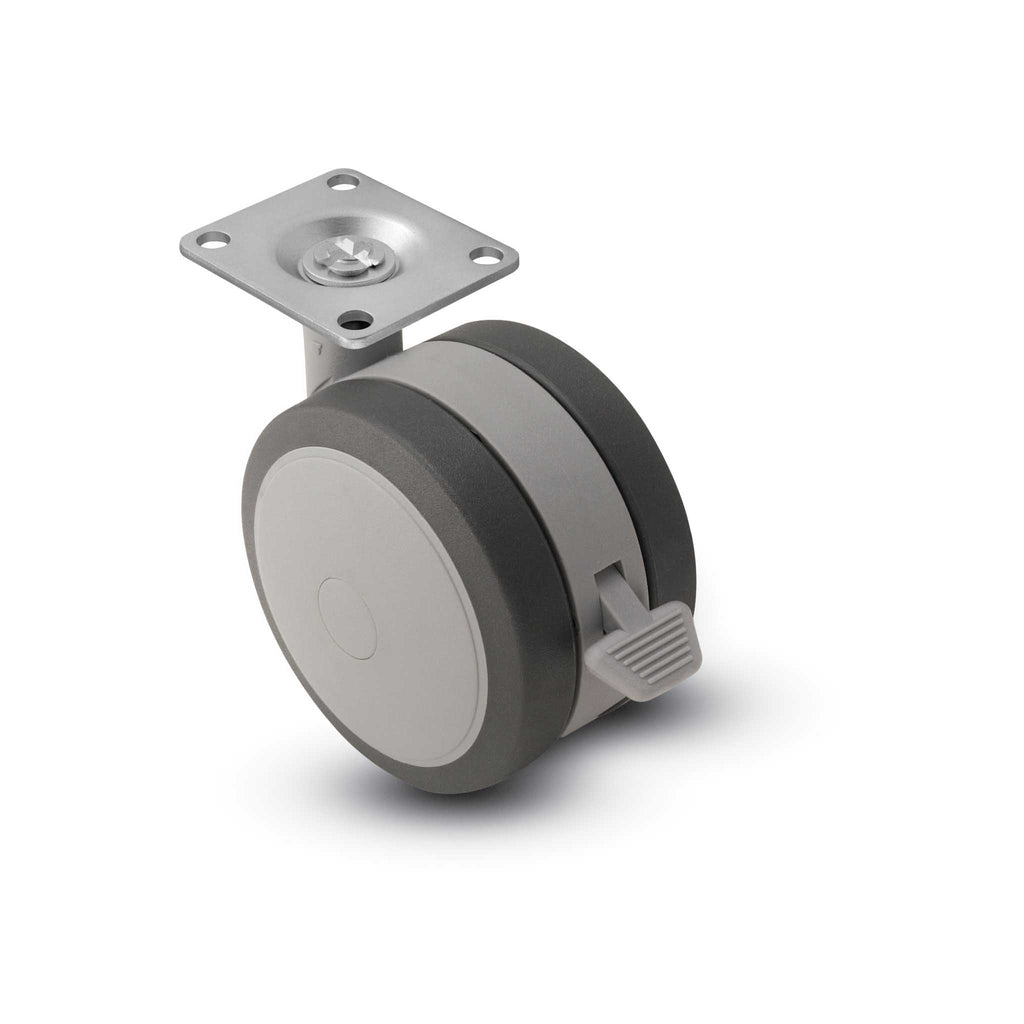

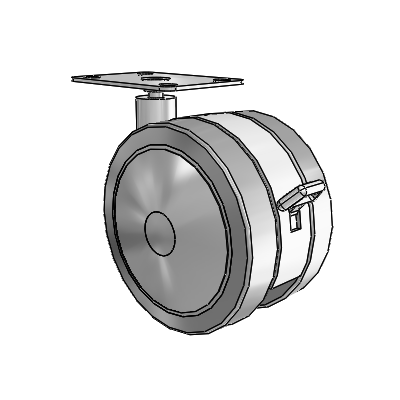

The Shepherd PSF125120GR-B swivel caster features 125mm non-marking elastomer wheels and a 2-5/8" x 3-3/4" Top Plate, capable of a 225 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Softech twin wheels combine smooth and quiet mobility with some of the highest load ratings in twin-wheel casters, providing a very high overall mobility value. This series features a high-tech thermoplastic elastomer tread that provides a cushioned ride you typically cannot get from a twin-wheel caster. Its durable construction features solid riveted axles, ensuring positive wheel retention that will handle heavy loads. This series is also available in a variety of sizes, colors, brake, and fastening options—ensuring that you find the perfect caster for your application.
• Soft 70-75/A durometer tread constructed of high-tech thermoplastic elastomer
• High load ratings
• Quiet mobility
• Riveted axle for positive wheel retention
• Floor protective and non-marking
• RoHS-compliant
SKU
|
PSF125120GR-B
|
Caster Type
|
Swivel
|
Raceway Type
|
Pintel
|
Brake
|
Top Wheel Lock
|
Load Capacity
|
225 lb
|
Wheel Description
|
Thermoplastic Elastomer
|
Wheel Color
|
Grey on Grey
|
Wheel Bearing
|
Plain
|
Wheel Hardness
|
70-75 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
2-5/8" x 3-3/4" Top Plate
|
Bolt Hole Pattern
|
1-3/4" x 2-3/4" to 3"
|
Bolt Size Recommended
|
5/16"
|
Mounting Height
|
5.63 in
|
Swivel Radius
|
5.13 in
|
Warranty
|
1 year
|
Manufacturing Number
|
PSF125120GR-B
|
Conformity
|
RoHS compliant and tested to ANSI ICWM:2012 standards for capacity and durability
|
