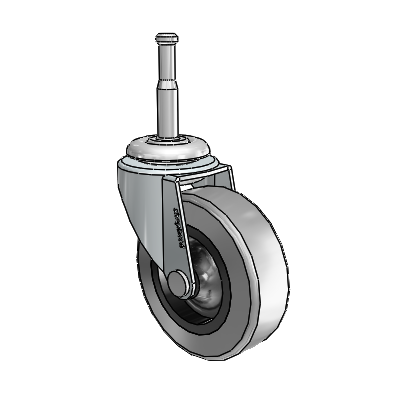

The Shepherd PRE25302ZN-TPR swivel caster features a 2.5" x 0.8125" TPR wheel and a 5/16" x 1-1/2" Grip Neck, capable of a 80 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Manufactured in the USA, this very popular light-duty wheel caster series is a favorite for store fixtures, utility carts, furniture, POP displays, mechanics creepers, and a host of other mobile equipment. With a variety of fastening, size, and wheel options available- you will be sure to find the perfect caster to meet your light-duty mobility needs. The Regent Series is also constructed of high-strength and heat-treated steel, which provides the extended mobility life you demand for your products. Ensure that you receive the best quality, delivery, and value for your mobility needs with the USA-made Regent Series.
• Industry-leading selection and overall value
• USA-made for quality and fast delivery on large volume requirements
• High-strength and heat-treated steel for increased durability and caster life
• Dual ball raceways
• RoHS-compliant zinc plating for corrosion resistance
• Octagon washer on stem models for easy installation
• NSF component (less thread guards or models with 113 top plate)
SKU
|
PRE25302ZN-TPR
|
Caster Type
|
Swivel
|
Brake
|
None
|
Load Capacity
|
80 lb
|
Wheel Tread Width
|
0.81 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Plain
|
Wheel Thread Guards
|
None
|
Fastening
|
5/16" x 1-1/2" Grip Neck
|
Mounting Height
|
3.13 in
|
Swivel Radius
|
2.13 in
|
Operating Temperature Range
|
-40F to +180F
|
Warranty
|
1 year
|
Manufacturing Number
|
PRE25302ZN-TPR
|
