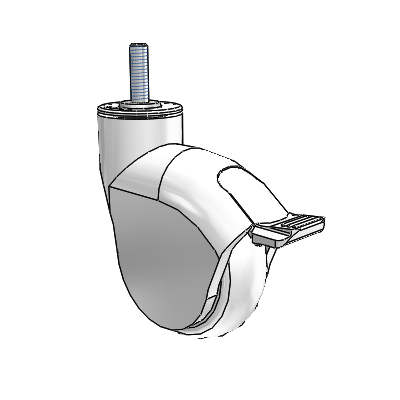

The Shepherd PGE30507WH-MNT33(GG)B swivel caster with Top Wheel Lock brake features a 3" x 1" Monotech wheel and a 5/16"-18UNC x 1" Threaded Stem, capable of a 110 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. With its stylish design and resistance to corrosion, Genesis has become a popular choice among medical equipment, furniture, and store fixture manufacturers. With a strong glass-filled nylon body, durable and high-performance MonoTech wheel, and optional easy-to-activate tread lock brake—these casters will give your medical equipment, electronic equipment, furniture, or carts the stylish look and durability you have been searching for. Additional colors, fastening, and configurations are available by special order (minimums may apply); please consult Caster Specialists for more information.
• Sealed precision bearings in swivel and wheel provide quiet, effortless mobility
• Soft (65A), non-marking MonoTech wheels reject debris and are excellent on both carpet and hard floors
• A strong protective body conceals components for easy cleaning
• Integrated thread guards protect wheels from entangling debris
• RoHS-compliant
SKU
|
PGE30507WH-MNT33(GG)B
|
Caster Type
|
Swivel
|
Raceway Type
|
Sealed precision ball bearing raceway
|
Brake
|
Tread Lock
|
Load Capacity
|
110 lb
|
Wheel Tread Width
|
1 in
|
Wheel Description
|
Monotech
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Sealed Precision Ball
|
Wheel Thread Guards
|
Full
|
Fastening
|
5/16"-18UNC x 1" Threaded Stem
|
Mounting Height
|
4 in
|
Swivel Radius
|
3.75 in
|
Warranty
|
1 year
|
Manufacturing Number
|
PGE30507WH-MNT33(GG)B
|
Conformity
|
RoHS compliant and tested to ANSI ICWM:2012 standards for capacity and durability
|
