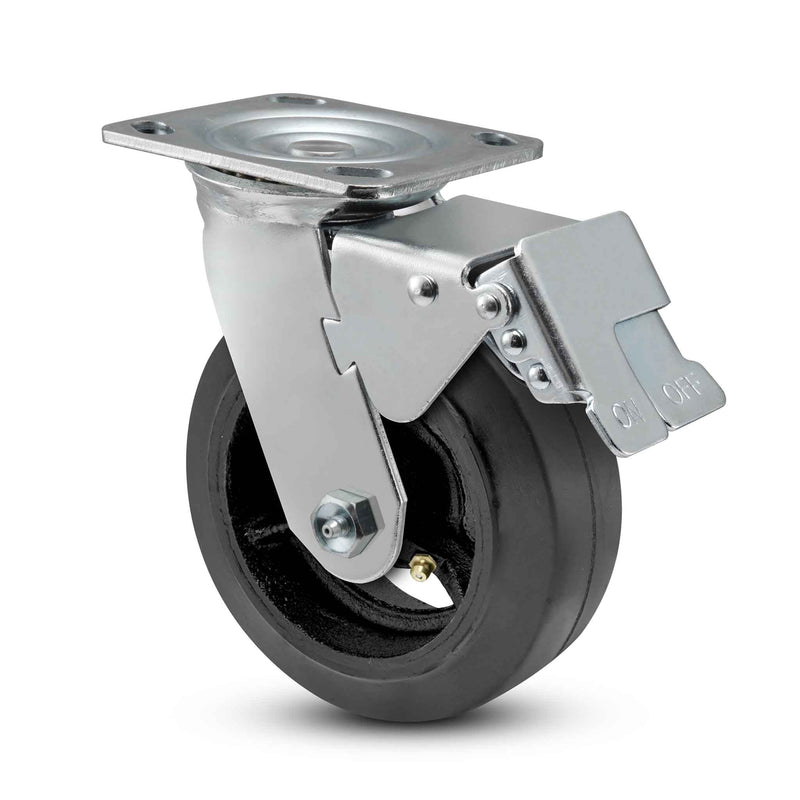

Main view of a Pemco Casters 8" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a top total locking brake, Mold-on Rubber wheel and 600 lb. capacity part

8"x2" Rubber-on-Iron Wheel Total Lock Brake Swivel Caster

Roll over to zoom; image may be representative for size Click on image to zoom

8"x2" Rubber-on-Iron Wheel Total Lock Brake Swivel Caster

Name: 8"x2" Rubber-on-Iron Wheel Total Lock Brake Swivel Caster
Brand: Pemco Casters
SKU: ET8X2MOR
Price: 50.89 USD
Availability: InStock

Total Lock Brake

Pemco Casters SKU: ET8X2MOR
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 9.5 in | Swivel Radius: 6.38 in

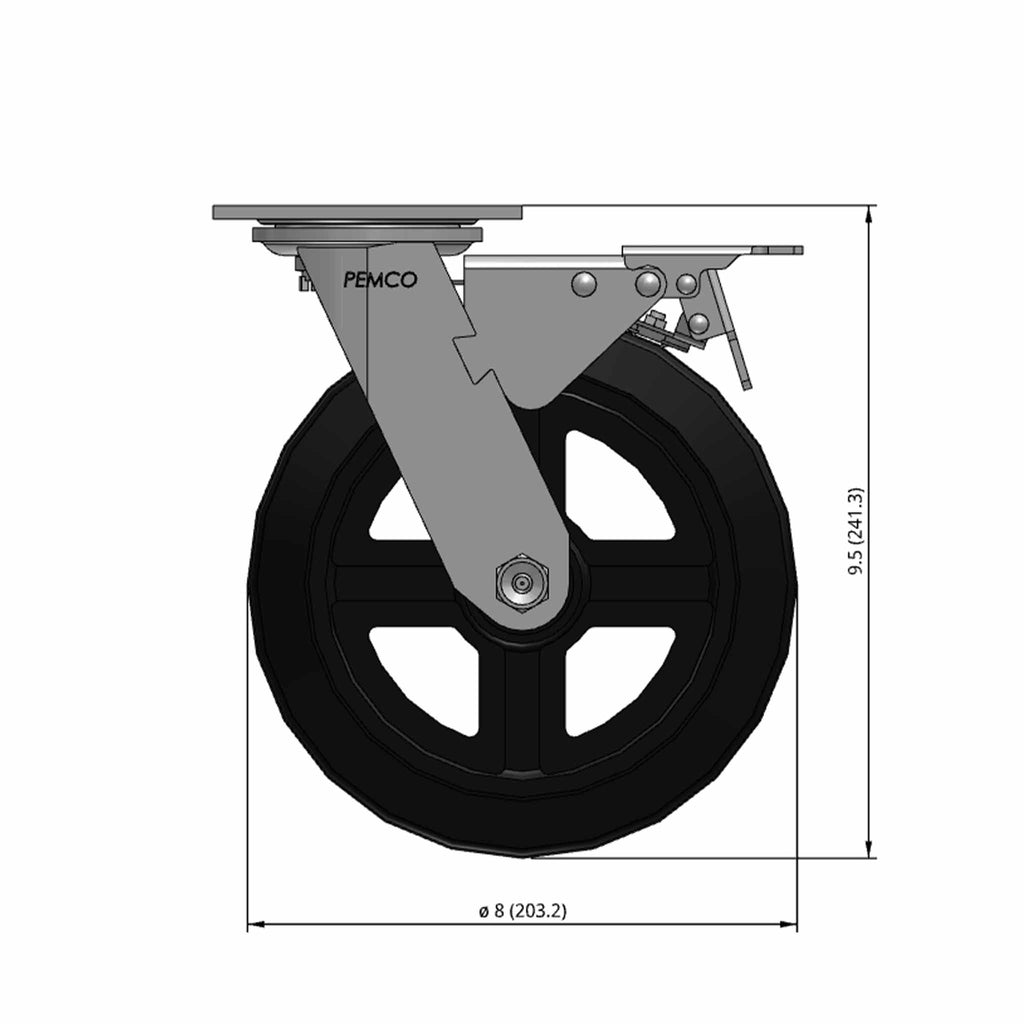

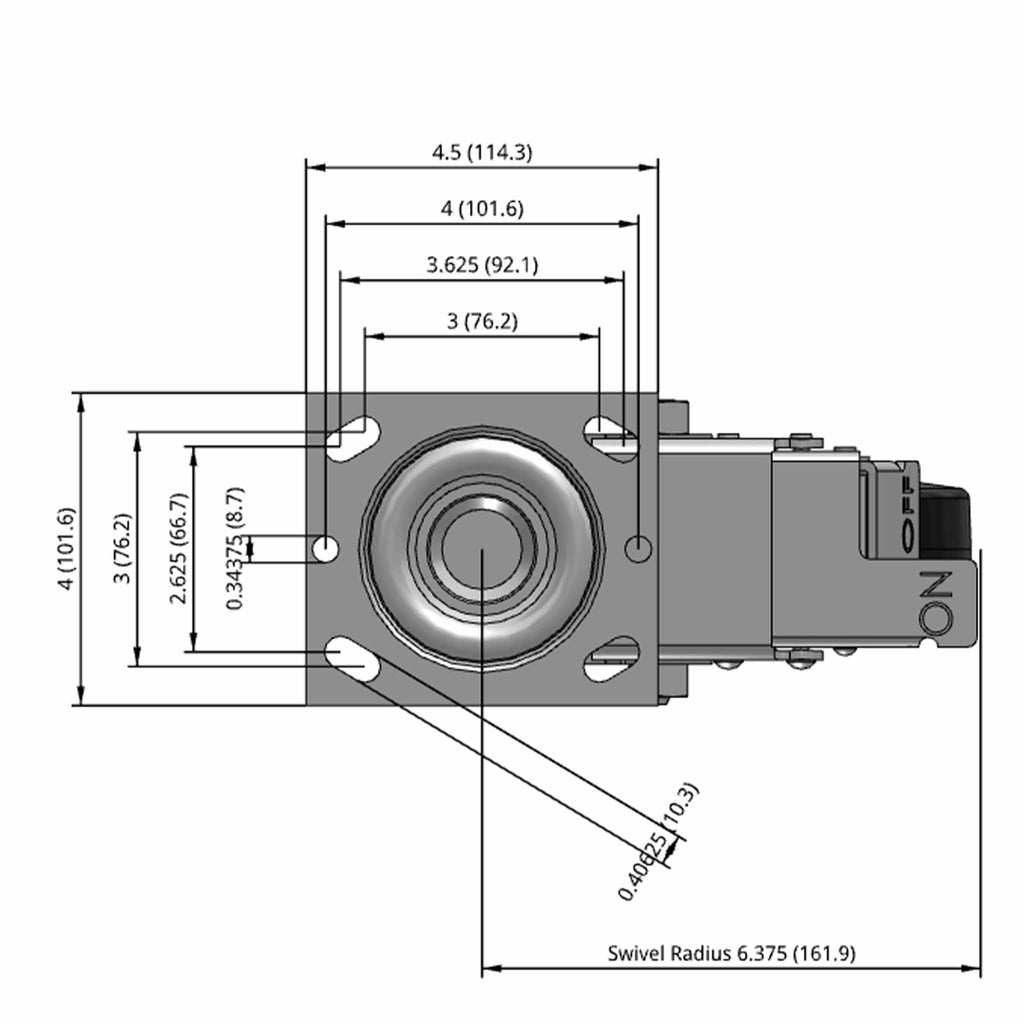

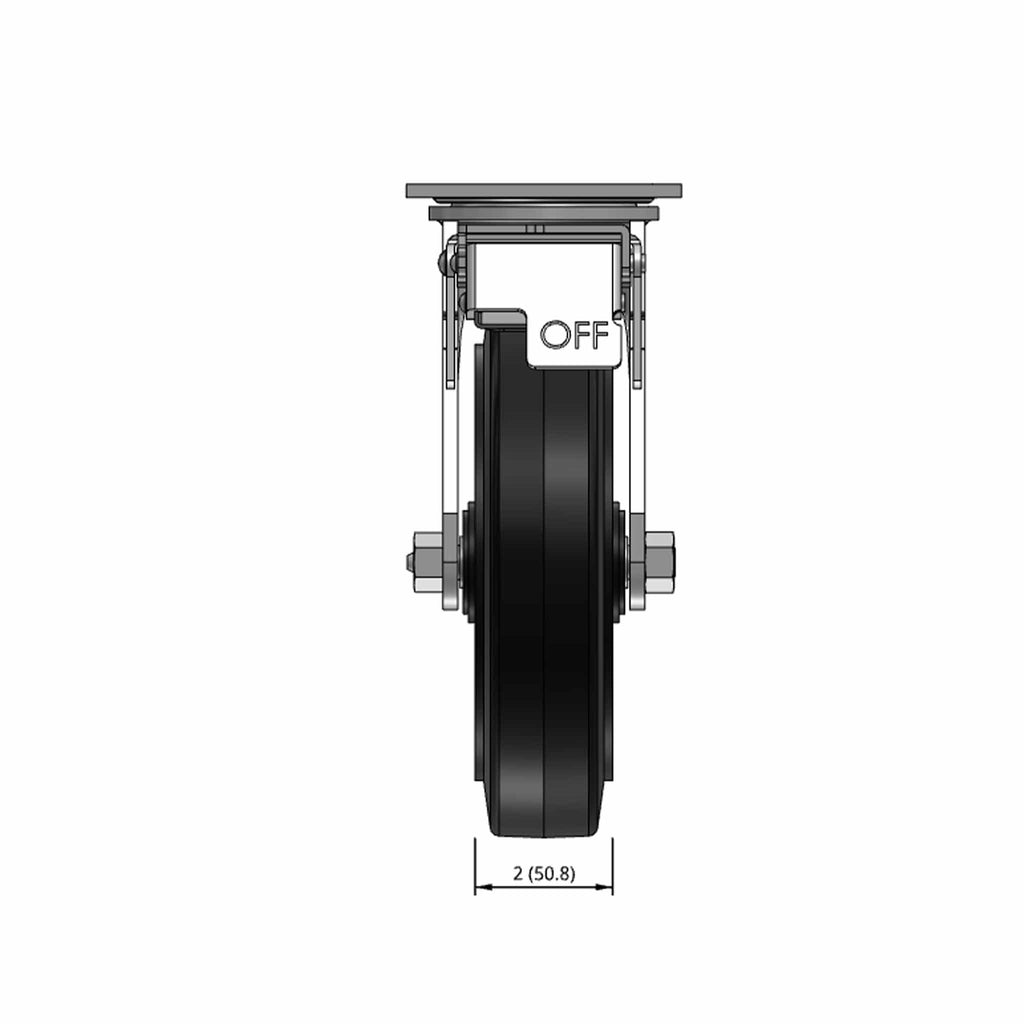

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$50.89 $59.87

Quantity:

Share this product

This 8" x 2" rubber on cast iron heavy duty swivel caster with total lock brake is an economical, quiet wheel ideal for use on platform trucks or stock dollies. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Part Number:	45RIR82S-TLB
SKU	ET8X2MOR
Series:	45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	Total Lock
Load Capacity:	600 lb
Mounting Height:	9.5 in
Wheel Diameter:	8 in
Wheel Tread Width:	2 in
Wheel Description:	Mold-on Rubber
Wheel Color:	Black
Wheel Bearing:	Roller
Wheel Profile:	Flat with Slightly Rounded Edges
Wheel Hardness:	85(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	6.38 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-40F° to +180F°
Mfg:	ET8X2MOR
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

8"x2" Rubber-on-Iron Wheel Total Lock Brake Swivel Caster

Description

Product Details

Part Number:

45RIR82S-TLB

SKU

ET8X2MOR

Series:

45 Series - 2" Wide (to 1250 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

Total Lock

Load Capacity:

600 lb

Mounting Height:

9.5 in

Wheel Diameter:

8 in

Wheel Tread Width:

2 in

Wheel Description:

Mold-on Rubber

Wheel Color:

Black

Wheel Bearing:

Roller

Wheel Profile:

Flat with Slightly Rounded Edges

Wheel Hardness:

85(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

6.38 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-40F° to +180F°

Mfg:

ET8X2MOR

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
