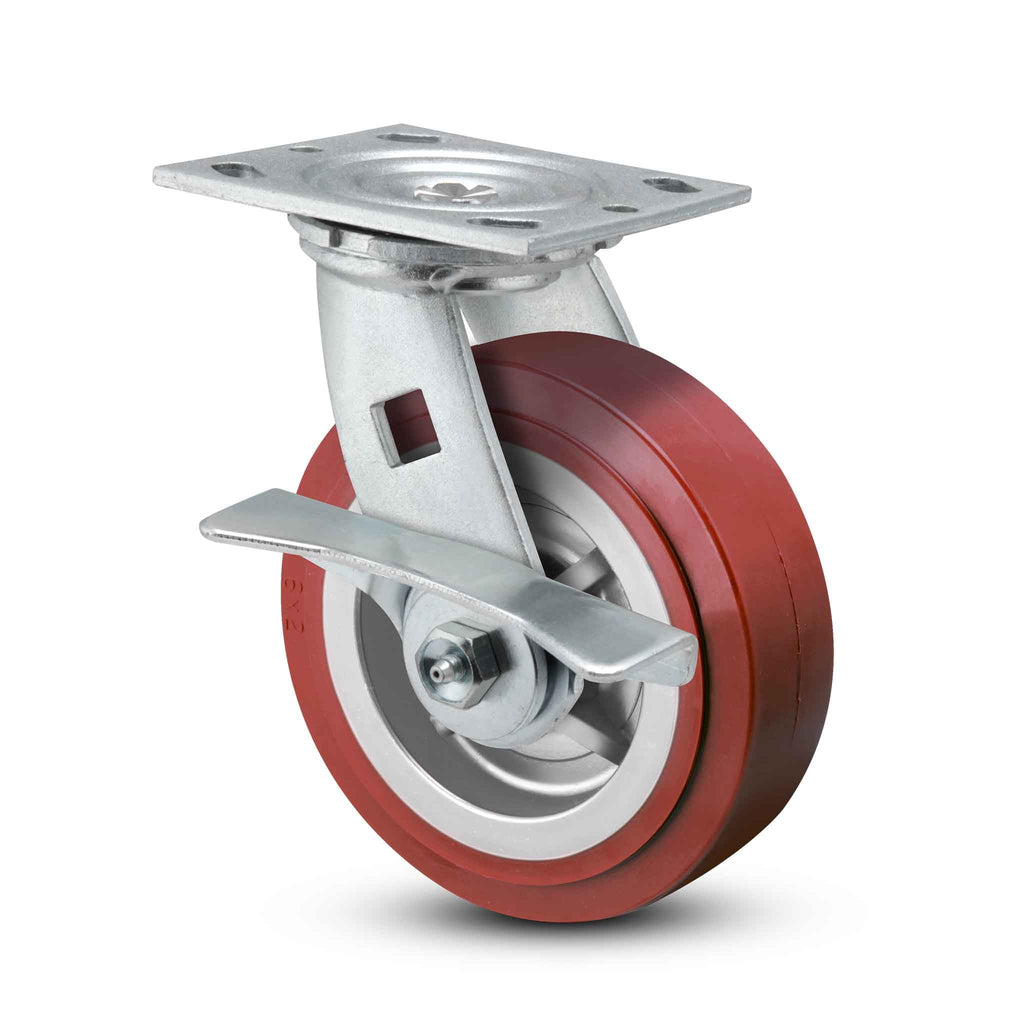

This 4" x 2" polyurethane on plastic heavy duty swivel caster with cam brake is a great all around wheel - it's floor protective, chemically resistant and high capacity. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake: 5-Inch Cam Brake
Load Capacity: 500 lb
Wheel Diameter: 4 in

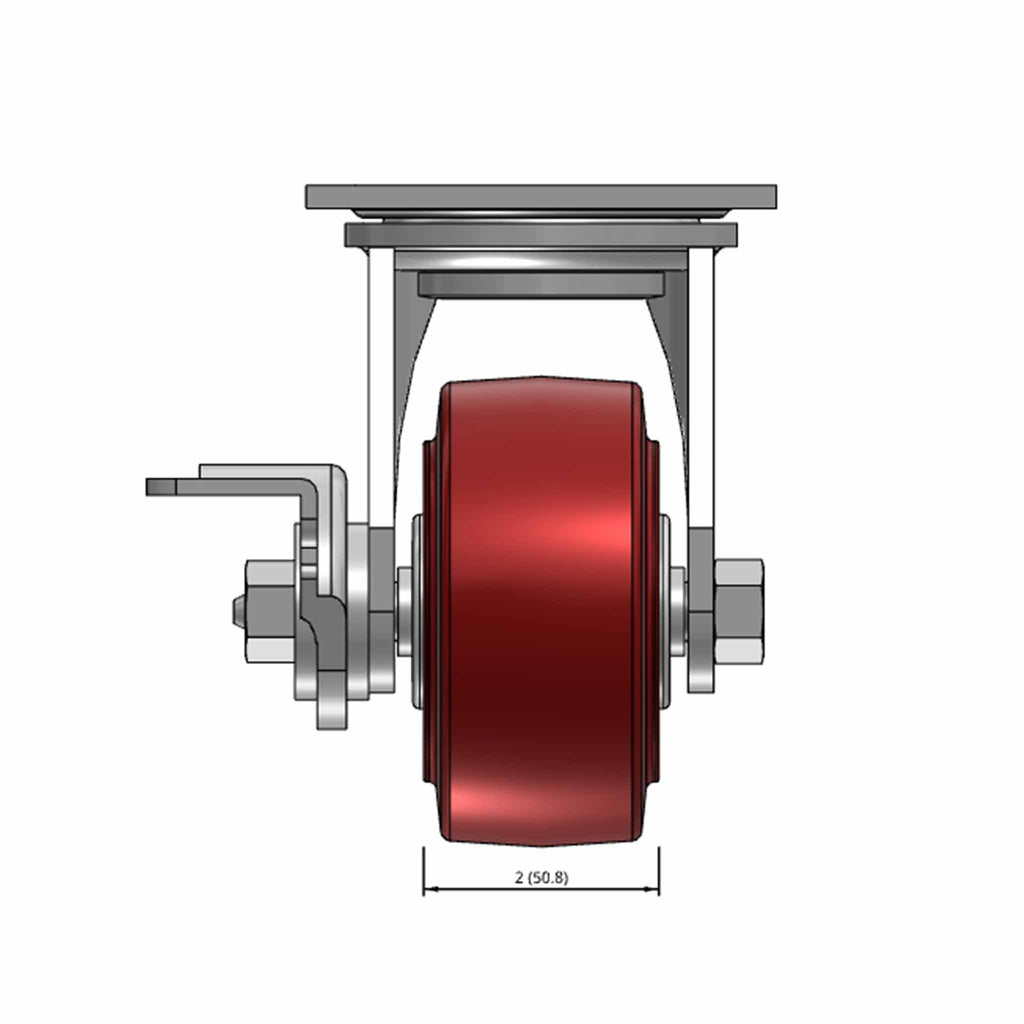

Wheel Tread Width: 2 in
Wheel Description: Thermo-Urethane
Wheel Color: Maroon/Grey
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 95(+/-5) Shore A
Wheel Thread Guards: None

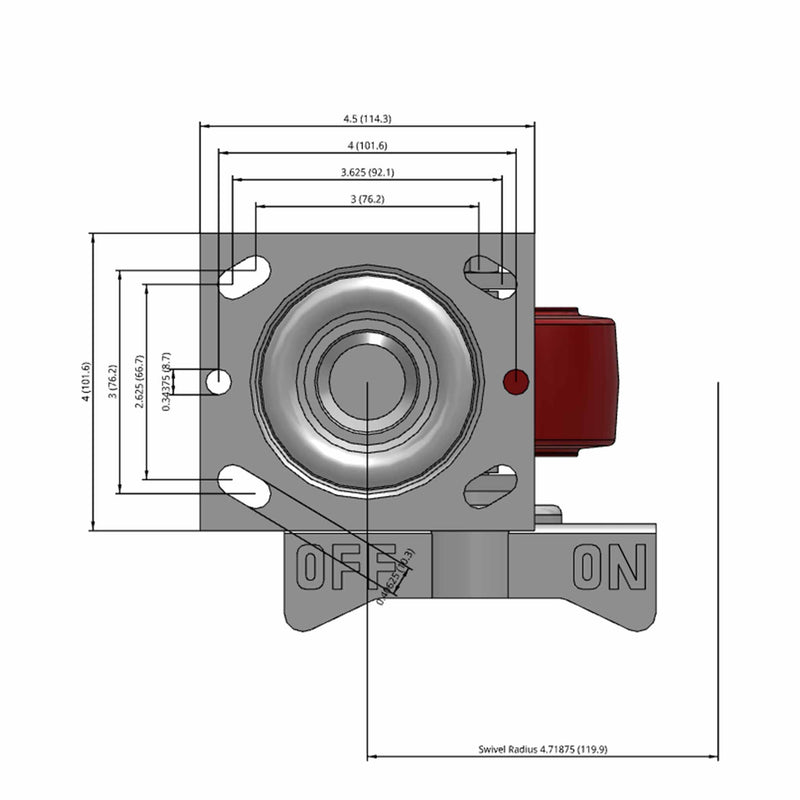

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

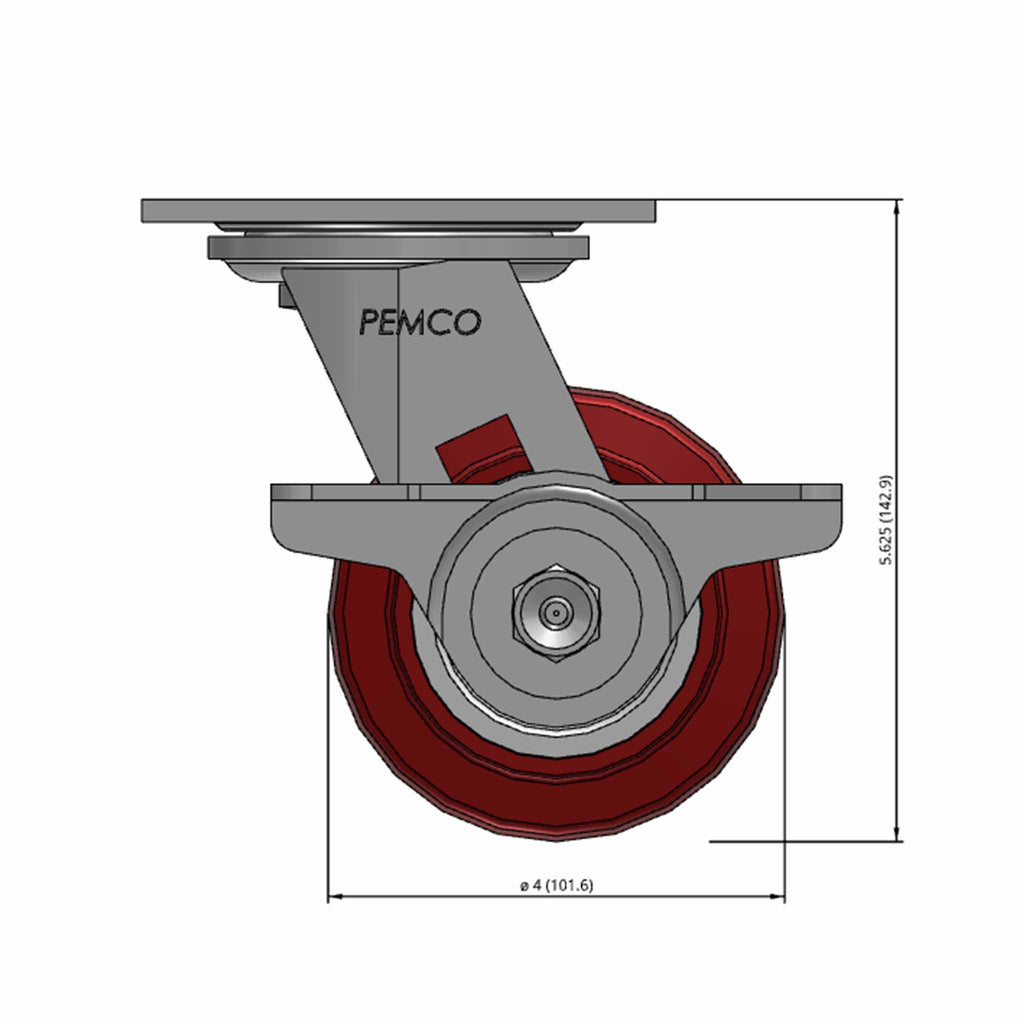

Mounting Height: 5.63 in
Swivel Radius: 4.72 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
