Main view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Thermo-Rubber (Flat) wheel and 300 lb. capacity part

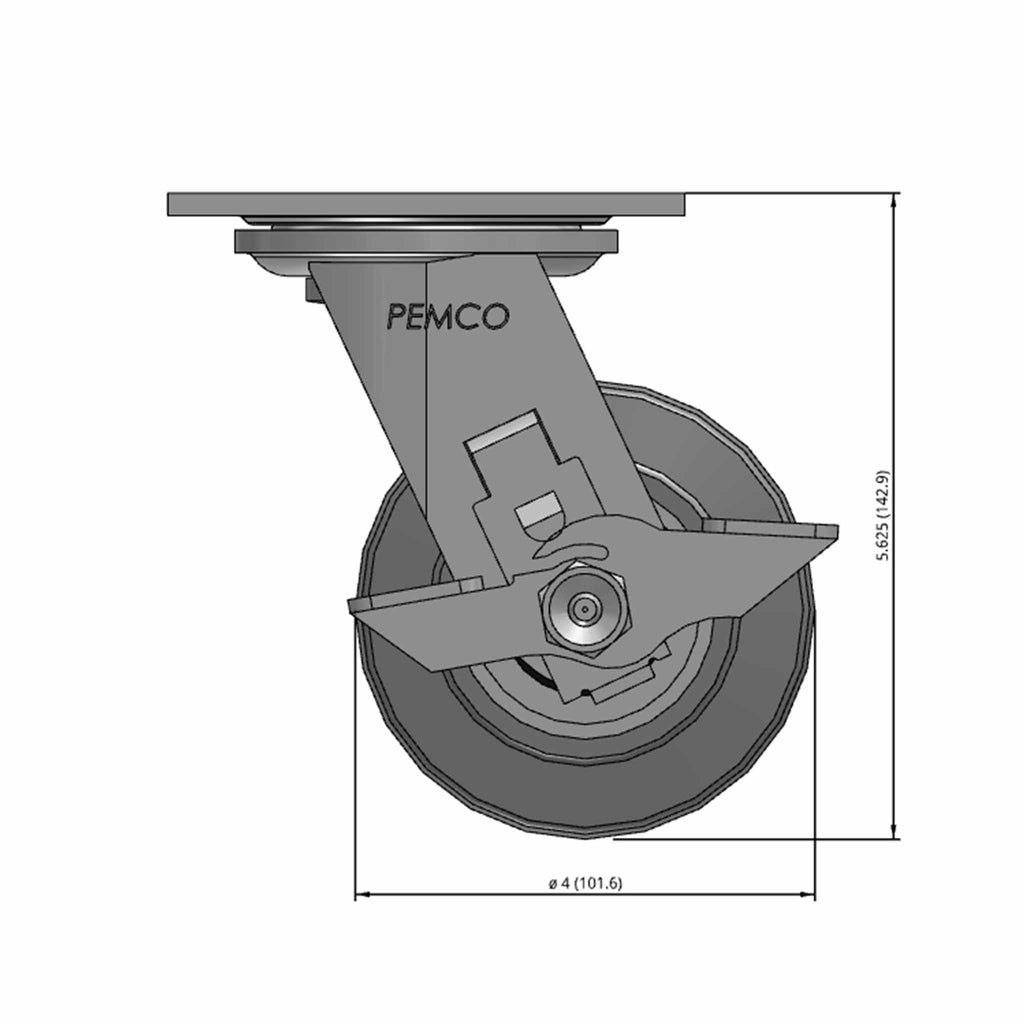

Front dimensioned CAD view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Thermo-Rubber (Flat) wheel and 300 lb. capacity part

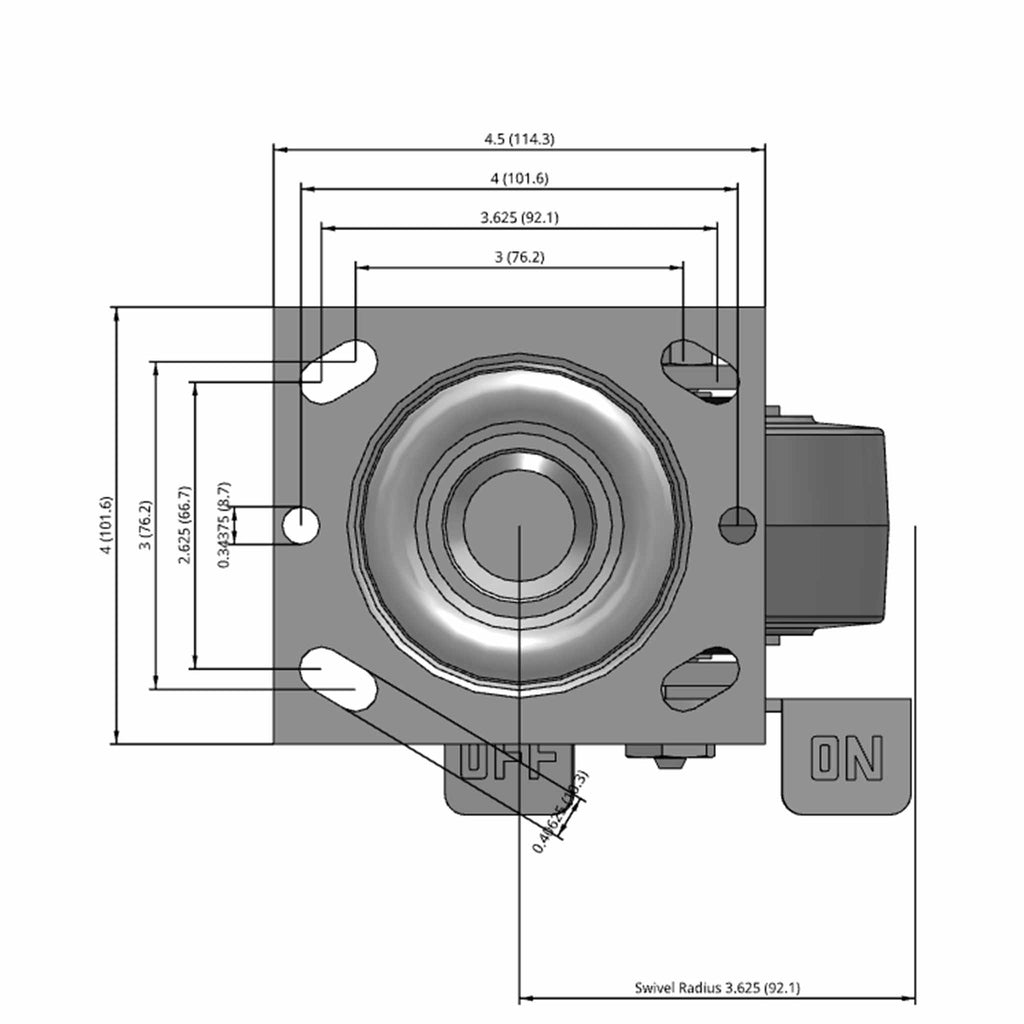

Top dimensioned CAD view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Thermo-Rubber (Flat) wheel and 300 lb. capacity part

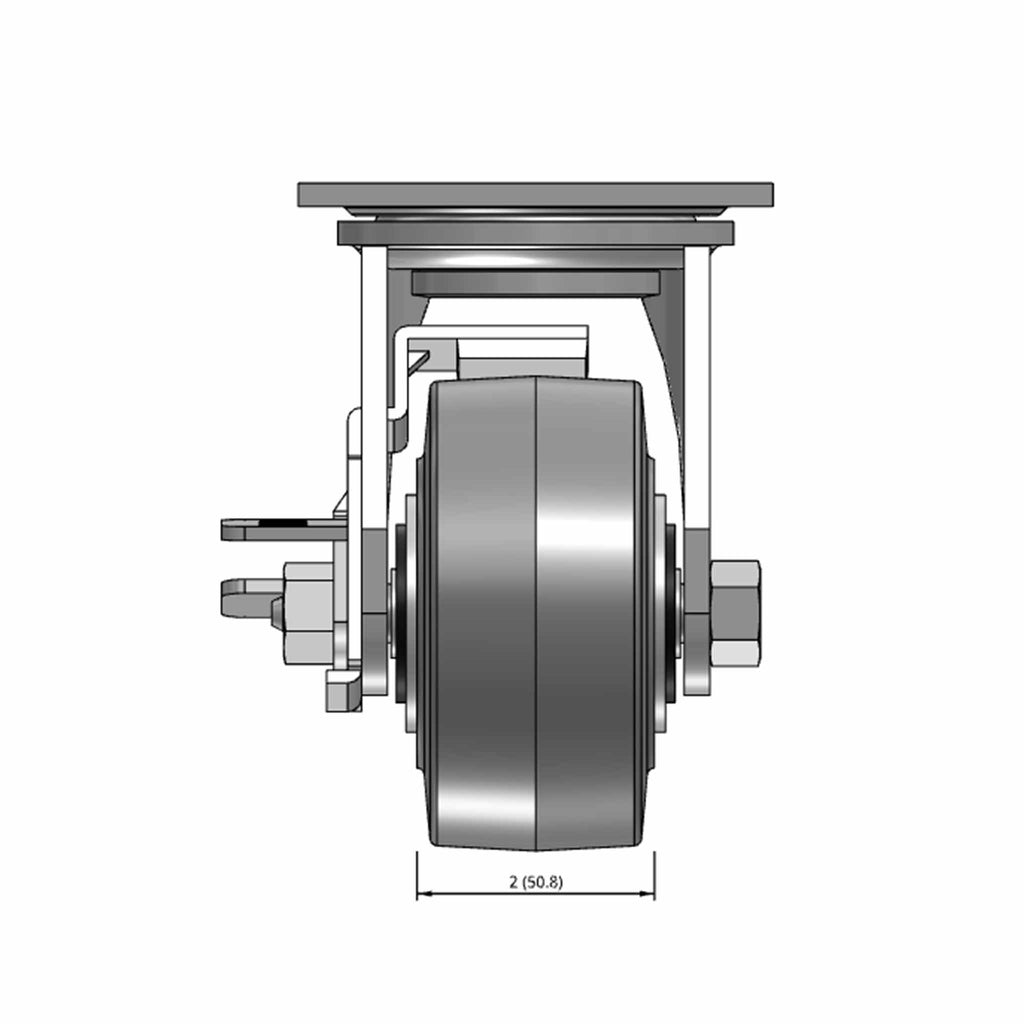

Side dimensioned CAD view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Thermo-Rubber (Flat) wheel and 300 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" TPR Wheel Side Locking Swivel Caster

Name: 4"x2" TPR Wheel Side Locking Swivel Caster
Brand: Pemco Casters
SKU: ES4X2TPRTBK
Price: 25.1 USD
Availability: InStock

USA-Made Wheel

Pemco Casters SKU: ES4X2TPRTBK
Fastening: 4" x 4-1/2" top plate | Load Capacity: 300 lb
Mount Height: 5.63 in | Swivel Radius: 3.63 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$25.10

Quantity:

Share this product

This 4" x 2" flat tread thermoplastic rubber heavy duty swivel caster with tread brake provides smooth and quiet operation. They are safe to use on all floors. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Part Number:	45TRR42S-TB
SKU	ES4X2TPRTBK
Series:	45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	Tread Lock
Load Capacity:	300 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	Thermo-Rubber (Flat)
Wheel Color:	Grey
Wheel Bearing:	Roller
Wheel Profile:	Flat Tread
Wheel Hardness:	90(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	3.63 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-40F° to +180F°
Mfg:	ES4X2TPRTBK
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

4"x2" TPR Wheel Side Locking Swivel Caster

Description

Product Details

Part Number:

45TRR42S-TB

SKU

ES4X2TPRTBK

Series:

45 Series - 2" Wide (to 1250 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

Tread Lock

Load Capacity:

300 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

Thermo-Rubber (Flat)

Wheel Color:

Grey

Wheel Bearing:

Roller

Wheel Profile:

Flat Tread

Wheel Hardness:

90(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

3.63 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-40F° to +180F°

Mfg:

ES4X2TPRTBK

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
