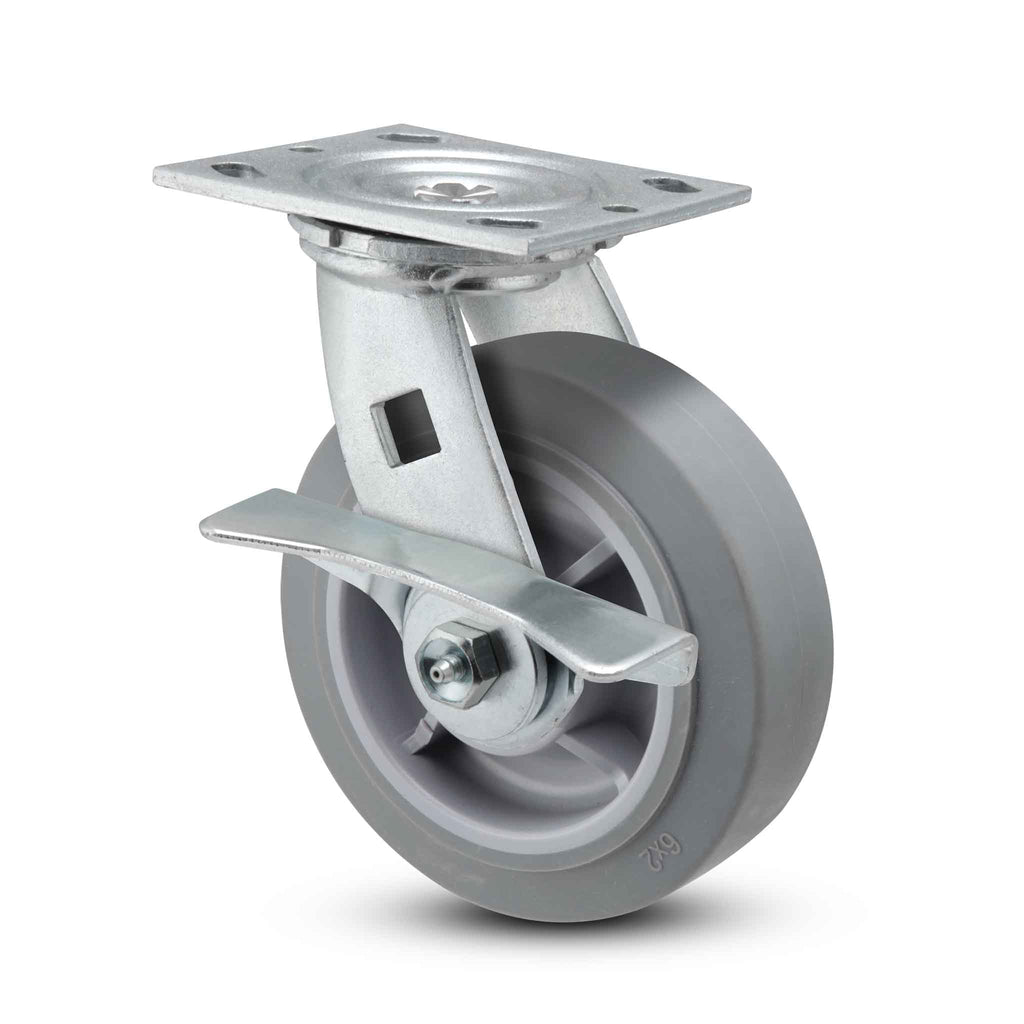

This 4" x 2" flat tread thermoplastic rubber heavy duty swivel caster with cam brake provides smooth and quiet operation. They are safe to use on all floors. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Mfg. SKU: ES4X2TPRCAMS
Caster Type: Swivel
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake: 5-Inch Cam Brake
Load Capacity: 300 lb
Wheel Diameter: 4 in

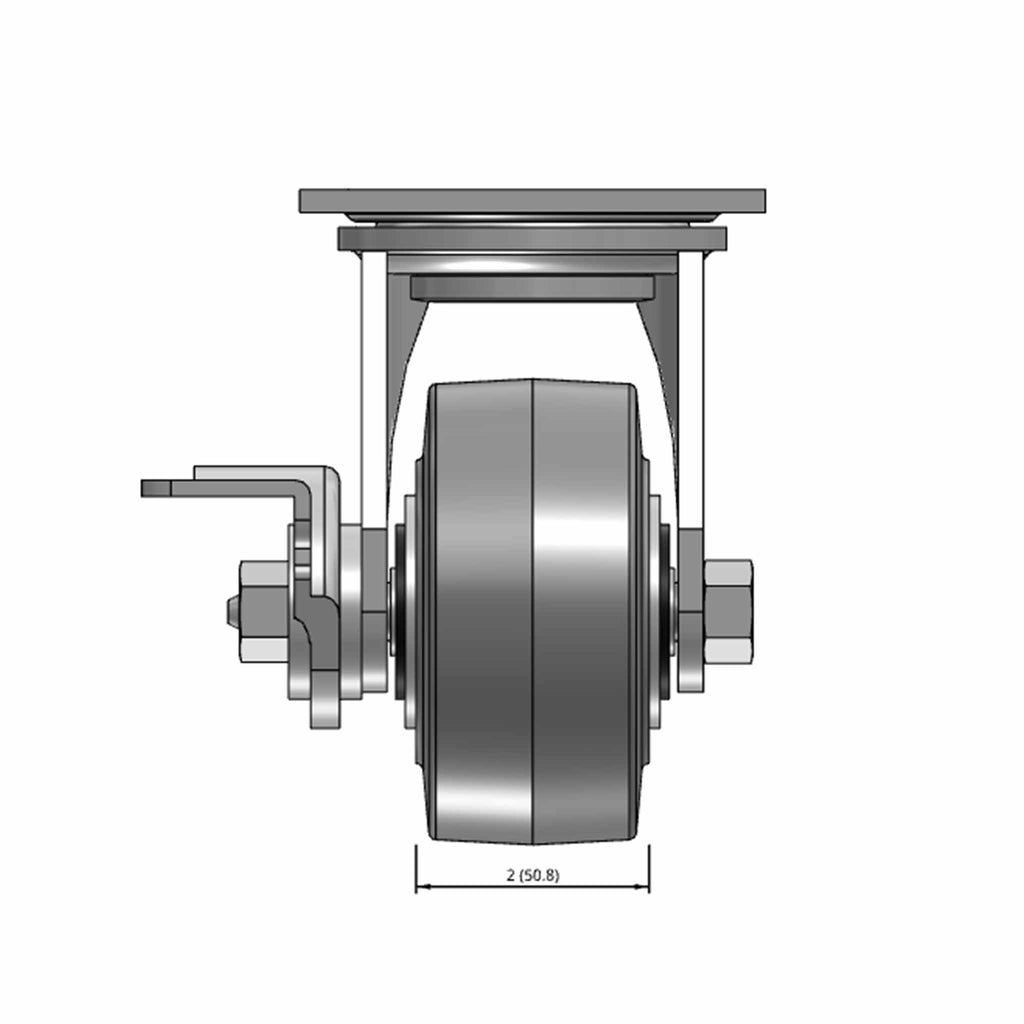

Wheel Tread Width: 2 in
Wheel Description: Thermo-Rubber (Flat)
Wheel Color: Grey
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 90(+/-5) Shore A
Wheel Thread Guards: None
Fastening: 4" x 4-1/2" top plate

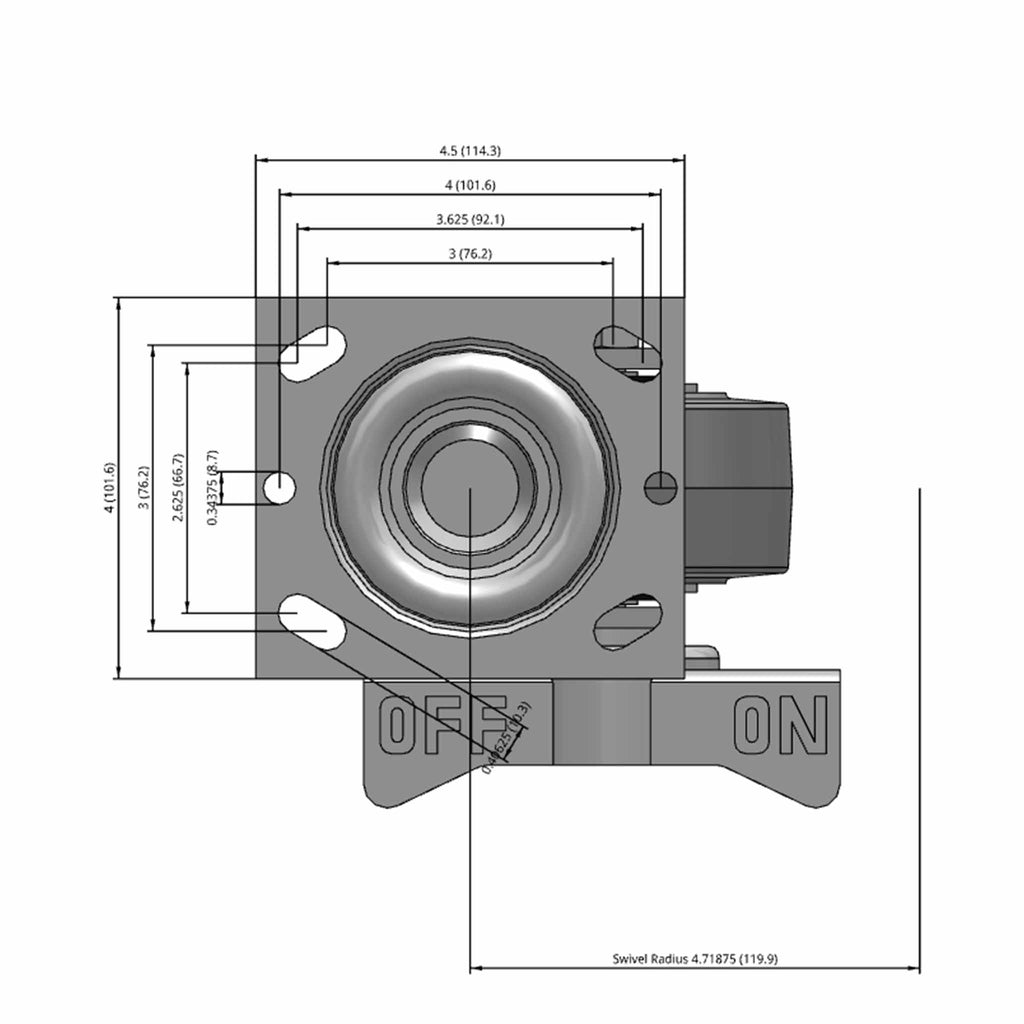

Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

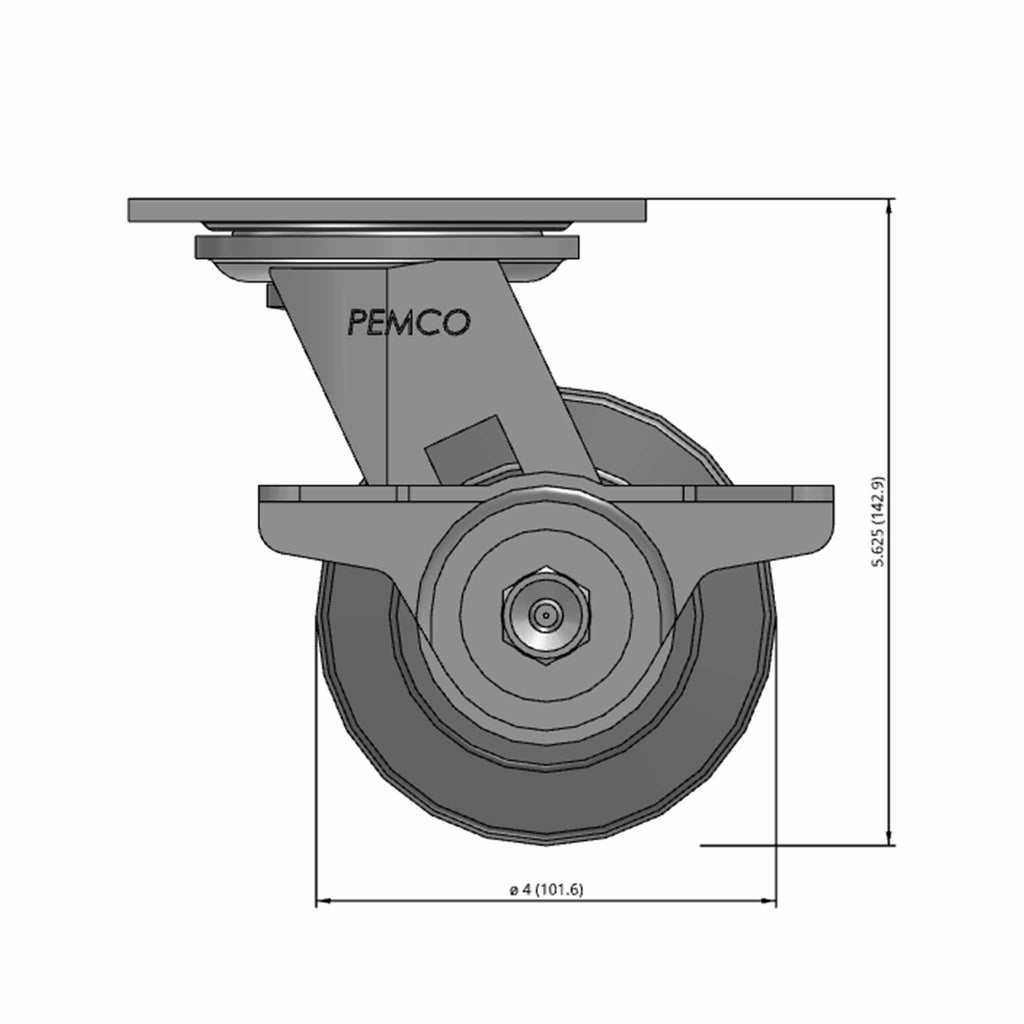

Mounting Height: 5.63 in
Swivel Radius: 4.72 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
