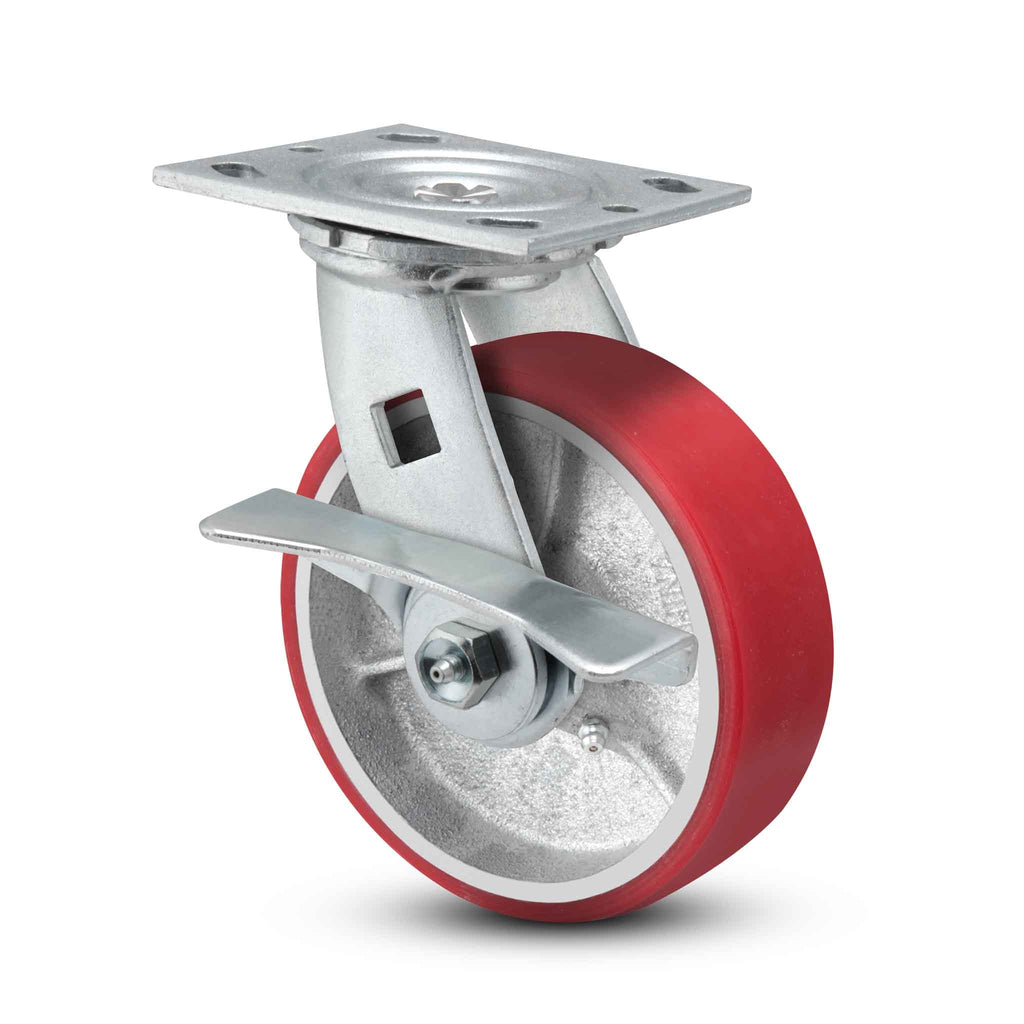

Main view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Mold-on Poly wheel and 800 lb. capacity part

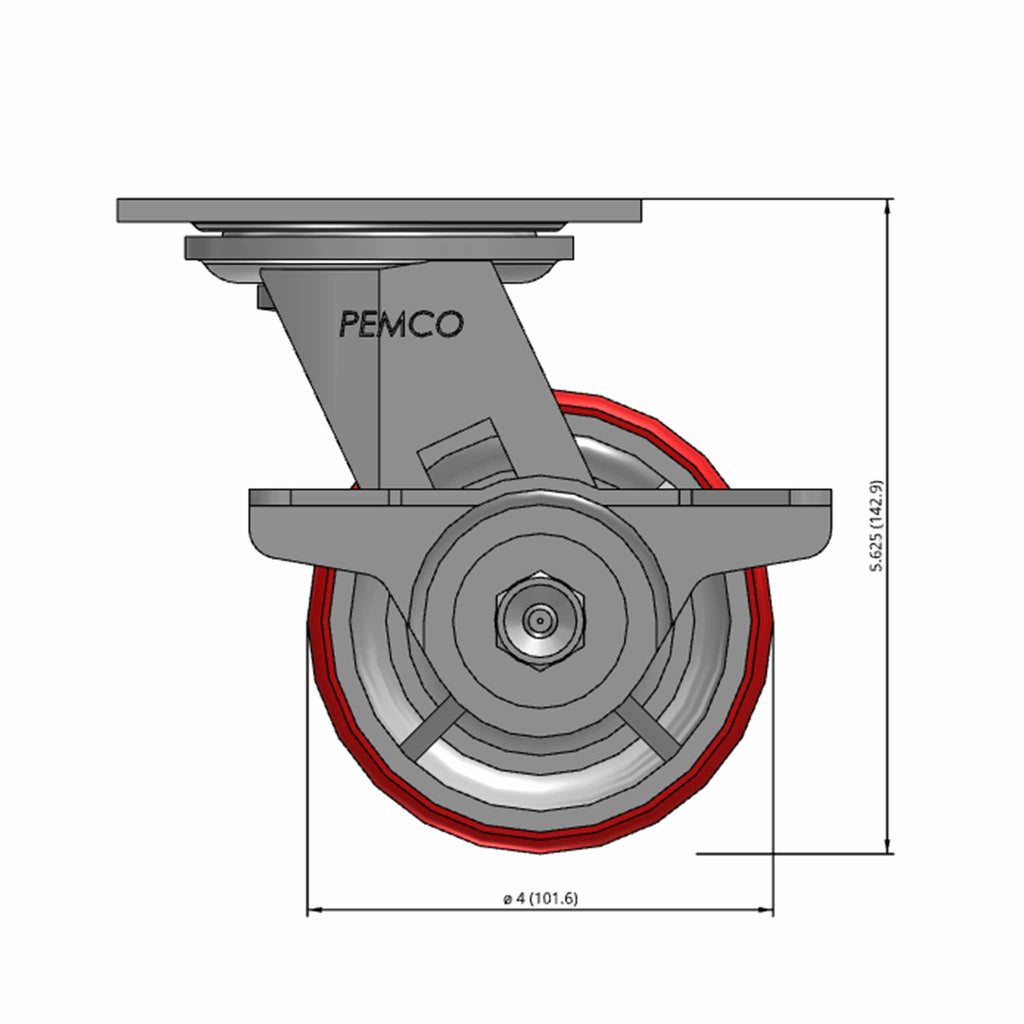

Front dimensioned CAD view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Mold-on Poly wheel and 800 lb. capacity part

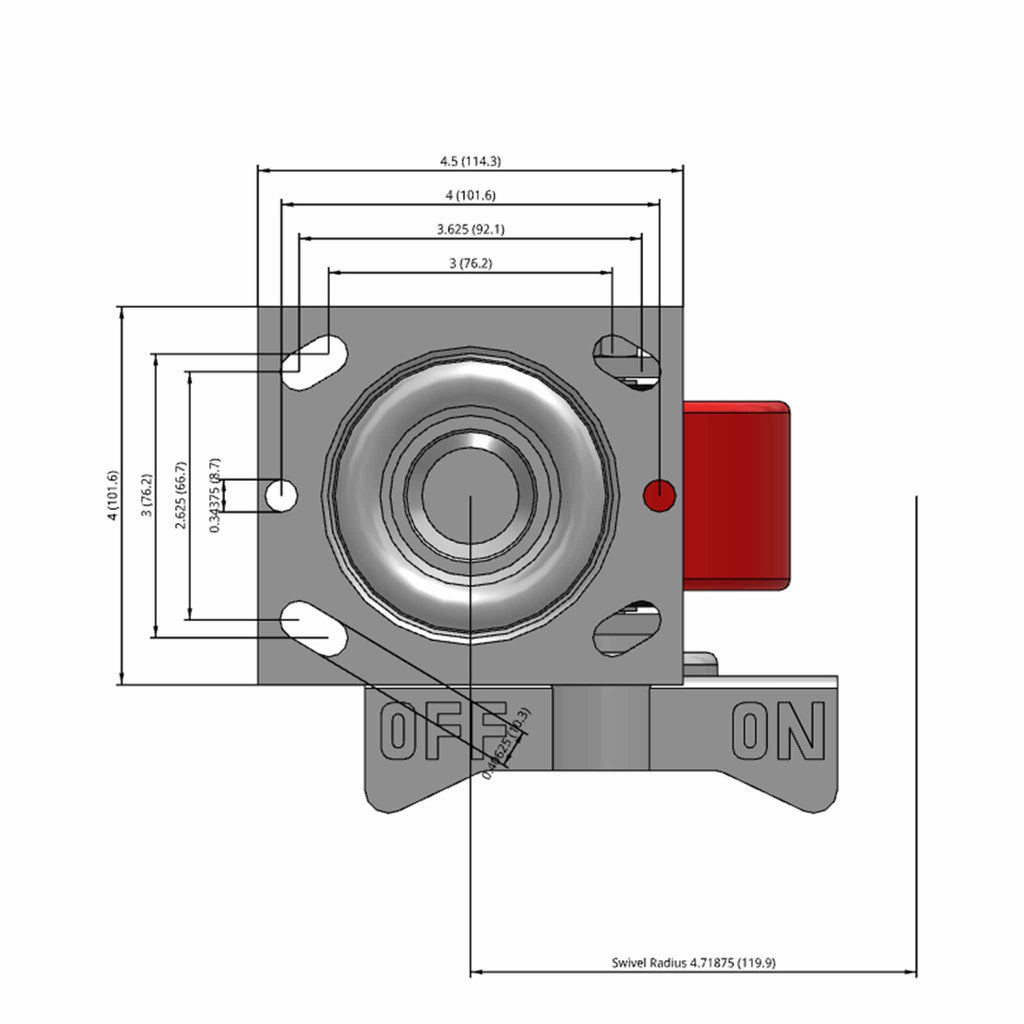

Top dimensioned CAD view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Mold-on Poly wheel and 800 lb. capacity part

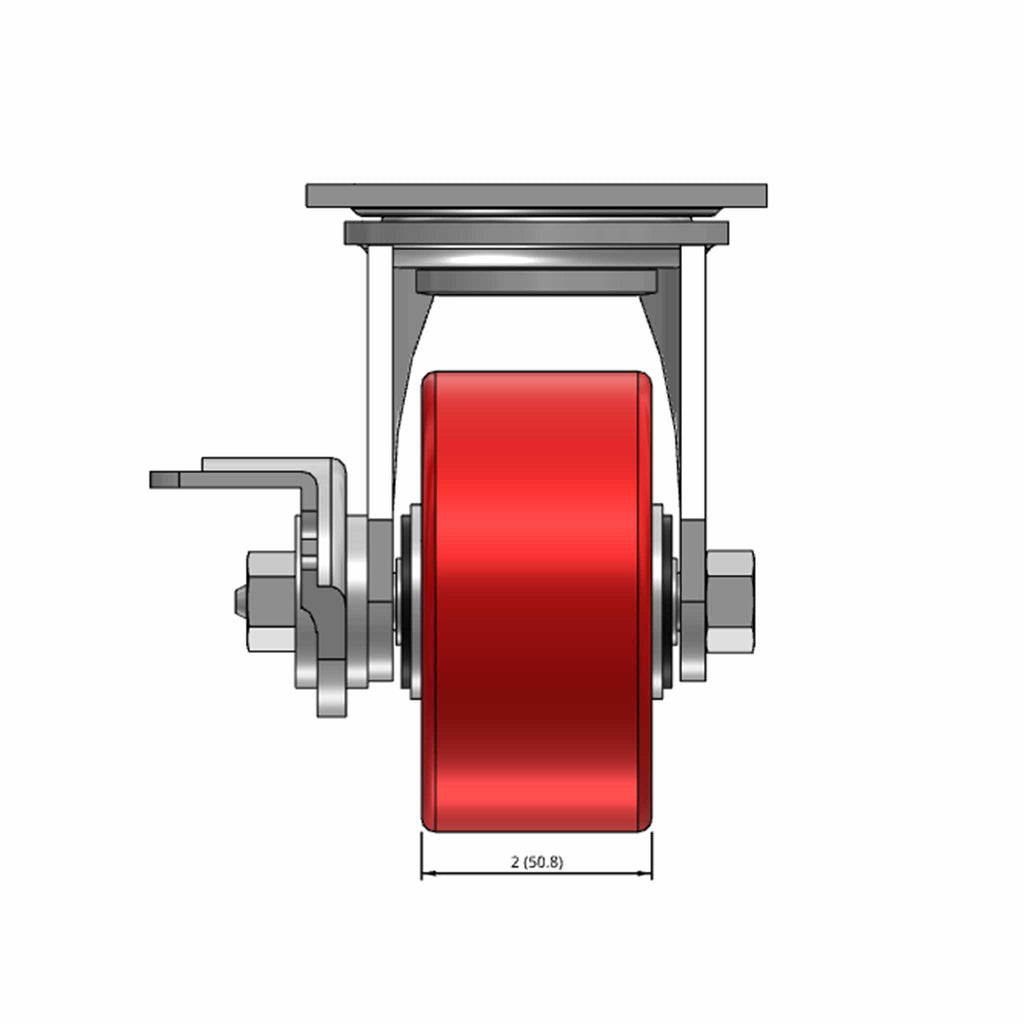

Side dimensioned CAD view of a Pemco Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Mold-on Poly wheel and 800 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" Polyurethane-on-Iron Wheel Side CAM Locking Swivel Caster

Name: 4"x2" Polyurethane-on-Iron Wheel Side CAM Locking Swivel Caster
Brand: Pemco Casters
SKU: ES4X2MOPCAMS
Price: 40.08 USD
Availability: InStock

Pemco Casters SKU: ES4X2MOPCAMS
Fastening: 4" x 4-1/2" top plate | Load Capacity: 800 lb
Mount Height: 5.63 in | Swivel Radius: 4.72 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$40.08

Quantity:

Share this product

This 4" x 2" polyurethane on iron heavy duty swivel caster with cam brake is a durable, high capacity caster that fits almost any budget. The polyurethane tread is floor protective and non-scuffing. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Part Number:	45PIR42S-CB
SKU	ES4X2MOPCAMS
Series:	45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	5-Inch Cam Brake
Load Capacity:	800 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	Mold-on Poly
Wheel Color:	Red
Wheel Bearing:	Roller
Wheel Profile:	Flat Tread
Wheel Hardness:	95(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.72 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-40F° to +180F°
Mfg:	ES4X2MOPCAMS
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" Polyurethane-on-Iron Wheel Side CAM Locking Swivel Caster

Description

Product Details

Part Number:

45PIR42S-CB

SKU

ES4X2MOPCAMS

Series:

45 Series - 2" Wide (to 1250 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

5-Inch Cam Brake

Load Capacity:

800 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

Mold-on Poly

Wheel Color:

Red

Wheel Bearing:

Roller

Wheel Profile:

Flat Tread

Wheel Hardness:

95(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.72 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-40F° to +180F°

Mfg:

ES4X2MOPCAMS

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
