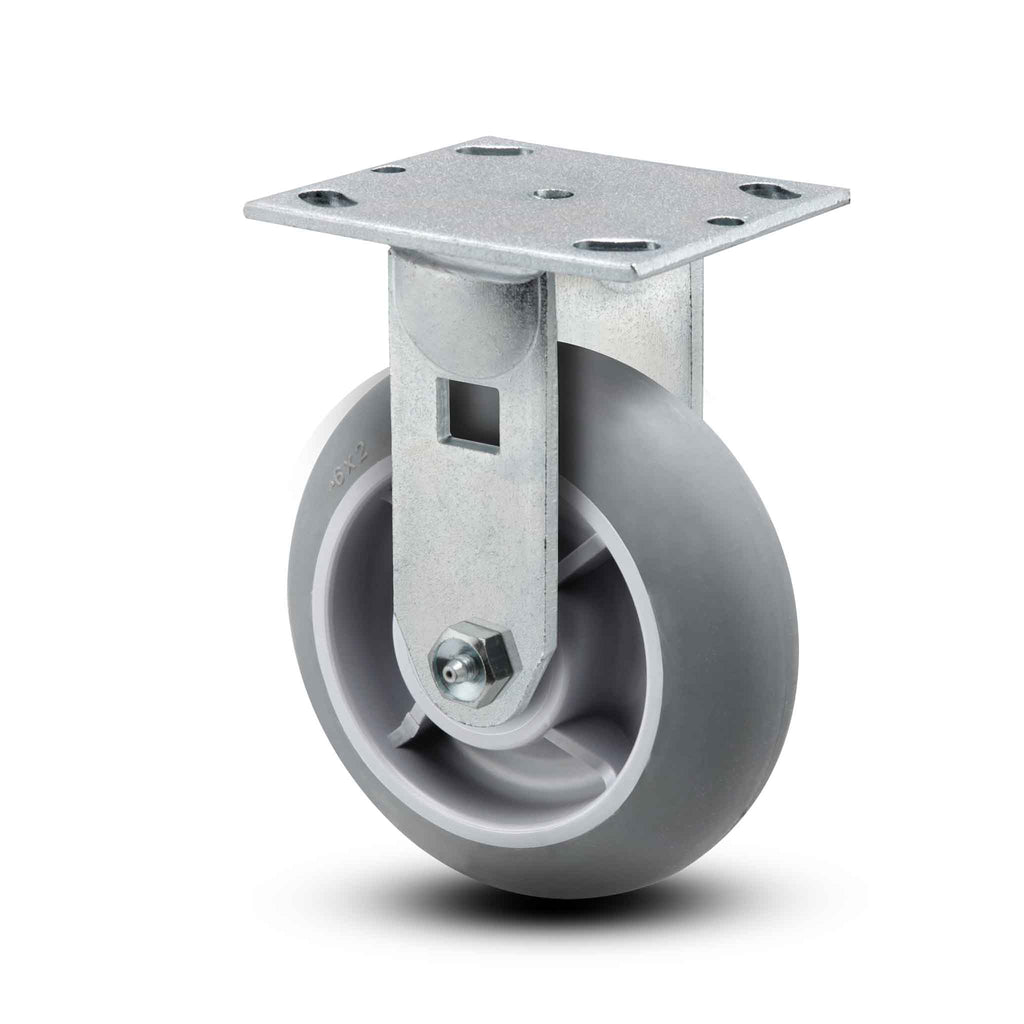

This 8" x 2" round tread thermoplastic rubber heavy duty rigid caster provides smooth and quiet operation. The crowned tread provides provides easy starts and steering. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Mfg. SKU: ER8X2TPD
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 600 lb

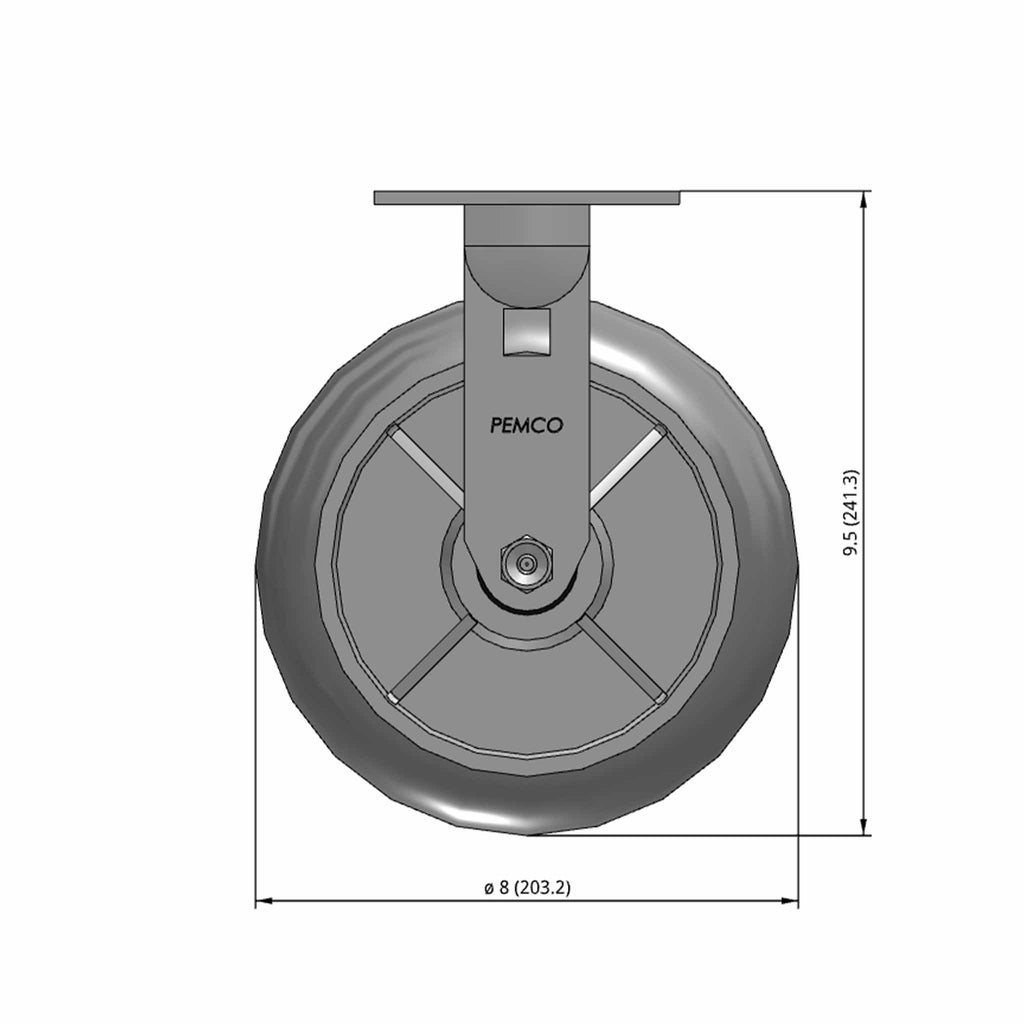

Wheel Diameter: 8 in

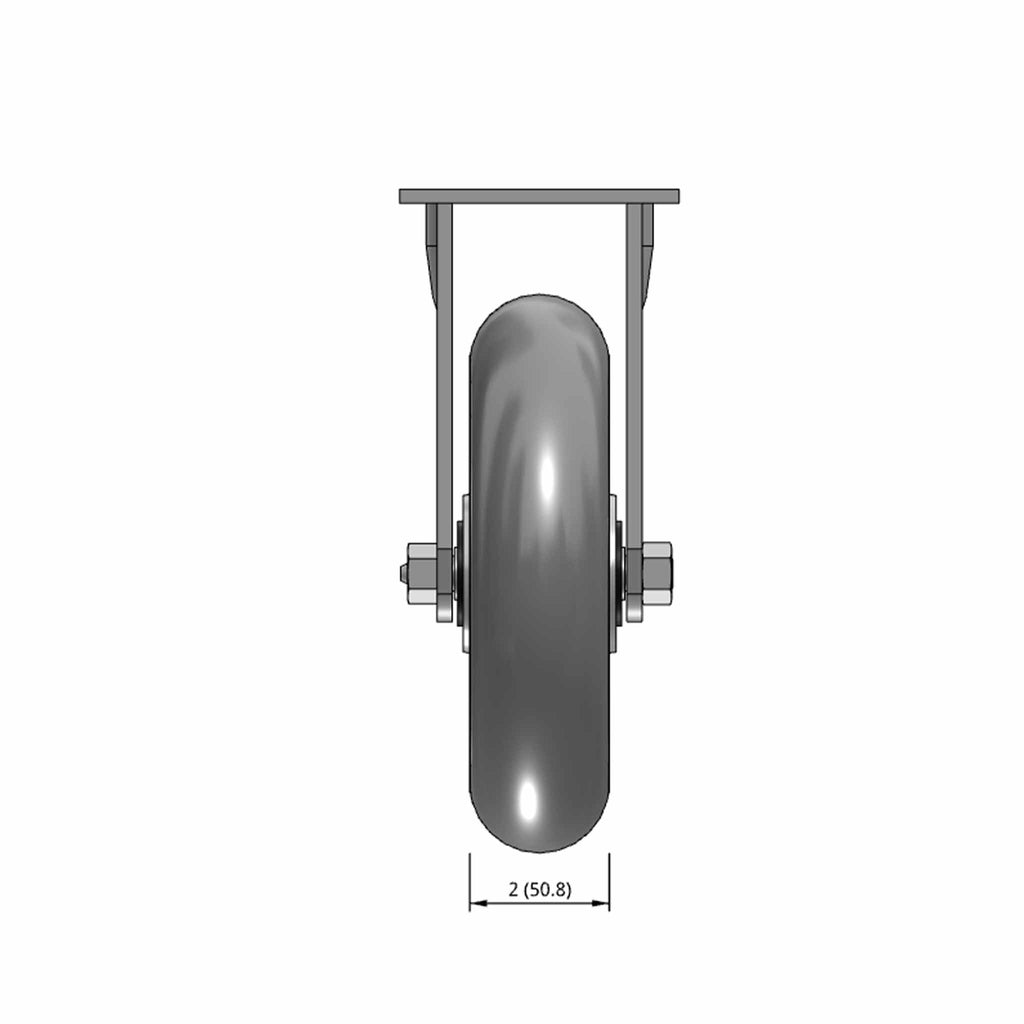

Wheel Tread Width: 2 in
Wheel Description: Thermo-Rubber (Donut)
Wheel Color: Grey
Wheel Bearing: Roller
Wheel Profile: Round Tread
Wheel Hardness: 90(+/-5) Shore A
Wheel Thread Guards: None

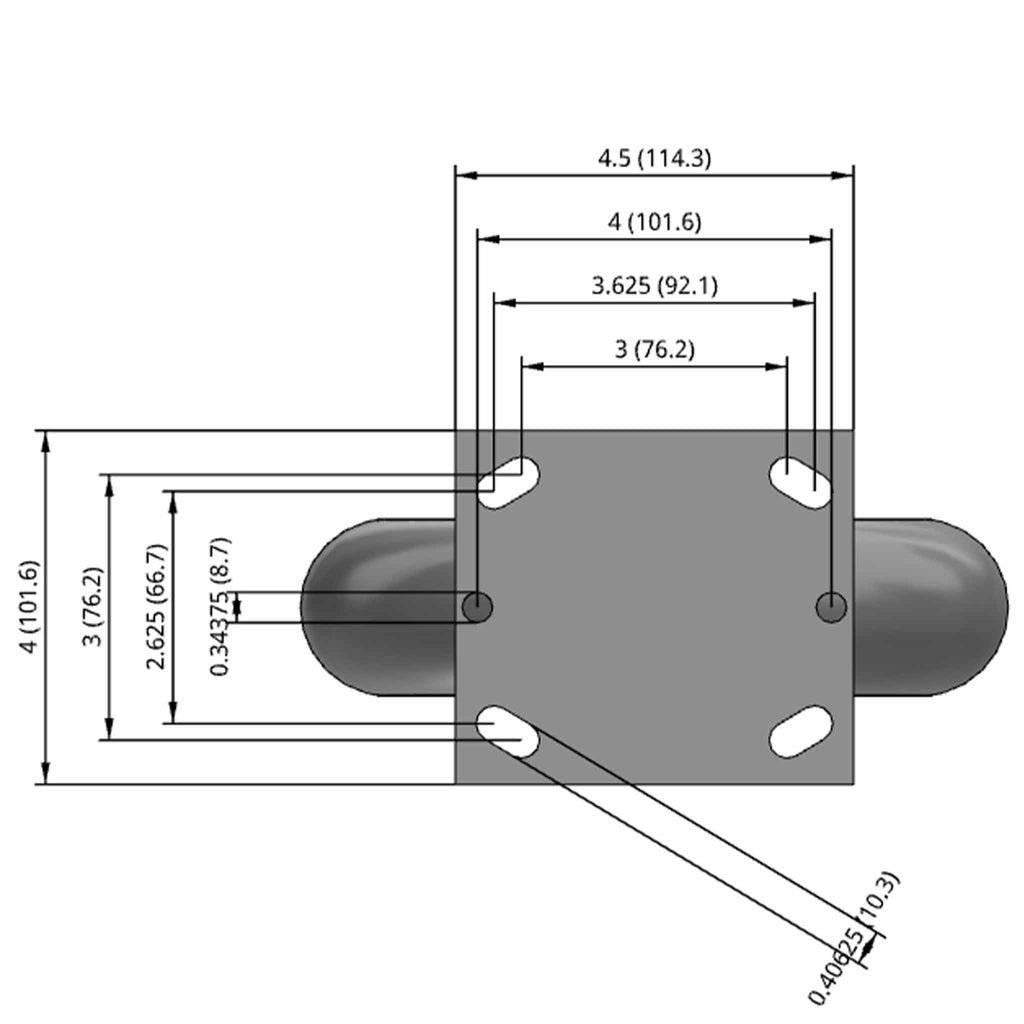

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 9.5 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
