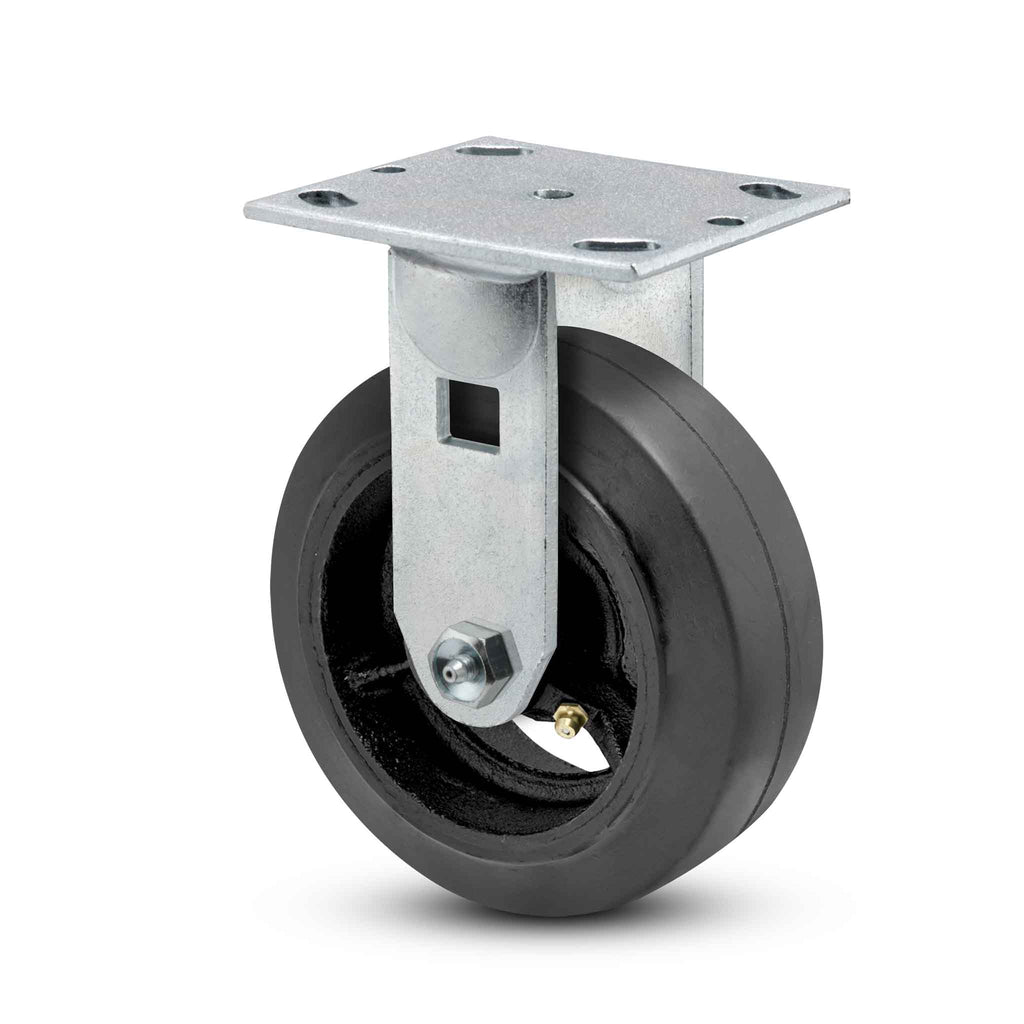

Main view of a Pemco Casters 8" x 2" wide wheel Rigid caster with 4" x 4-1/2" top plate, without a brake, Mold-on Rubber wheel and 600 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

8"x2" Rubber-on-Iron Wheel Rigid Caster

Name: 8"x2" Rubber-on-Iron Wheel Rigid Caster
Brand: Pemco Casters
SKU: ER8X2MOR
Price: 31.78 USD
Availability: InStock

Pemco Casters SKU: ER8X2MOR
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 9.5 in

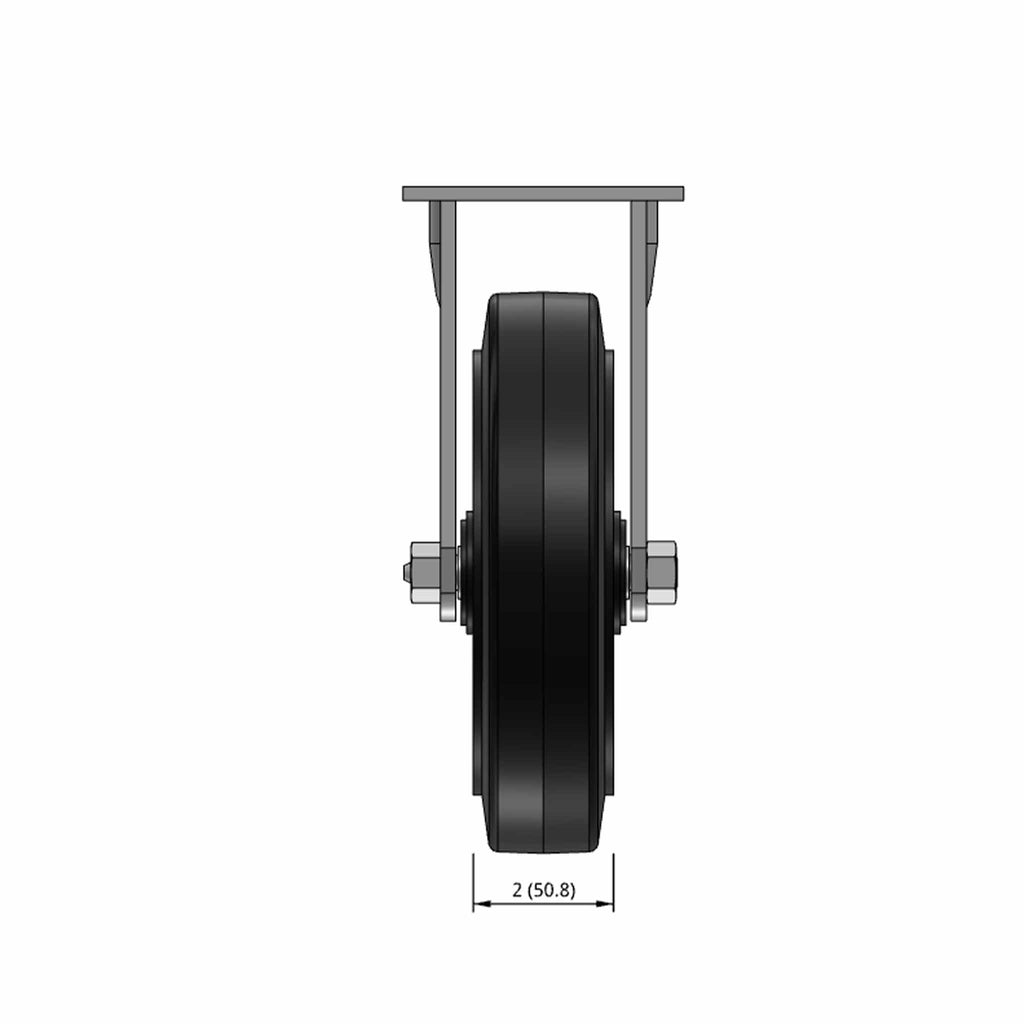

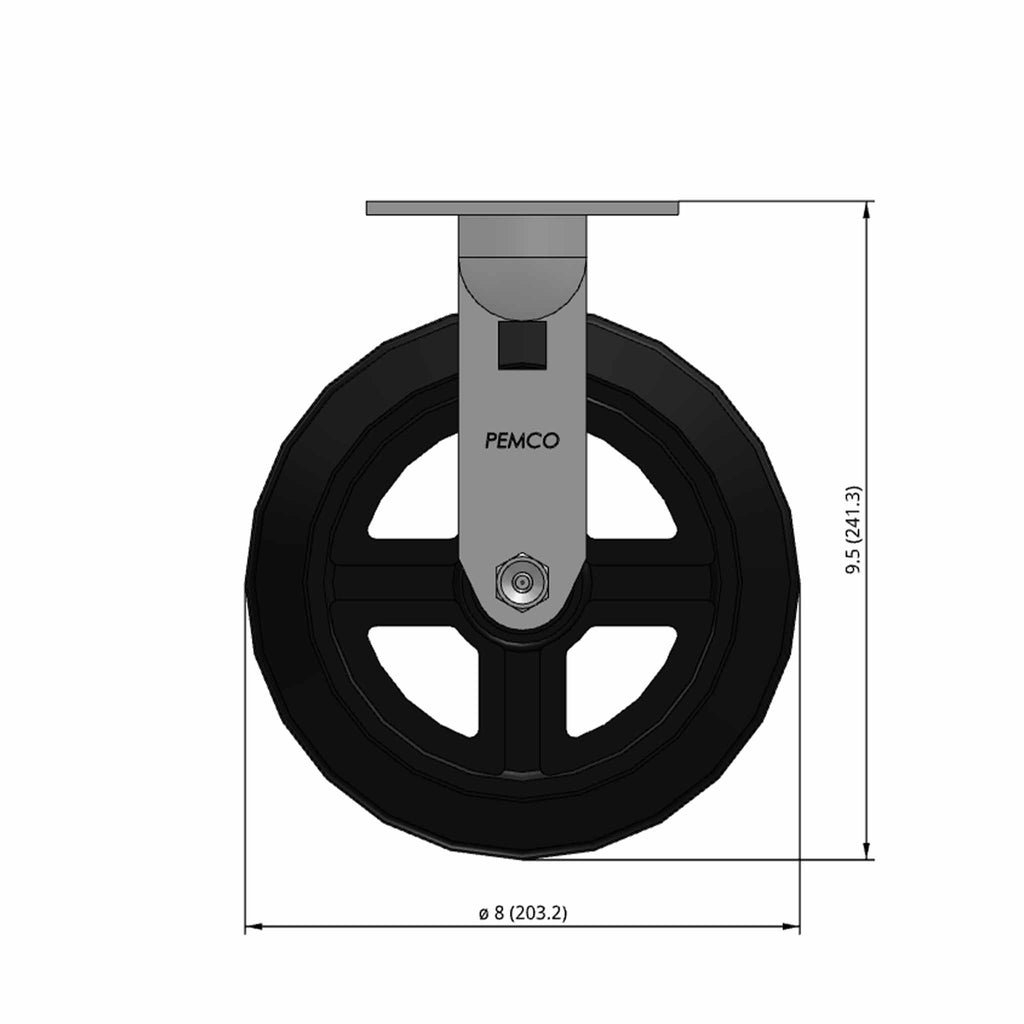

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$31.78

Quantity:

Share this product

This 8" x 2" rubber on cast iron heavy duty rigid caster is an economical, quiet wheel ideal for use on platform trucks or stock dollies. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Part Number:	45RIR82R
SKU	ER8X2MOR
Series:	45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:	Rigid Construction
Brake:	None
Load Capacity:	600 lb
Mounting Height:	9.5 in
Wheel Diameter:	8 in
Wheel Tread Width:	2 in
Wheel Description:	Mold-on Rubber
Wheel Color:	Black
Wheel Bearing:	Roller
Wheel Profile:	Flat with Slightly Rounded Edges
Wheel Hardness:	85(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate

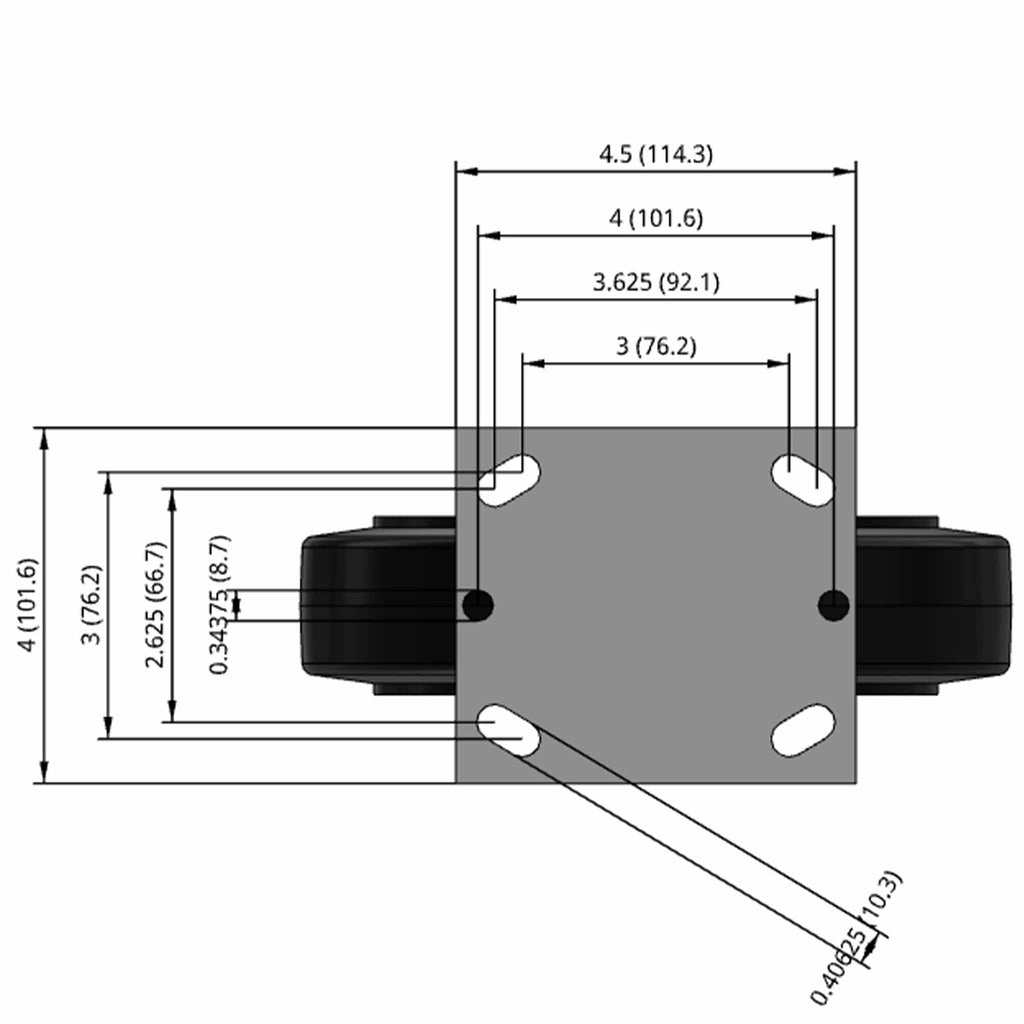

Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-40F° to +180F°
Mfg:	ER8X2MOR
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

8"x2" Rubber-on-Iron Wheel Rigid Caster

Description

Product Details

Part Number:

45RIR82R

SKU

ER8X2MOR

Series:

45 Series - 2" Wide (to 1250 lb/ea)

Raceway Type:

Rigid Construction

Brake:

None

Load Capacity:

600 lb

Mounting Height:

9.5 in

Wheel Diameter:

8 in

Wheel Tread Width:

2 in

Wheel Description:

Mold-on Rubber

Wheel Color:

Black

Wheel Bearing:

Roller

Wheel Profile:

Flat with Slightly Rounded Edges

Wheel Hardness:

85(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-40F° to +180F°

Mfg:

ER8X2MOR

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
