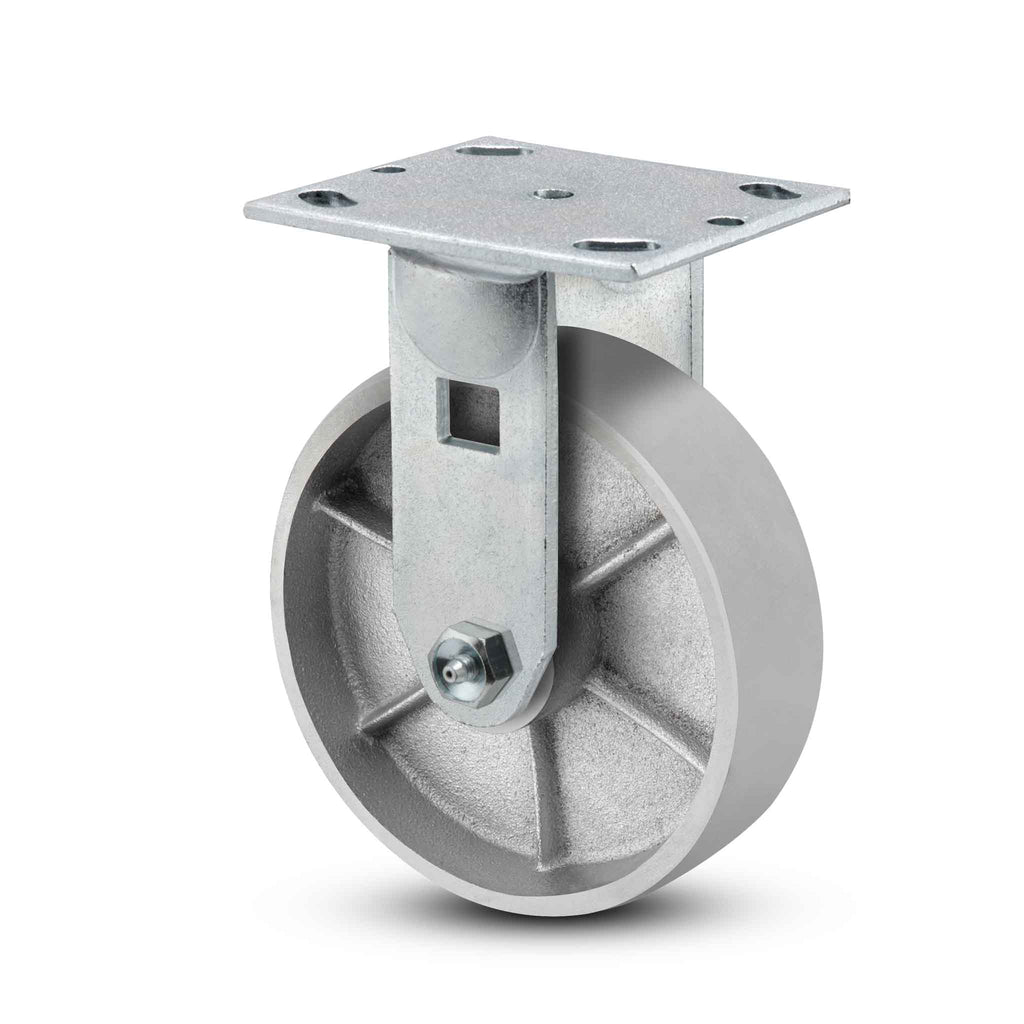

This 5" x 2" cast iron heavy duty rigid caster offers high capacity at a lower price. Cast iron wheels are ideal for heavy loads in industrial environments. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Mfg. SKU: ER5X2CIR
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 1000 lb

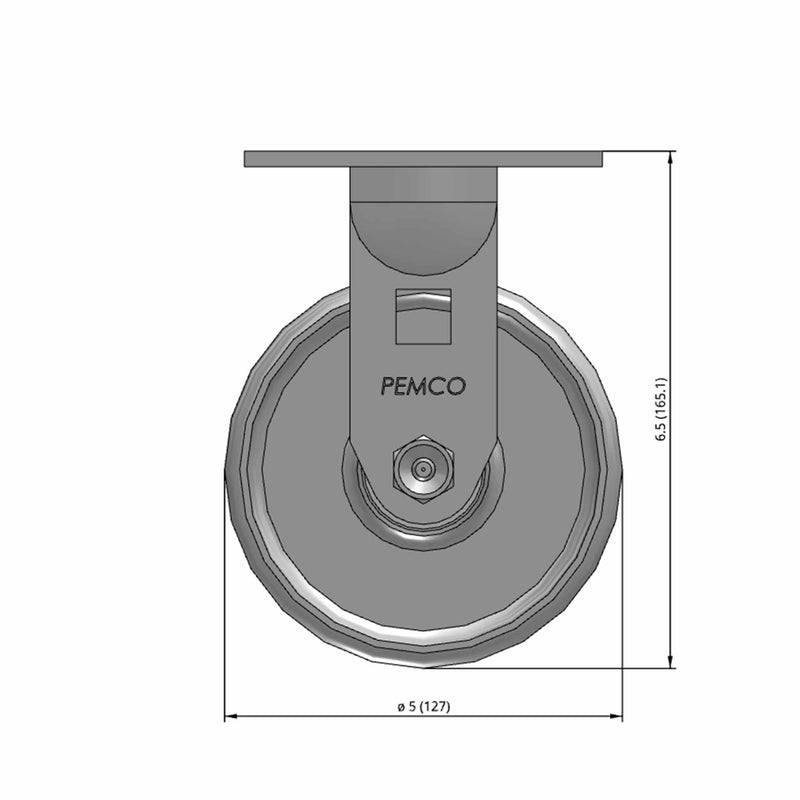

Wheel Diameter: 5 in

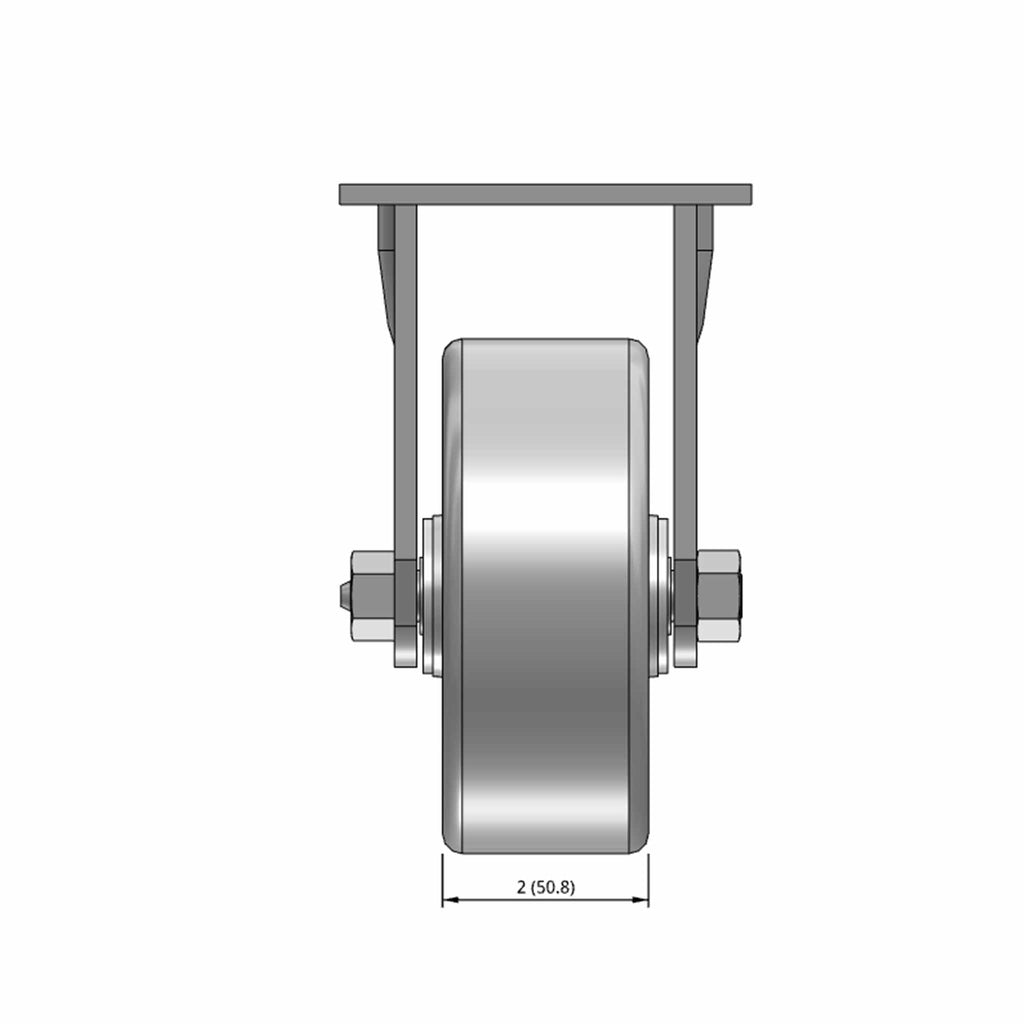

Wheel Tread Width: 2 in
Wheel Description: Cast Iron
Wheel Color: Silver
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: Brinell 145
Wheel Thread Guards: None

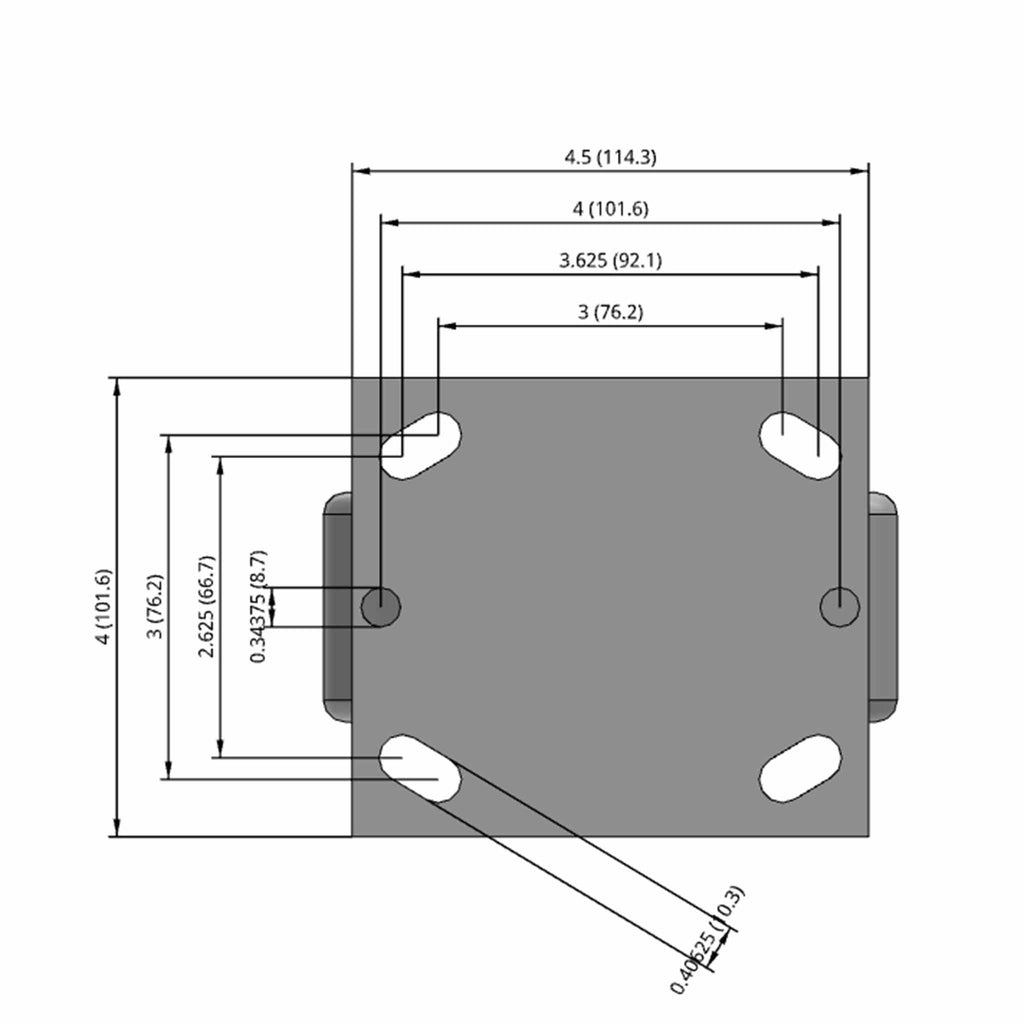

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 6.5 in
Operating Temperature Range: -40F° to +500F°; special grease required for high-temp applications; contact us for details
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
