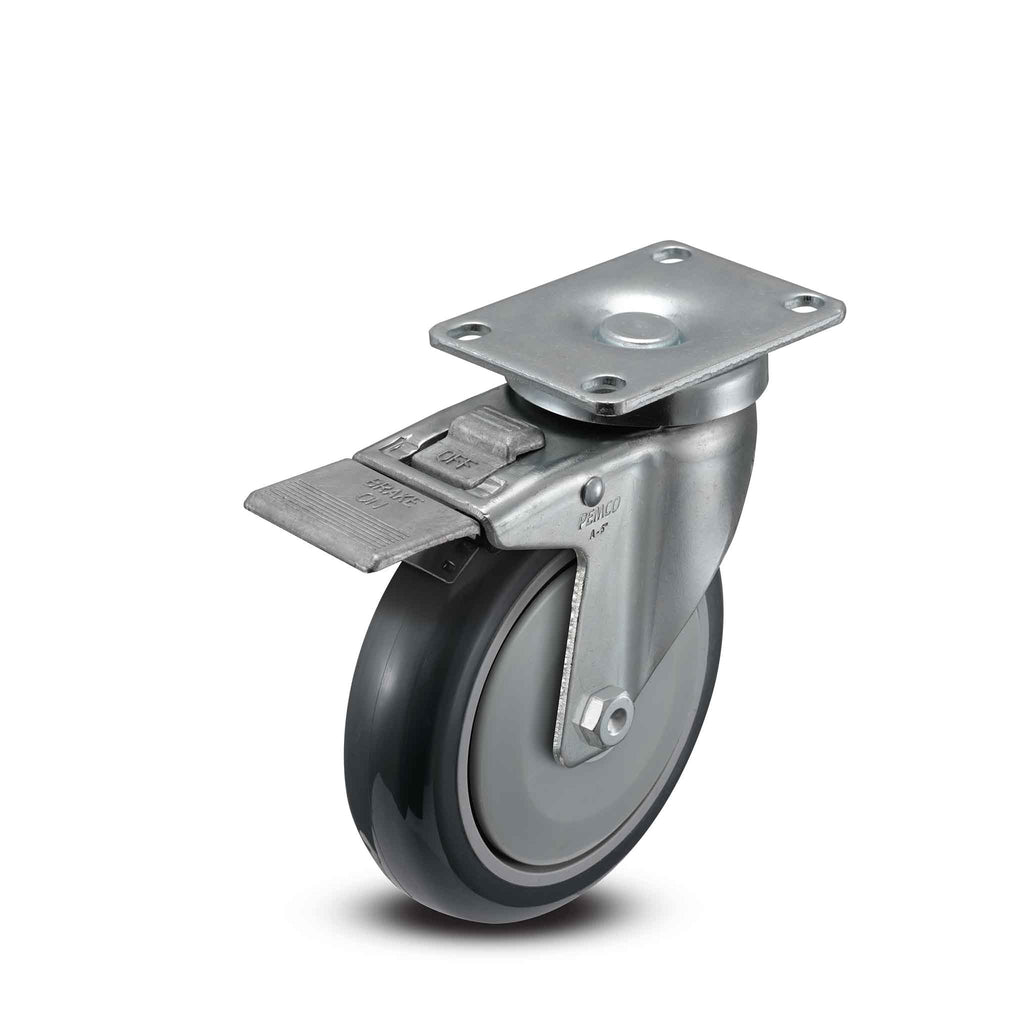

This 5" x 1-1/4" polyurethane on plastic standard duty swivel plate caster with total lock is durable, easy to roll and excellent for indoor and outdoor applications.Our 35 Series is a competitive, core lineup of 1-1/4" wide casters designed for a wide range of applications with load capacities up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.
Series: 25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Mfg. SKU: AS50P1TPUTL
Caster Type: Swivel
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake: Total Lock
Load Capacity: 350 lb
Wheel Diameter: 5 in

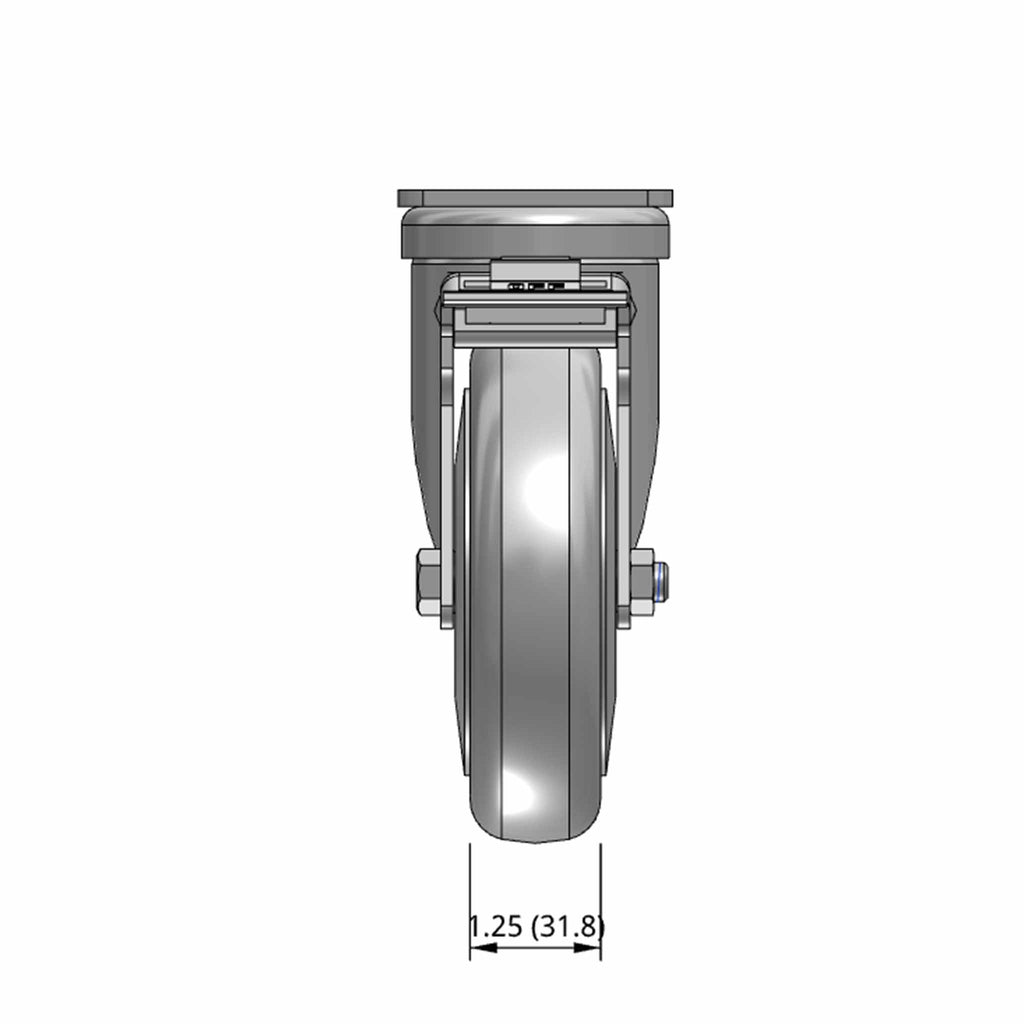

Wheel Tread Width: 1.25 in
Wheel Description: Thermo-Urethane
Wheel Color: Grey on Grey
Wheel Bearing: Precision Ball
Wheel Profile: Slight Crown
Wheel Hardness: 90(+/-5) Shore A
Wheel Thread Guards: Full Thread Guards

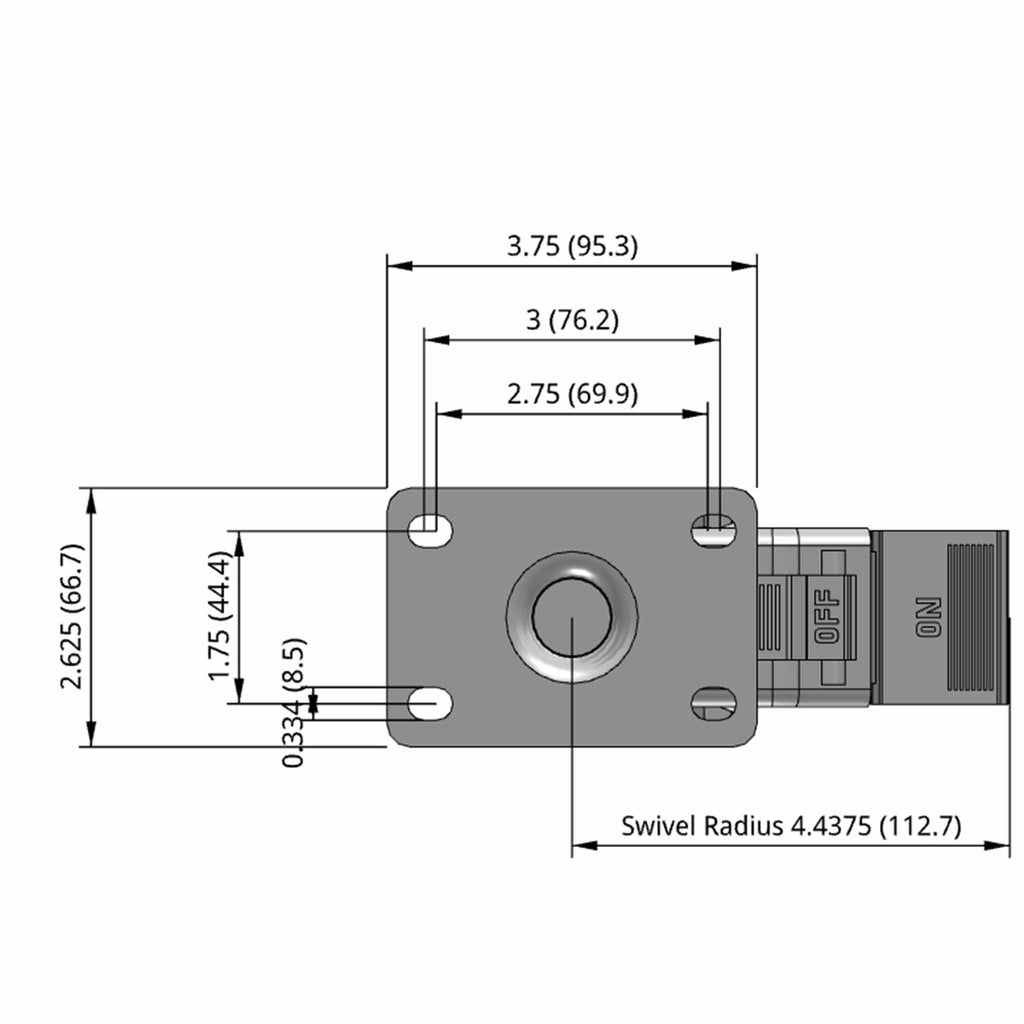

Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"

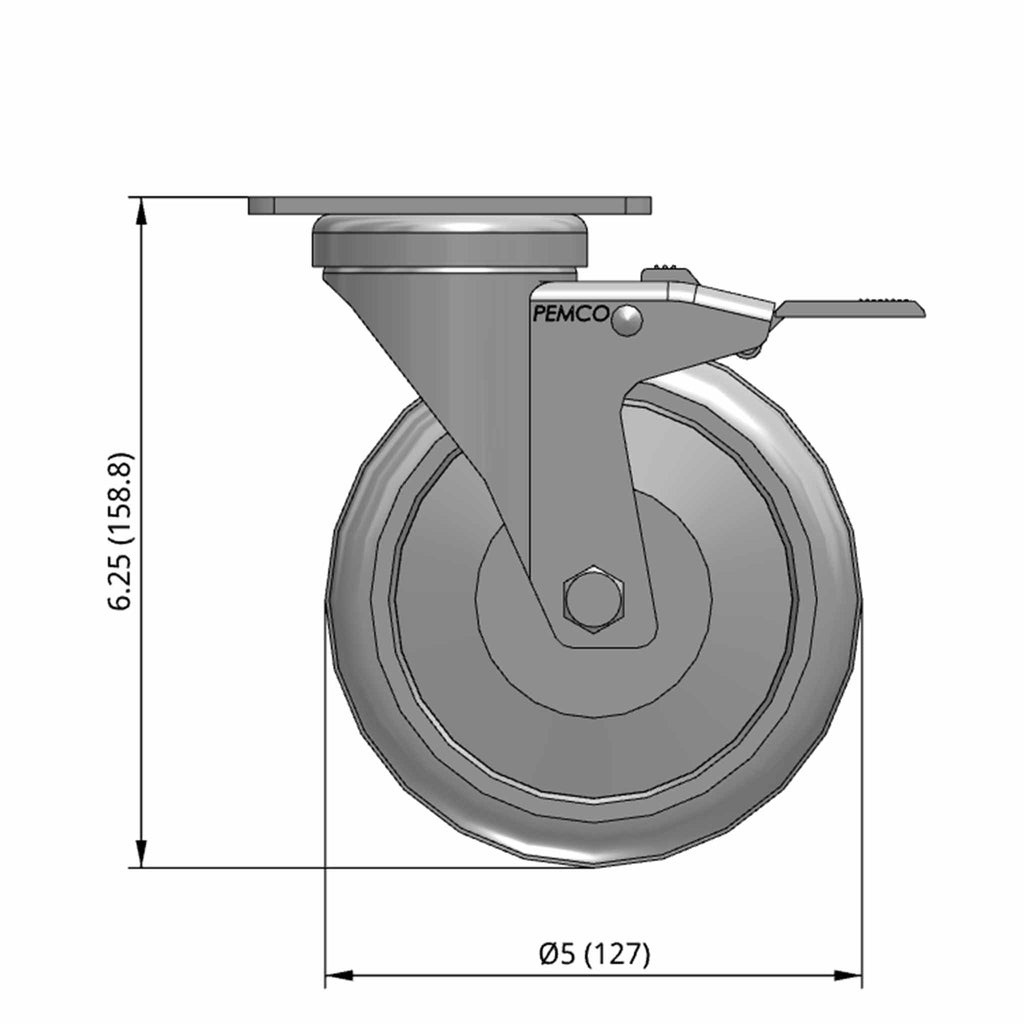

Mounting Height: 6.25 in
Swivel Radius: 4.44 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
