Main view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Thermo-Urethane wheel and 275 lb. capacity part
Roll over to zoom; image may be representative for size Click on image to zoom

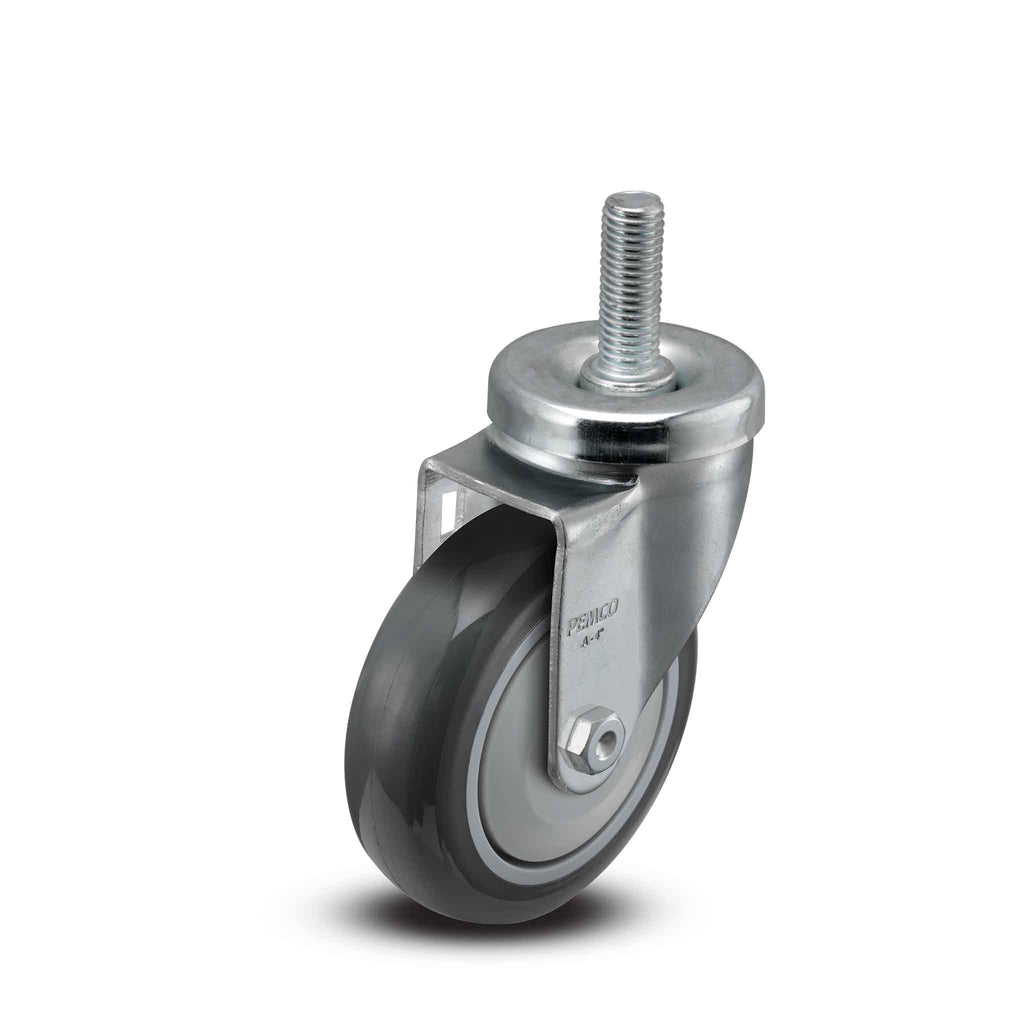

Main view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

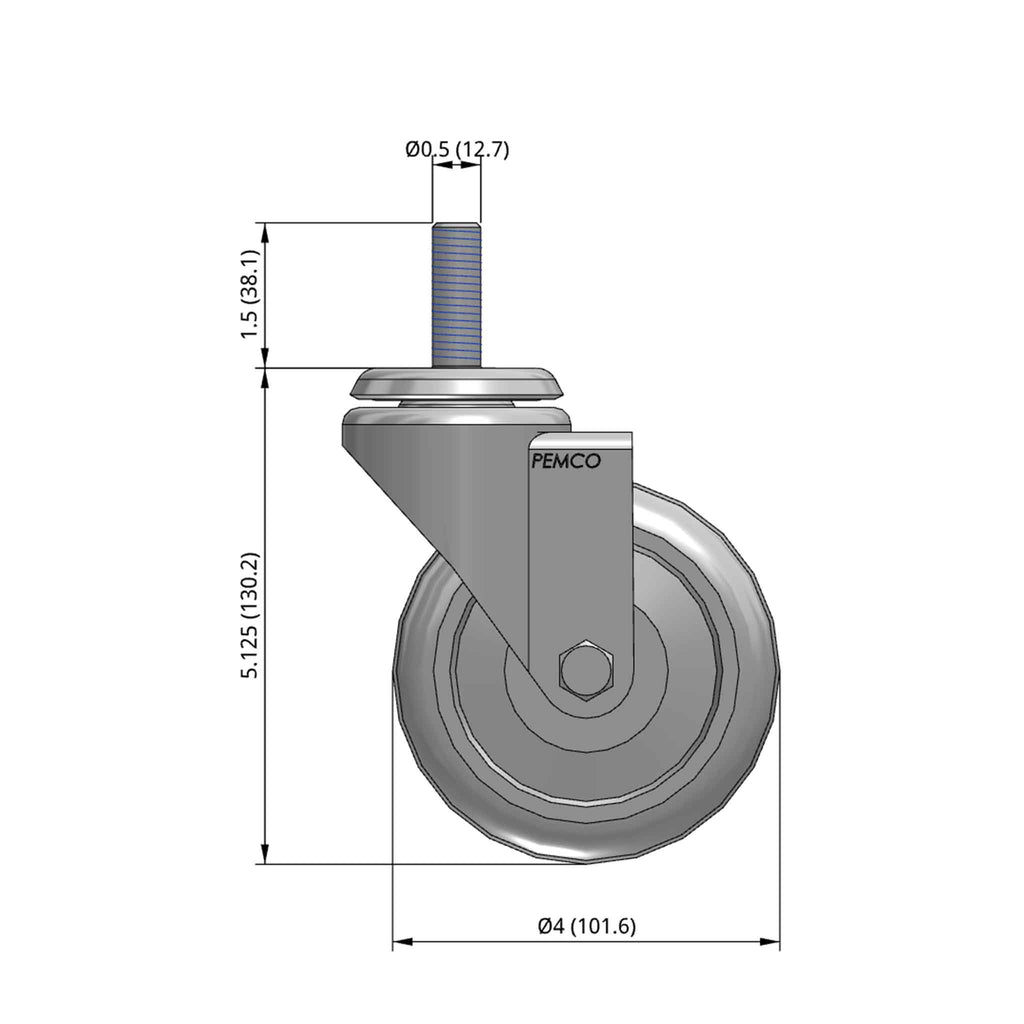

Front dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

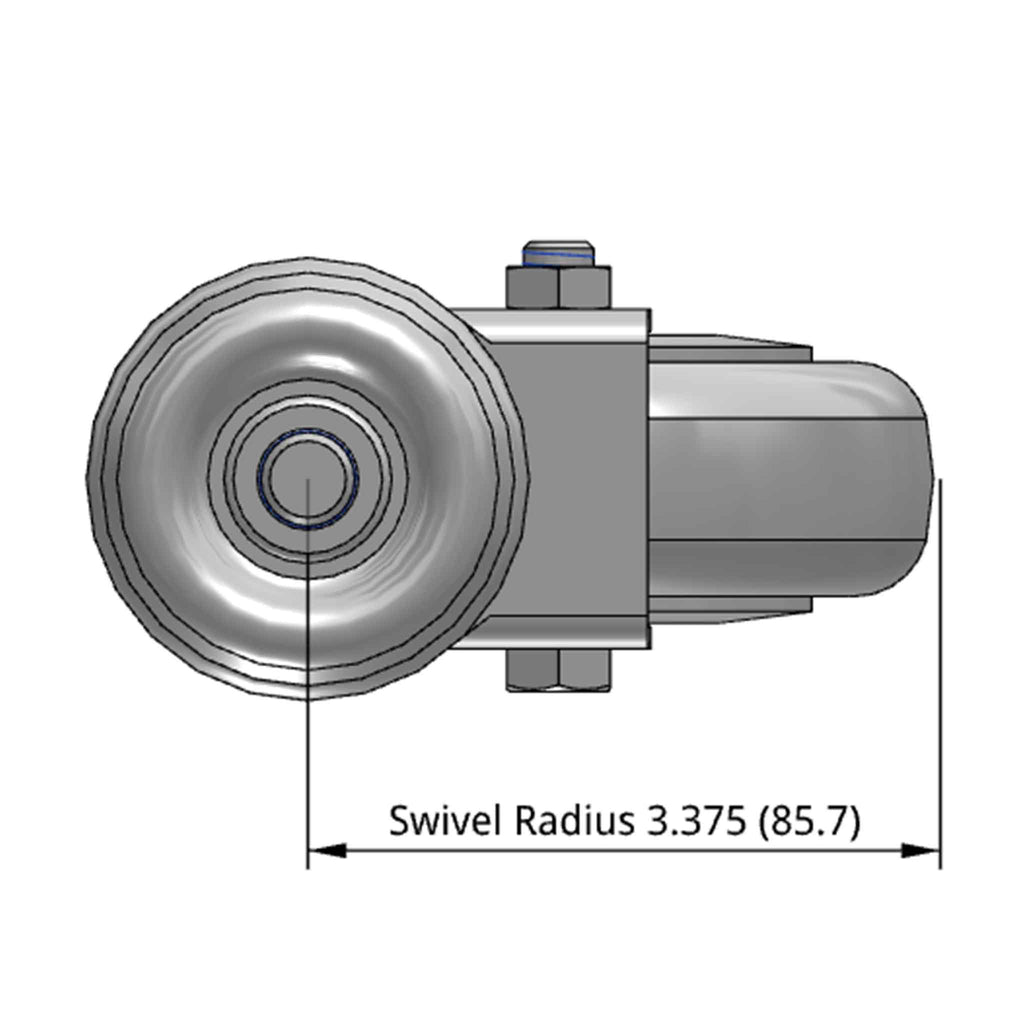

Top dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

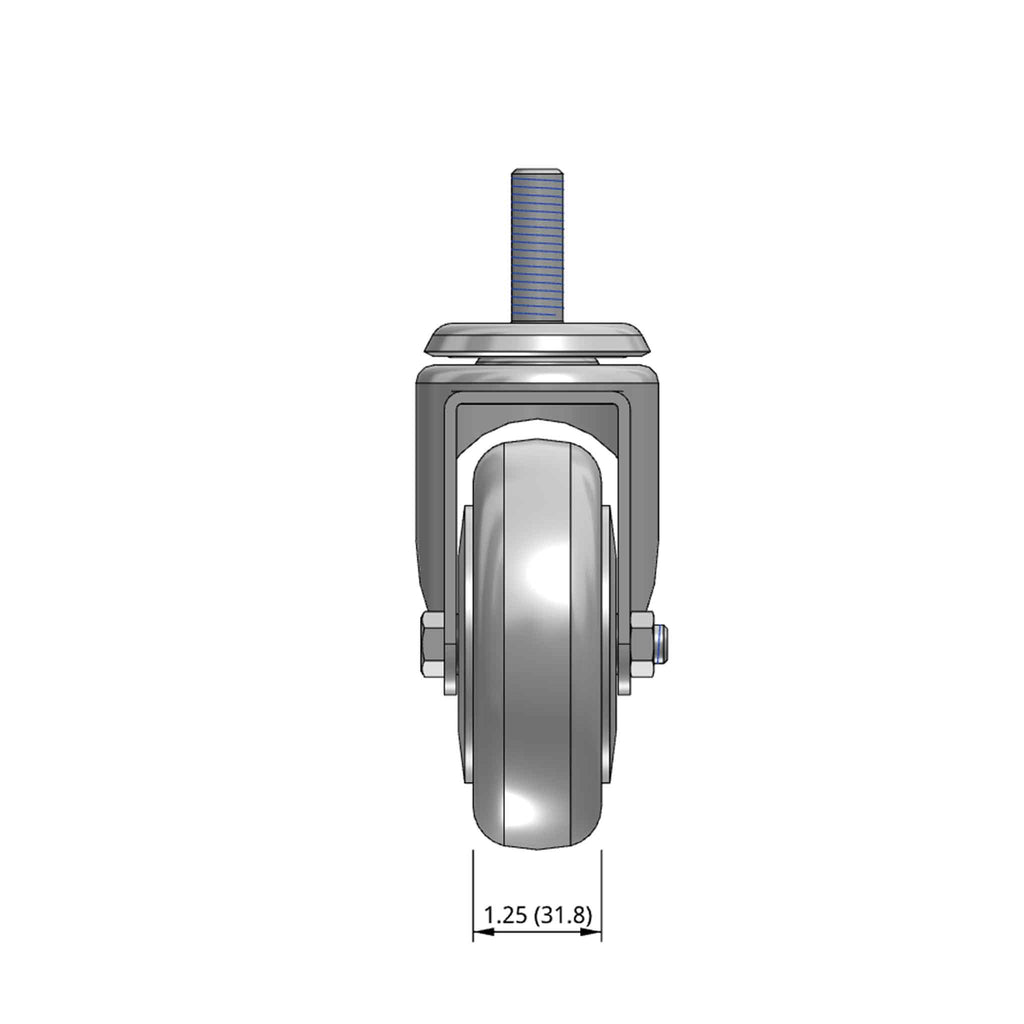

Side dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

4"x1.25" TPU BB Wheel 1/2"x1.5" Threaded Stem Swivel Caster

Pemco Casters SKU: AS40T2TPU
Fastening: 1/2"-13 x 1-1/2" stud | Load Capacity: 275 lb
Mount Height: 5.13 in | Swivel Radius: 3.38 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$15.60

Description

This 4" x 1-1/4" polyurethane on plastic standard duty threaded stem caster is durable and easy to roll. Polyurethane wheels are excellent for indoor or outdoor use. The caster is retained with a 1/2-13UNC x 1-1/2" threaded stem. Our 25 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Product Details

Part Number:
25PPB40S-T824
SKU
AS40T2TPU
Series:
25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:
Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:
None
Load Capacity:
275 lb
Mounting Height:
5.13 in
Wheel Diameter:
4 in
Wheel Tread Width:
1.25 in
Wheel Description:
Thermo-Urethane
Wheel Color:
Grey on Grey
Wheel Bearing:
Precision Ball
Wheel Profile:
Slight Crown
Wheel Hardness:
90(+/-5) Shore A
Wheel Thread Guards:
Full Thread Guards
Fastening:
1/2"-13 x 1-1/2" stud
Swivel Radius:
3.38 in
Finish:
Zinc Plated
Axle Size:
3/8" diameter
Operating Temperature Range:
-40F° to +180F°
Mfg:
AS40T2TPU
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
