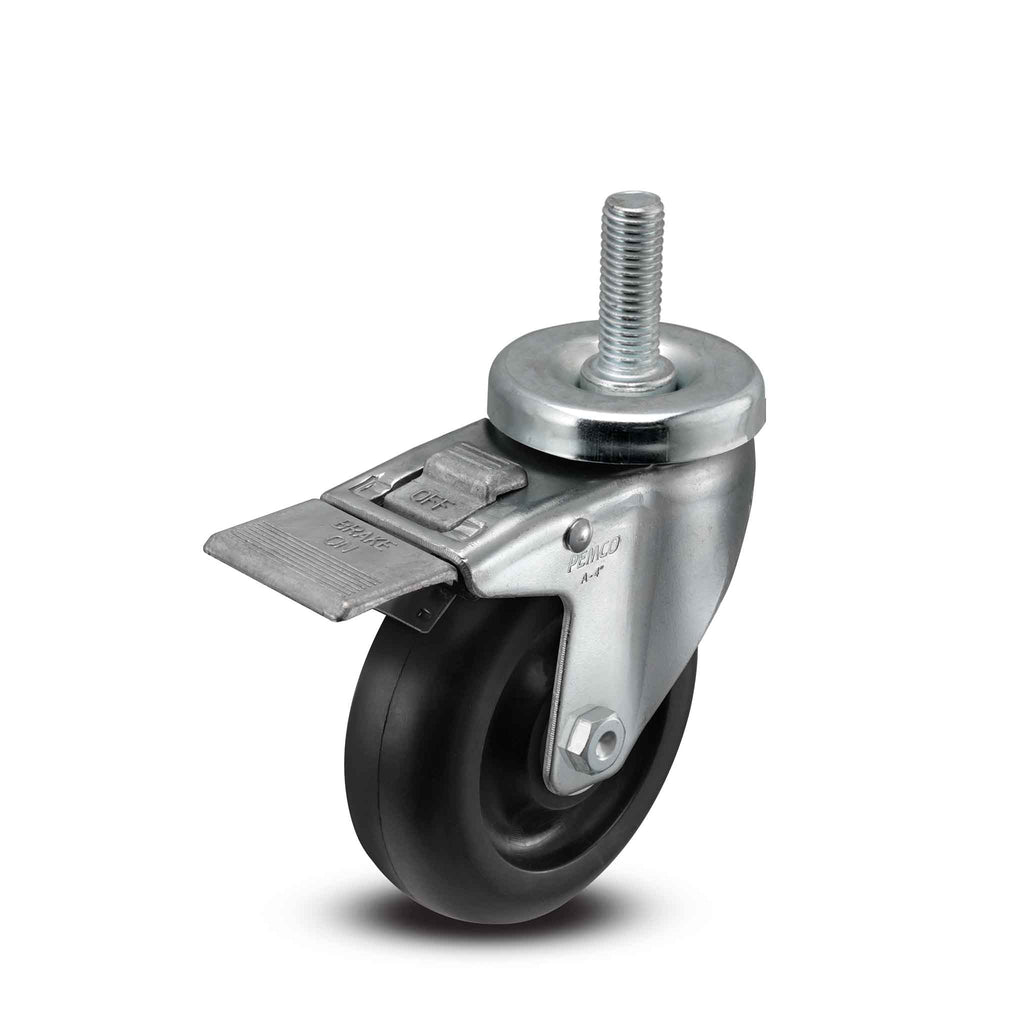

Main view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Polypropylene wheel and 300 lb. capacity part

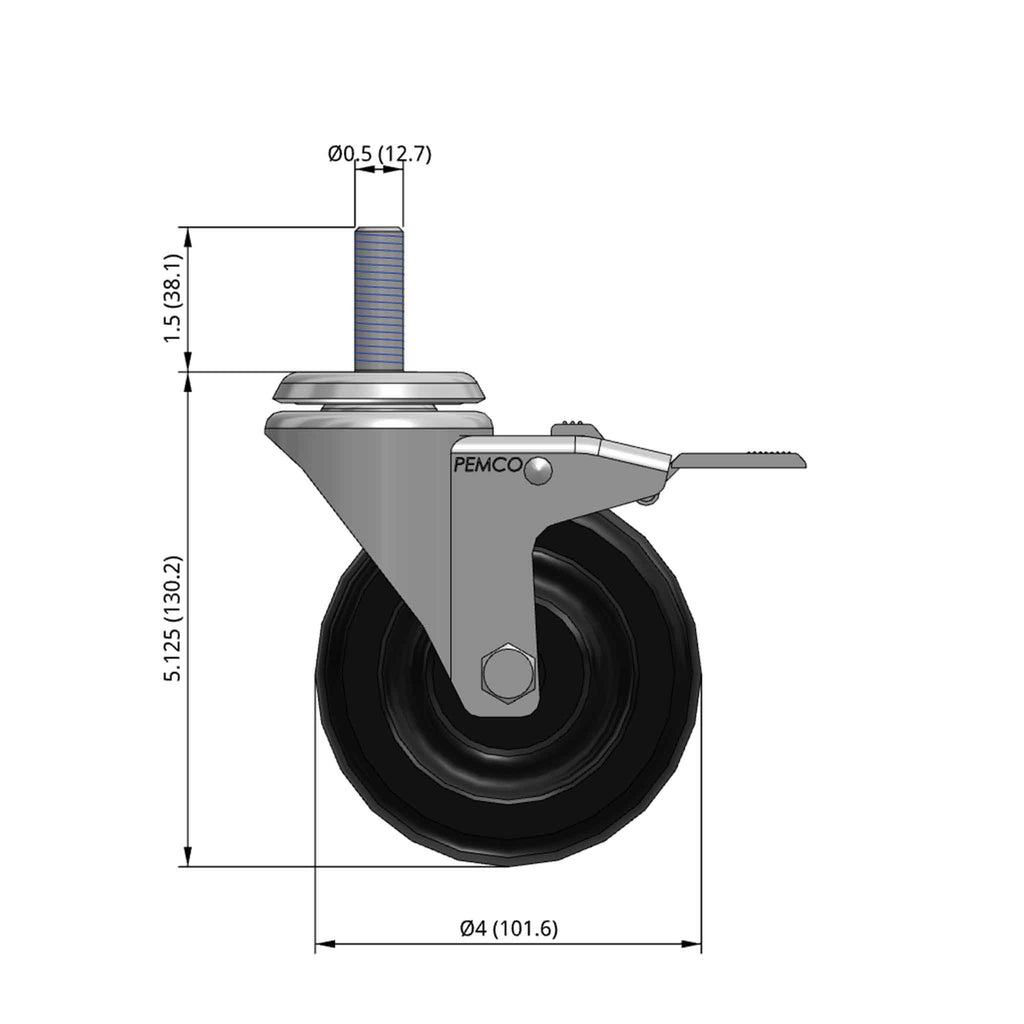

Front dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Polypropylene wheel and 300 lb. capacity part

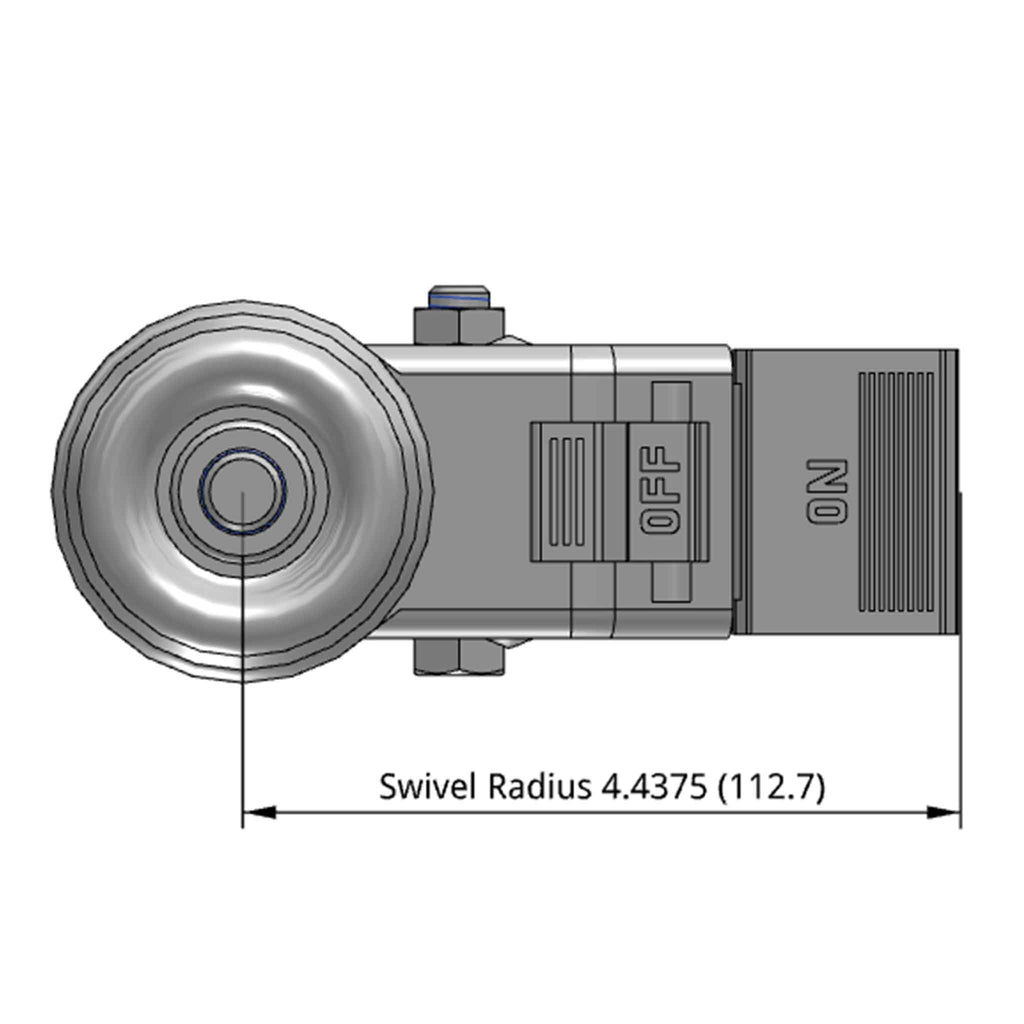

Top dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Polypropylene wheel and 300 lb. capacity part

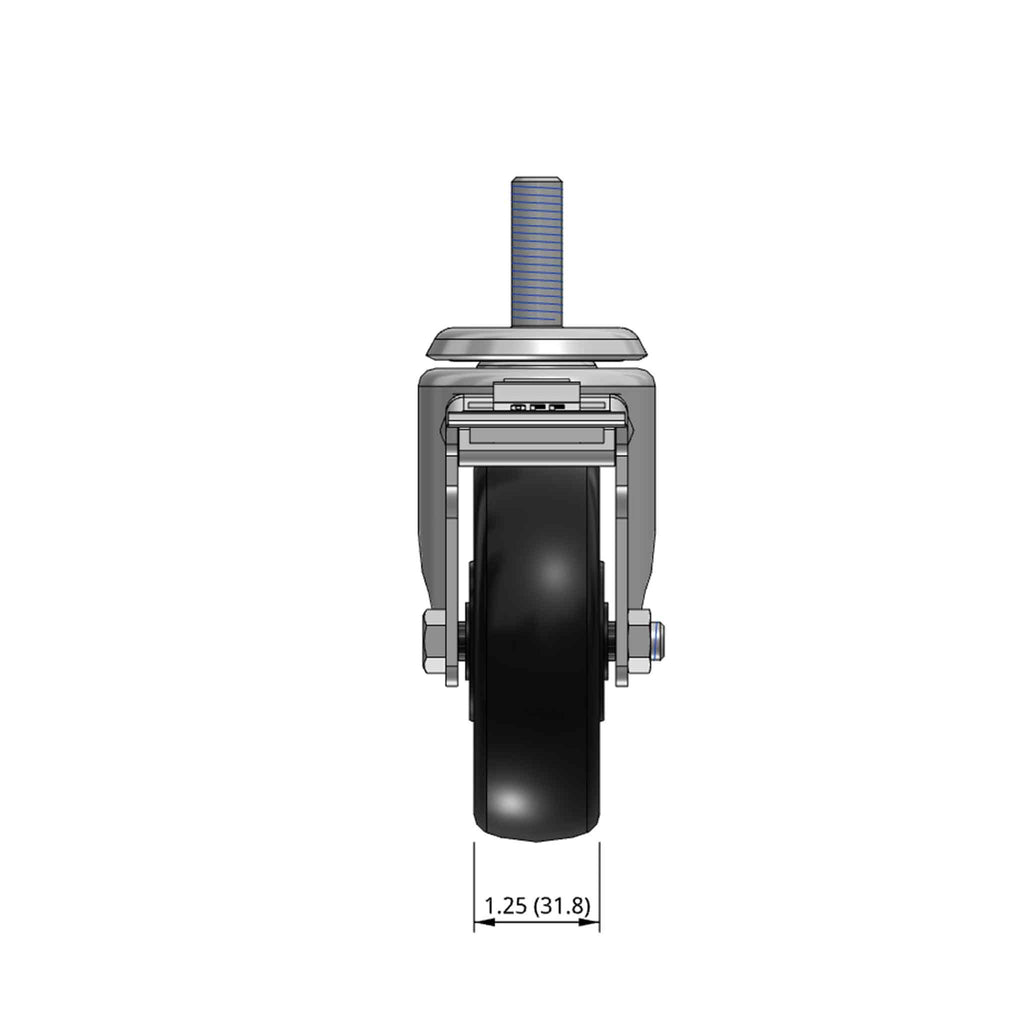

Side dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Polypropylene wheel and 300 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x1.25" Polyolefin Wheel 1/2"x1.5" Threaded Stem Total Lock Caster

Name: 4"x1.25" Polyolefin Wheel 1/2"x1.5" Threaded Stem Total Lock Caster
Brand: Pemco Casters
SKU: AS40T2PODTL
Price: 13.71 USD
Availability: InStock

Total Lock Brake

Pemco Casters SKU: AS40T2PODTL
Fastening: 1/2"-13 x 1-1/2" stud | Load Capacity: 300 lb
Mount Height: 5.13 in | Swivel Radius: 4.44 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$13.71 $15.23

Quantity:

Share this product

This 4" x 1-1/4" polypropylene standard duty threaded stem caster with total lock brake is ideal for wash-down and wet environments. Polypropylene is non-reactive and non-marking. The caster is retained with a 1/2-13UNC x 1-1/2" threaded stem. Our 25 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Part Number:	25POD40S-T824-TLB
SKU	AS40T2PODTL
Series:	25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	Total Lock
Load Capacity:	300 lb
Mounting Height:	5.13 in
Wheel Diameter:	4 in
Wheel Tread Width:	1.25 in
Wheel Description:	Polypropylene
Wheel Color:	Black
Wheel Bearing:	Delrin
Wheel Profile:	Slight Crown
Wheel Hardness:	70(+/-5) Shore D
Wheel Thread Guards:	None
Fastening:	1/2"-13 x 1-1/2" stud
Swivel Radius:	4.44 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-20F° to +180F°
Mfg:	AS40T2PODTL
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

4"x1.25" Polyolefin Wheel 1/2"x1.5" Threaded Stem Total Lock Caster

Description

Product Details

Part Number:

25POD40S-T824-TLB

SKU

AS40T2PODTL

Series:

25/35 Series - 1-1/4" Wide (to 350 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

Total Lock

Load Capacity:

300 lb

Mounting Height:

5.13 in

Wheel Diameter:

4 in

Wheel Tread Width:

1.25 in

Wheel Description:

Polypropylene

Wheel Color:

Black

Wheel Bearing:

Delrin

Wheel Profile:

Slight Crown

Wheel Hardness:

70(+/-5) Shore D

Wheel Thread Guards:

None

Fastening:

1/2"-13 x 1-1/2" stud

Swivel Radius:

4.44 in

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-20F° to +180F°

Mfg:

AS40T2PODTL

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
