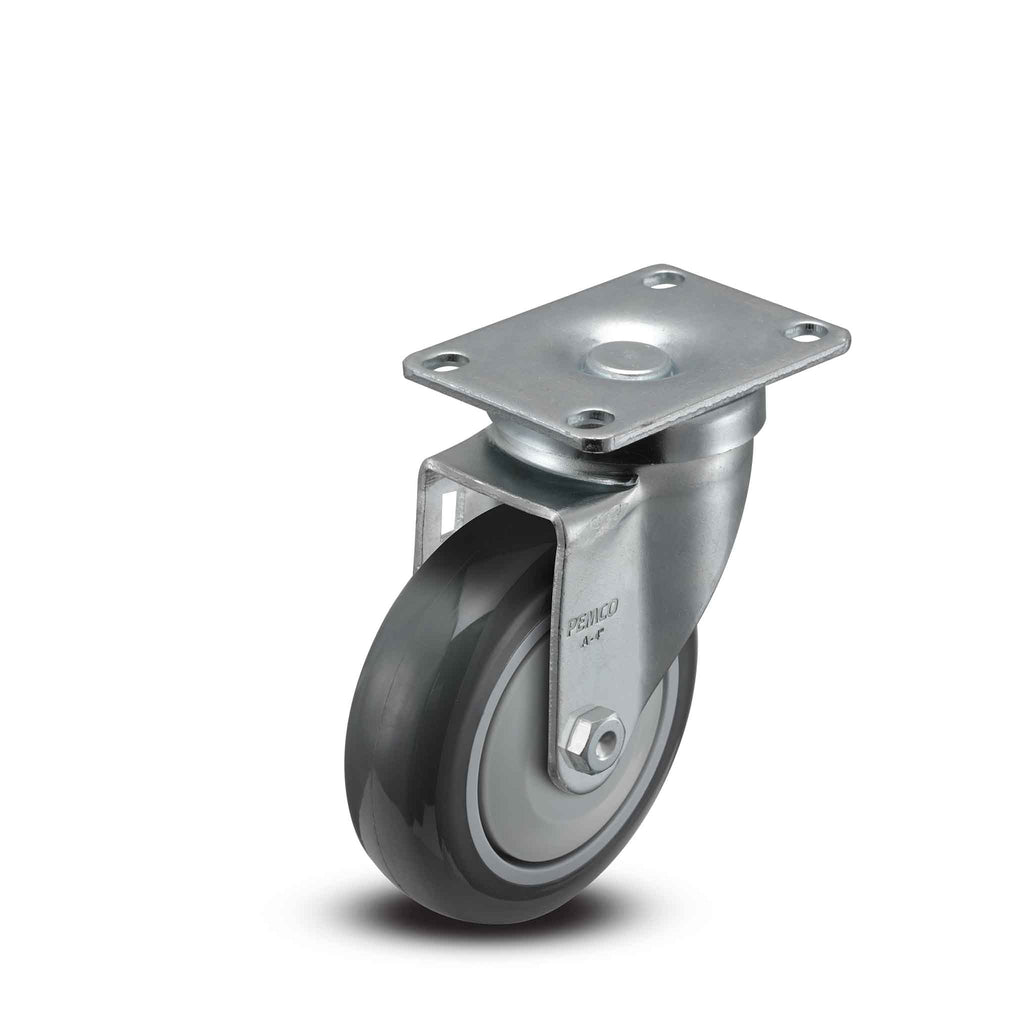

Main view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

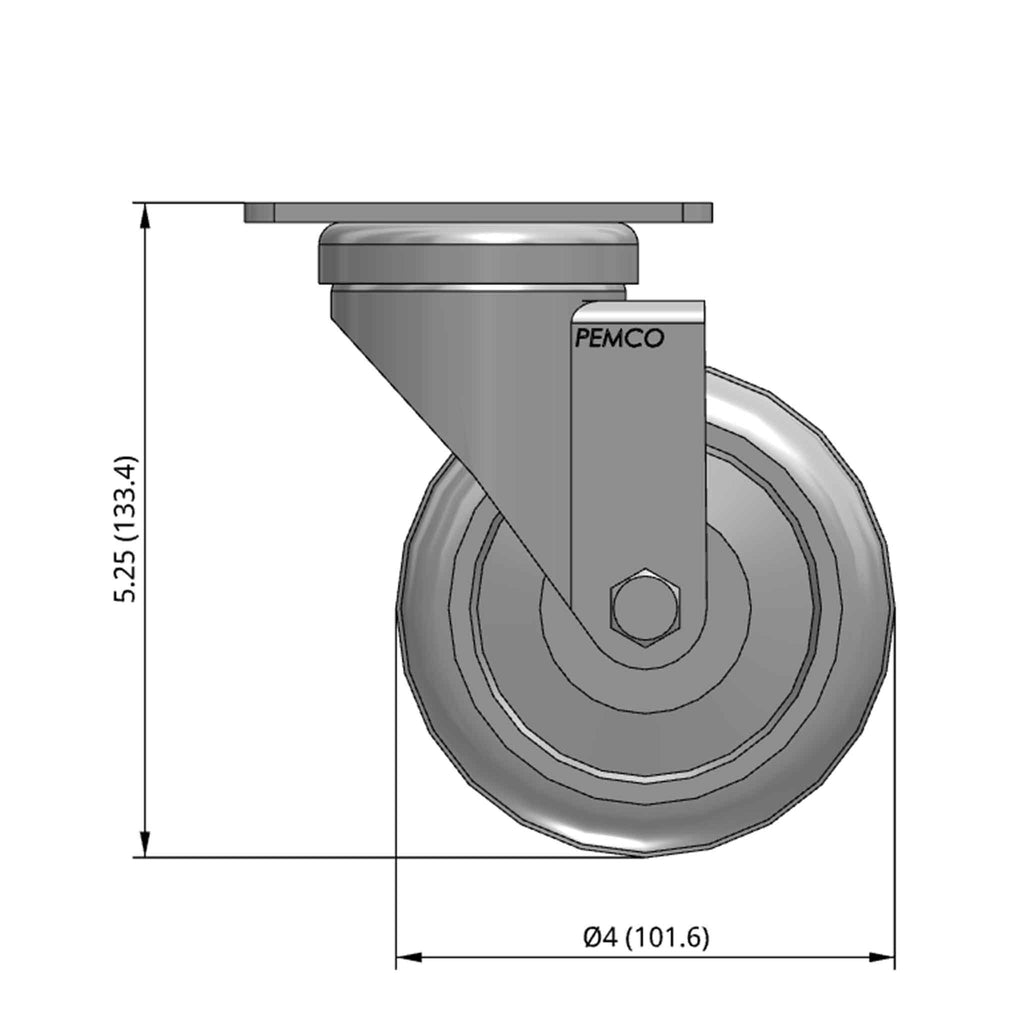

Front dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

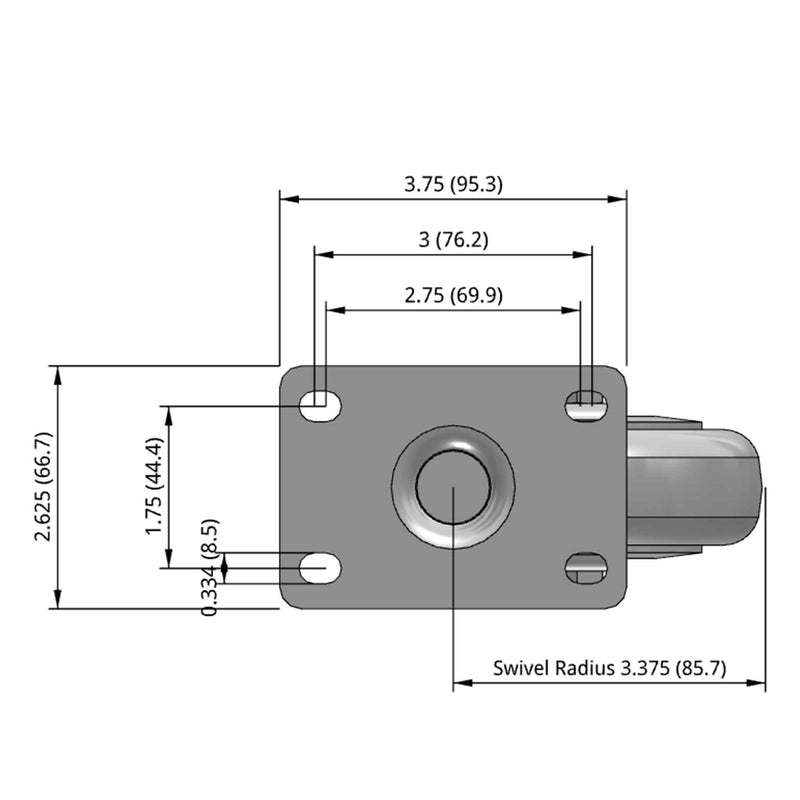

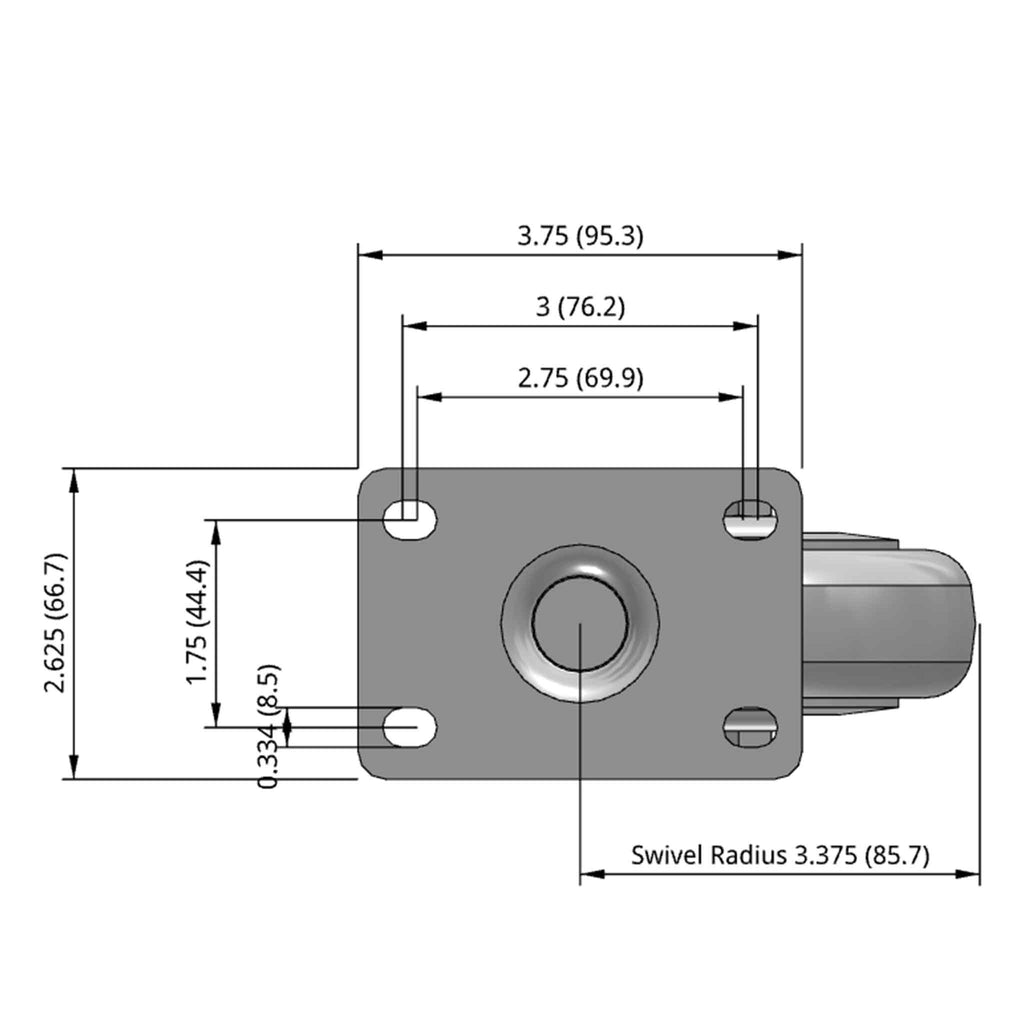

Top dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

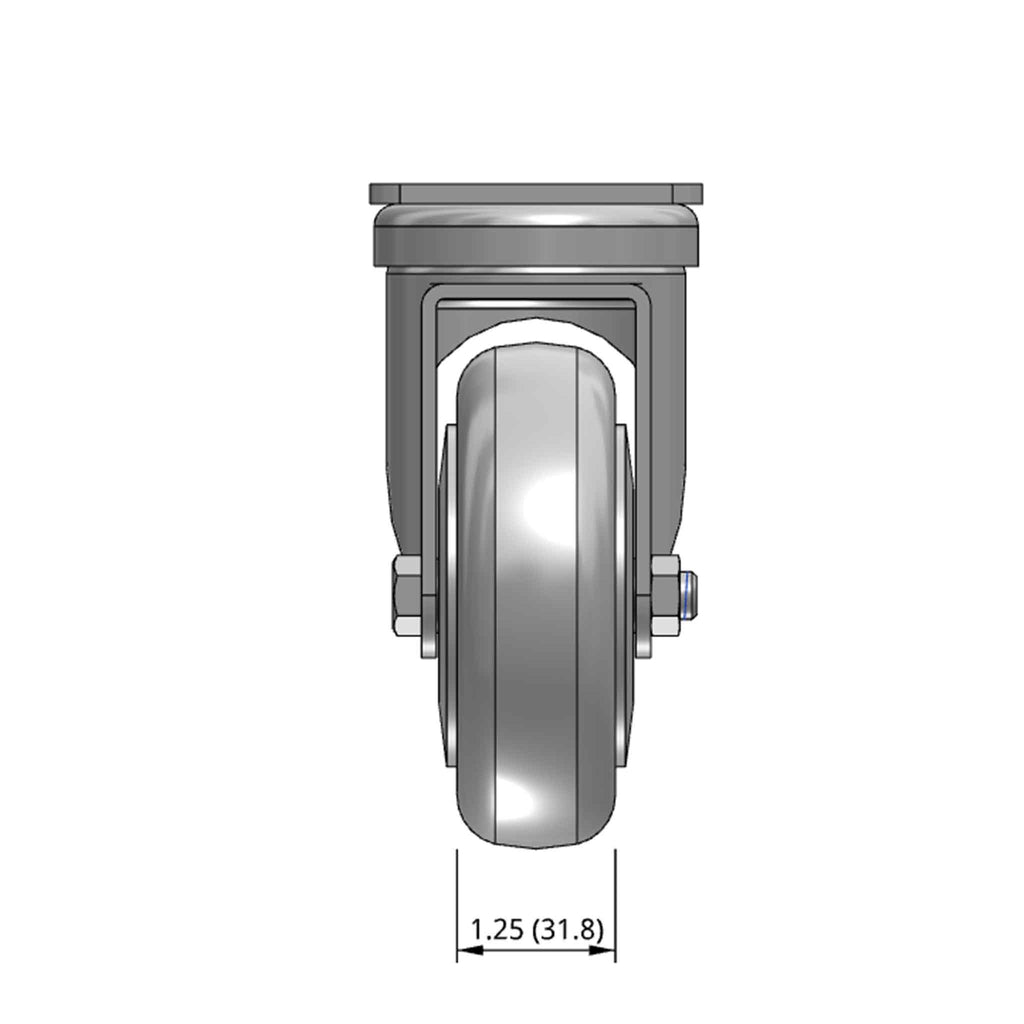

Side dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 275 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x1.25" TPU BB Wheel Standard Plate Swivel Caster

Name: 4"x1.25" TPU BB Wheel Standard Plate Swivel Caster
Brand: Pemco Casters
SKU: AS40P1TPU
Price: 15.14 USD
Availability: InStock

Pemco Casters SKU: AS40P1TPU
Fastening: 2-5/8" x 3-3/4" top plate | Load Capacity: 275 lb
Mount Height: 5.25 in | Swivel Radius: 3.38 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:

$15.14

Quantity:

Share this product

This 4" x 1-1/4" polyurethane on plastic standard duty swivel plate caster is durable, easy to roll and excellent for indoor and outdoor applications.Our 35 Series is a competitive, core lineup of 1-1/4" wide casters designed for a wide range of applications with load capacities up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Part Number:	35PPB40S
SKU	AS40P1TPU
Series:	25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	None
Load Capacity:	275 lb
Mounting Height:	5.25 in
Wheel Diameter:	4 in
Wheel Tread Width:	1.25 in
Wheel Description:	Thermo-Urethane
Wheel Color:	Grey on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Slight Crown
Wheel Hardness:	90(+/-5) Shore A
Wheel Thread Guards:	Full Thread Guards
Fastening:	2-5/8" x 3-3/4" top plate
Bolt Hole Pattern:	1-3/4" x 2-3/4" to 3"
Plate Bolt Size Recommended:	5/16"
Swivel Radius:	3.38 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-40F° to +180F°
Mfg:	AS40P1TPU
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
