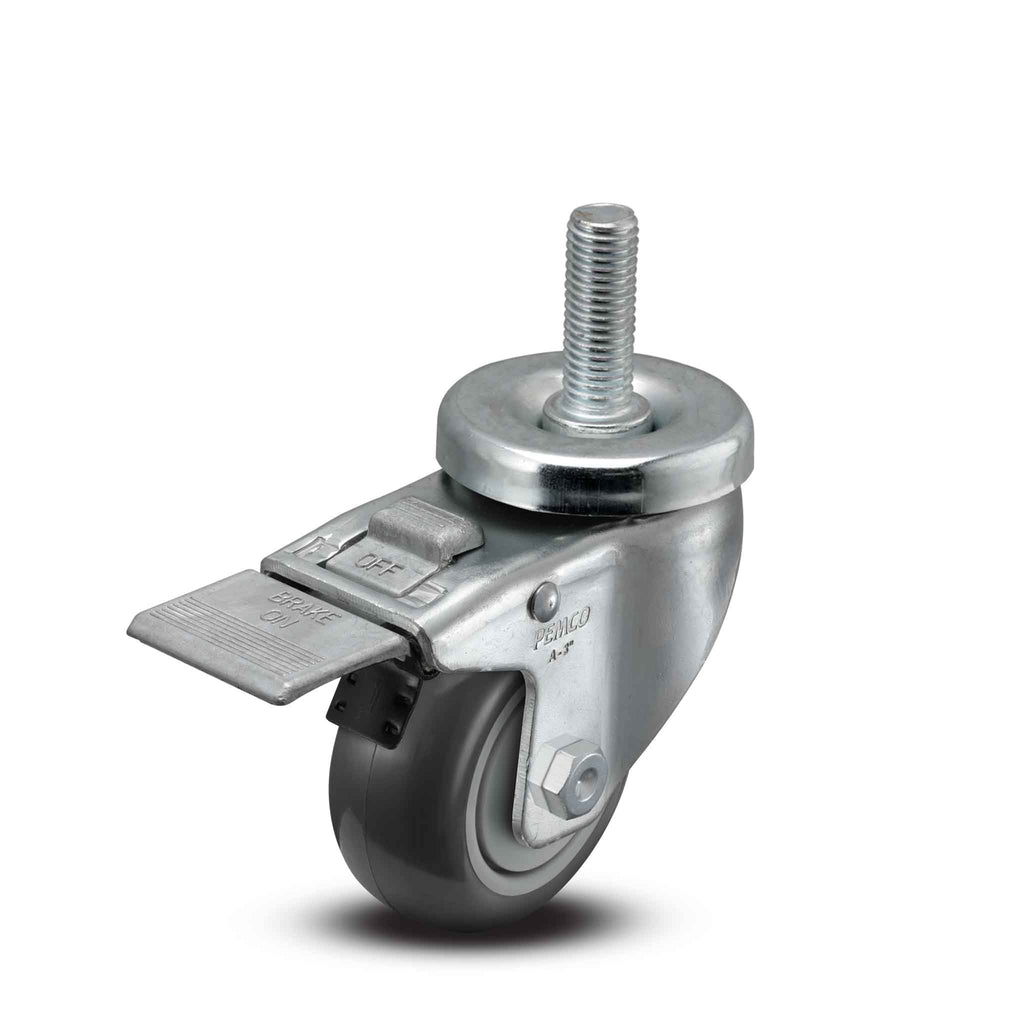

Main view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Thermo-Urethane wheel and 270 lb. capacity part

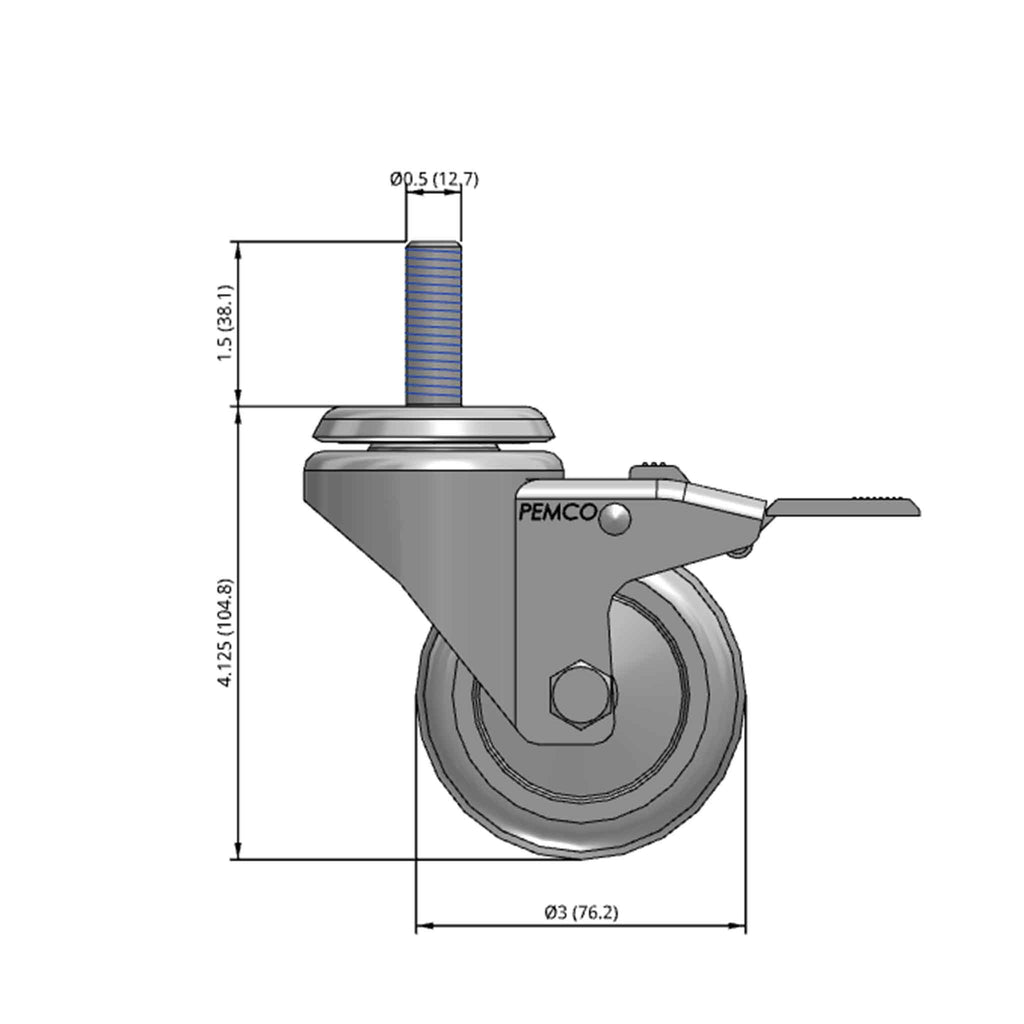

Front dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Thermo-Urethane wheel and 270 lb. capacity part

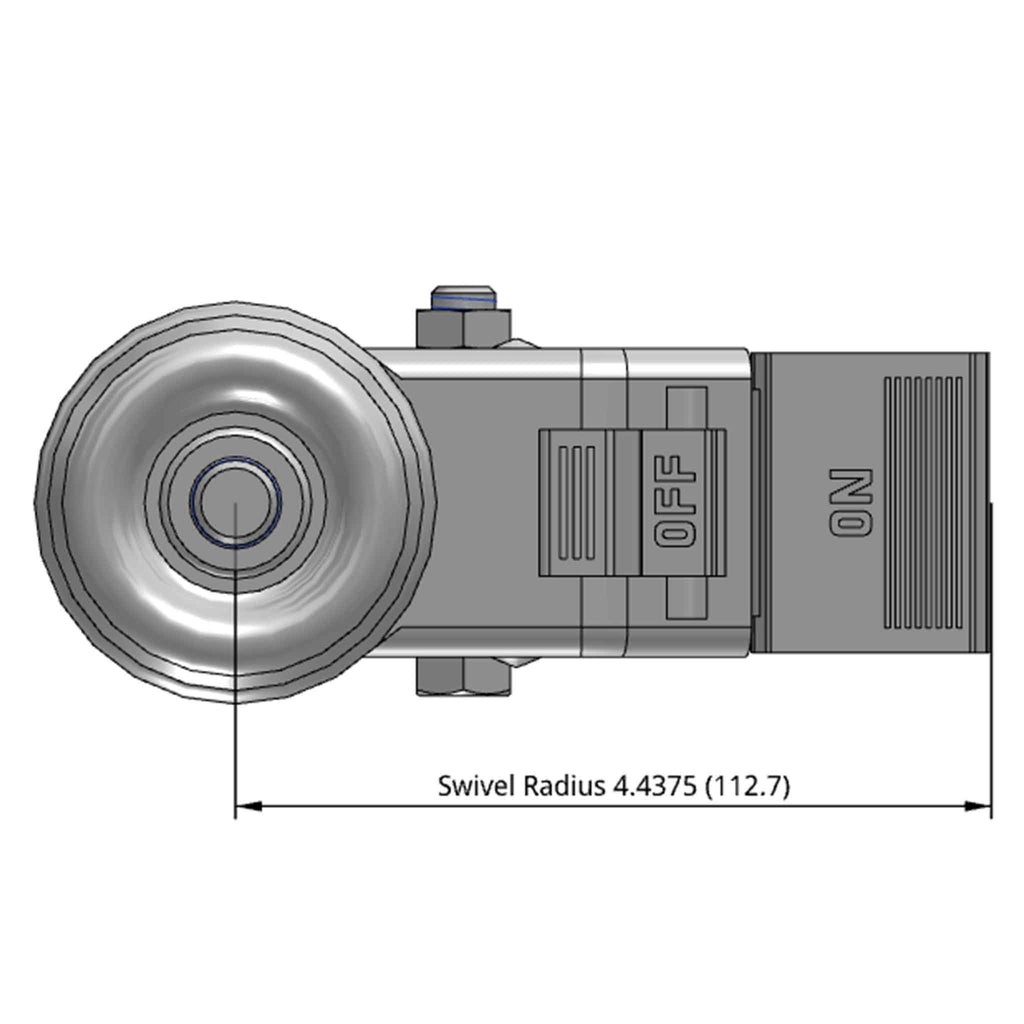

Top dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Thermo-Urethane wheel and 270 lb. capacity part

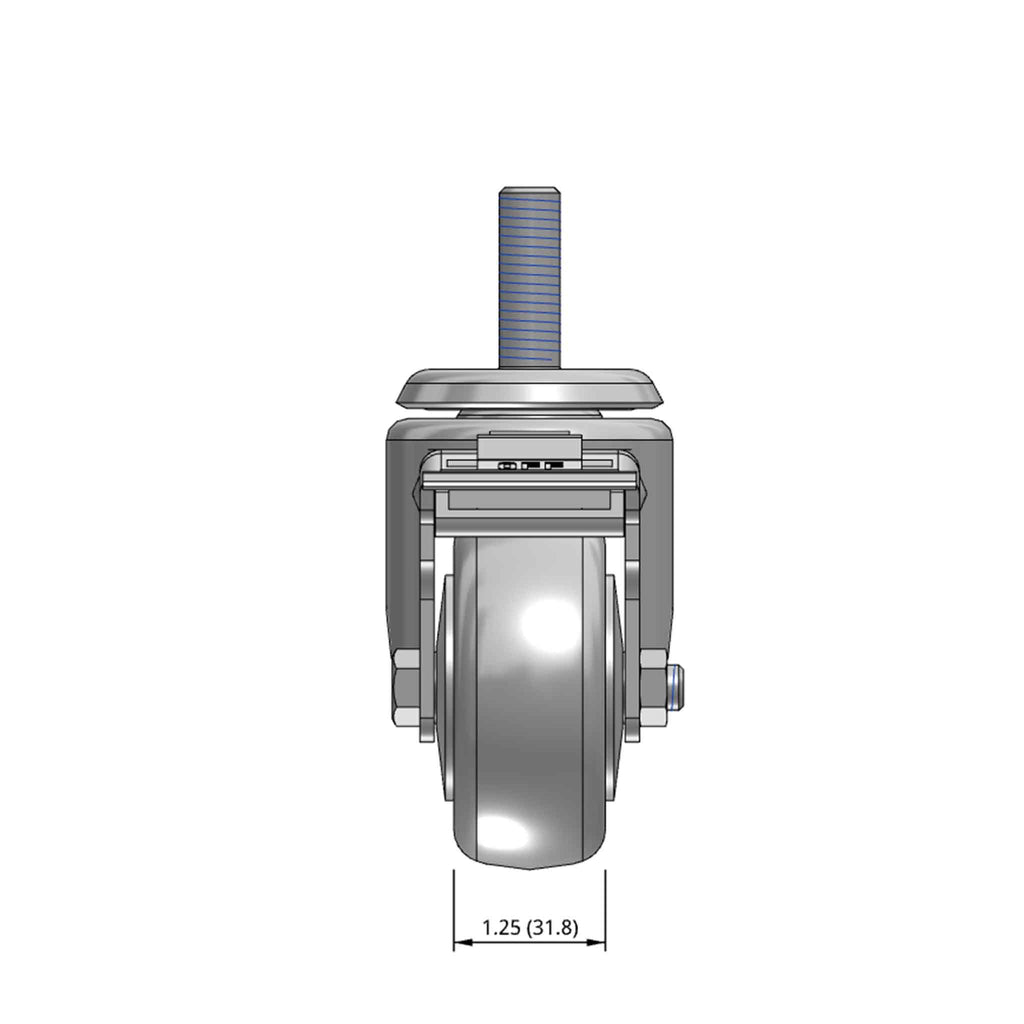

Side dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, with a top total locking brake, Thermo-Urethane wheel and 270 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

3"x1.25" TPU BB Wheel 1/2"x1.5" Threaded Stem Total Lock Caster

Name: 3"x1.25" TPU BB Wheel 1/2"x1.5" Threaded Stem Total Lock Caster
Brand: Pemco Casters
SKU: AS30T2TPUTL
Price: 15.21 USD
Availability: InStock

Total Lock Brake

Pemco Casters SKU: AS30T2TPUTL
Fastening: 1/2"-13 x 1-1/2" stud | Load Capacity: 270 lb
Mount Height: 4.13 in | Swivel Radius: 4.38 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$15.21 $16.90

Quantity:

Share this product

This 3" x 1-1/4" polyurethane on plastic standard duty threaded stem caster with total lock brake is durable and easy to roll. Polyurethane wheels are excellent for indoor or outdoor use. The caster is retained with a 1/2-13UNC x 1-1/2" threaded stem. Our 25 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Part Number:	25PPB30S-T824-TLB
SKU	AS30T2TPUTL
Series:	25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	Total Lock
Load Capacity:	270 lb
Mounting Height:	4.13 in
Wheel Diameter:	3 in
Wheel Tread Width:	1.25 in
Wheel Description:	Thermo-Urethane
Wheel Color:	Grey on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Slight Crown
Wheel Hardness:	90(+/-5) Shore A
Wheel Thread Guards:	Full Thread Guards
Fastening:	1/2"-13 x 1-1/2" stud
Swivel Radius:	4.38 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-40F° to +180F°
Mfg:	AS30T2TPUTL
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

3"x1.25" TPU BB Wheel 1/2"x1.5" Threaded Stem Total Lock Caster

Description

Product Details

Part Number:

25PPB30S-T824-TLB

SKU

AS30T2TPUTL

Series:

25/35 Series - 1-1/4" Wide (to 350 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

Total Lock

Load Capacity:

270 lb

Mounting Height:

4.13 in

Wheel Diameter:

3 in

Wheel Tread Width:

1.25 in

Wheel Description:

Thermo-Urethane

Wheel Color:

Grey on Grey

Wheel Bearing:

Precision Ball

Wheel Profile:

Slight Crown

Wheel Hardness:

90(+/-5) Shore A

Wheel Thread Guards:

Full Thread Guards

Fastening:

1/2"-13 x 1-1/2" stud

Swivel Radius:

4.38 in

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-40F° to +180F°

Mfg:

AS30T2TPUTL

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
