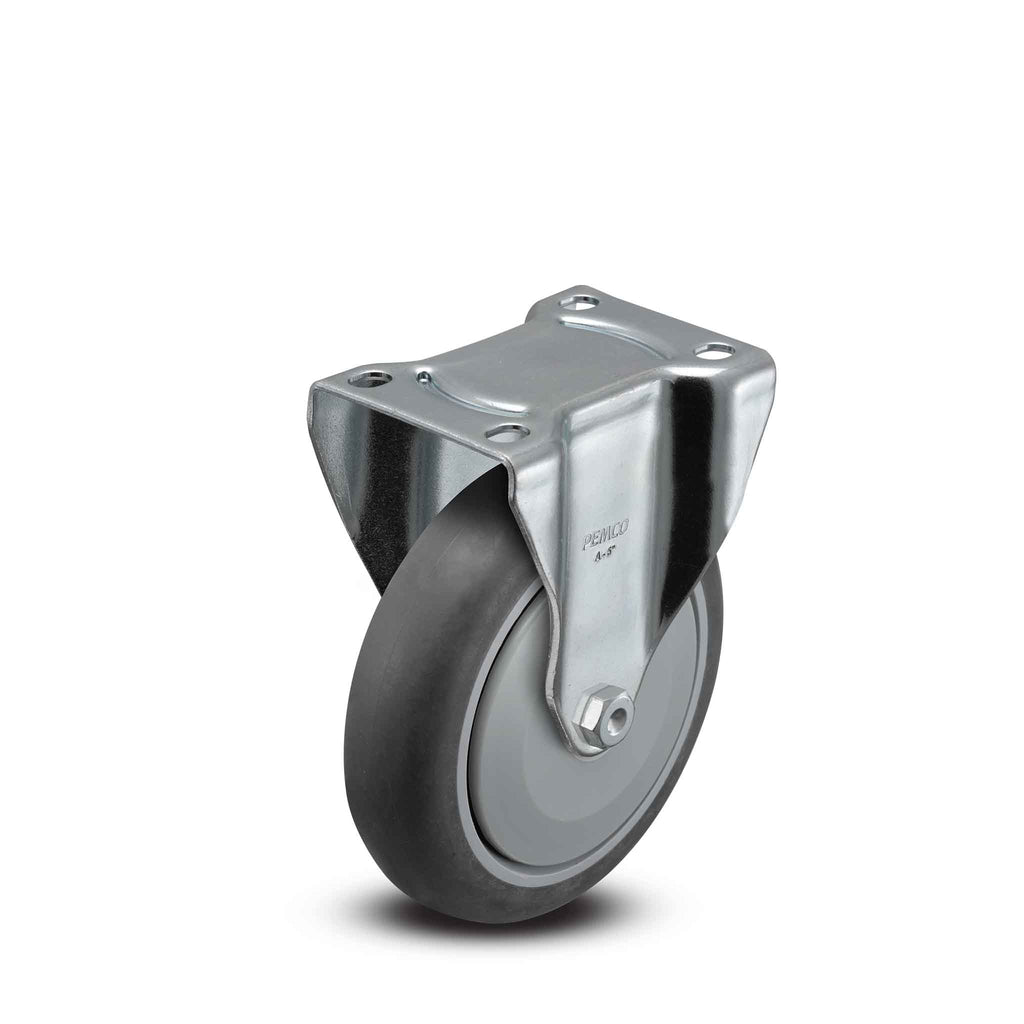

This 5" x 1-1/4" flat tread thermoplastic rubber standard duty rigid plate caster is quiet, smooth rolling, easy to start and floor protective.Our 35 Series is a competitive, core lineup of 1-1/4" wide casters designed for a wide range of applications with load capacities up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.
Series: 25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Mfg. SKU: AR50P1TPR
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 325 lb
Wheel Diameter: 5 in

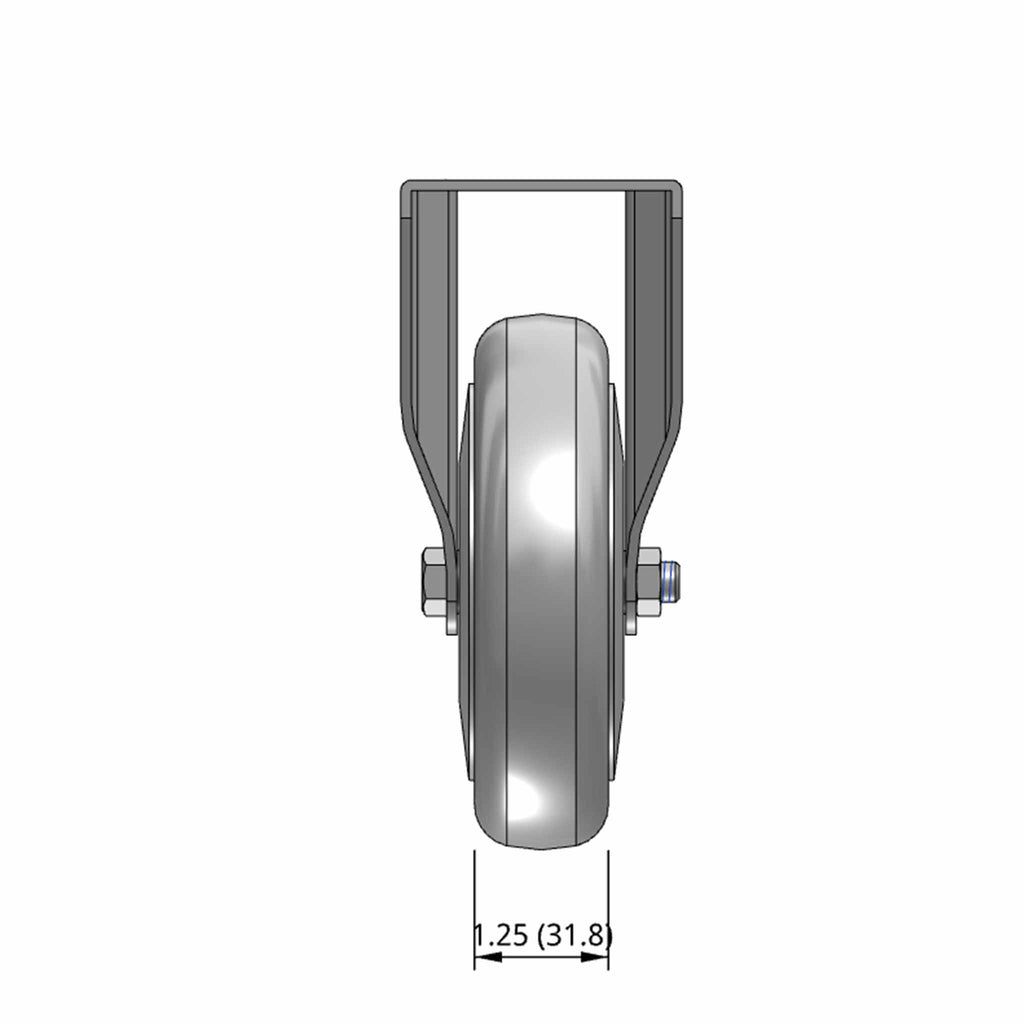

Wheel Tread Width: 1.25 in
Wheel Description: Thermoplastic Rubber
Wheel Color: Grey on Grey
Wheel Bearing: Precision Ball
Wheel Profile: Slight Crown
Wheel Hardness: 75(+/-5) Shore A
Wheel Thread Guards: Full Thread Guards

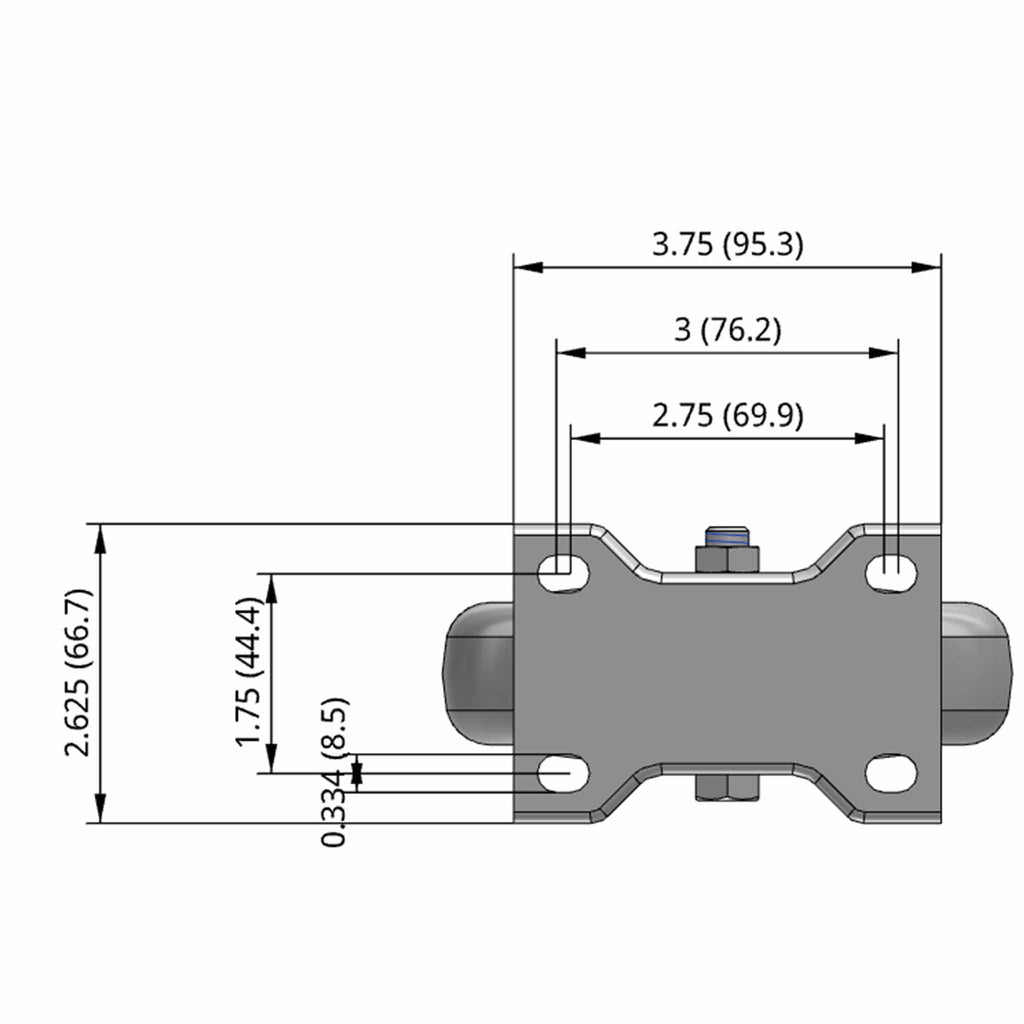

Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"

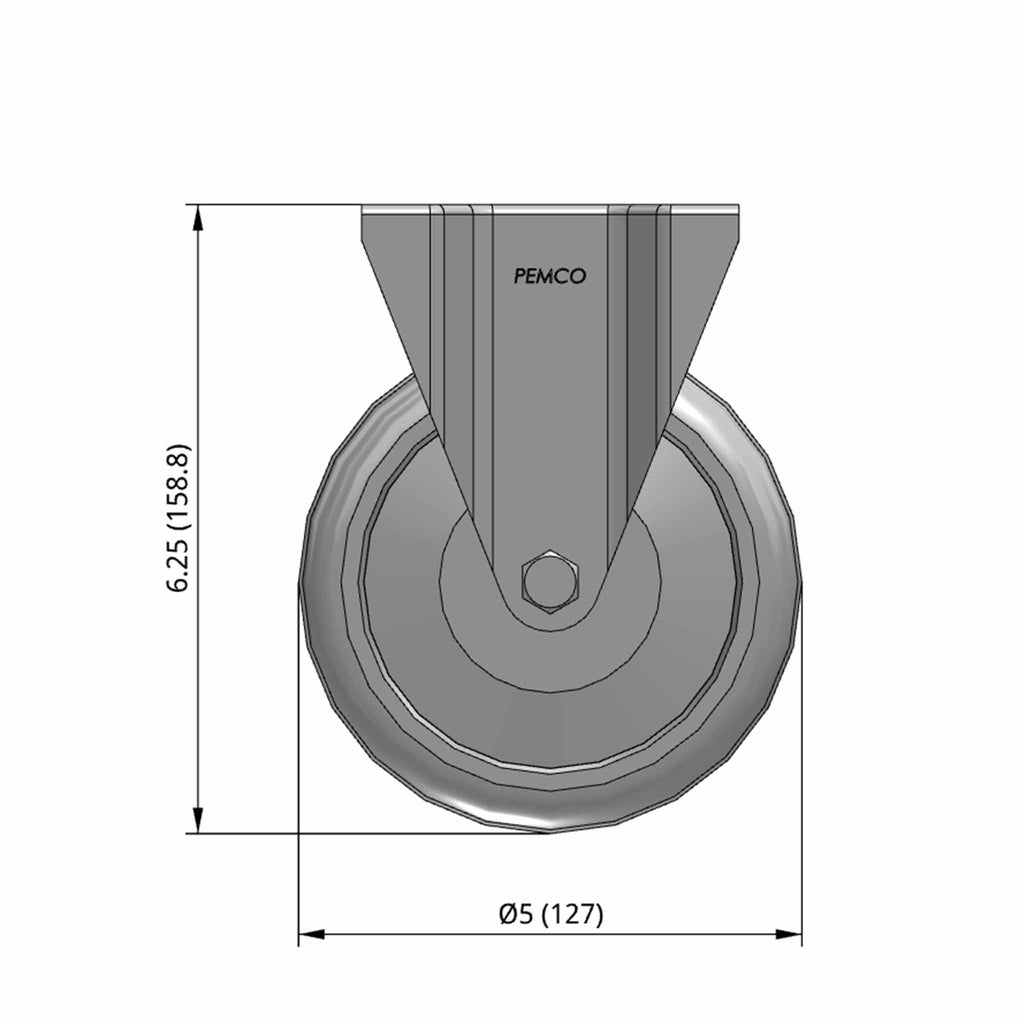

Mounting Height: 6.25 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
