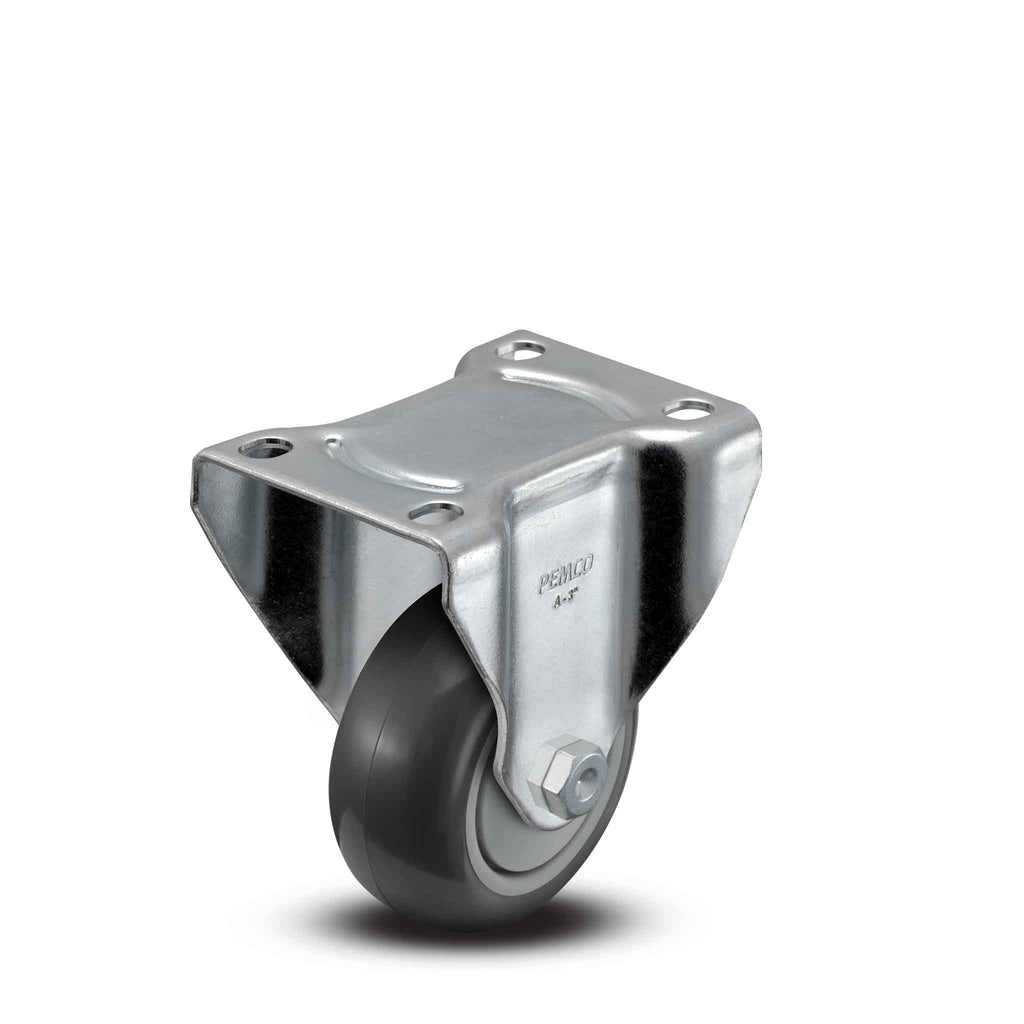

Main view of a Pemco Casters 3" x 1.25" wide wheel Rigid caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 270 lb. capacity part

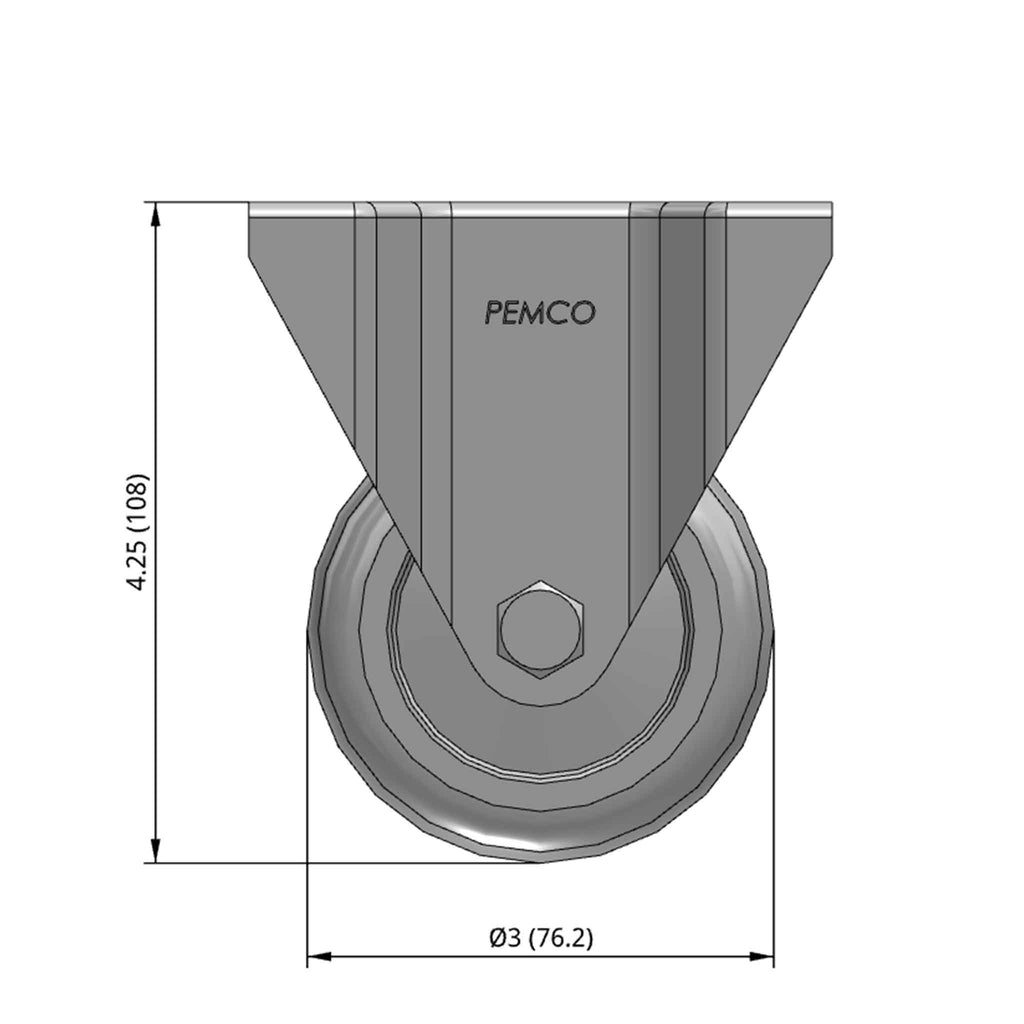

Front dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Rigid caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 270 lb. capacity part

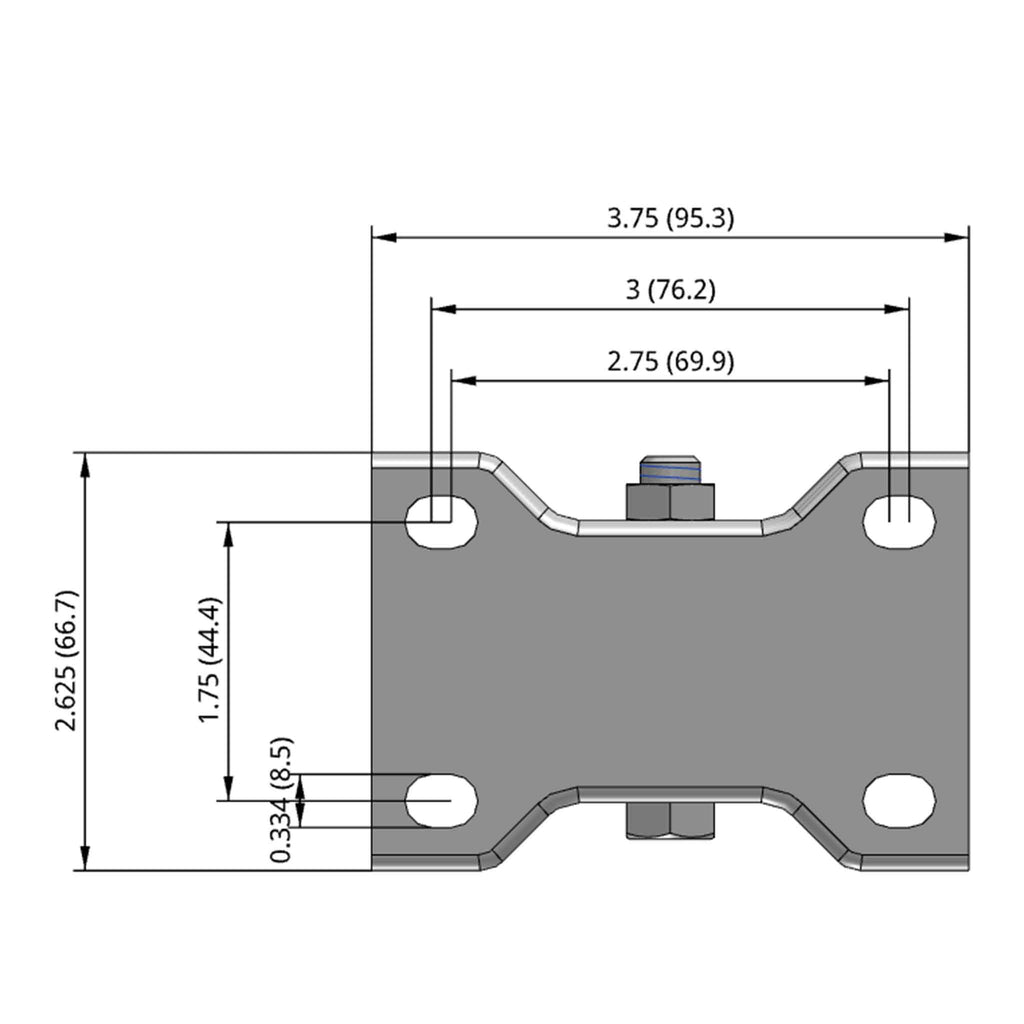

Top dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Rigid caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 270 lb. capacity part

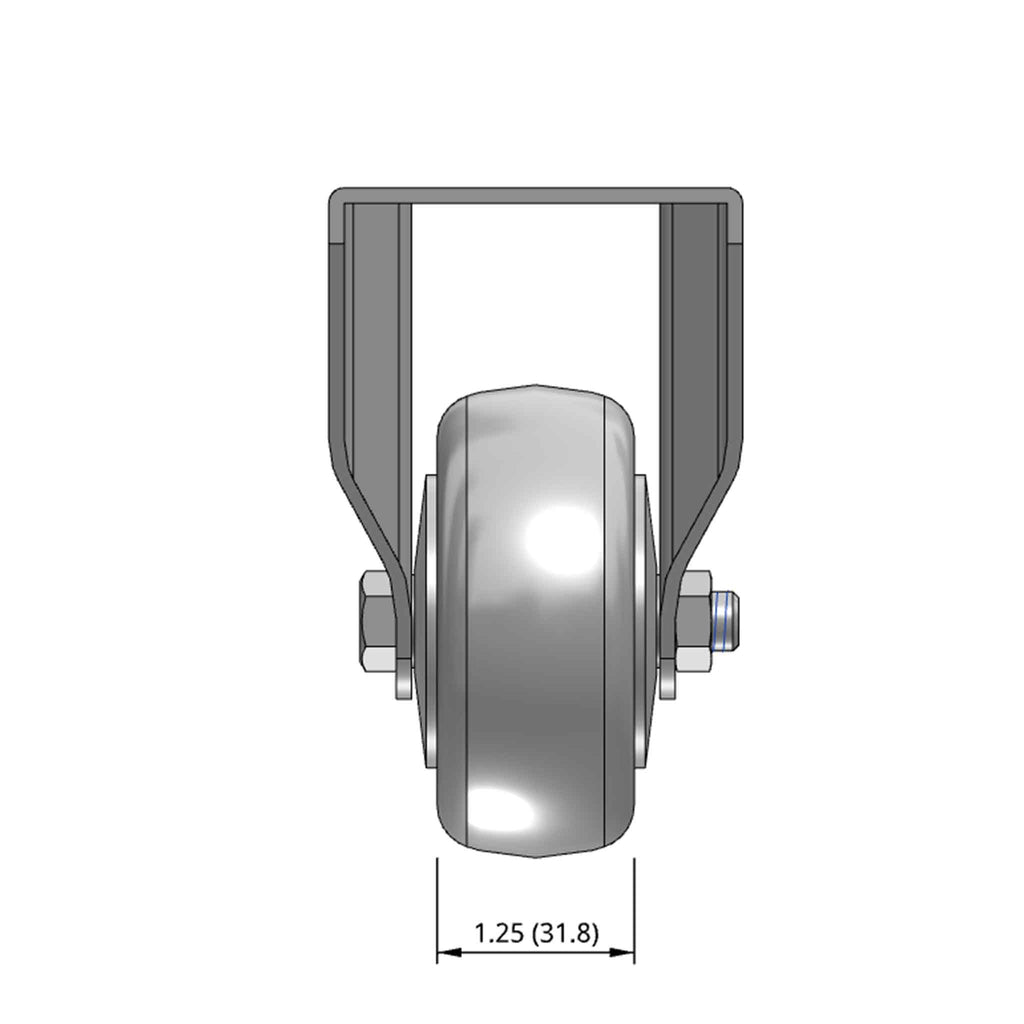

Side dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Rigid caster with 2-5/8" x 3-3/4" top plate, without a brake, Thermo-Urethane wheel and 270 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

3"x1.25" TPU Ball Bearing Wheel Rigid Standard Plate Caster

Name: 3"x1.25" TPU Ball Bearing Wheel Rigid Standard Plate Caster
Brand: Pemco Casters
SKU: AR30P1TPU
Price: 8.74 USD
Availability: InStock

Pemco Casters SKU: AR30P1TPU
Fastening: 2-5/8" x 3-3/4" top plate | Load Capacity: 270 lb
Mount Height: 4.25 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$8.74 $9.72

Quantity:

Share this product

This 3" x 1-1/4" polyurethane on plastic standard duty rigid plate caster is durable, easy to roll and excellent for indoor and outdoor applications.Our 35 Series is a competitive, core lineup of 1-1/4" wide casters designed for a wide range of applications with load capacities up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Part Number:	35PPB30R
SKU	AR30P1TPU
Series:	25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:	Rigid Construction
Brake:	None
Load Capacity:	270 lb
Mounting Height:	4.25 in
Wheel Diameter:	3 in
Wheel Tread Width:	1.25 in
Wheel Description:	Thermo-Urethane
Wheel Color:	Grey on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Slight Crown
Wheel Hardness:	90(+/-5) Shore A
Wheel Thread Guards:	Full Thread Guards
Fastening:	2-5/8" x 3-3/4" top plate
Bolt Hole Pattern:	1-3/4" x 2-3/4" to 3"
Plate Bolt Size Recommended:	5/16"
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-40F° to +180F°
Mfg:	AR30P1TPU
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

3"x1.25" TPU Ball Bearing Wheel Rigid Standard Plate Caster

Description

Product Details

Part Number:

35PPB30R

SKU

AR30P1TPU

Series:

25/35 Series - 1-1/4" Wide (to 350 lb/ea)

Raceway Type:

Rigid Construction

Brake:

None

Load Capacity:

270 lb

Mounting Height:

4.25 in

Wheel Diameter:

3 in

Wheel Tread Width:

1.25 in

Wheel Description:

Thermo-Urethane

Wheel Color:

Grey on Grey

Wheel Bearing:

Precision Ball

Wheel Profile:

Slight Crown

Wheel Hardness:

90(+/-5) Shore A

Wheel Thread Guards:

Full Thread Guards

Fastening:

2-5/8" x 3-3/4" top plate

Bolt Hole Pattern:

1-3/4" x 2-3/4" to 3"

Plate Bolt Size Recommended:

5/16"

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-40F° to +180F°

Mfg:

AR30P1TPU

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
