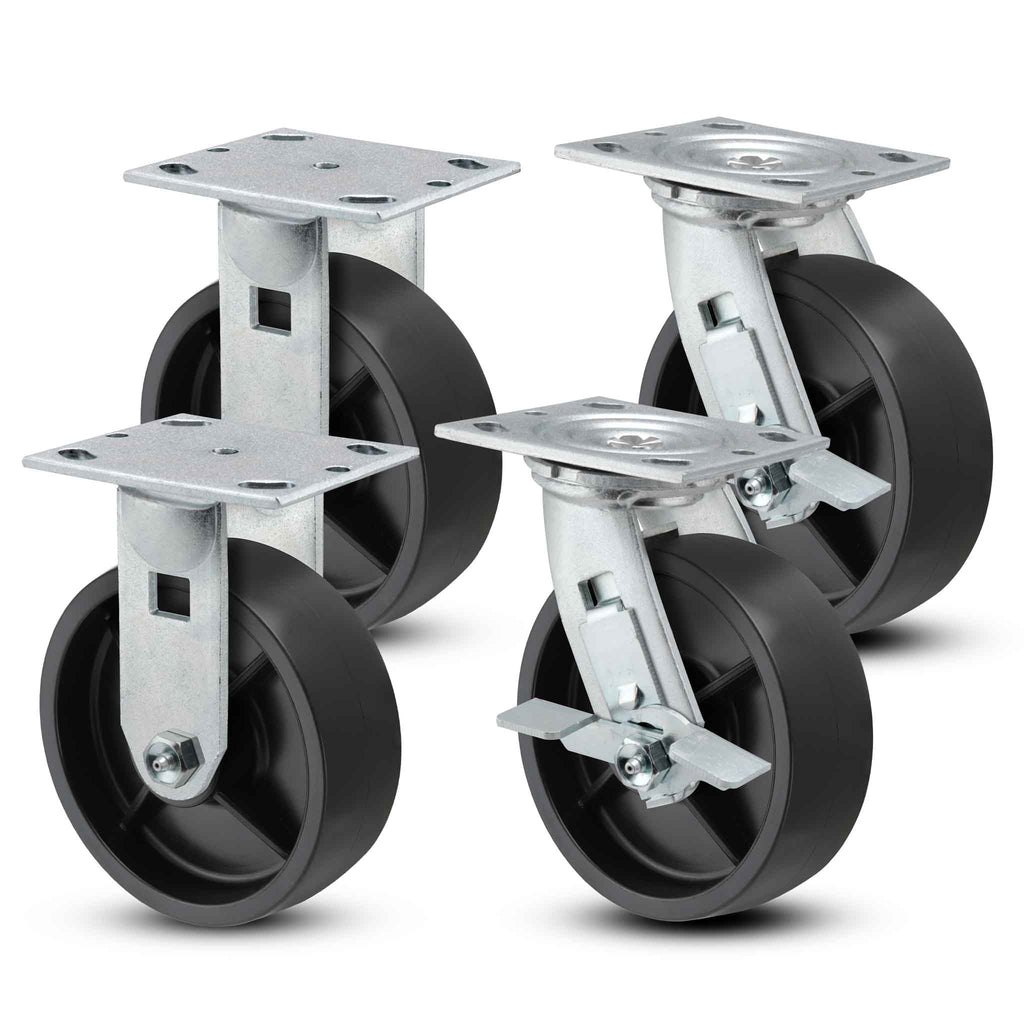

Main view of a Pemco Casters 4" x 2" wide wheels Kits caster with 4" x 4-1/2" top plate, with a side locking brake, Polypropylene HD wheel and 2000 lb. total capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4" Job Box Caster Kit with Brakes and Mounting Hardware - 2 Brake and 2 Rigid Casters

Name: 4" Job Box Caster Kit with Brakes and Mounting Hardware - 2 Brake and 2 Rigid Casters
Brand: Pemco Casters
SKU: 953001-B Kit 3
Price: 56.64 USD
Availability: InStock

Pemco Casters SKU: 953001-B Kit 3
Fastening: 4" x 4-1/2" top plate | Load Capacity: 500 lb
Mount Height: 5.63 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$56.64 $74.79

Quantity:

Share this product

Our Job Box Caster Kits are designed to add mobility to your tool storage, whether it's Greenlee, Knaack, or some other brand, we've got you covered. This 4" Job Box Caster Kit with tread brakes features 4" polypropylene plastic casters, 2 rigid and 2 swivel with brake. The kit is complete with hardware and instructions. Product comes with 3/8"-16 x 1" Carriage Bolts with Flange Nuts.

Part Number:	4X2 CASTER KIT WITH BRAKES - KIT 3
SKU	953001-B Kit 3
Series:	45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	Tread Lock
Load Capacity:	500 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	Polypropylene HD
Wheel Color:	Black
Wheel Bearing:	Roller
Wheel Profile:	Flat Tread
Wheel Hardness:	70(+/-5) Shore D
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	3.63 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-20F° to +180F°
Mfg:	4X2 E-LINE POD 2 BRAKE AND 2 RIGID; Kit 3 Hardware
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

4" Job Box Caster Kit with Brakes and Mounting Hardware - 2 Brake and 2 Rigid Casters

Description

Product Details

Part Number:

4X2 CASTER KIT WITH BRAKES - KIT 3

SKU

953001-B Kit 3

Series:

45 Series - 2" Wide (to 1250 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

Tread Lock

Load Capacity:

500 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

Polypropylene HD

Wheel Color:

Black

Wheel Bearing:

Roller

Wheel Profile:

Flat Tread

Wheel Hardness:

70(+/-5) Shore D

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

3.63 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-20F° to +180F°

Mfg:

4X2 E-LINE POD 2 BRAKE AND 2 RIGID; Kit 3 Hardware

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
