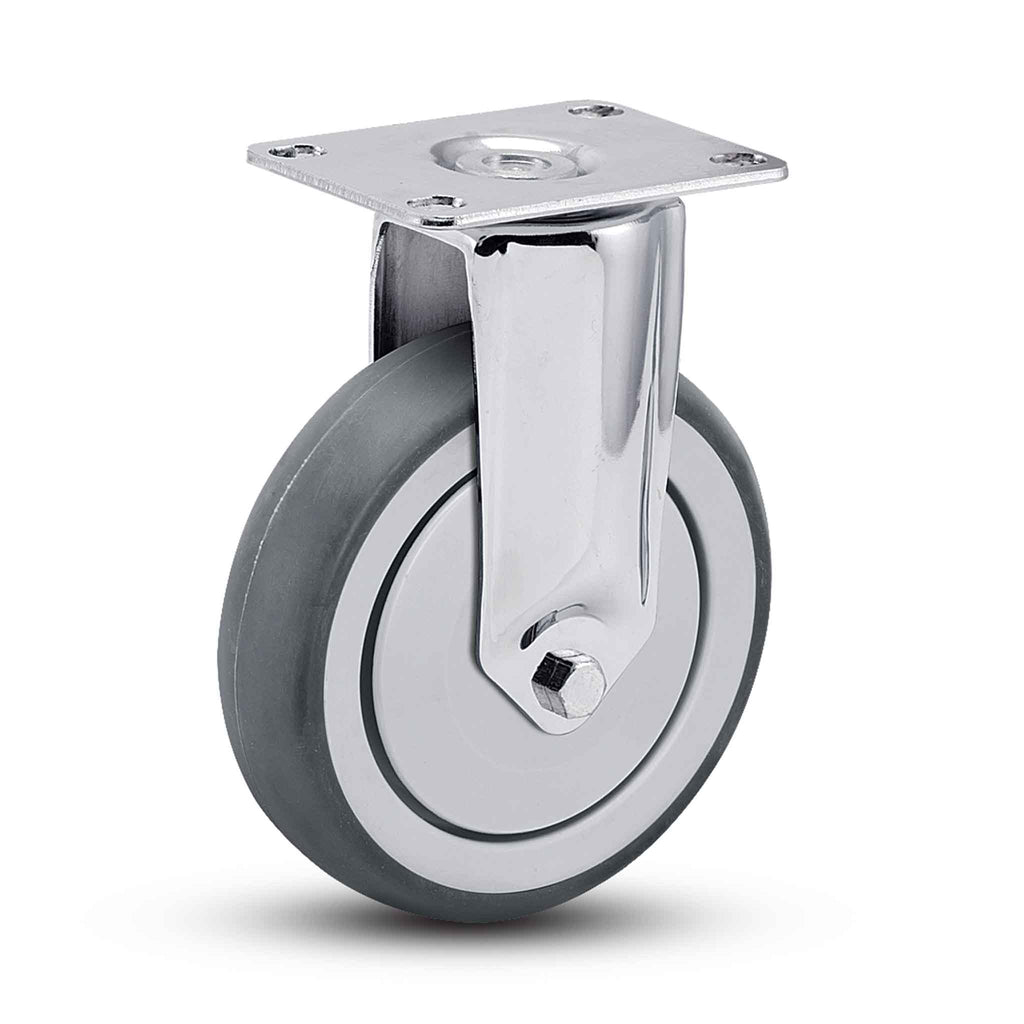

This chrome plated institutional caster provides a combination of value and performance that is unmatched by competitors. Using a dual ball raceway for easy swiveling, a heavy guage steel top plate and rig for durability, corrosion resistant chrome finish, and full thread guards, this caster will stand the test of time. This rigid caster features a 5" Thermoplastic (TPR) Rubber on Polypropylene Plastic wheel with an Integral Precision Ball Bearing for smooth rolling. The Thermoplastic (TPR) Rubber tread helps quiet operation and is resistant to debris pickup. These are perfect for use as medical casters on medical equipment.
Series: CH32 - Chrome Hosp. (to 260 lb/ea)
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 260 lb
Wheel Diameter: 5 in

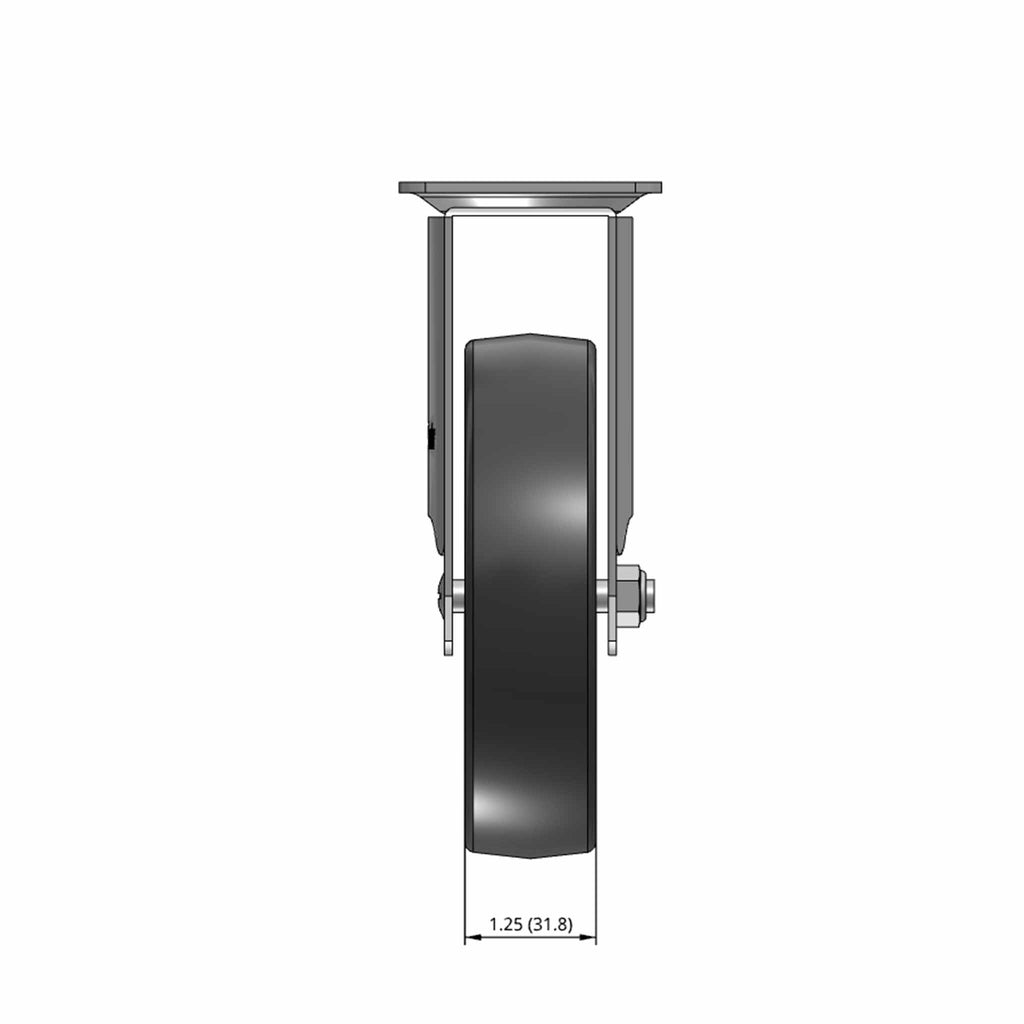

Wheel Tread Width: 1.25 in
Wheel Description: Thermoplastic Rubber
Wheel Color: Grey on Grey
Wheel Bearing: Precision Ball
Wheel Profile: Slight Crown
Wheel Hardness: 85(+/-5) Shore A
Wheel Thread Guards: Full Thread Guards

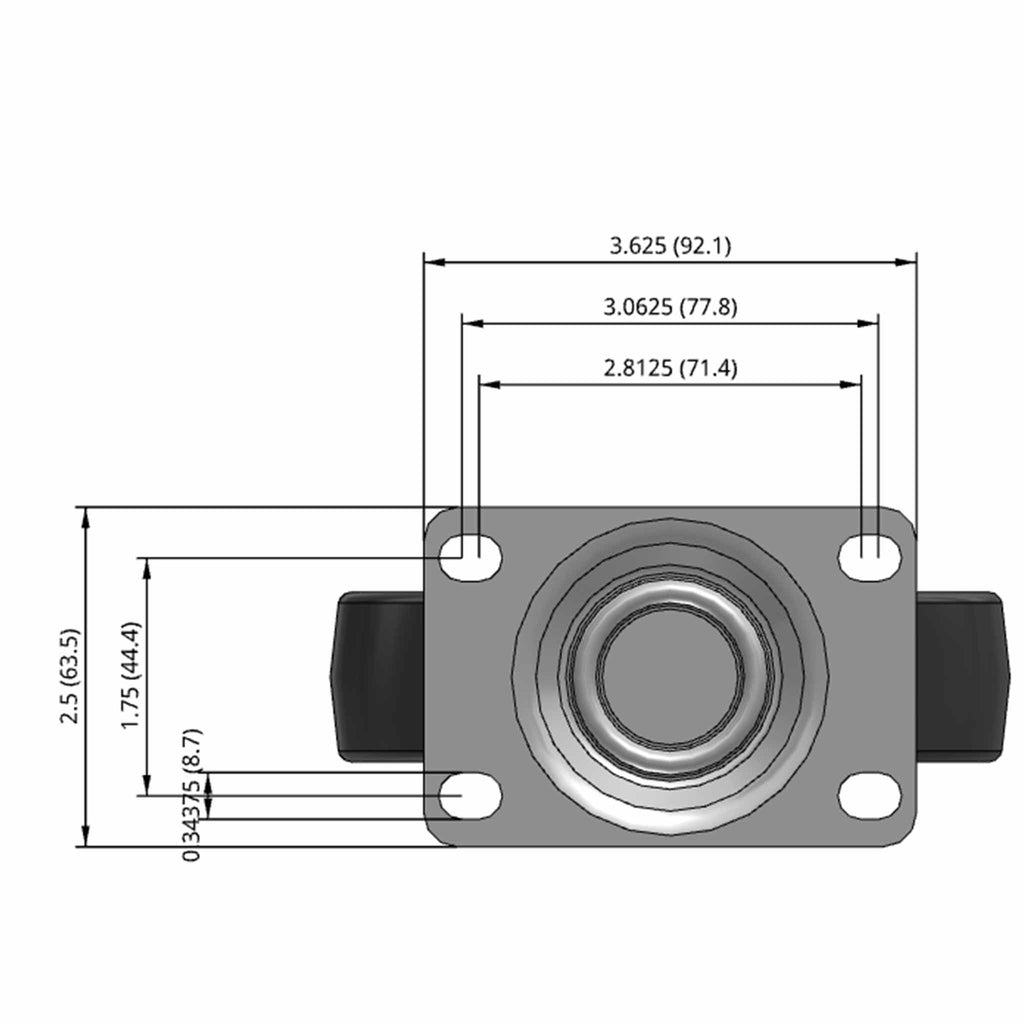

Fastening: 2-1/2" x 3-5/8" top plate
Bolt Hole Pattern: 1-3/4" x 2-13/16" to 3-1/16"
Bolt Size Recommended: 5/16"

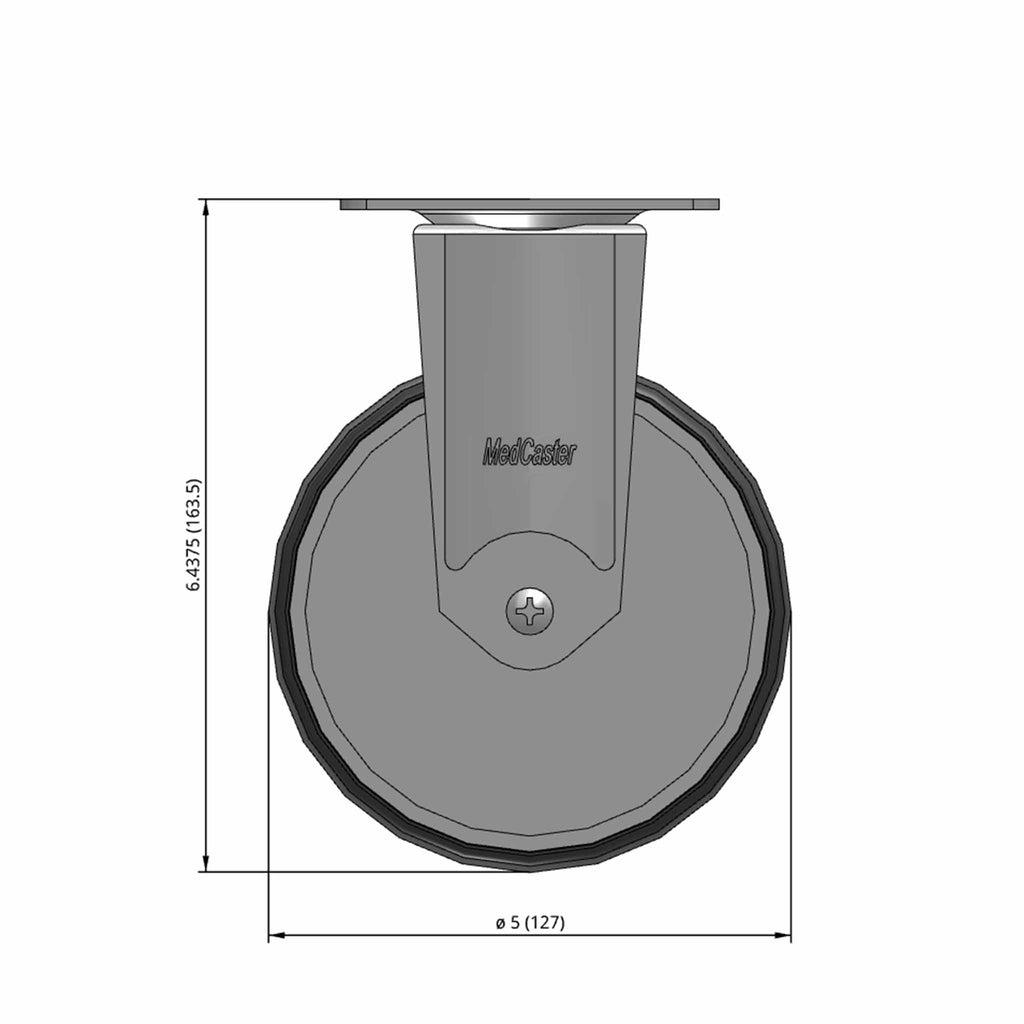

Mounting Height: 6.44 in
Operating Temperature Range: -30F° to +210F°
Warranty: 1 year
Conformity: Tested to ANSI ICWM:2012 standards for capacity and durability
