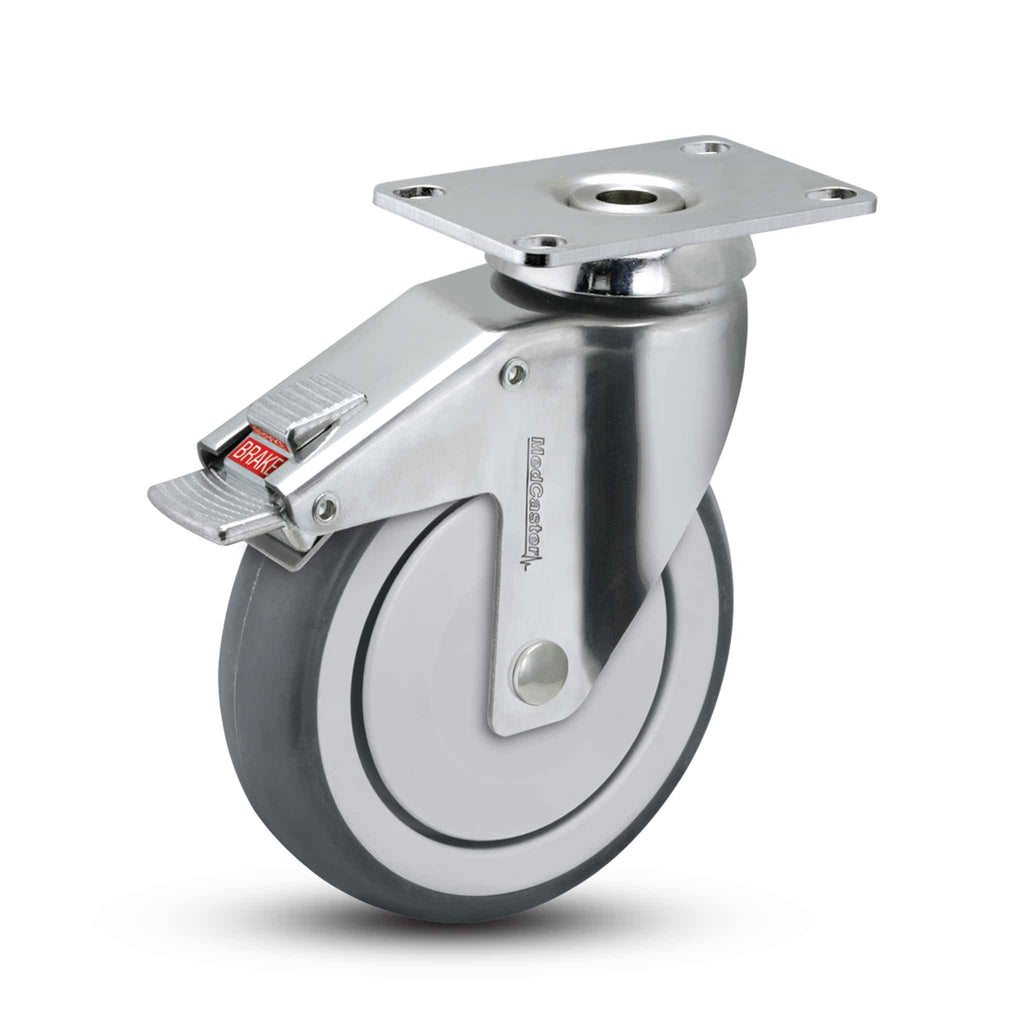

4"x1.25" Chrome Total Lock Plate Caster with Non-Marking TPR Wheel

Total Lock Brake
MedCaster Casters SKU: CH-04TPP-125-TL-TP01
No reviews

Request QuoteShop Similar Casters

Description

This chrome plated institutional caster provides a combination of value and performance that is unmatched by competitors. Using a dual ball raceway for easy swiveling, a heavy guage steel top plate and rig for durability, corrosion resistant chrome finish, and full thread guards, this caster will stand the test of time. This rigid caster features a 4" Thermoplastic (TPR) Rubber on Polypropylene Plastic wheel with an Integral Precision Ball Bearing for smooth rolling. The Thermoplastic (TPR) Rubber tread helps quiet operation and is resistant to debris pickup. The Total Lock Brake provides both wheel locking and swivel locking, making the cart stay in one spot. These are perfect for use as medical casters on medical equipment.

SKU
CH-04TPP-125-TL-TP01
Part Number
CH32TRB40S-TLB-49
Series
CH32 - Chrome Hosp. (to 260 lb/ea)
Caster Type
Swivel
Raceway Type
Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake
Total Lock
Load Capacity
240 lb
Wheel Diameter
4 in

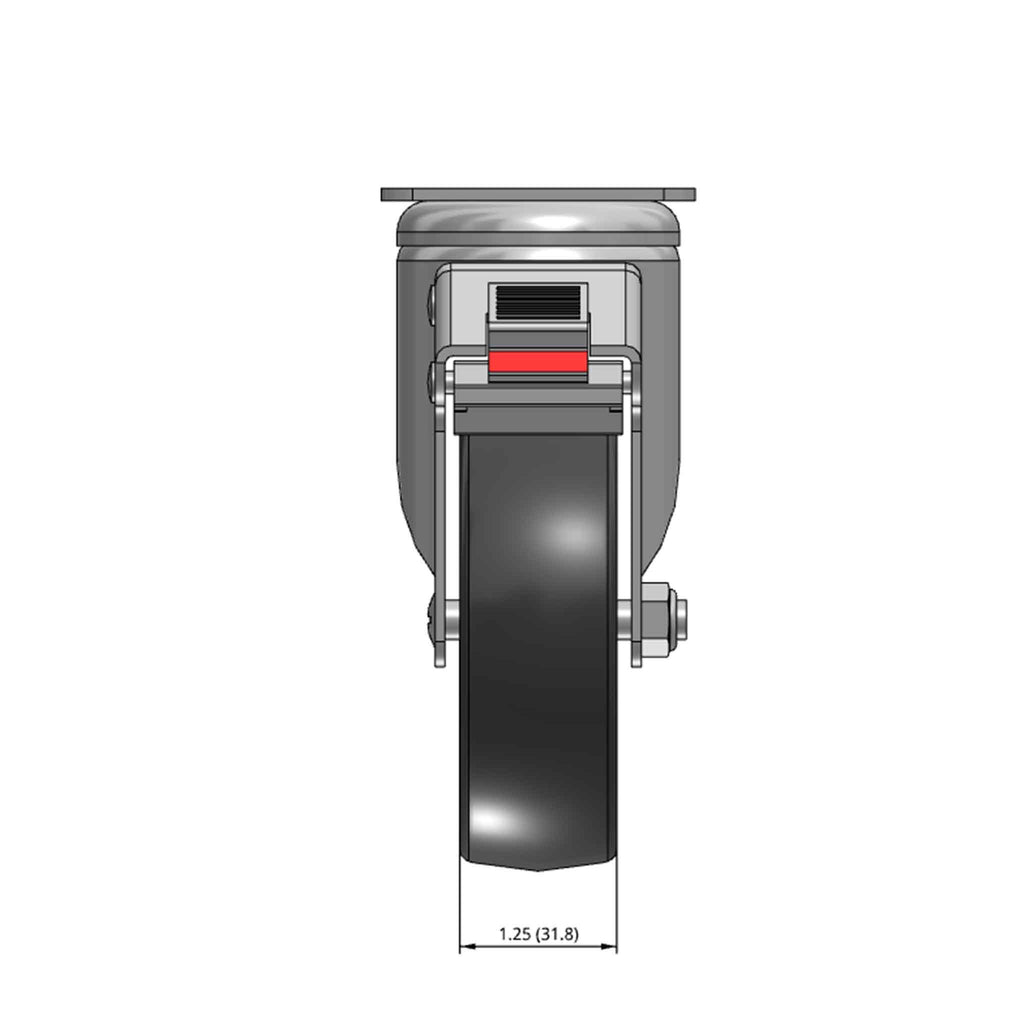

Wheel Tread Width
1.25 in
Wheel Description
Thermoplastic Rubber
Wheel Color
Grey on Grey
Wheel Bearing
Precision Ball
Wheel Profile
Slight Crown
Wheel Hardness
85(+/-5) Shore A
Wheel Thread Guards
Full Thread Guards

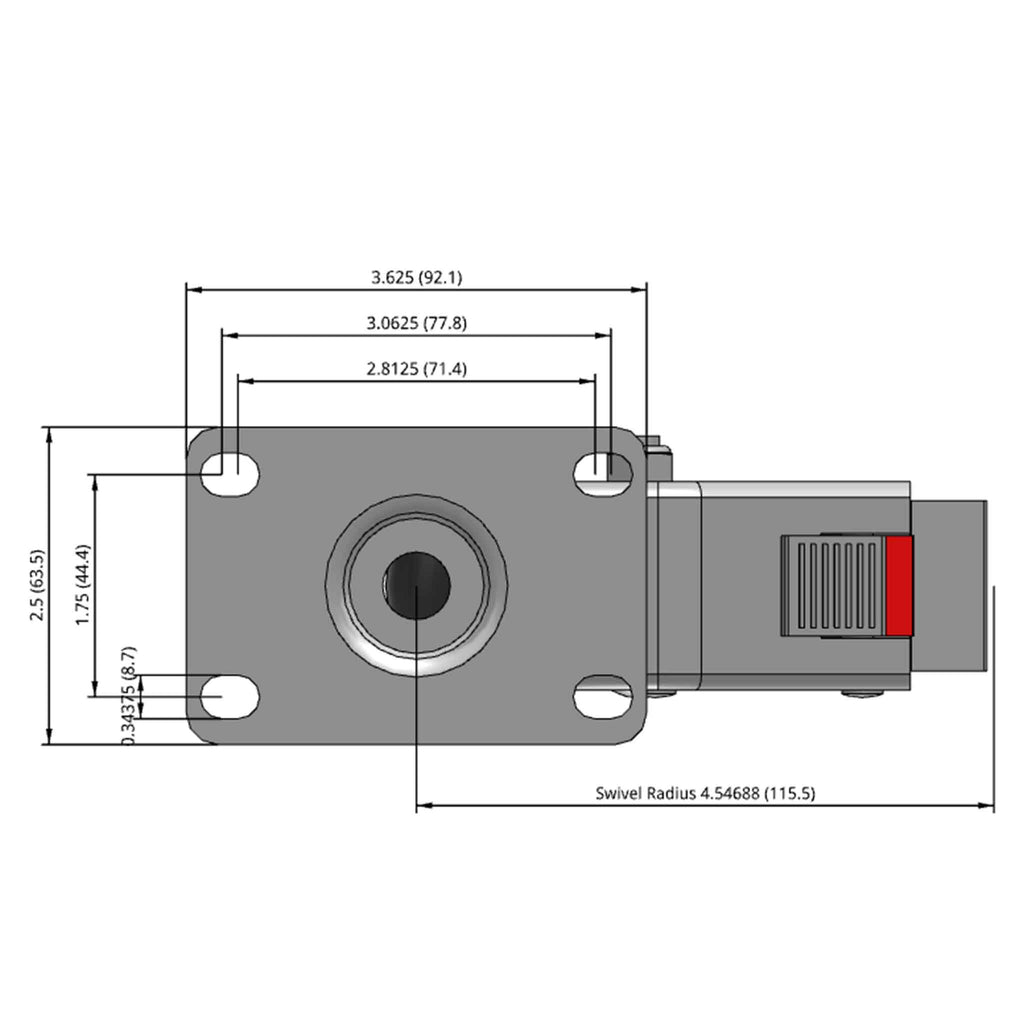

Fastening
2-1/2" x 3-5/8" top plate
Bolt Hole Pattern
1-3/4" x 2-13/16" to 3-1/16"
Bolt Size Recommended
5/16"

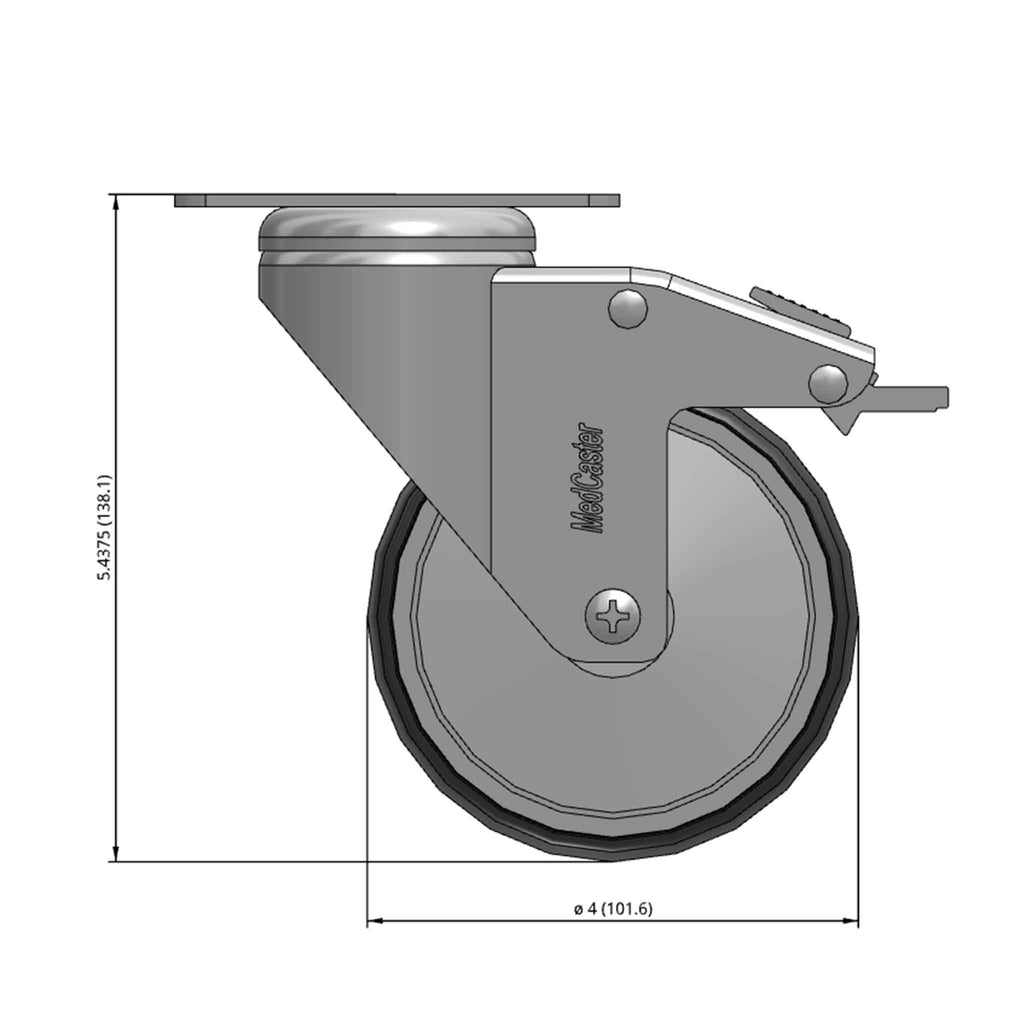

Mounting Height
5.44 in
Swivel Radius
4.55 in
Operating Temperature Range
-30F° to +210F°
Warranty
1 year
Manufacturing Number
CH-04TPP-125-TL-TP01
Conformity
Tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Download
