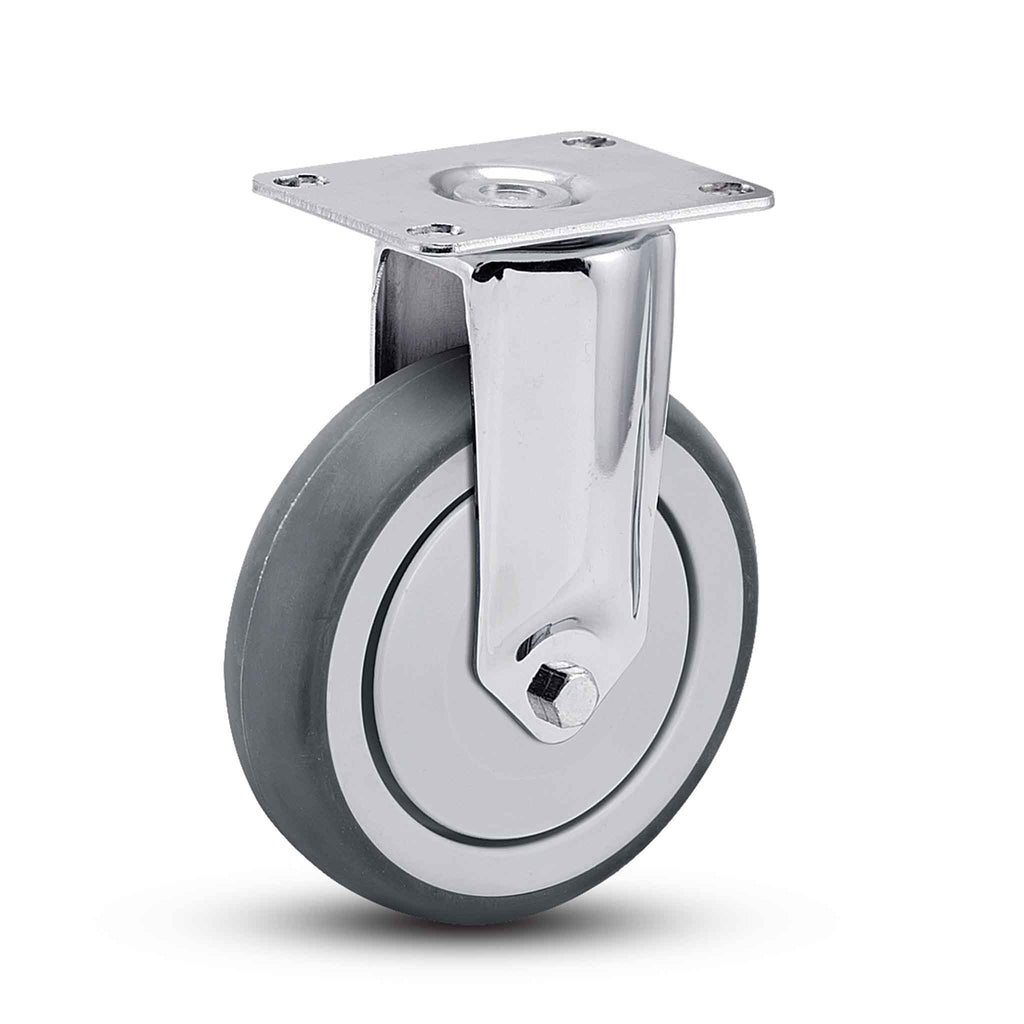

Main view of a MedCaster Casters 4" x 1.25" wide wheel Rigid caster with 2-1/2" x 3-5/8" top plate, without a brake, Thermoplastic Rubber wheel and 240 lb. capacity part

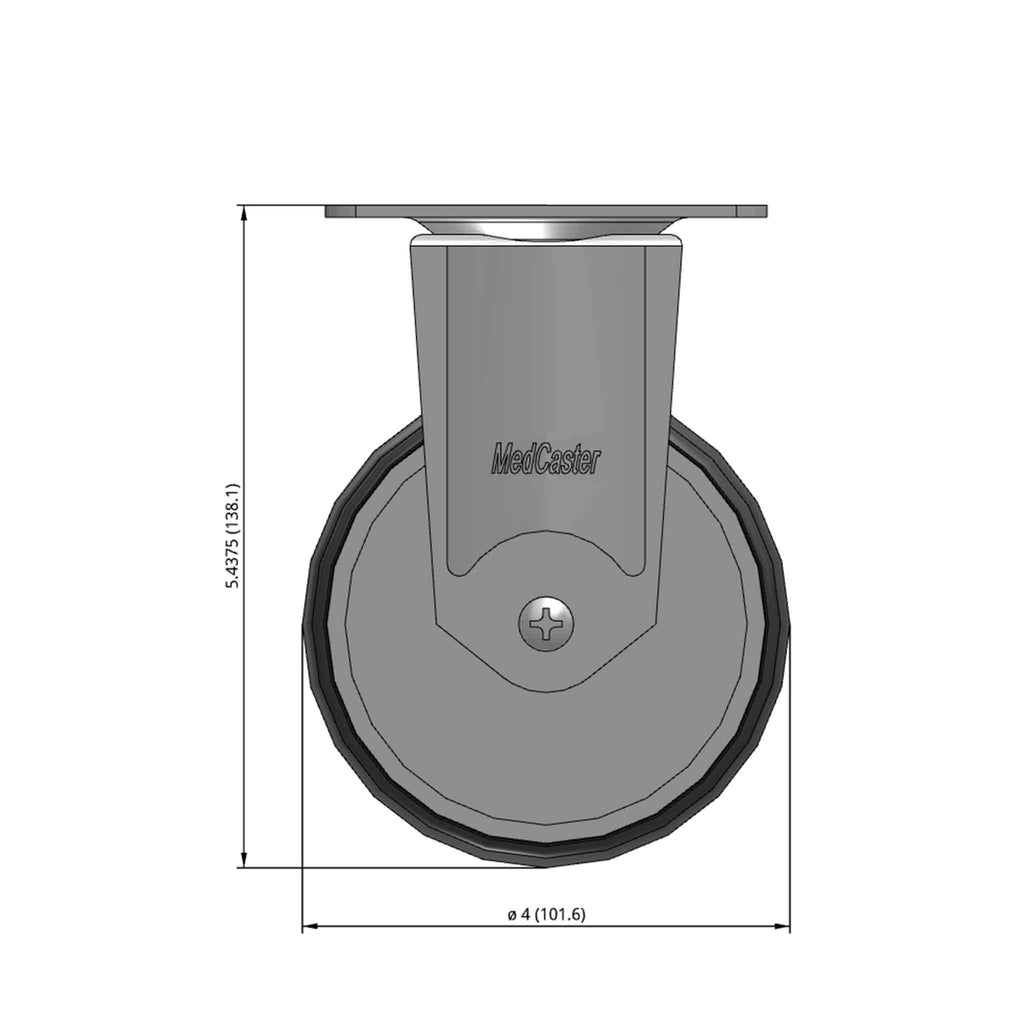

Front dimensioned CAD view of a MedCaster Casters 4" x 1.25" wide wheel Rigid caster with 2-1/2" x 3-5/8" top plate, without a brake, Thermoplastic Rubber wheel and 240 lb. capacity part

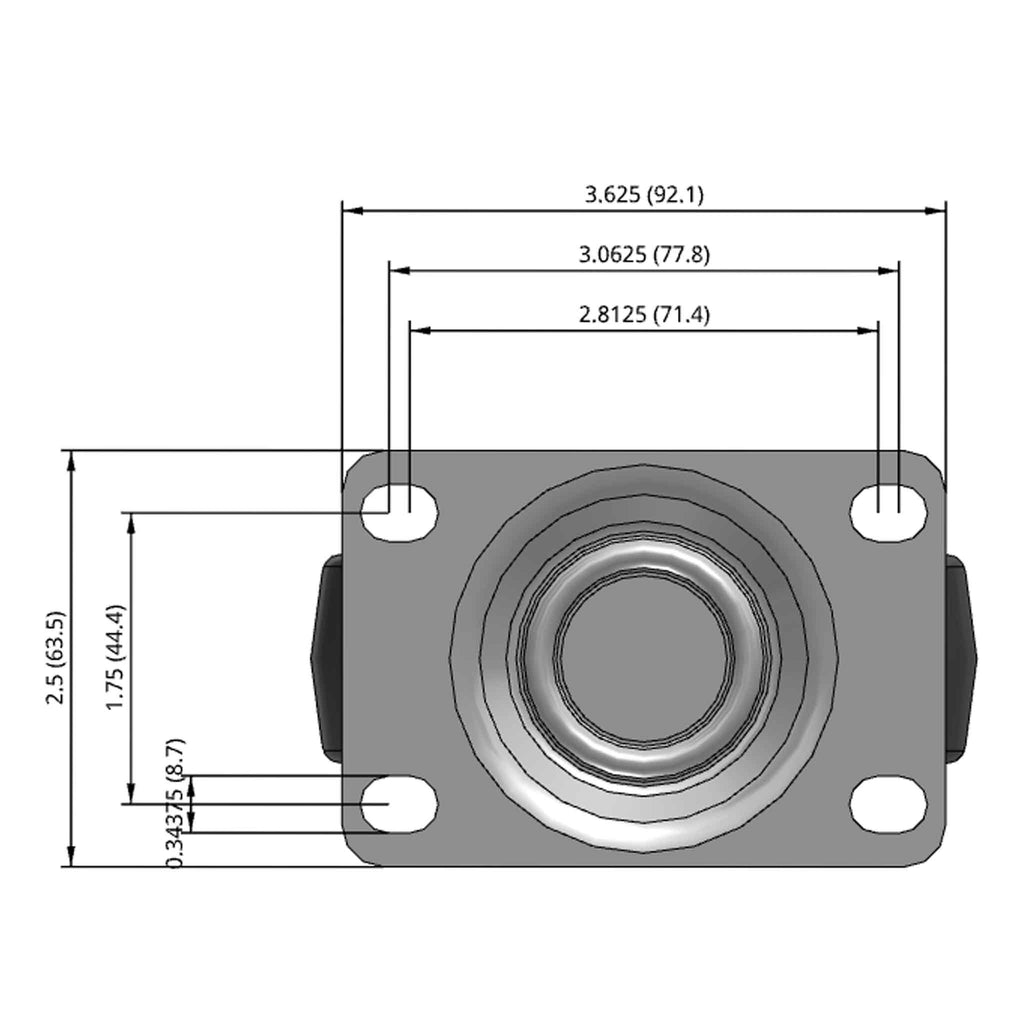

Top dimensioned CAD view of a MedCaster Casters 4" x 1.25" wide wheel Rigid caster with 2-1/2" x 3-5/8" top plate, without a brake, Thermoplastic Rubber wheel and 240 lb. capacity part

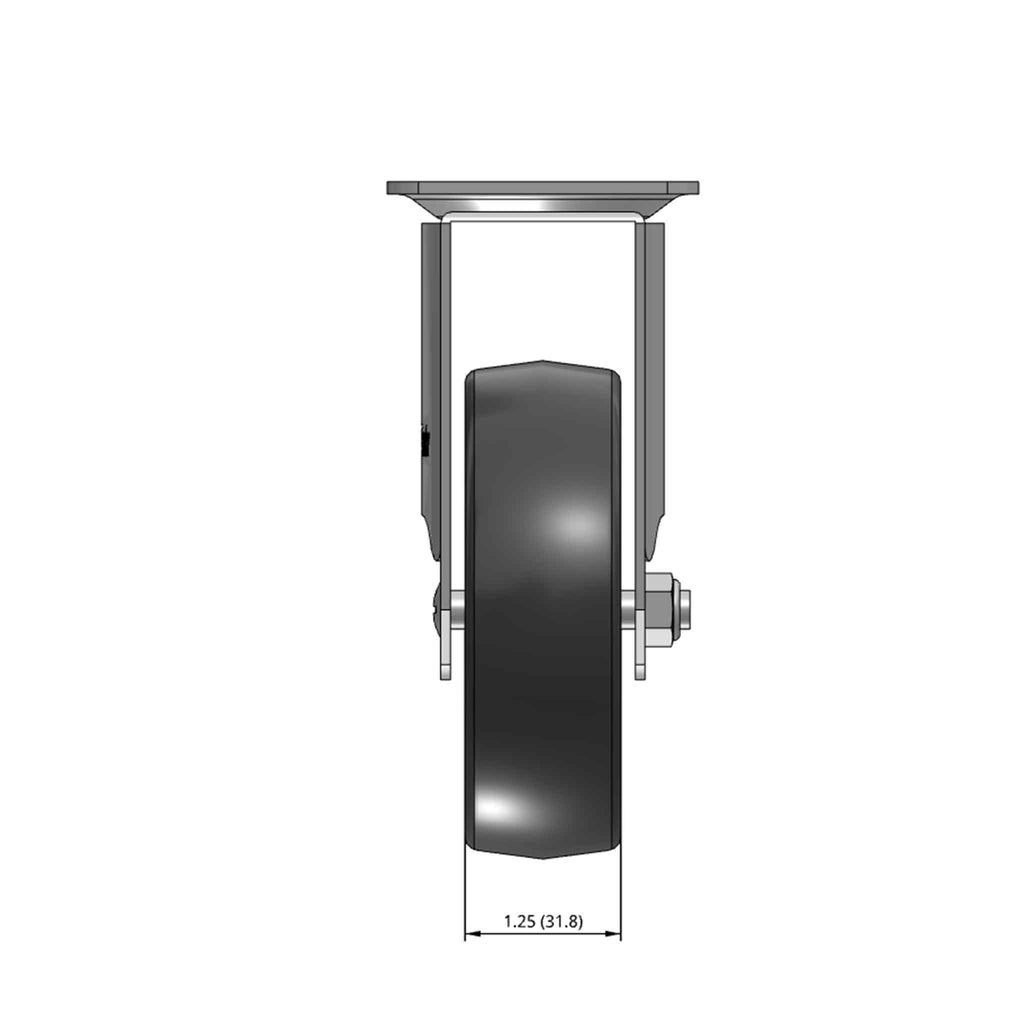

Side dimensioned CAD view of a MedCaster Casters 4" x 1.25" wide wheel Rigid caster with 2-1/2" x 3-5/8" top plate, without a brake, Thermoplastic Rubber wheel and 240 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x1.25" Chrome Rigid Plate Caster with Non-Marking Quiet TPR Wheel

Name: 4"x1.25" Chrome Rigid Plate Caster with Non-Marking Quiet TPR Wheel
Brand: MedCaster Casters
SKU: CH-04TPP-125-RG-TP01
Price: 26.15 USD
Availability: InStock

MedCaster Casters SKU: CH-04TPP-125-RG-TP01
Fastening: 2-1/2" x 3-5/8" top plate | Load Capacity: 240 lb
Mount Height: 5.44 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$26.15 $27.53

Quantity:

Share this product

This chrome plated institutional caster provides a combination of value and performance that is unmatched by competitors. Using a dual ball raceway for easy swiveling, a heavy guage steel top plate and rig for durability, corrosion resistant chrome finish, and full thread guards, this caster will stand the test of time. This rigid caster features a 4" Thermoplastic (TPR) Rubber on Polypropylene Plastic wheel with an Integral Precision Ball Bearing for smooth rolling. The Thermoplastic (TPR) Rubber tread helps quiet operation and is resistant to debris pickup. These are perfect for use as medical casters on medical equipment.

Part Number:	CH32TRB40R-49
SKU	CH-04TPP-125-RG-TP01
Series:	CH32 - Chrome Hosp. (to 260 lb/ea)
Raceway Type:	Rigid Construction
Brake:	None
Load Capacity:	240 lb
Mounting Height:	5.44 in
Wheel Diameter:	4 in
Wheel Tread Width:	1.25 in
Wheel Description:	Thermoplastic Rubber
Wheel Color:	Grey on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Slight Crown
Wheel Hardness:	85(+/-5) Shore A
Wheel Thread Guards:	Full Thread Guards
Fastening:	2-1/2" x 3-5/8" top plate
Bolt Hole Pattern:	1-3/4" x 2-13/16" to 3-1/16"
Plate Bolt Size Recommended:	5/16"
Finish:	Chrome
Axle Size:	5/16" diameter
Operating Temperature Range:	-30F° to +210F°
Mfg:	CH-04TPP-125-RG-TP01
Warranty:	1 year
Conformity:	Tested to ANSI ICWM:2012 standards for capacity and durability

4"x1.25" Chrome Rigid Plate Caster with Non-Marking Quiet TPR Wheel

Description

Product Details

Part Number:

CH32TRB40R-49

SKU

CH-04TPP-125-RG-TP01

Series:

CH32 - Chrome Hosp. (to 260 lb/ea)

Raceway Type:

Rigid Construction

Brake:

None

Load Capacity:

240 lb

Mounting Height:

5.44 in

Wheel Diameter:

4 in

Wheel Tread Width:

1.25 in

Wheel Description:

Thermoplastic Rubber

Wheel Color:

Grey on Grey

Wheel Bearing:

Precision Ball

Wheel Profile:

Slight Crown

Wheel Hardness:

85(+/-5) Shore A

Wheel Thread Guards:

Full Thread Guards

Fastening:

2-1/2" x 3-5/8" top plate

Bolt Hole Pattern:

1-3/4" x 2-13/16" to 3-1/16"

Plate Bolt Size Recommended:

5/16"

Finish:

Chrome

Axle Size:

5/16" diameter

Operating Temperature Range:

-30F° to +210F°

Mfg:

CH-04TPP-125-RG-TP01

Warranty:

1 year

Conformity:

Tested to ANSI ICWM:2012 standards for capacity and durability
