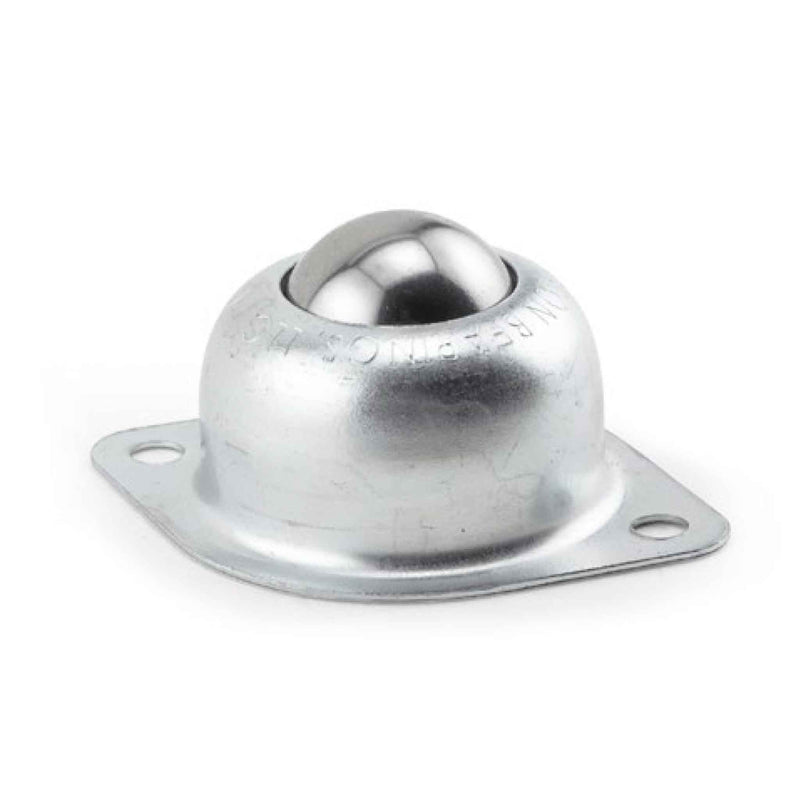

Made in the USA, Hudson Bearings' BT 1CS features a 1" main ball that rotates on eighty (80) 1/8" support balls. The ball support cup is machine formed, hardened and plated, integral protective cover assures low torque and long life.
Series: Ball Transfers
Mfg. SKU: BT 1 CS
Fastening Type: Flange with 2 Holes
Height: 1-3/16" above table
Load Capacity: 75 lb
Ball Size: 1" steel ball
Fastening: 2" x 2-3/4" flange
Bolt Hole Pattern: 2-3/16" center to center
Bolt Size Recommended: 3/16"
Construction: Two-Hole, Flange Mounted, All-Steel
Material: Carbon Steel (available in stainless steel as well; contact us for details)
Finish: Zinc Plated
