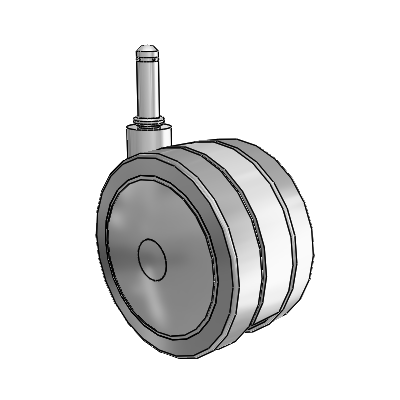

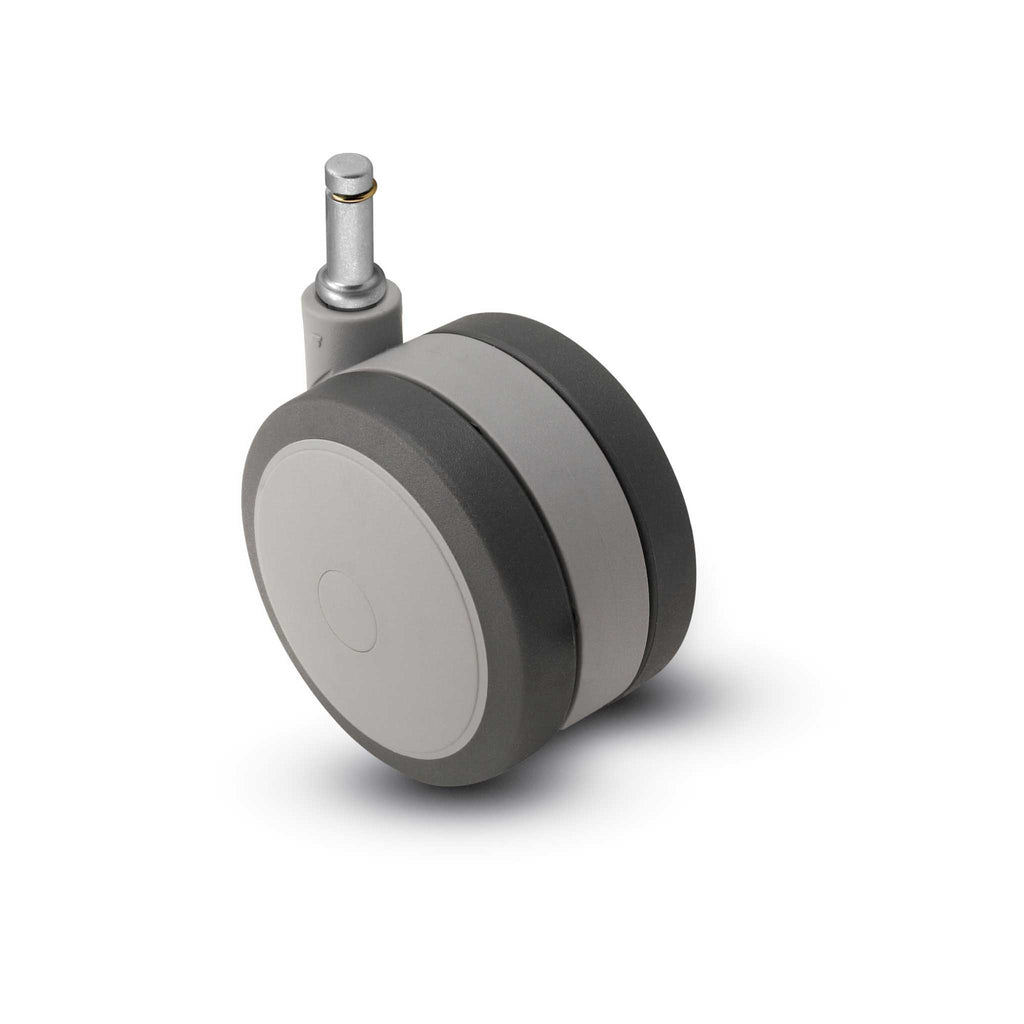

The MedCaster GT-04TPO-200-SW-GR02 swivel caster features a 4" x 2.25" wide wheel footprint and a 7/16" x 1-7/16" Grip Ring, capable of a 225 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. GT Series twin wheels are an economical, high-load capacity grey twin wheel that is ideal for equipment not requiring a total lock brake. The soft, non-marking grey treads are constructed from a thermoplastic elastomer to greatly reduce the noise vs. traditional nylon or polyurethane tread twin wheels. The wheels are then attached by a riveted axle to ensure that they cannot detach under load, unlike many other cheaper twin wheels that only use friction to hold the wheels onto the axle. A top locking brake pedal is also easy to access to lock the wheels.
• Soft 70-75/A durometer tread constructed of high-tech thermoplastic elastomer
• Quiet mobility
• High load ratings
• Riveted axle for positive wheel retention
SKU
|
GT-04TPO-200-SW-GR02
|
Part Number
|
PSF100211GR
|
Caster Type
|
Swivel
|
Raceway Type
|
Pintle
|
Brake
|
None
|
Load Capacity
|
225 lb
|
Wheel Tread Width
|
2.25 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey on Grey
|
Wheel Bearing
|
Plain
|
Wheel Thread Guards
|
None
|
Fastening
|
7/16" x 1-7/16" Grip Ring
|
Mounting Height
|
4.38 in
|
Swivel Radius
|
3.63 in
|
Warranty
|
1 year
|
Manufacturing Number
|
GT-04TPO-200-SW-GR02
|
