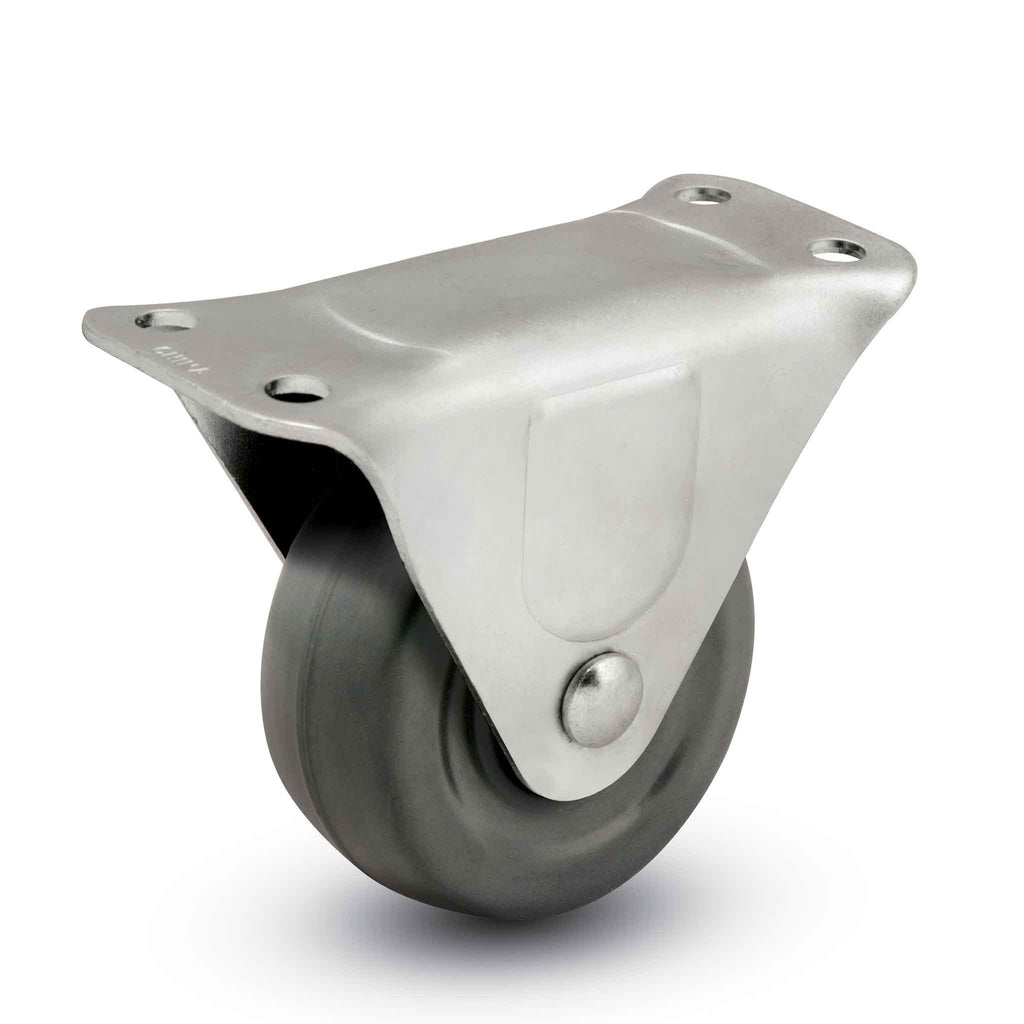

Main view of a Faultless Casters 2.5" x 1.125" wide wheel Rigid caster with 2-1/4" x 4-7/16" top plate, without a brake, Soft Rubber wheel and 100 lb. capacity part
Roll over to zoom; image may be representative for size Click on image to zoom
Main view of a Faultless Casters 2.5" x 1.125" wide wheel Rigid caster with 2-1/4" x 4-7/16" top plate, without a brake, Soft Rubber wheel and 100 lb. capacity part

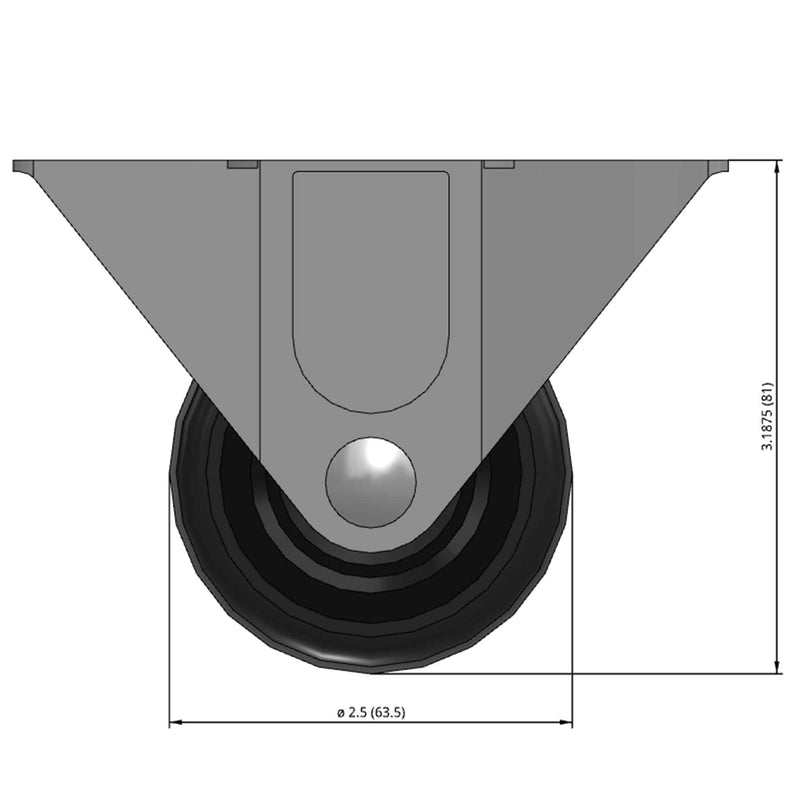

Front dimensioned CAD view of a Faultless Casters 2.5" x 1.125" wide wheel Rigid caster with 2-1/4" x 4-7/16" top plate, without a brake, Soft Rubber wheel and 100 lb. capacity part

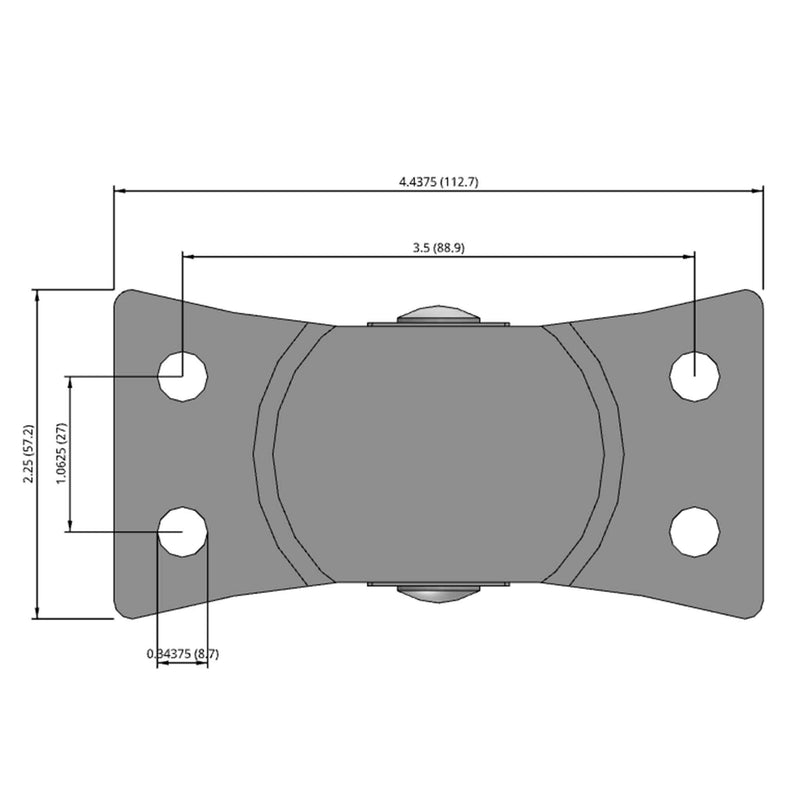

Top dimensioned CAD view of a Faultless Casters 2.5" x 1.125" wide wheel Rigid caster with 2-1/4" x 4-7/16" top plate, without a brake, Soft Rubber wheel and 100 lb. capacity part

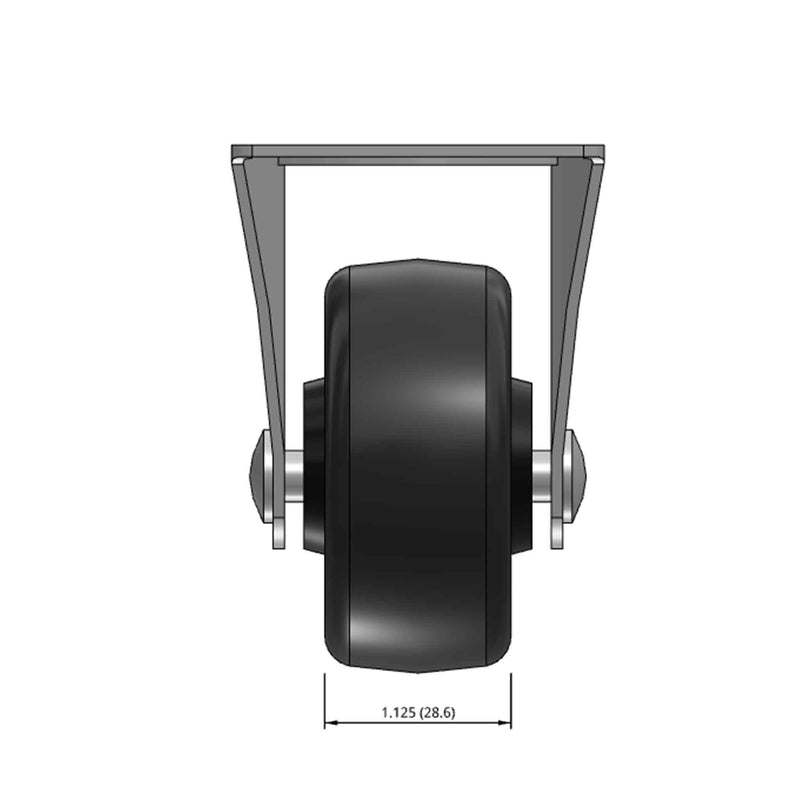

Side dimensioned CAD view of a Faultless Casters 2.5" x 1.125" wide wheel Rigid caster with 2-1/4" x 4-7/16" top plate, without a brake, Soft Rubber wheel and 100 lb. capacity part

2.5" Soft Rubber Wheel General-Duty Rigid Plate Caster

Faultless Casters SKU: 521-2 1/2R
Fastening: 2-1/4" x 4-7/16" top plate | Load Capacity: 100 lb
Mount Height: 3.19 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-3 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$9.51

Description

This 2-1/2" x 1-1/8" soft rubber general duty rigid dolly caster provides a quieter, cushioned ride for more sensative loads or environments.Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Product Details

Part Number:
30SRP25R
SKU
521-2 1/2R
Series:
30 Series
Raceway Type:
Rigid Construction
Brake:
None
Load Capacity:
100 lb
Mounting Height:
3.19 in
Wheel Diameter:
2.5 in
Wheel Tread Width:
1.13 in
Wheel Description:
Soft Rubber
Wheel Color:
Black
Wheel Bearing:
Plain
Wheel Profile:
Flat with Rounded Edges
Wheel Hardness:
75(+/-5) Shore A
Wheel Thread Guards:
None
Fastening:
2-1/4" x 4-7/16" top plate
Bolt Hole Pattern:
1-1/16" x 3-1/2"
Plate Bolt Size Recommended:
5/16"
Finish:
Zinc Plated
Axle Size:
5/16" diameter
Operating Temperature Range:
-40F° to +158F°
Mfg:
521-2 1/2R
Warranty:
1 year
Conformity:
Tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
