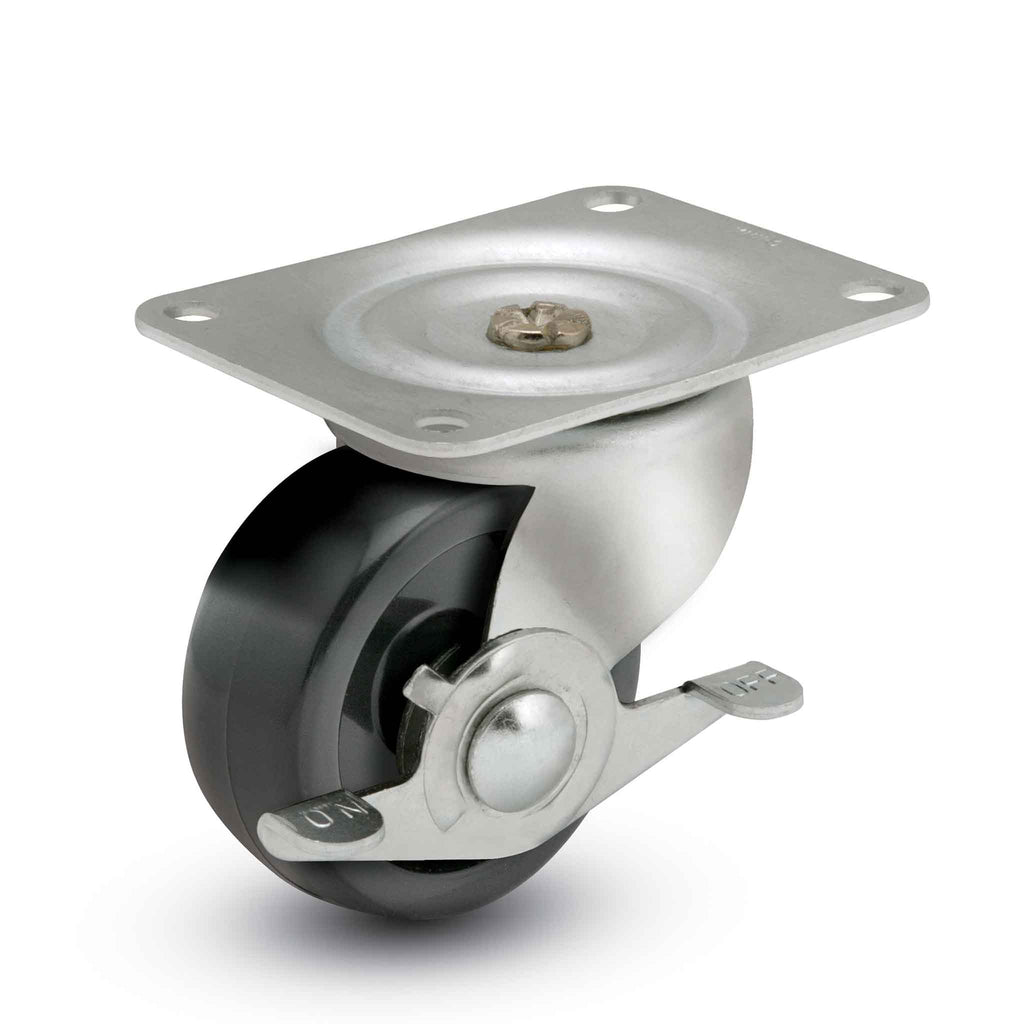

Main view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, with a side locking brake, Polypropylene wheel and 350 lb. capacity part

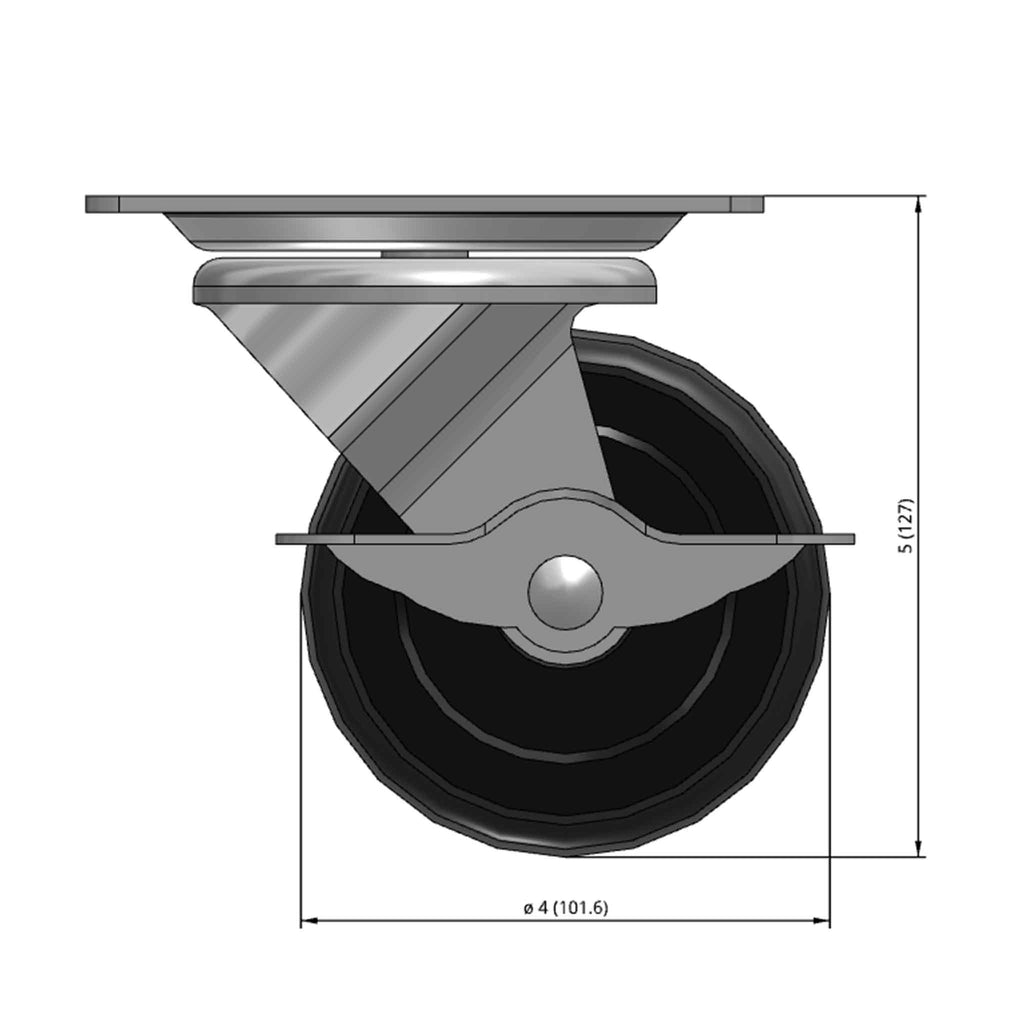

Front dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, with a side locking brake, Polypropylene wheel and 350 lb. capacity part

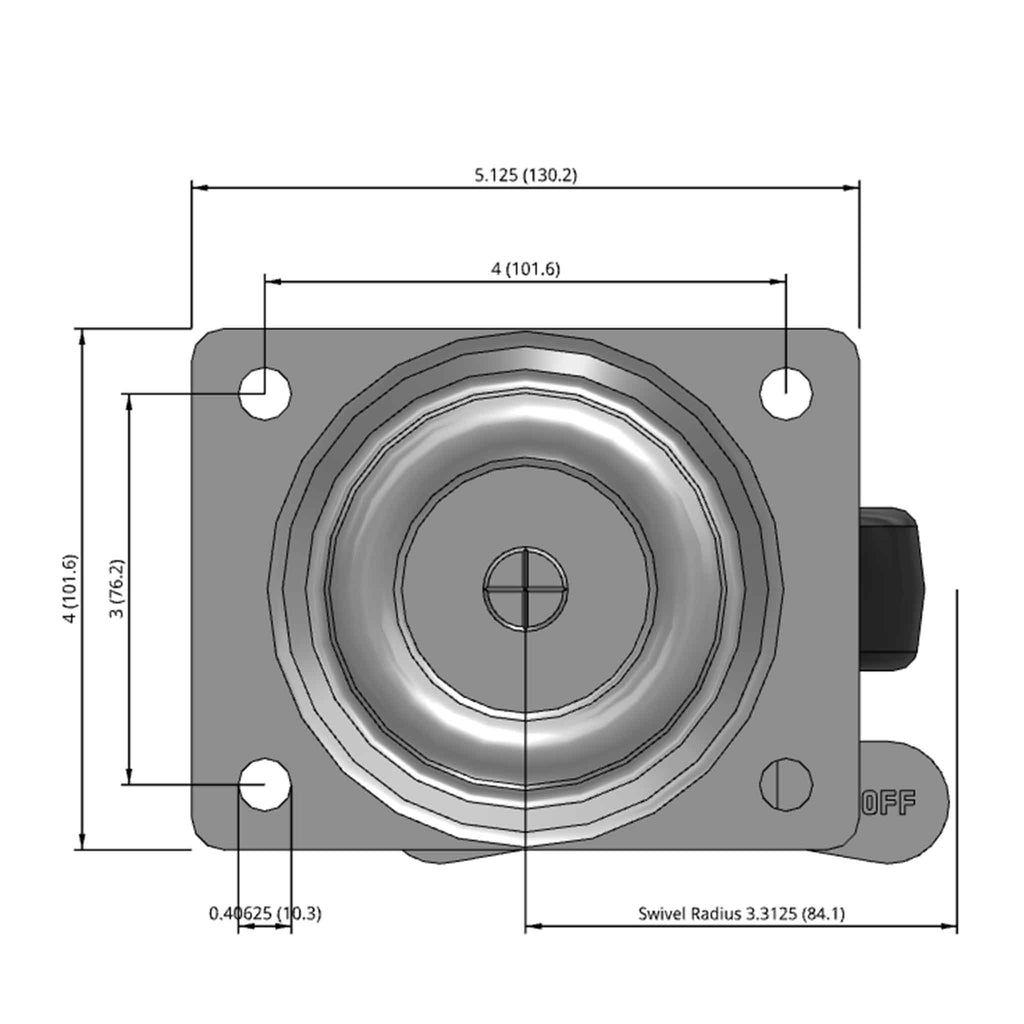

Top dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, with a side locking brake, Polypropylene wheel and 350 lb. capacity part

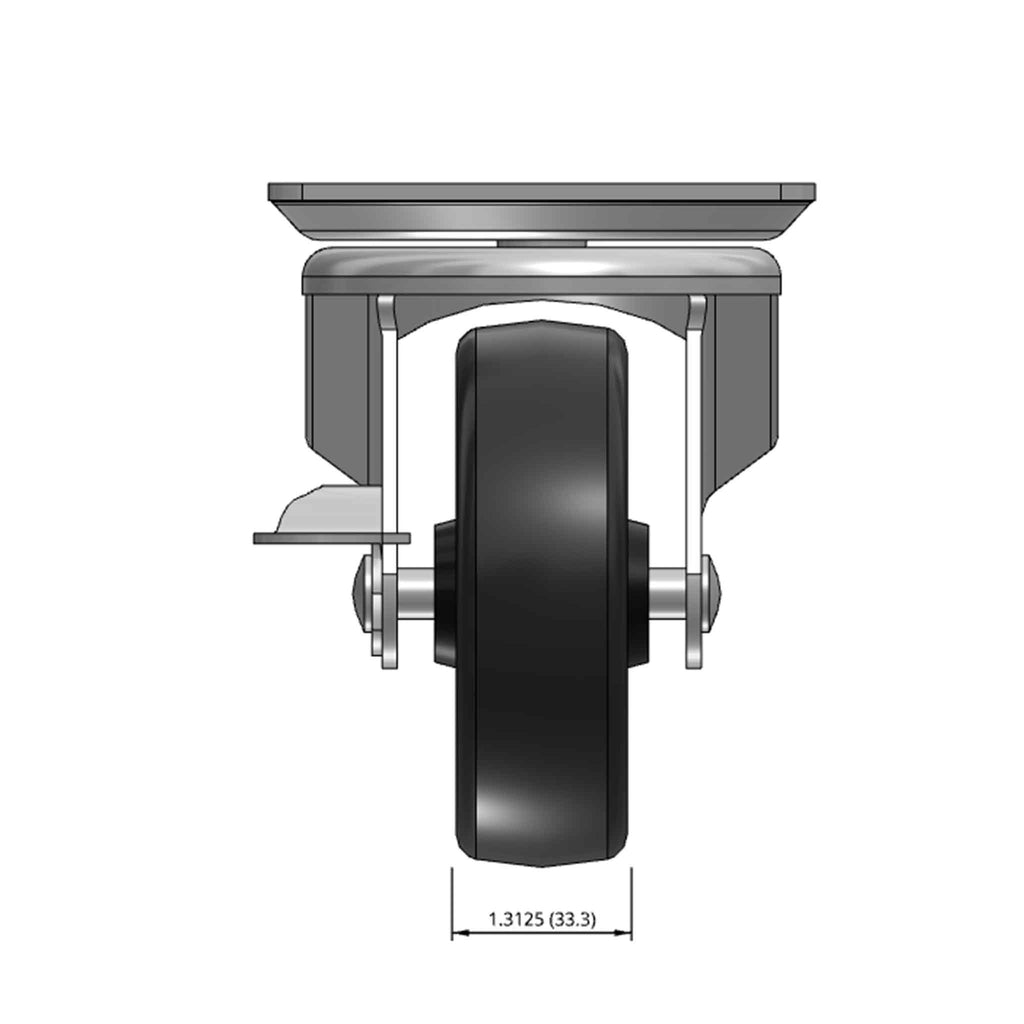

Side dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, with a side locking brake, Polypropylene wheel and 350 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4" Polypropylene Wheel General-Duty Swivel Plate Caster with Brake

Name: 4" Polypropylene Wheel General-Duty Swivel Plate Caster with Brake
Brand: Faultless Casters
SKU: 160-4SB
Price: 19.94 USD
Availability: InStock

Faultless Casters SKU: 160-4SB
Fastening: 4" x 5-1/8" top plate | Load Capacity: 350 lb
Mount Height: 5 in | Swivel Radius: 3.31 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-3 days **FREE Shipping on orders over $250**

Price:

$19.94 $20.99

Quantity:

Share this product

This 4" x 1-3/8" polypropylene general duty swivel dolly caster with cam brake is ideal for wash-down and wet environments. Polypropylene is non-reactive and non-marking.Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Part Number:	30POP40S-CB
SKU	160-4SB
Series:	30 Series
Raceway Type:	Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway
Brake:	Side Brake
Load Capacity:	350 lb
Mounting Height:	5 in
Wheel Diameter:	4 in
Wheel Tread Width:	1.31 in
Wheel Description:	Polypropylene
Wheel Color:	Black
Wheel Bearing:	Plain
Wheel Profile:	Flat Tread
Wheel Hardness:	60(+/-5) Shore D
Wheel Thread Guards:	None
Fastening:	4" x 5-1/8" top plate
Bolt Hole Pattern:	3" x 4"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	3.31 in
Finish:	Zinc Plated
Axle Size:	7/16" diameter
Operating Temperature Range:	-20F° to +180F°
Mfg:	160-4SB
Warranty:	1 year
Conformity:	Tested to ANSI ICWM:2012 standards for capacity and durability

4" Polypropylene Wheel General-Duty Swivel Plate Caster with Brake

Description

Product Details

Part Number:

30POP40S-CB

SKU

160-4SB

Series:

30 Series

Raceway Type:

Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway

Brake:

Side Brake

Load Capacity:

350 lb

Mounting Height:

5 in

Wheel Diameter:

4 in

Wheel Tread Width:

1.31 in

Wheel Description:

Polypropylene

Wheel Color:

Black

Wheel Bearing:

Plain

Wheel Profile:

Flat Tread

Wheel Hardness:

60(+/-5) Shore D

Wheel Thread Guards:

None

Fastening:

4" x 5-1/8" top plate

Bolt Hole Pattern:

3" x 4"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

3.31 in

Finish:

Zinc Plated

Axle Size:

7/16" diameter

Operating Temperature Range:

-20F° to +180F°

Mfg:

160-4SB

Warranty:

1 year

Conformity:

Tested to ANSI ICWM:2012 standards for capacity and durability
