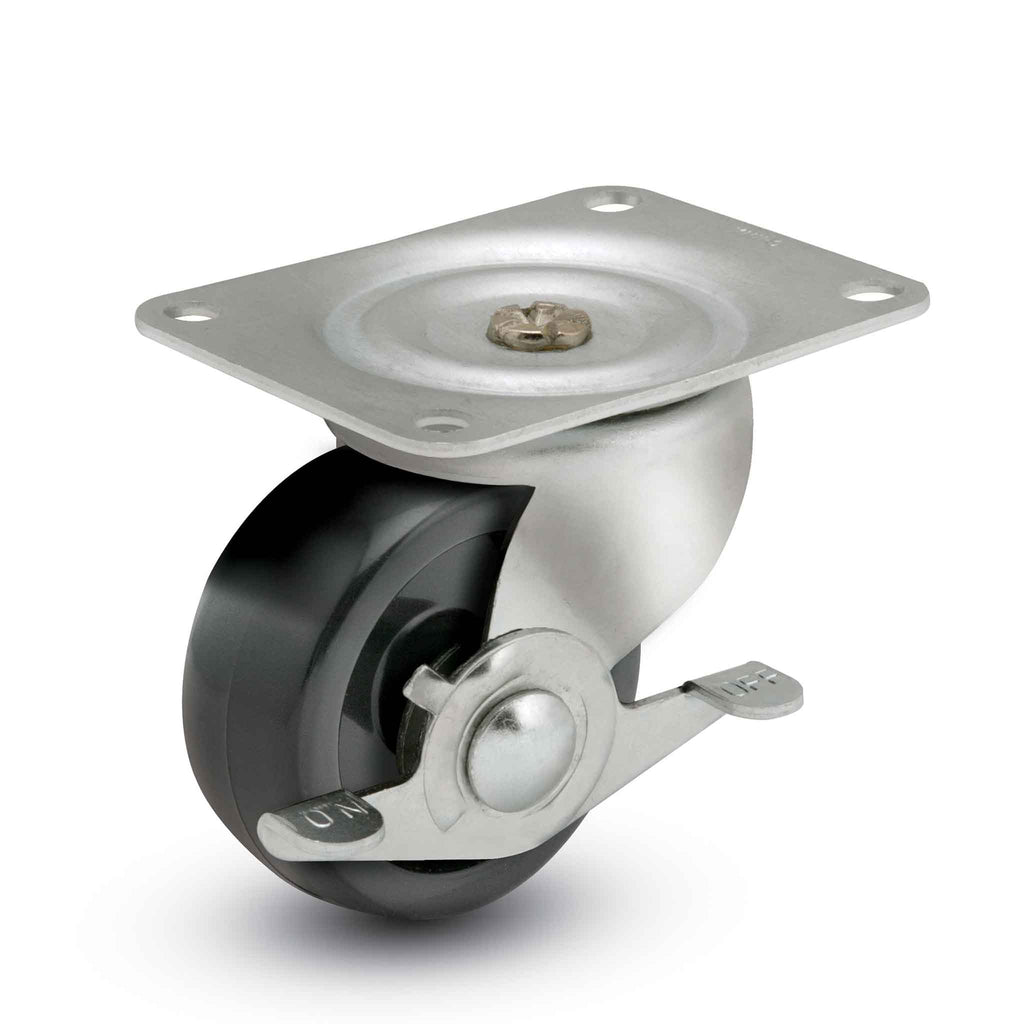

Main view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, with a side locking brake, Polypropylene wheel and 270 lb. capacity part

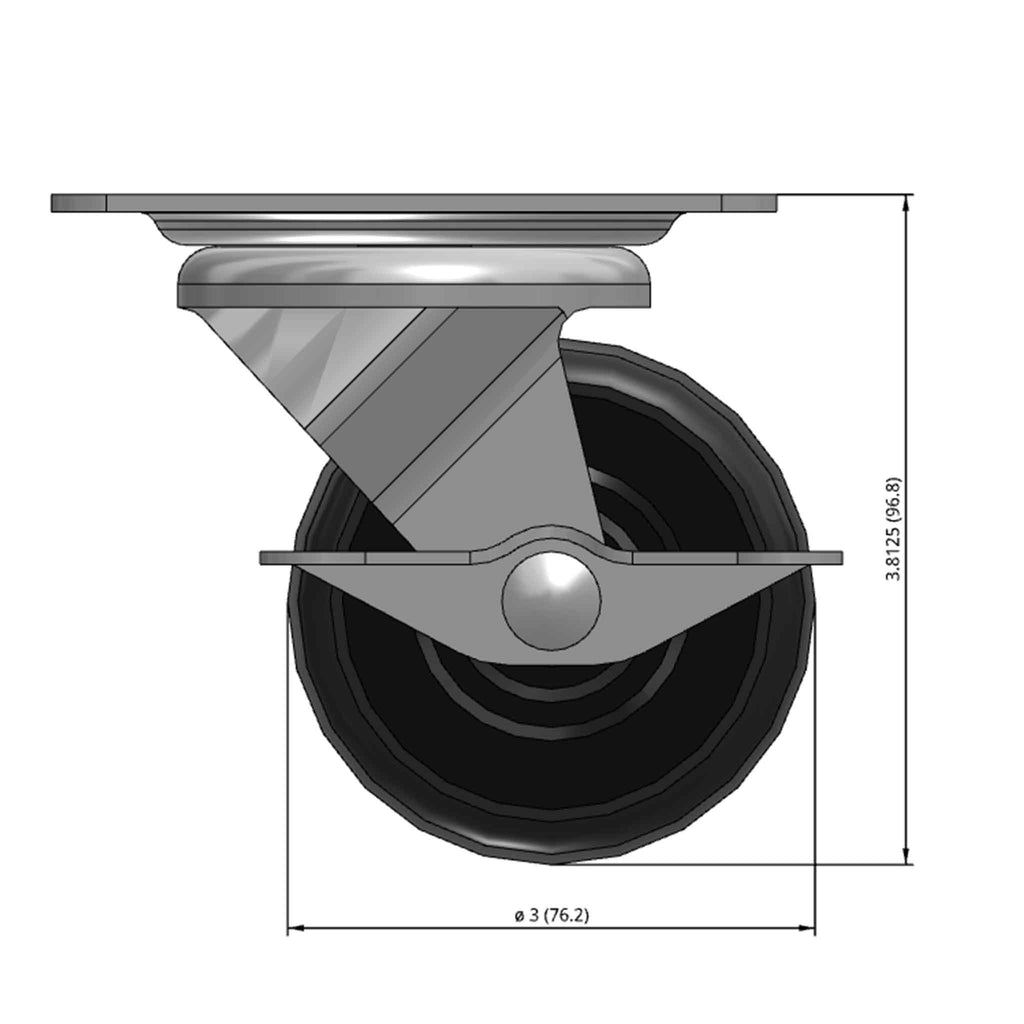

Front dimensioned CAD view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, with a side locking brake, Polypropylene wheel and 270 lb. capacity part

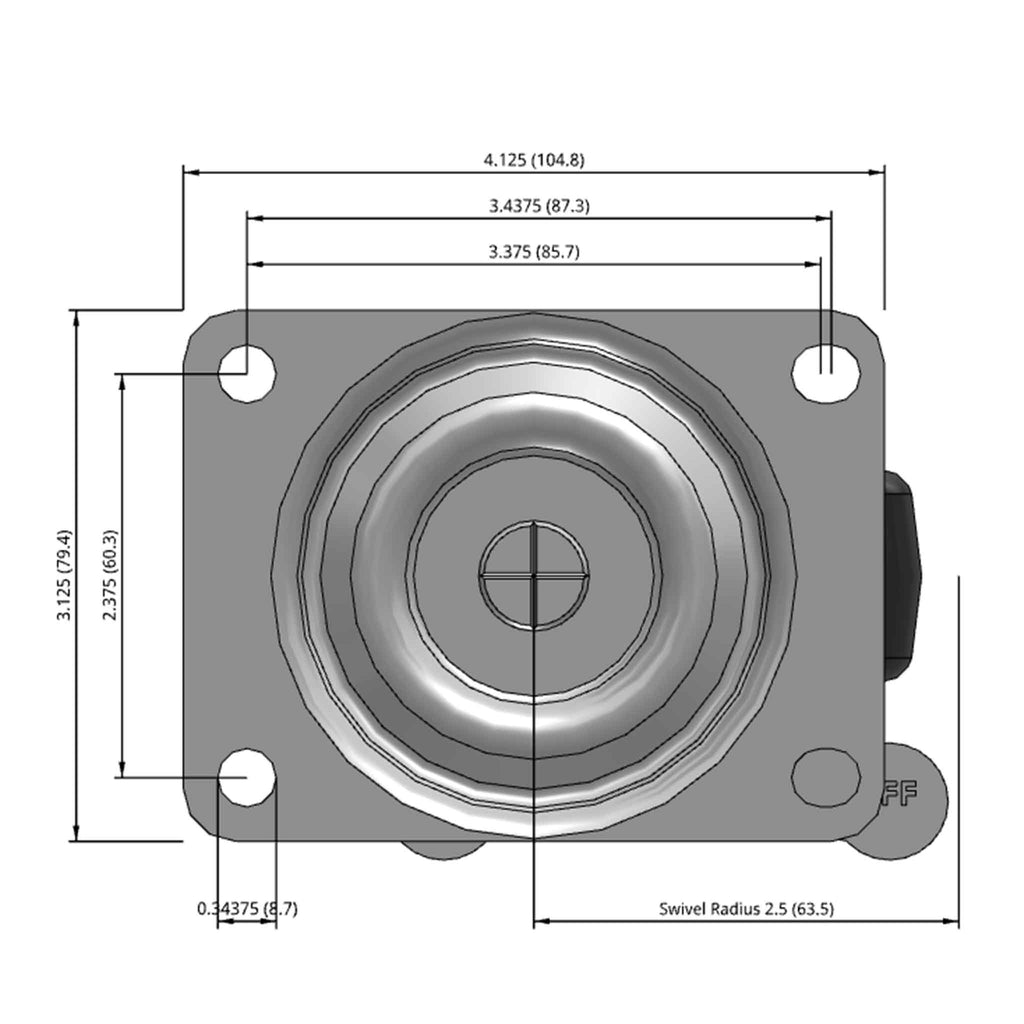

Top dimensioned CAD view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, with a side locking brake, Polypropylene wheel and 270 lb. capacity part

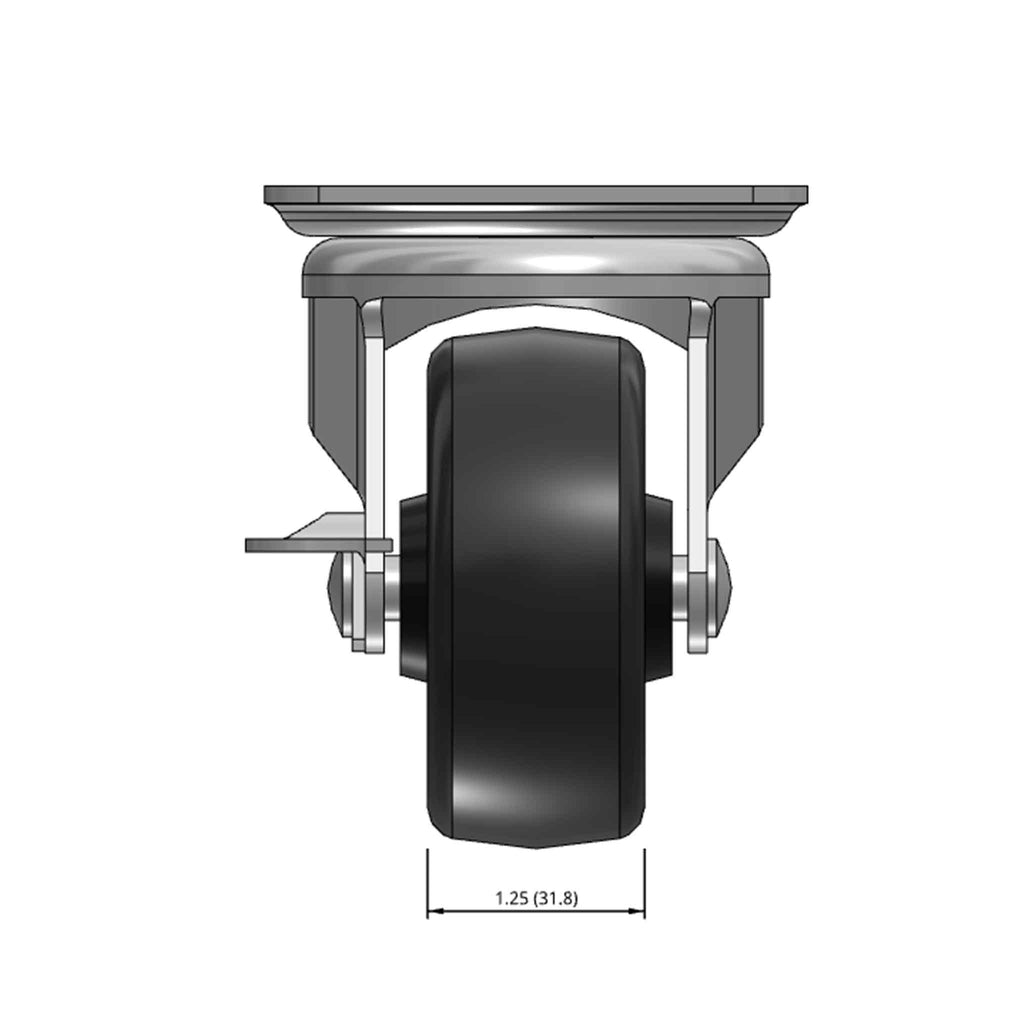

Side dimensioned CAD view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, with a side locking brake, Polypropylene wheel and 270 lb. capacity part

3" Polypropylene Wheel General-Duty Swivel Plate Caster with Brake

Faultless Casters SKU: 160-3SB
Fastening: 3-1/8" x 4-1/8" top plate | Load Capacity: 270 lb
Mount Height: 3.81 in | Swivel Radius: 2.5 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-3 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$16.54

Description

This 3" x 1-1/4" polypropylene general duty swivel dolly caster with cam brake is ideal for wash-down and wet environments. Polypropylene is non-reactive and non-marking. Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Product Details

Part Number:
30POP30S-CB
SKU
160-3SB
Series:
30 Series
Raceway Type:
Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway
Brake:
Side Brake
Load Capacity:
270 lb
Mounting Height:
3.81 in
Wheel Diameter:
3 in
Wheel Tread Width:
1.25 in
Wheel Description:
Polypropylene
Wheel Color:
Black
Wheel Bearing:
Plain
Wheel Profile:
Flat Tread
Wheel Hardness:
60(+/-5) Shore D
Wheel Thread Guards:
None
Fastening:
3-1/8" x 4-1/8" top plate
Bolt Hole Pattern:
2-3/8" x 3-3/8" to 3-7/16"
Plate Bolt Size Recommended:
5/16"
Swivel Radius:
2.5 in
Finish:
Zinc Plated
Axle Size:
3/8" diameter
Operating Temperature Range:
-20F° to +180F°
Mfg:
160-3SB
Warranty:
1 year
Conformity:
Tested to ANSI ICWM:2012 standards for capacity and durability
