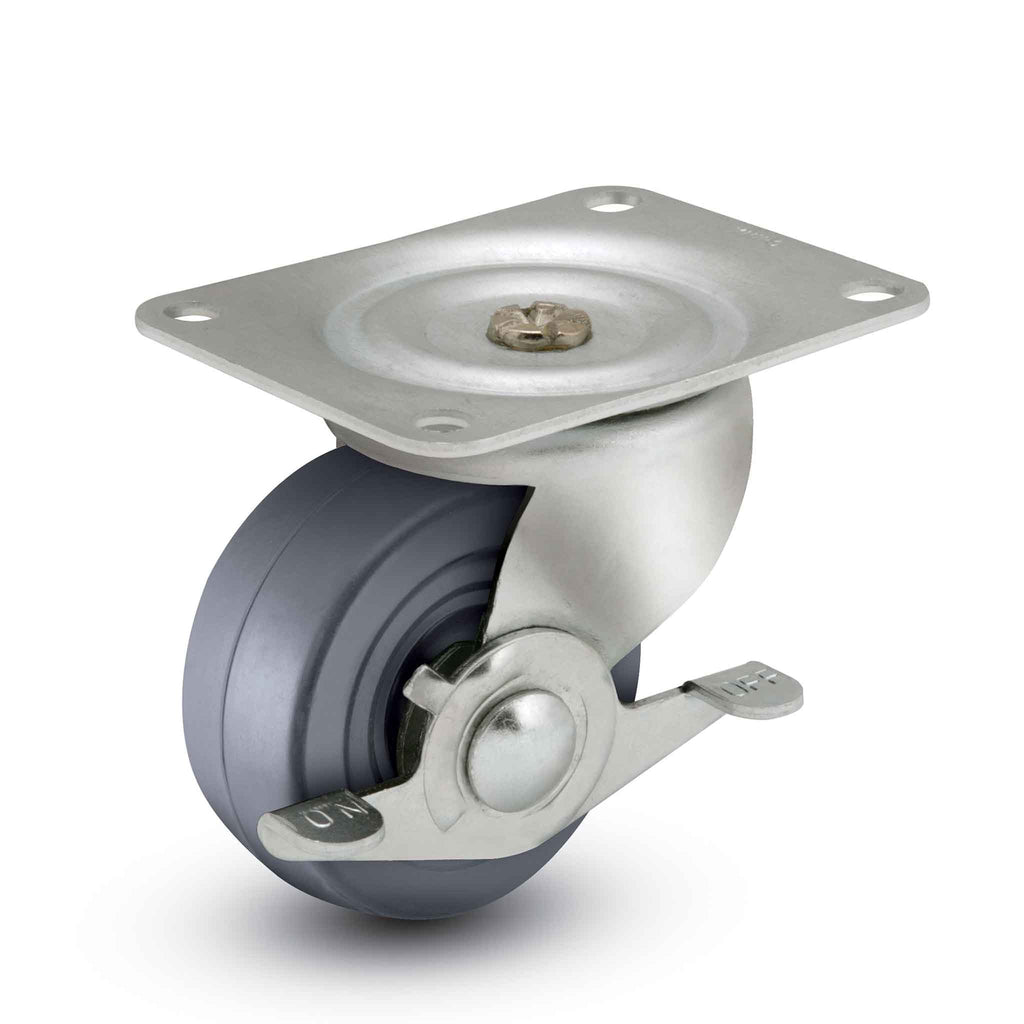

Main view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, with a side locking brake, Hard Rubber wheel and 150 lb. capacity part

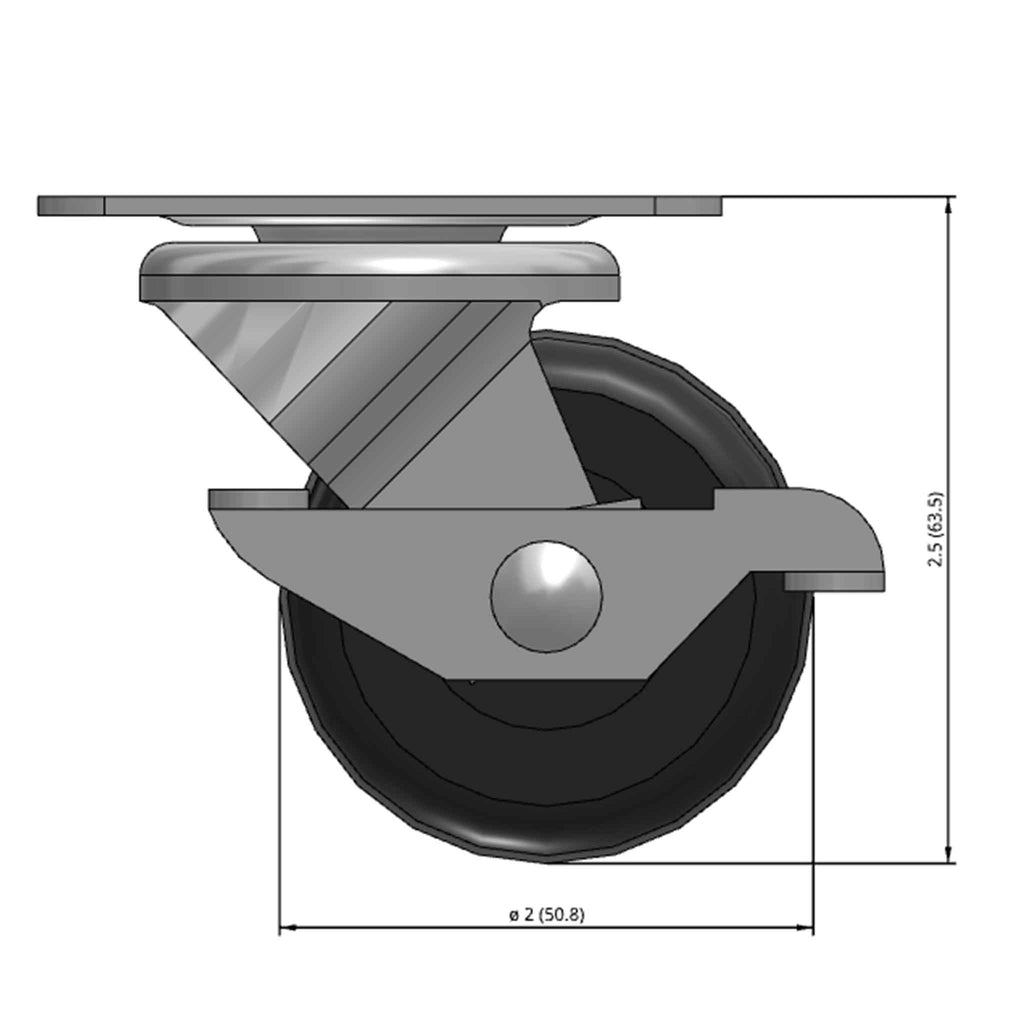

Front dimensioned CAD view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, with a side locking brake, Hard Rubber wheel and 150 lb. capacity part

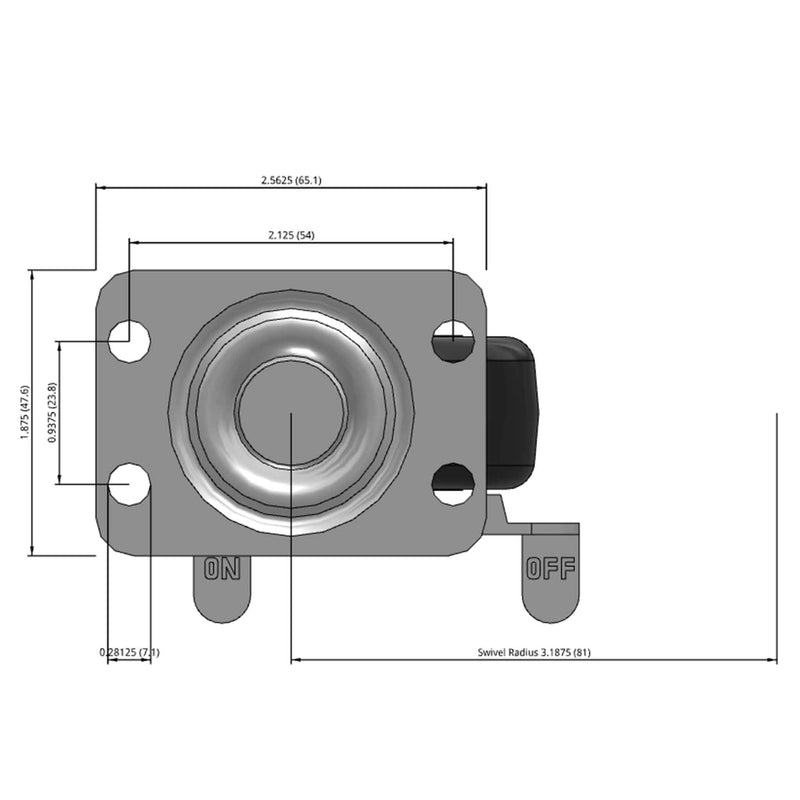

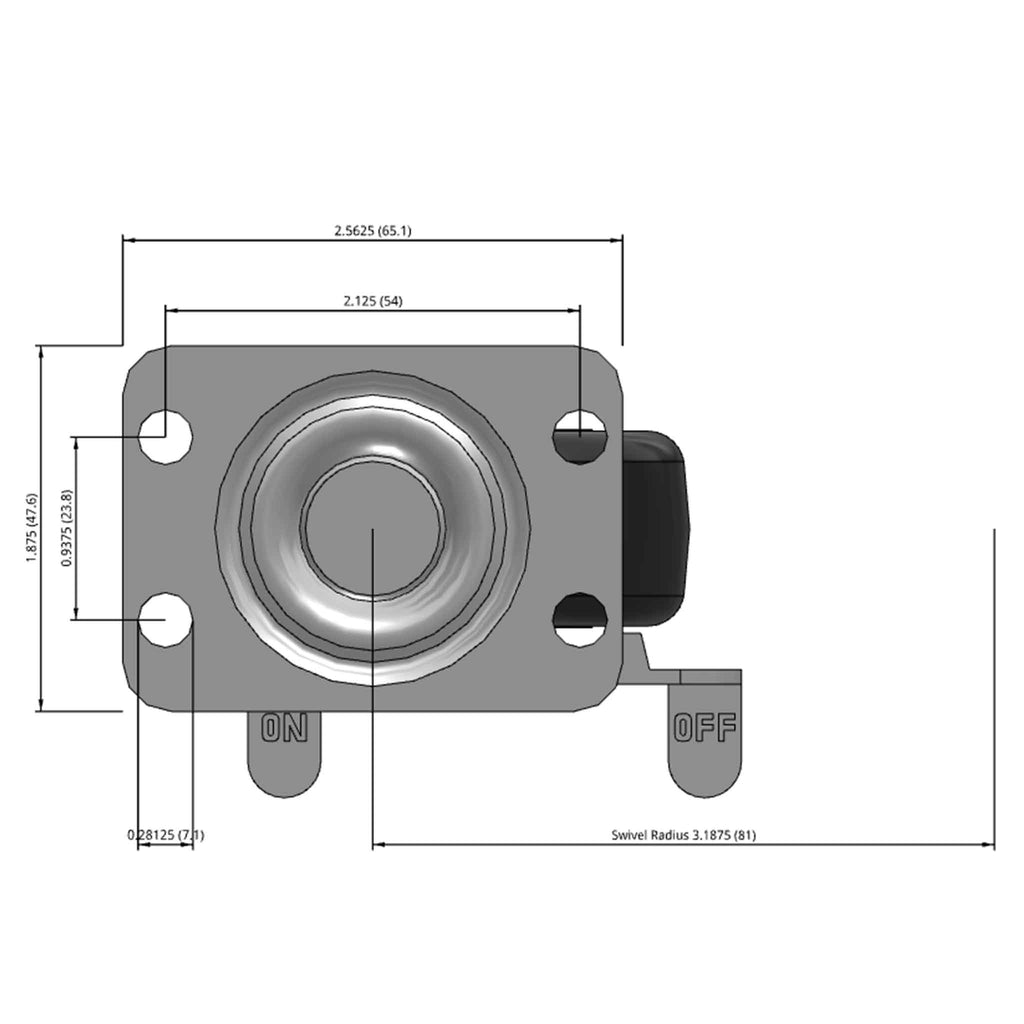

Top dimensioned CAD view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, with a side locking brake, Hard Rubber wheel and 150 lb. capacity part

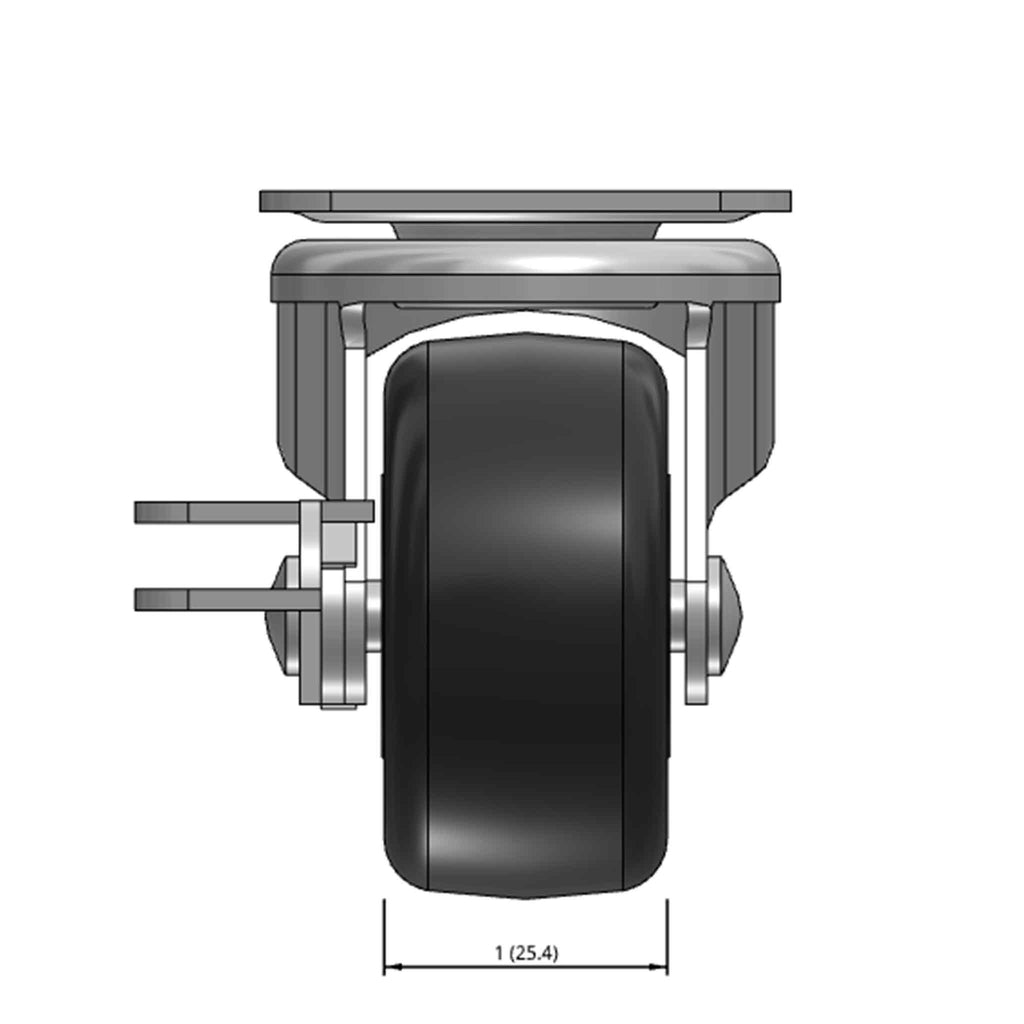

Side dimensioned CAD view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, with a side locking brake, Hard Rubber wheel and 150 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

2" Grey Hard Rubber Wheel General-Duty Swivel Plate Caster with Brake

Name: 2" Grey Hard Rubber Wheel General-Duty Swivel Plate Caster with Brake
Brand: Faultless Casters
SKU: 127-2RSB
Price: 6.07 USD
Availability: InStock

Faultless Casters SKU: 127-2RSB
Fastening: 1-7/8" x 2-9/16" top plate | Load Capacity: 150 lb
Mount Height: 2.5 in | Swivel Radius: 2.5 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-3 days **FREE Shipping on orders over $250**

Price:

$6.07 $6.39

Quantity:

Share this product

This 2" x 13/16" hard rubber general duty rigid dolly caster with cam brake offers high capacity and floor protection at an economical price.Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Part Number:	30HRP20S-CB
SKU	127-2RSB
Series:	30 Series
Raceway Type:	Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway
Brake:	None
Load Capacity:	150 lb
Mounting Height:	2.5 in
Wheel Diameter:	2 in
Wheel Tread Width:	1 in
Wheel Description:	Hard Rubber
Wheel Color:	Grey
Wheel Bearing:	Plain
Wheel Profile:	Flat with Rounded Edges
Wheel Hardness:	75(+/-5) Shore D
Wheel Thread Guards:	None
Fastening:	1-7/8" x 2-9/16" top plate
Bolt Hole Pattern:	15/16" x 2-1/8"
Plate Bolt Size Recommended:	1/4"
Swivel Radius:	2.5 in
Finish:	Zinc Plated
Axle Size:	1/4" diameter
Operating Temperature Range:	-40F° to +158F°
Mfg:	127-2RSB
Warranty:	1 year
Conformity:	Tested to ANSI ICWM:2012 standards for capacity and durability

2" Grey Hard Rubber Wheel General-Duty Swivel Plate Caster with Brake

Description

Product Details

Part Number:

30HRP20S-CB

SKU

127-2RSB

Series:

30 Series

Raceway Type:

Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway

Brake:

None

Load Capacity:

150 lb

Mounting Height:

2.5 in

Wheel Diameter:

2 in

Wheel Tread Width:

1 in

Wheel Description:

Hard Rubber

Wheel Color:

Grey

Wheel Bearing:

Plain

Wheel Profile:

Flat with Rounded Edges

Wheel Hardness:

75(+/-5) Shore D

Wheel Thread Guards:

None

Fastening:

1-7/8" x 2-9/16" top plate

Bolt Hole Pattern:

15/16" x 2-1/8"

Plate Bolt Size Recommended:

1/4"

Swivel Radius:

2.5 in

Finish:

Zinc Plated

Axle Size:

1/4" diameter

Operating Temperature Range:

-40F° to +158F°

Mfg:

127-2RSB

Warranty:

1 year

Conformity:

Tested to ANSI ICWM:2012 standards for capacity and durability
