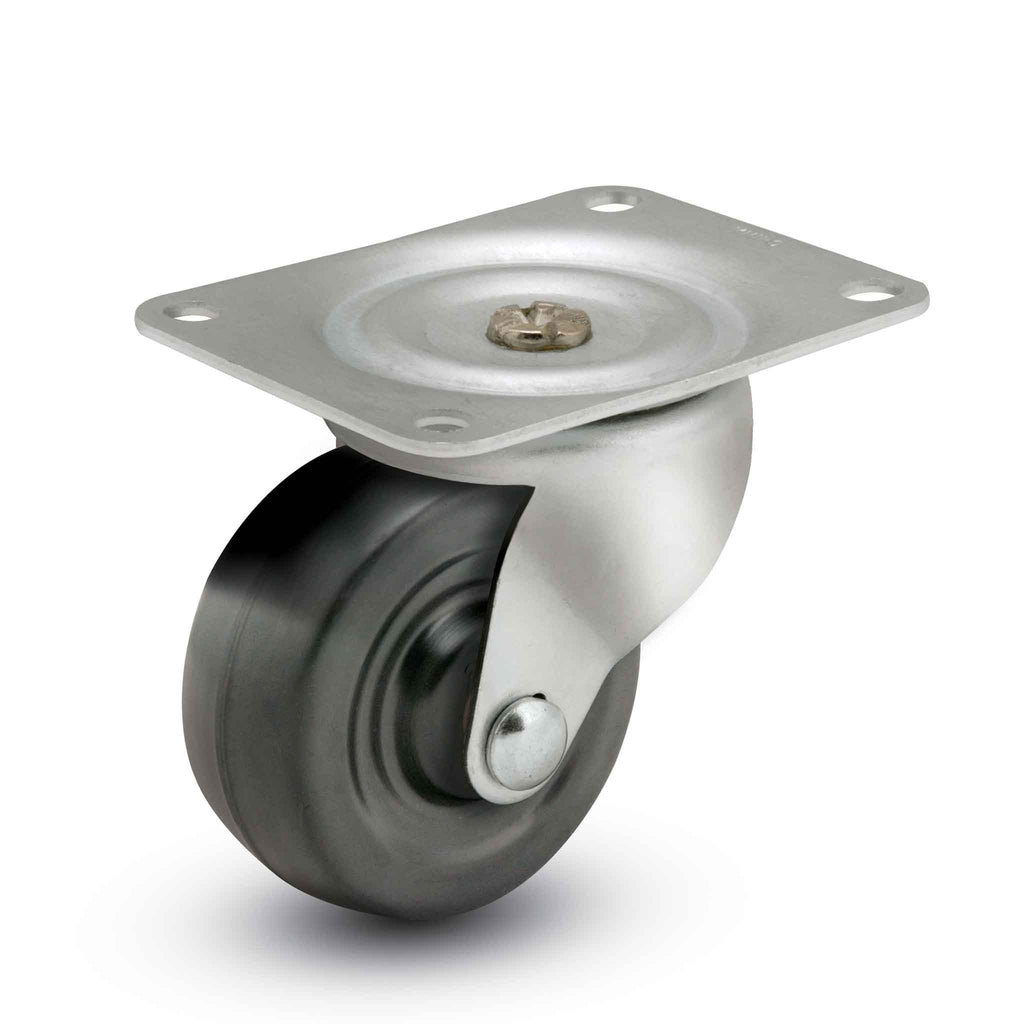

Main view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Soft Rubber wheel and 225 lb. capacity part

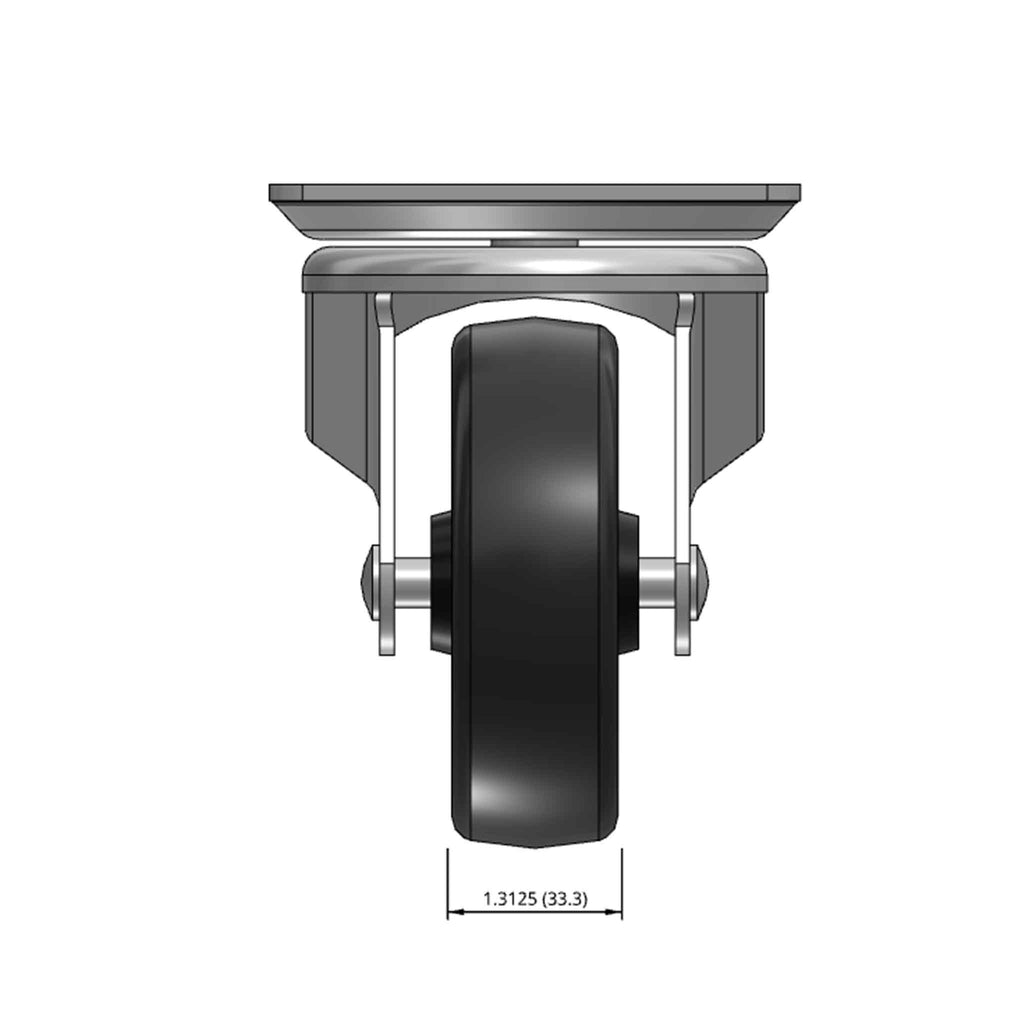

Front dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Soft Rubber wheel and 225 lb. capacity part

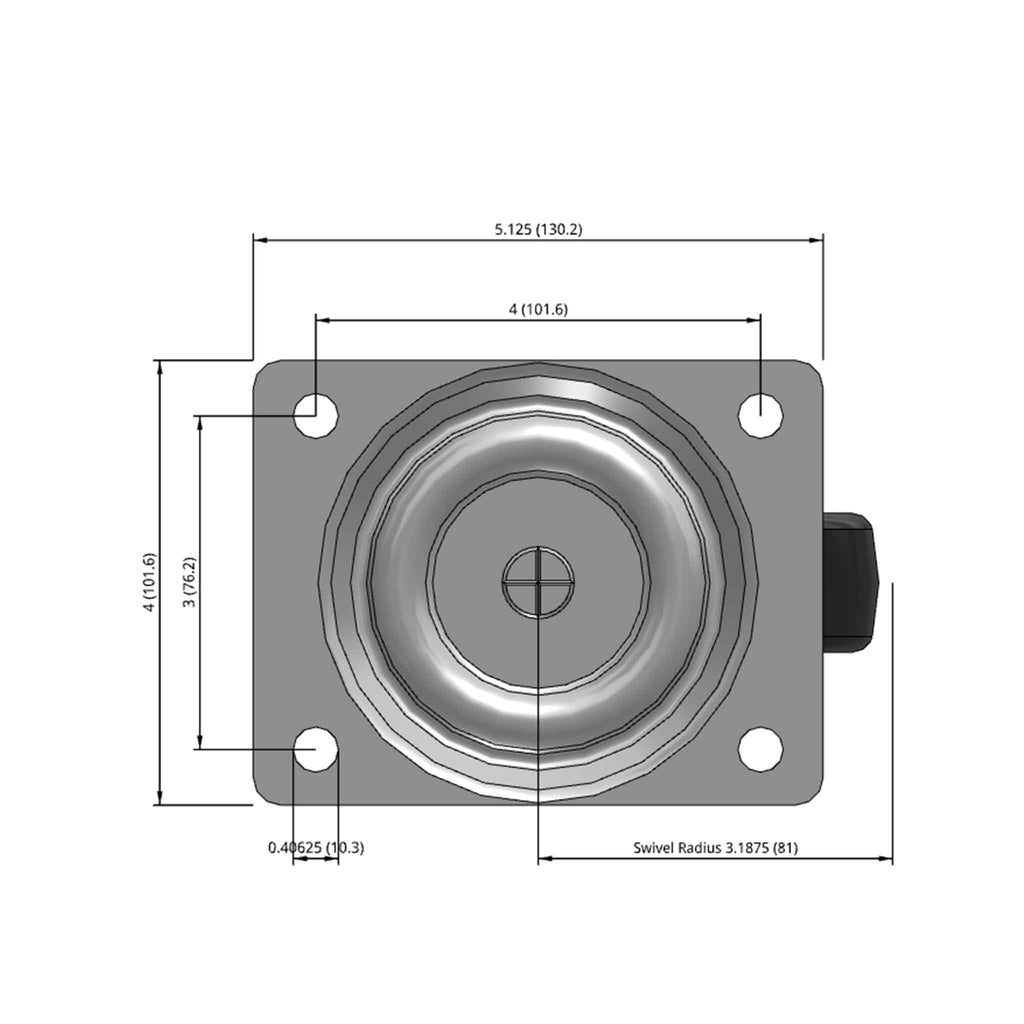

Top dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Soft Rubber wheel and 225 lb. capacity part

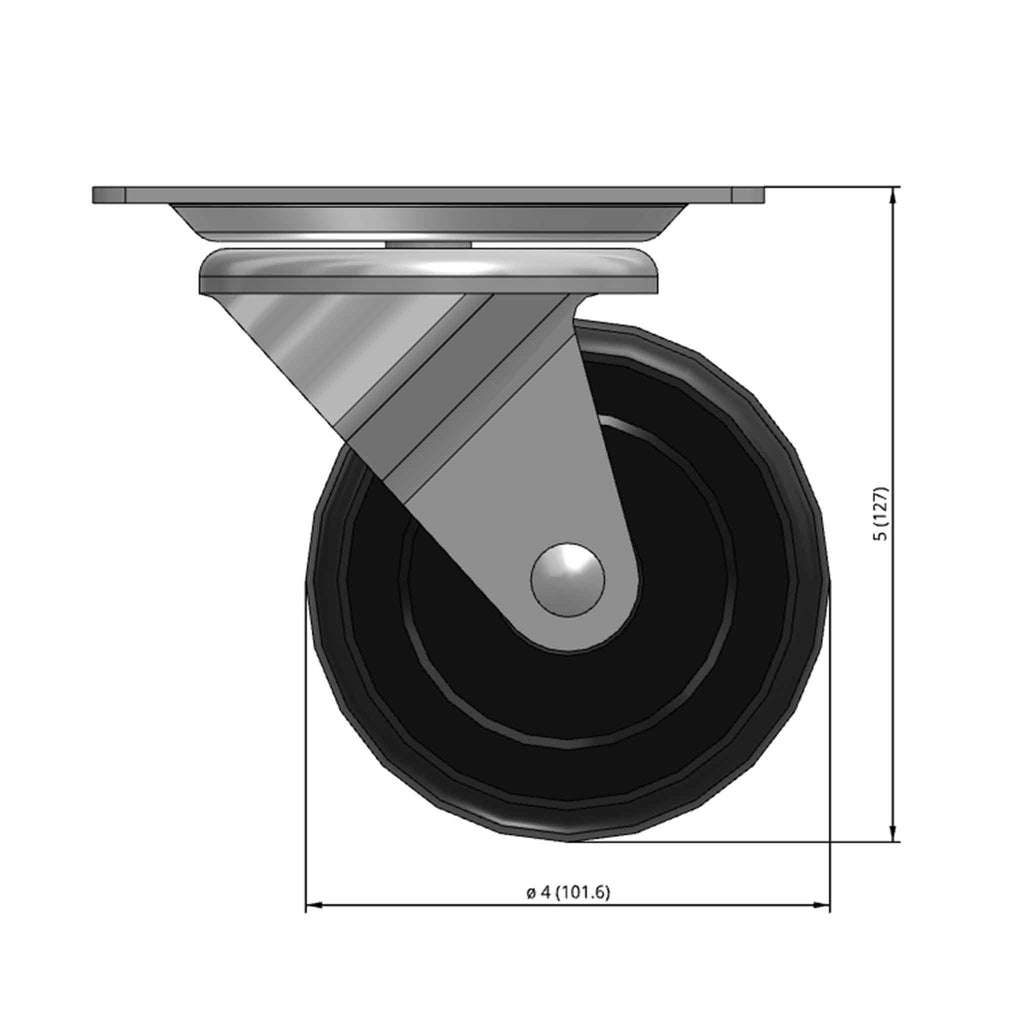

Side dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Soft Rubber wheel and 225 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4" Soft Rubber Wheel General-Duty Swivel Plate Caster

Name: 4" Soft Rubber Wheel General-Duty Swivel Plate Caster
Brand: Faultless Casters
SKU: 121-4R
Price: 21.9 USD
Availability: InStock

Faultless Casters SKU: 121-4R
Fastening: 4" x 5-1/8" top plate | Load Capacity: 225 lb
Mount Height: 5 in | Swivel Radius: 3.19 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-3 days **FREE Shipping on orders over $250**

Price:

$21.90 $23.06

Quantity:

Share this product

This 4" x 1-3/8" soft rubber general duty swivel dolly caster provides a quieter, cushioned ride for more sensative loads or environments.Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Part Number:	30SRP40S
SKU	121-4R
Series:	30 Series
Raceway Type:	Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway
Brake:	None
Load Capacity:	225 lb
Mounting Height:	5 in
Wheel Diameter:	4 in
Wheel Tread Width:	1.31 in
Wheel Description:	Soft Rubber
Wheel Color:	Black
Wheel Bearing:	Plain
Wheel Profile:	Flat with Rounded Edges
Wheel Hardness:	75(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	4" x 5-1/8" top plate
Bolt Hole Pattern:	3" x 4"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	3.19 in
Finish:	Zinc Plated
Axle Size:	7/16" diameter
Operating Temperature Range:	-40F° to +158F°
Mfg:	121-4R
Warranty:	1 year
Conformity:	Tested to ANSI ICWM:2012 standards for capacity and durability

4" Soft Rubber Wheel General-Duty Swivel Plate Caster

Description

Product Details

Part Number:

30SRP40S

SKU

121-4R

Series:

30 Series

Raceway Type:

Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway

Brake:

None

Load Capacity:

225 lb

Mounting Height:

5 in

Wheel Diameter:

4 in

Wheel Tread Width:

1.31 in

Wheel Description:

Soft Rubber

Wheel Color:

Black

Wheel Bearing:

Plain

Wheel Profile:

Flat with Rounded Edges

Wheel Hardness:

75(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

4" x 5-1/8" top plate

Bolt Hole Pattern:

3" x 4"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

3.19 in

Finish:

Zinc Plated

Axle Size:

7/16" diameter

Operating Temperature Range:

-40F° to +158F°

Mfg:

121-4R

Warranty:

1 year

Conformity:

Tested to ANSI ICWM:2012 standards for capacity and durability
