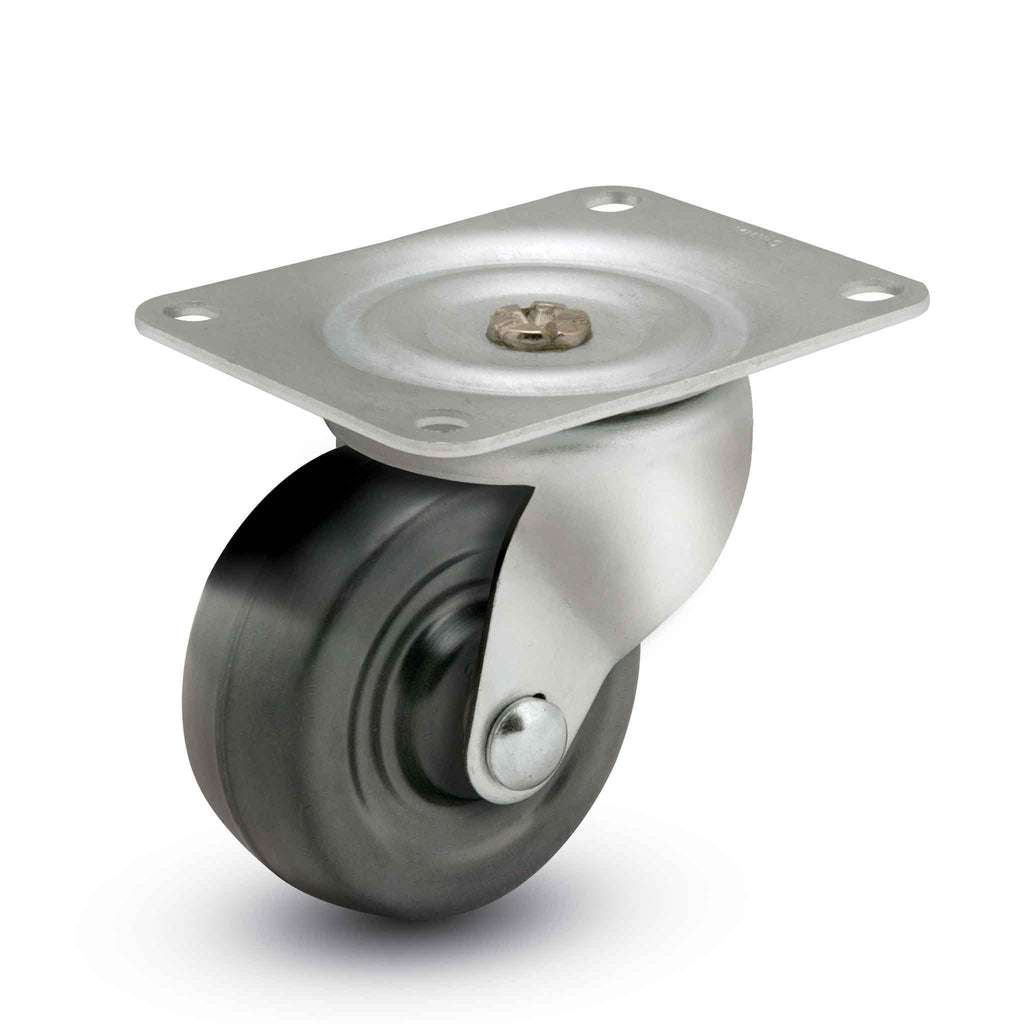

Main view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, without a brake, Soft Rubber wheel and 175 lb. capacity part

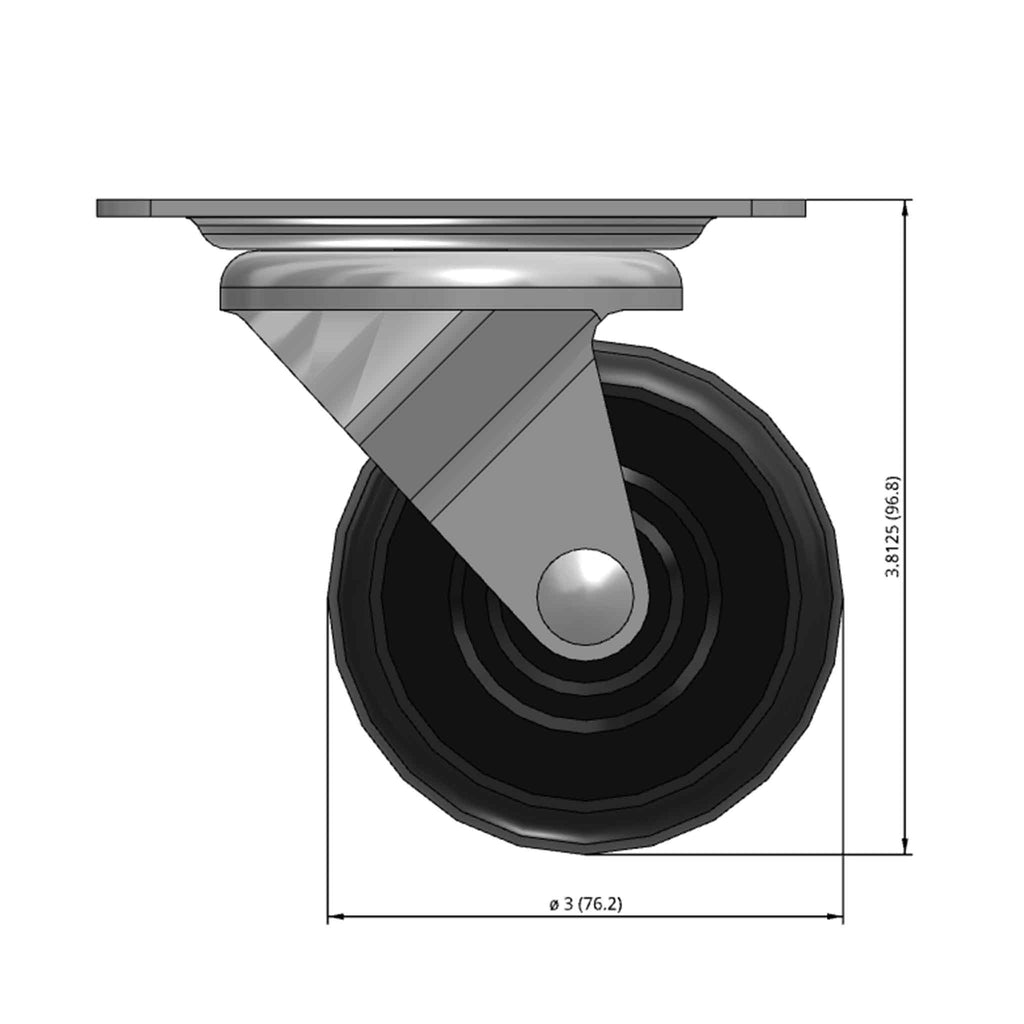

Front dimensioned CAD view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, without a brake, Soft Rubber wheel and 175 lb. capacity part

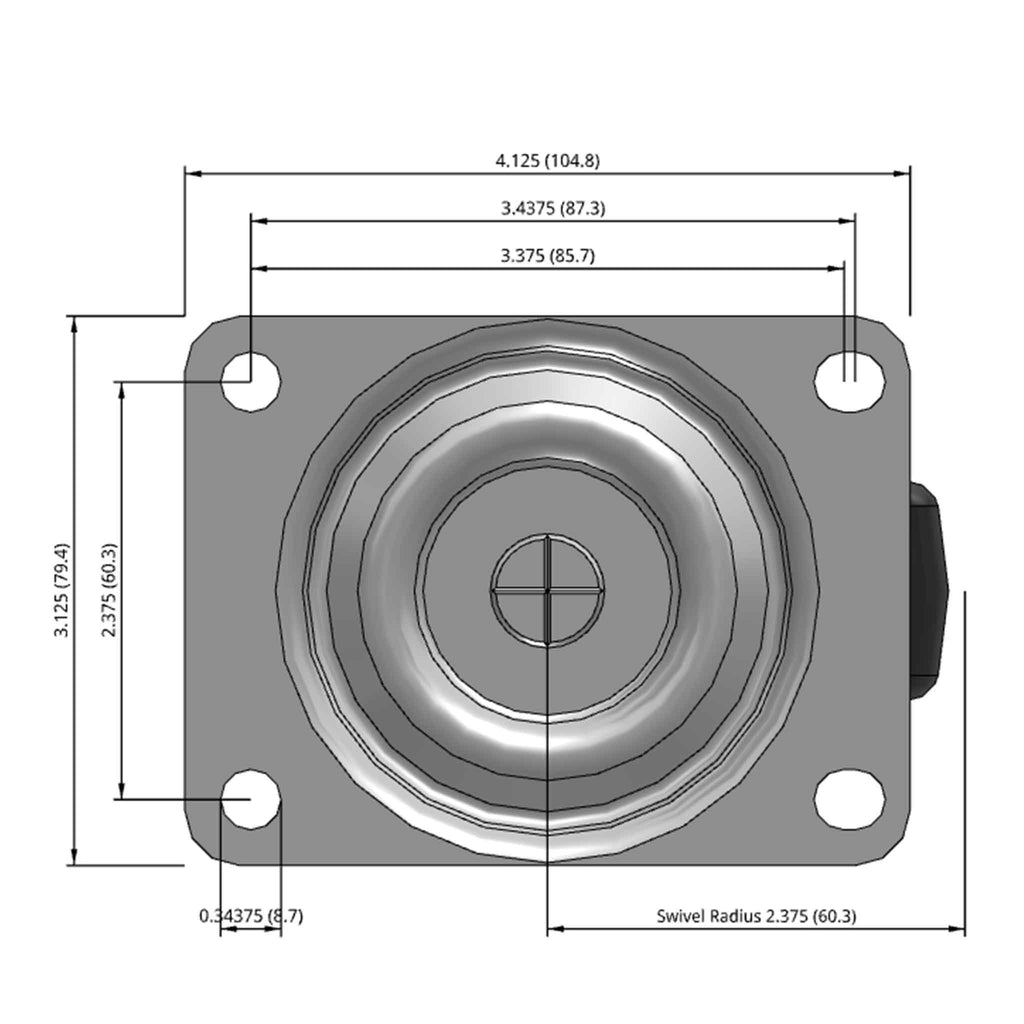

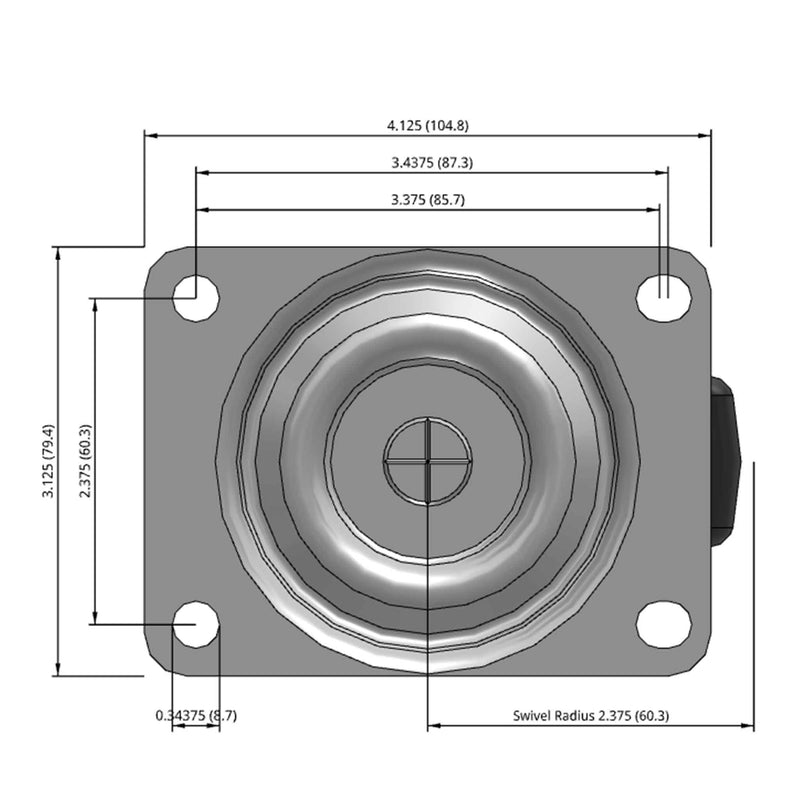

Top dimensioned CAD view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, without a brake, Soft Rubber wheel and 175 lb. capacity part

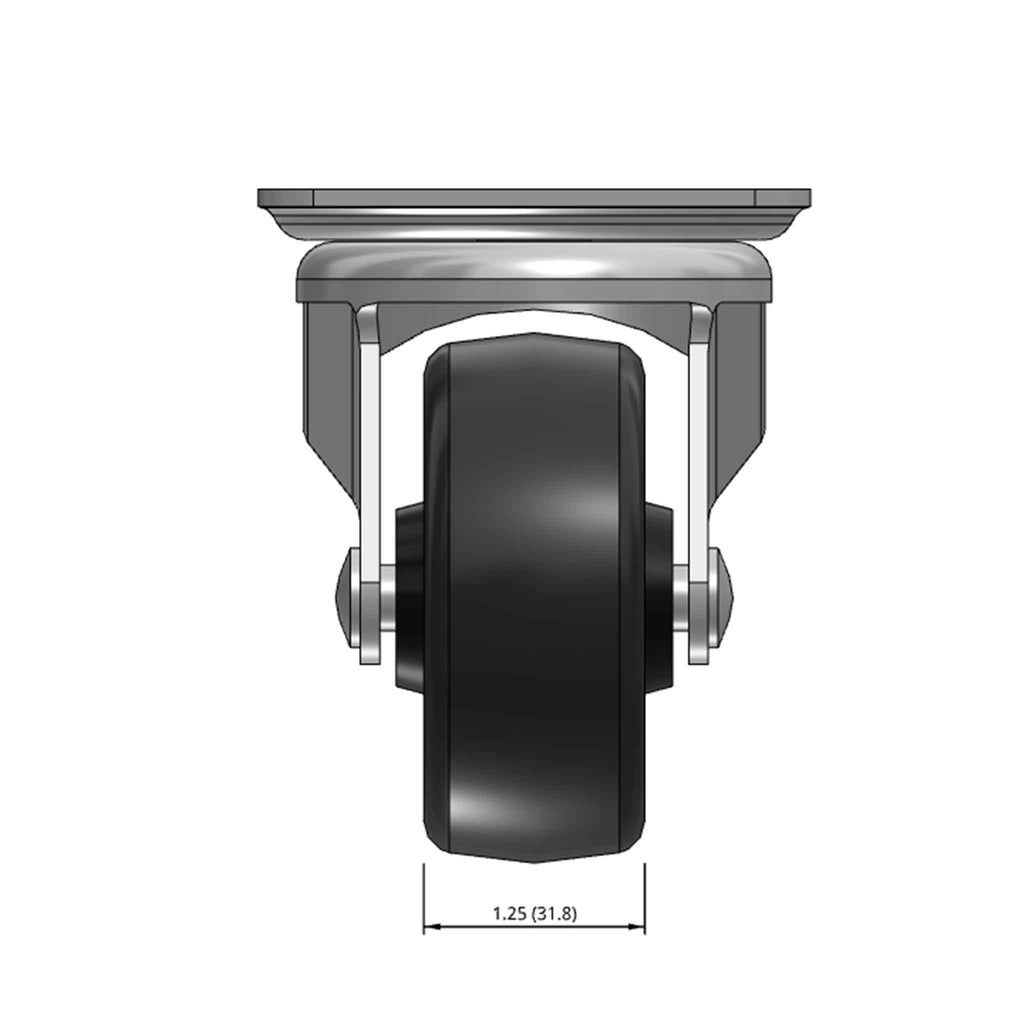

Side dimensioned CAD view of a Faultless Casters 3" x 1.25" wide wheel Swivel caster with 3-1/8" x 4-1/8" top plate, without a brake, Soft Rubber wheel and 175 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

3" Soft Rubber Wheel General-Duty Swivel Plate Caster

Name: 3" Soft Rubber Wheel General-Duty Swivel Plate Caster
Brand: Faultless Casters
SKU: 121-3R
Price: 12.19 USD
Availability: InStock

Faultless Casters SKU: 121-3R
Fastening: 3-1/8" x 4-1/8" top plate | Load Capacity: 175 lb
Mount Height: 3.81 in | Swivel Radius: 2.38 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-3 days **FREE Shipping on orders over $250**

Price:

$12.19 $12.83

Quantity:

Share this product

This 3" x 1-1/4" soft rubber general duty swivel dolly caster provides a quieter, cushioned ride for more sensative loads or environments.Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Part Number:	30SRP30S
SKU	121-3R
Series:	30 Series
Raceway Type:	Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway
Brake:	None
Load Capacity:	175 lb
Mounting Height:	3.81 in
Wheel Diameter:	3 in
Wheel Tread Width:	1.25 in
Wheel Description:	Soft Rubber
Wheel Color:	Black
Wheel Bearing:	Plain
Wheel Profile:	Flat with Rounded Edges
Wheel Hardness:	75(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	3-1/8" x 4-1/8" top plate
Bolt Hole Pattern:	2-3/8" x 3-3/8" to 3-7/16"
Plate Bolt Size Recommended:	5/16"
Swivel Radius:	2.38 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-40F° to +158F°
Mfg:	121-3R
Warranty:	1 year
Conformity:	Tested to ANSI ICWM:2012 standards for capacity and durability

3" Soft Rubber Wheel General-Duty Swivel Plate Caster

Description

Product Details

Part Number:

30SRP30S

SKU

121-3R

Series:

30 Series

Raceway Type:

Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway

Brake:

None

Load Capacity:

175 lb

Mounting Height:

3.81 in

Wheel Diameter:

3 in

Wheel Tread Width:

1.25 in

Wheel Description:

Soft Rubber

Wheel Color:

Black

Wheel Bearing:

Plain

Wheel Profile:

Flat with Rounded Edges

Wheel Hardness:

75(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

3-1/8" x 4-1/8" top plate

Bolt Hole Pattern:

2-3/8" x 3-3/8" to 3-7/16"

Plate Bolt Size Recommended:

5/16"

Swivel Radius:

2.38 in

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-40F° to +158F°

Mfg:

121-3R

Warranty:

1 year

Conformity:

Tested to ANSI ICWM:2012 standards for capacity and durability
