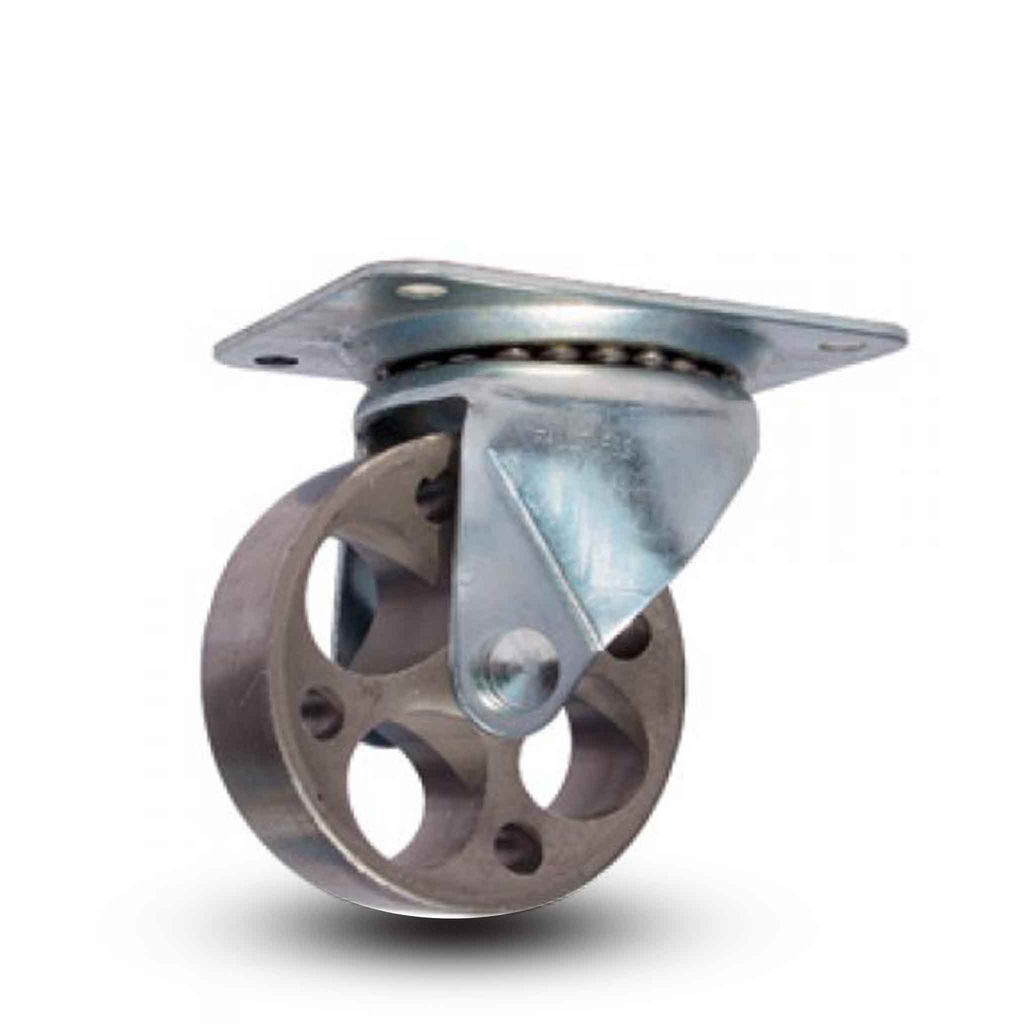

Main view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, without a brake, Sintered Iron wheel and 150 lb. capacity part

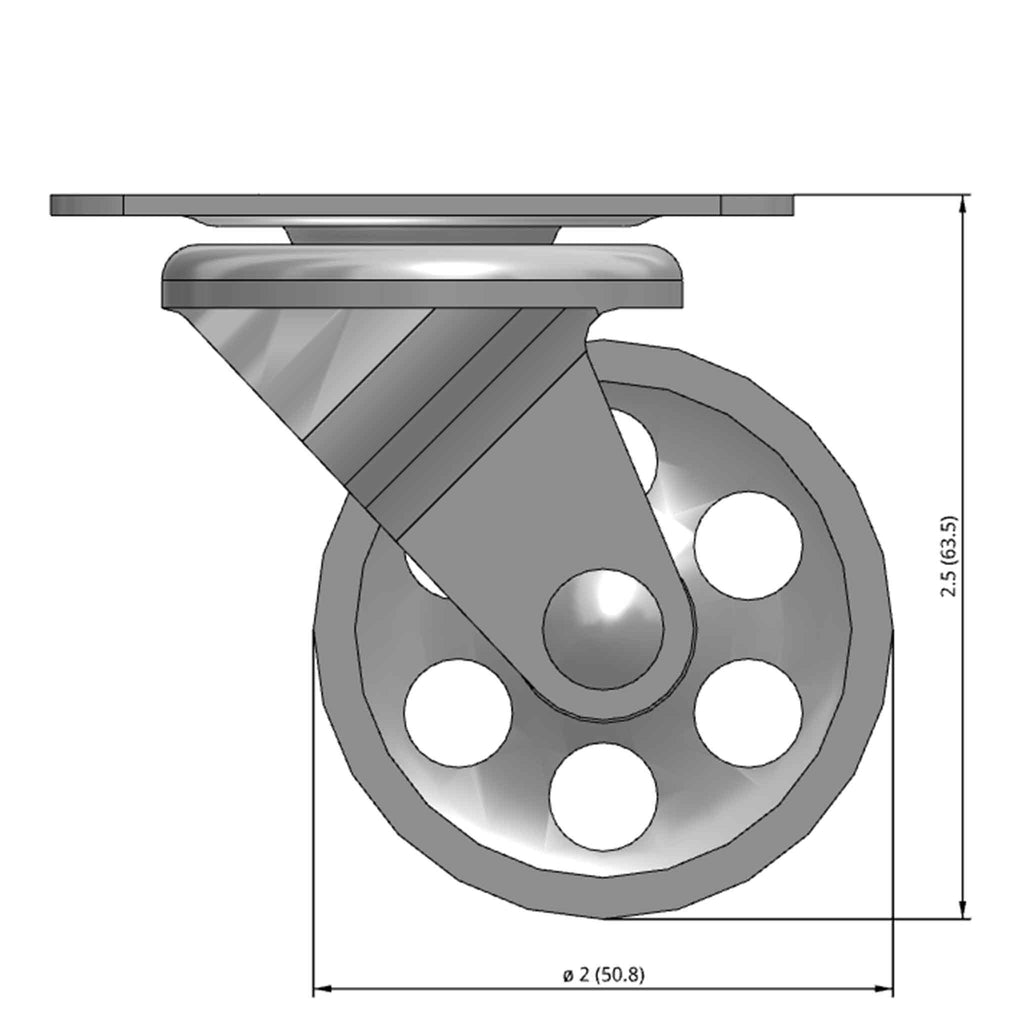

Front dimensioned CAD view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, without a brake, Sintered Iron wheel and 150 lb. capacity part

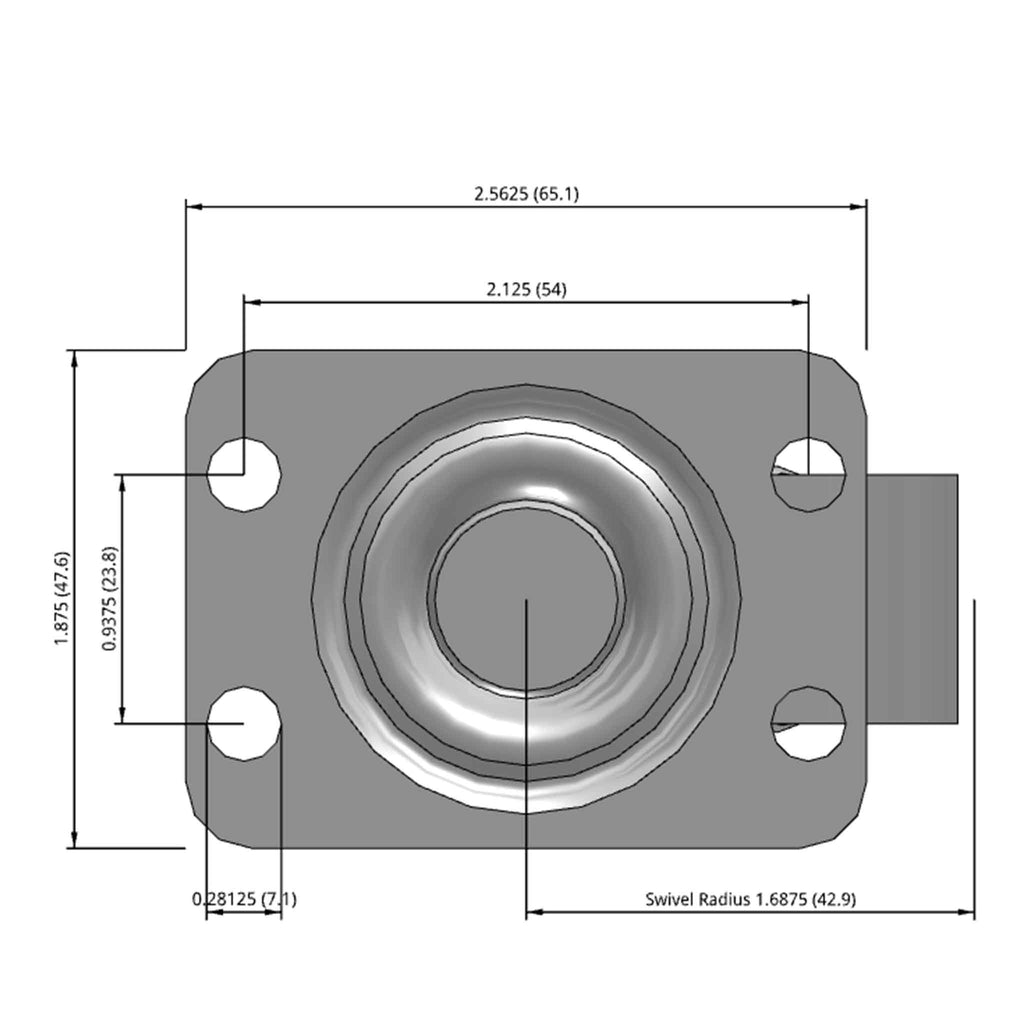

Top dimensioned CAD view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, without a brake, Sintered Iron wheel and 150 lb. capacity part

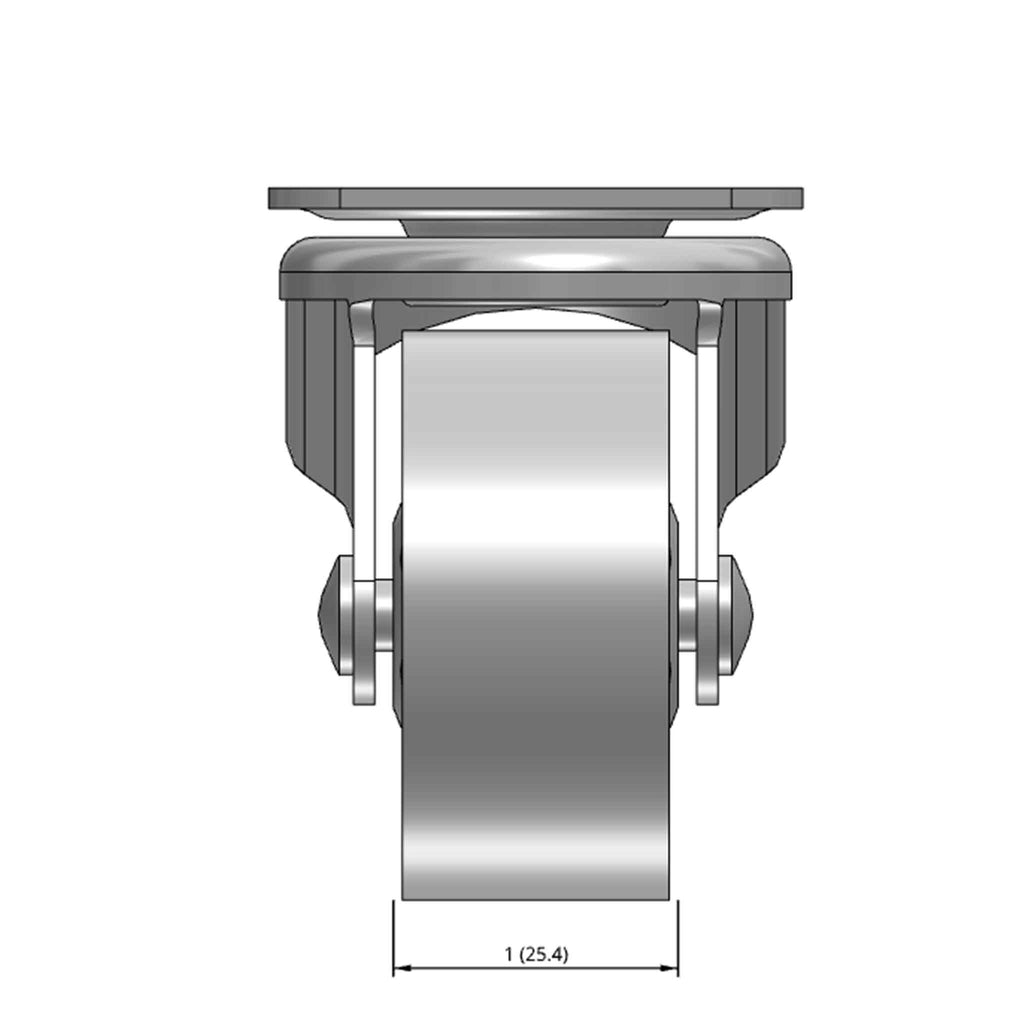

Side dimensioned CAD view of a Faultless Casters 2" x 1" wide wheel Swivel caster with 1-7/8" x 2-9/16" top plate, without a brake, Sintered Iron wheel and 150 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

2" Cast Iron Wheel General-Duty Swivel Plate Caster

Name: 2" Cast Iron Wheel General-Duty Swivel Plate Caster
Brand: Faultless Casters
SKU: 108-2R
Price: 9.01 USD
Availability: InStock

Faultless Casters SKU: 108-2R
Fastening: 1-7/8" x 2-9/16" top plate | Load Capacity: 150 lb
Mount Height: 2.5 in | Swivel Radius: 1.69 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-3 days **FREE Shipping on orders over $250**

Price:

$9.01 $9.48

Quantity:

Share this product

This 2" x 13/16" cast iron general duty swivel dolly caster features high capacity at a low price. Cast iron wheels are ideal for heavy loads in industrial environments, but may damage some floors.Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Part Number:	30CIP20S
SKU	108-2R
Series:	30 Series
Raceway Type:	Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway
Brake:	None
Load Capacity:	150 lb
Mounting Height:	2.5 in
Wheel Diameter:	2 in
Wheel Tread Width:	1 in
Wheel Description:	Sintered Iron
Wheel Color:	Silver
Wheel Bearing:	Plain
Wheel Profile:	Flat Tread
Wheel Hardness:	Brinell 145
Wheel Thread Guards:	None
Fastening:	1-7/8" x 2-9/16" top plate
Bolt Hole Pattern:	15/16" x 2-1/8"
Plate Bolt Size Recommended:	1/4"
Swivel Radius:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/4" diameter
Operating Temperature Range:	-40F° to +500F°
Mfg:	108-2R
Warranty:	1 year
Conformity:	Tested to ANSI ICWM:2012 standards for capacity and durability

2" Cast Iron Wheel General-Duty Swivel Plate Caster

Description

Product Details

Part Number:

30CIP20S

SKU

108-2R

Series:

30 Series

Raceway Type:

Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway

Brake:

None

Load Capacity:

150 lb

Mounting Height:

2.5 in

Wheel Diameter:

2 in

Wheel Tread Width:

1 in

Wheel Description:

Sintered Iron

Wheel Color:

Silver

Wheel Bearing:

Plain

Wheel Profile:

Flat Tread

Wheel Hardness:

Brinell 145

Wheel Thread Guards:

None

Fastening:

1-7/8" x 2-9/16" top plate

Bolt Hole Pattern:

15/16" x 2-1/8"

Plate Bolt Size Recommended:

1/4"

Swivel Radius:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/4" diameter

Operating Temperature Range:

-40F° to +500F°

Mfg:

108-2R

Warranty:

1 year

Conformity:

Tested to ANSI ICWM:2012 standards for capacity and durability
