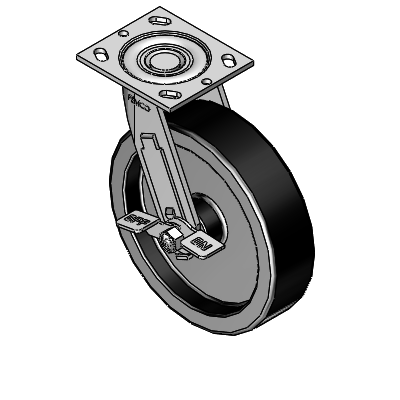

The Pemco ES8X2PODDTBK swivel caster with Side Locking brake features a 8" x 2" Polypropylene HD wheel and a 4" x 4-1/2" Top Plate, capable of a 900 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The E-line is an economical lineup of 2” wide wheel casters with 4” x 4.5” top plates designed and mass-produced for a range of medium-duty applications with load requirements ranging from 300 to 1,250 lbs. per caster. Although economical, many of our wheels are also USA-made, including our Thermo-Rubber (flat and donut), Thermo-Urethane, Phenolic, and Polypropylene HD wheels. From shop carts and containers to platform and lumber carts, the E-Line is your most competitive and in-stock 2" wide solution. If you have large or OEM usage, please contact us for the most competitive price and delivery options—we can produce and deliver large volumes quickly and reliably.
• Double ball raceways for smooth swiveling action
• 1/4" thick steel leg construction on swivel and rigid casters; 3/16" construction on total lock casters
• 5/8" diameter permanent rivet kingpin
• RoHS compliant industrial zinc finish for corrosion resistance
• 1/2" hollow axle with grease zerk and lock nut
• Total lock models are permanently integrated into the swivel fork on total lock models
