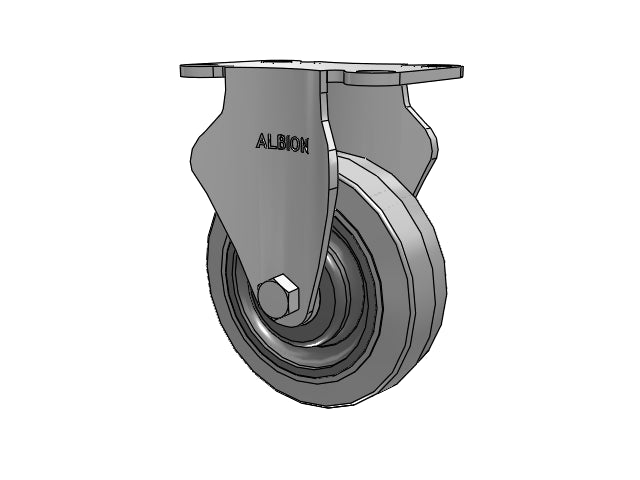

The Albion DCXS04031R rigid caster features a 4" x 1.25" wide wheel and a 3-5/8" x 2-1/2" top plate, capable of a 325 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. An ideal caste solution for dolly applications, the DC Dolly lineup is both economical and durable. All wheels are non-marking, and the XS wheels feature interlocking thread guards to protect them from entangling debris.
• Swivel Section: Double ball raceway for smooth swiveling and performance
• Finish: Zinc-plated finish
• Thread Guards: Interlocking thread guards standard on XS models, keeping out entangling debris for longer life
• Construction: Riveted kingpin construction with nut and bolt axle
• Brakes available by special order, consult Caster Specialists for more information
SKU
|
DCXS04031R
|
Caster Type
|
Rigid
|
Raceway Type
|
Rigid, no raceway
|
Brake
|
None
|
Load Capacity
|
325 lb
|
Wheel Tread Width
|
1.25 in
|
Wheel Description
|
XS - X-tra Soft Rubber (Flat)
|
Wheel Color
|
Grey Tread on Grey Core
|
Wheel Bearing
|
Annular Ball
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
65-75 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
3-5/8" x 2-1/2" top plate
|
Bolt Hole Pattern
|
1-3/4" x 2-13/16" to 3-1/16"
|
Bolt Size Recommended
|
5/16"
|
Mounting Height
|
5.25 in
|
Operating Temperature Range
|
-45°F to +180°F
|
Warranty
|
1 year
|
Manufacturing Number
|
DCXS04031R
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
