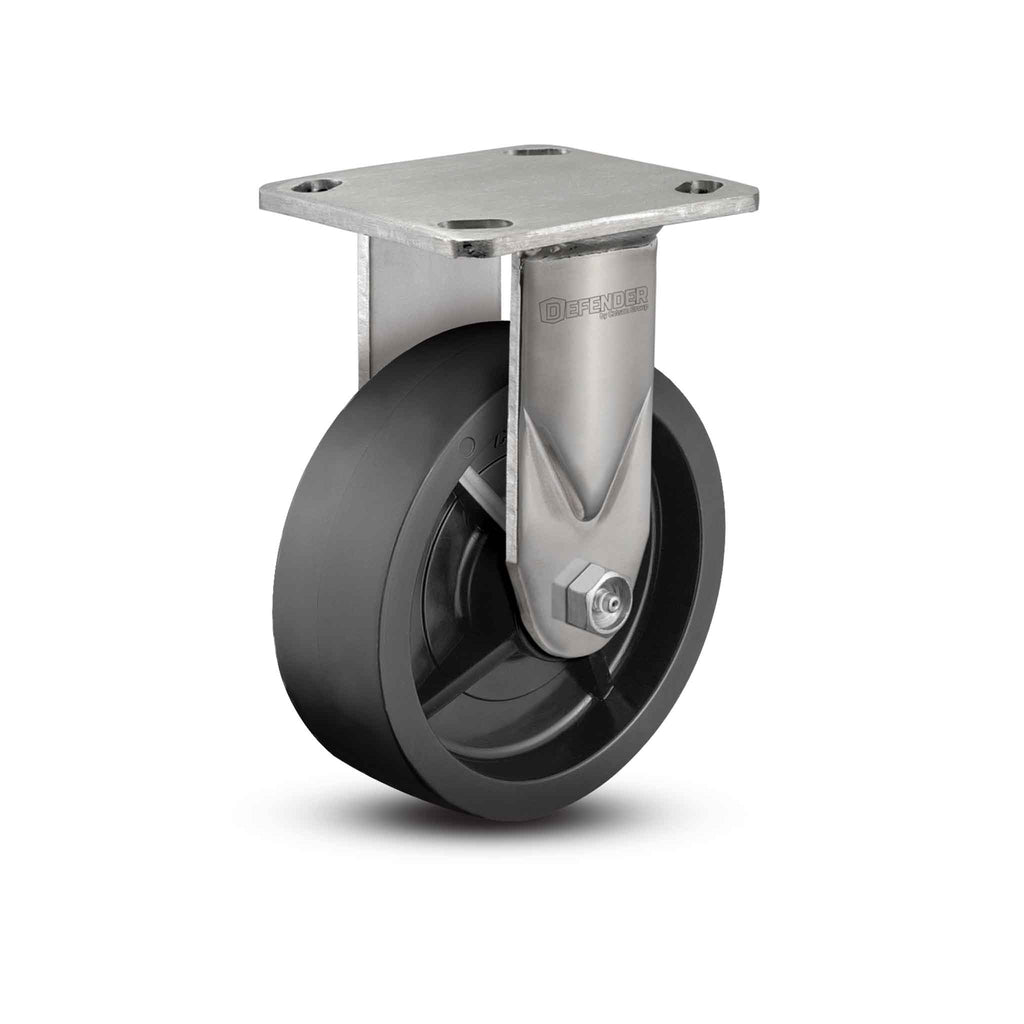

The Colson D4.06108.831 SS rigid caster features a 6" x 2" Polyolefin wheel and a 4" x 4-1/2" Top Plate, capable of a 700 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The Colson D4 Defender is the ideal 2” wide caster solution for customers requiring lasting performance and corrosion resistance. Manufactured from Type 304 stainless steel and polished, this series provides premium features and a critical defense to applications exposed to washdowns, cleaning agents, steam, caustic solutions, and other environmental conditions that eventually cause oxidation and failure in standard casters. From the standard FDA-approved performance food-grade grease, 3/4” permanent rivet kingpin, and top-performing wheels in the industry—including the Performa Rubber wheel—the Defender D4 will continue to perform through the toughest of elements.
• Constructed of highly polished, corrosion-resistant stainless steel (304 Grade)
• Top plate and legs formed from ¼" thick stainless steel for durability
• Legs precision welded to the yoke for strength
• Double stainless steel ball-bearing raceways (with zerk) formed smooth for ease of swiveling
• ¾" 304 Stainless steel permanent rivet kingpin for long swivel life
• Food grade -40°F to 600°F performance grease (FDA approved)
• ½" diameter 304 stainless steel zerk axle standard; solid axle available by special order
• NSF listed
SKU
|
D4.06108.831 SS
|
Caster Type
|
Rigid
|
Raceway Type
|
Rigid, no raceway
|
Brake
|
None
|
Load Capacity
|
700 lb
|
Wheel Tread Width
|
2 in
|
Wheel Description
|
Polyolefin
|
Wheel Color
|
Black
|
Wheel Bearing
|
Delrin
|
Wheel Hardness
|
70(+/-5) Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
4" x 4-1/2" Top Plate
|
Bolt Hole Pattern
|
2-5/8" to 3" x 3" to 3-5/8"
|
Bolt Size Recommended
|
3/8"
|
Mounting Height
|
7.5 in
|
Operating Temperature Range
|
-45F to +180F
|
Warranty
|
3 year
|
Manufacturing Number
|
D4.06108.831 SS
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
